Aqara U300 Manual

Product Introduction

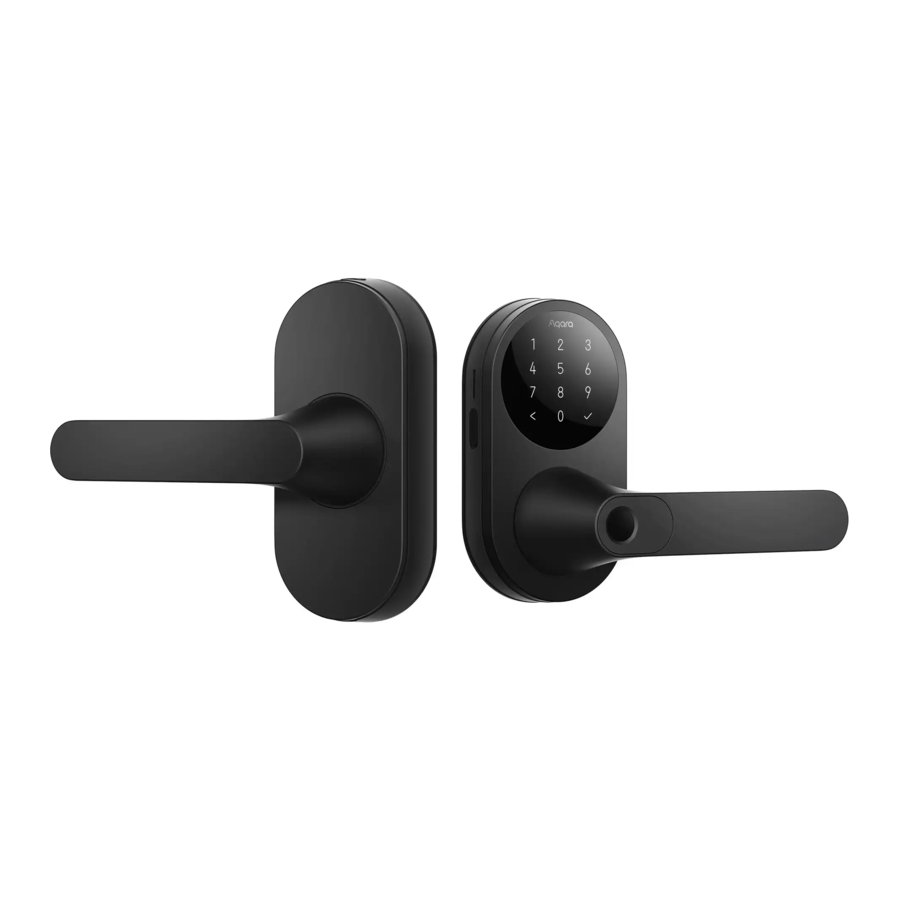

Aqara's first lever lock, designed for both indoor and outdoor use, is ideal for applications like garage entry doors. It features a variety of unlocking methods characteristic of Aqara locks. This includes an ergonomic fingerprint reader on the handle for faster door unlocking than ever before. And, compared to many other lever locks, it comes without any compromise on security.
Product overview

* A 2-in-1 Matter Controller and Thread Border Router is required. Some functions require specific models of the Aqara Hub. Please visit www.aqara.com/en/support.html for more details.

What's in the Box

Instructions before Installation

Before using this product, you need to download the Aqara Home app and register an account. No such operations are required if you directly connect this product with the Apple Home app, however, unique features such as fingerprint recognition, auto-lock, and others will not be able to be experienced.

Aqara Home
Sign up for Aqara Home account, then add Smart Lock U300 and follow the app installation tutorial to install.

Installation Videos
Or scan the above QR code to check the installation video.

For FAQs, visit: https://www.aqara.com/en/product/smart-lock-u300-faq/

A PH1 standard Phillips head screwdriver is required for installation.

Tools needed
Tools necessary only for new doors or adjusting existing door holes: Drill, Hole Saws, Wood Mortise Chisel, Pencil, Tape Measure, Level

Device Installation

  1. Measure the backset: the distance from the edge of the door to the center of the deadbolt hole. It should be 2 ⅜ in (60 mm) or 2 ¾ in (70 mm).
    Device Installation - Step 1
  2. Adjust the latch according to the measurements.


Install directly if it's 2 3/8 in (60mm)


Push the slide upwards, then while holding the release button, pull outward to extend it to 70mm.

  1. Mount the lock onto the door, ensuring during installation that the beveled edge of the lock faces the door frame.
    * The bevel on the latch should face the door jamb
    Device Installation - Step 2
  2. Install the strike plate to the door frame. Two types of screws are provided. Please select the appropriate length based on the actual conditions of your door.
    Device Installation - Step 2
  3. Handle Reversal Instructions: Remove the screws, rotate the handle 180°, and then tighten the screws. For the Outer Panel, the screws should be in the same position as before. For the Inner Panel, tighten the screws on the side closest to the handle.
    Device Installation - Step 3
  4. Install the spindle and the mounting post by inserting the spindle into the hole (if you need to remove the spindle later, you can press diagonally on the release button to pull it out). Then, twist to install the mounting post.
    Device Installation - Step 4
  5. From the outside, pass the Outer Panel through the lock body, and reinforce it with the backplate. Pay special attention to the positions of the Top and the cable.
    Device Installation - Step 5
  6. Connect the Outer Panel's cable to the socket on the Inner Panel, and tuck any excess cable into the mounting hole.
  7. From the inside, secure the Inner Panel to the backplate.
    Device Installation - Step 6
  8. After installing the batteries, the door lock will announce a voice message, indicating the installation is complete.
    Device Installation - Step 7

Device Binding & Initialization

Download the Aqara Home app

Search for "Aqara Home" in the Apple App Store, Google Play, Xiaomi GetApps, Huawei App Gallery, or scan the following QR code to download the Aqara Home app.

www.apple.com

play.google.com

Connect to the Aqara Home app

Once powering on, bring your phone close to the device, open the Aqara Home app, tap the "+" in the top right corner of the homepage, select "Smart Door Lock U300," and follow the prompts in the app.

  1. Aqara Magic Pair Technology: After powering on and initializing the lock, press the Set button to enter pairing mode. The device will then be detectable by the Aqara Home app. Simply follow the app's prompts to pick your device and complete the network setup smoothly.
  2. Network Configuration: Keep your smartphone near the lock throughout the network setup process, ensuring both your internet connection and Bluetooth are active.
  3. Final Confirmation: A second verification is necessary to finalize pairing. Follow the app's instructions to either scan the QR code located on the lock or in the User Manual, or enter the 8-digit pairing code to add the device successfully.

Activating and Setting Up

To activate and set up the Smart Door Lock U300, open its page in the Aqara Home app, press any keypad button to wake the lock, and follow instructions to create an admin. Then, in the app's door lock settings, check for and update to the latest firmware.

Connecting to the Home App or other Matter Ecosystems

After powering up the lock, press the Set button and scan the Matter QR code or enter the code using a third-party app to bind the first ecosystem. Once completed, the Matter QR code becomes invalid. To add a second ecosystem, copy the QR code from the already bound app.

Note that while the Matter ecosystem provides basic functionality, for the best experience, we recommend using the Aqara Home app to add your device.

*After removing the device from the Home app, please reset the lock or reset Matter in local settings page if you need to rebind it to the Matter ecosystem.

*The door lock features supported by each ecosystem may vary. Please contact the technical support of the ecosystem for more information.

Adding Apple home key

(For iOS Users)
After setting up Aqara Smart Lock U300 in the Home app, add a home key to the Wallet app for easy and secure access to your home using your iPhone or Apple Watch.

Device Version Requirements:

  1. To control this Matter-certified accessory, the latest version of iOS or iPadOS is recommended. An Apple Home hub such as HomePod mini, HomePod (2nd generation), or Apple TV 4K (3rd generation Wi-Fi + Ethernet) running the latest software is required.
    Other HomePod or Apple TV models additionally require a compatible Thread border router. To use home keys, iPhone XS or later with iOS 17.1 or later and Apple Watch Series 4 or later with watchOS 10.1 or later are required.
  2. Apple, Apple Watch, HomePod, HomePod mini and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries and regions. The Works with Apple Home badge is a trademark of Apple Inc.
  3. Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple's performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Buttons Introduction

Set Button Single Press: Initiates pairing mode, allowing the app to detect and connect with the door lock within 10 minutes.
Single press (After binding): Enter the local settings page. If an Aqara administrator has been set, administrator credentials are required. If no Aqara administrator has been set, it will enter directly.
Reset Button Long press for 5s: The door lock will be reset. If an Aqara administrator has been set, administrator credentials are required. If no Aqara administrator has been set, it will reset directly.
Local Settings
  1. Add Users: Register new users by their fingerprints, NFC tags, or passwords.
  2. Remove Users: Remove user credentials.
  3. Volume & Language: Adjust the volume and customize language settings.
  4. Matter Reset: Disconnects from non-Aqara ecosystems.
Passage Mode Button Enable Passage Mode: Press the button on the lock and follow the voice prompts to verify the user's fingerprint, password, or NFC.
Disable Passage Mode:
  1. press the Passage Mode Button again, or
  2. use your smartphone to lock it.

U300 doesn't generate a status log when opening the door with the indoor handle or mechanical key.

Detailed Description

Or scan the QR code to access the installation video.

Product Specification

Model: DL-D02D
Operating Temperature:
Outer Panel:-30°C~55°C(-22°F~+131°F)
Inner Panel:-10°C~55°C(14°F~+131°F)
Operating Humidity: 0 ~ 93% RH, no condensation
Powering Modes: 4 AA Batteries (6V ); USB-C Emergency Port (5V )
Wireless Protocols: Thread, Bluetooth, NFC
Dimensions:
Outer Panel: 140 × 76 × 73.5 mm (5.5 × 2.99 × 2.89 in.)
Inner Panel: 159 × 74.5 × 76 mm (6.25 × 2.93 × 2.99 in.)
What is in the Box: Smart Lock U300 × 1, User Manual × 1, Installation Diagram × 1, AA Battery × 4, Mechanical Key × 2, Accessories Kit × 1, Backplate × 1

Online Customer Service: www.aqara.com/en/support.html
Manufacturer: Lumi United Technology Co., Ltd.
Address: Room 801-804, Building 1, Chongwen Park, Nanshan iPark, No. 3370, Liuxian Avenue, Fuguang Community, Taoyuan Residential District, Nanshan District, Shenzhen, China
