Aqara Smart Door Lock N100, ZNMS16LM - smart door lock that supports fingerprint, password, NFC Manual

Product Overview

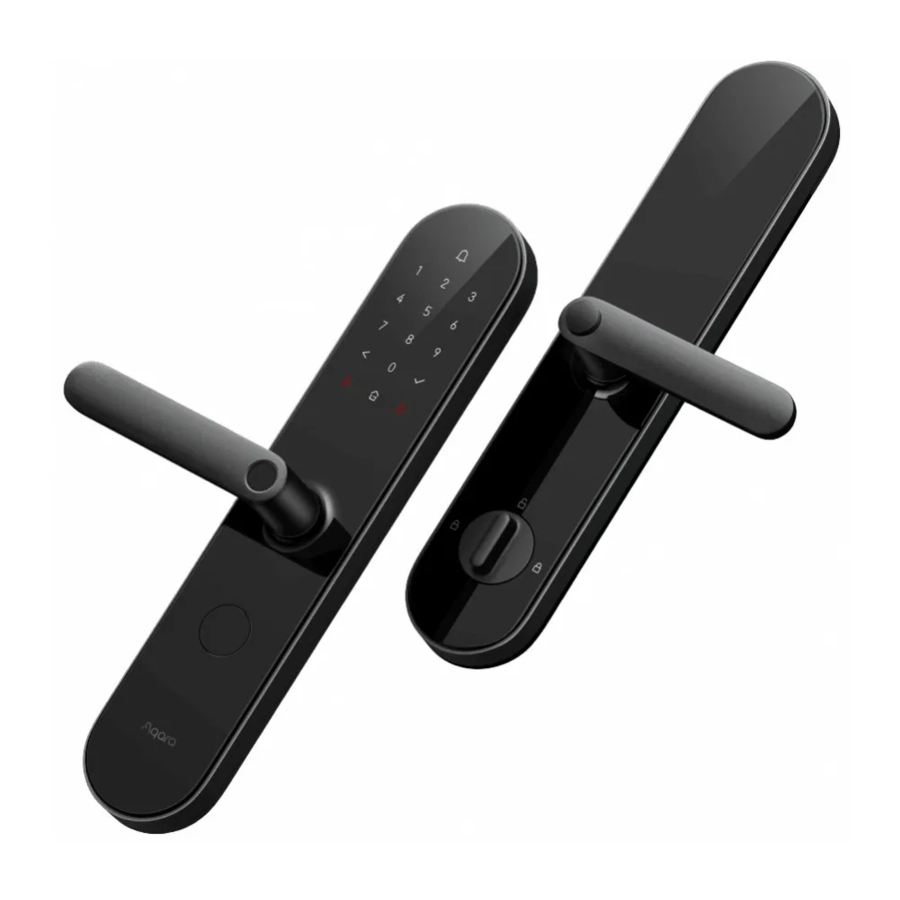

Smart Door Lock N100 is a smart door lock that supports fingerprint, password, NFC, key or HomeKit to unlock a door. It also supports features like door lock status detection, low power alert, prying lock alarm, anti-peephole unlocking, and multiple fingerprint errors alarm. It can also enable the away mode with one button to realize the automation interactions among several smart devices.

* The product needs to be paired with the devices with the hub function to enable relevant functions such as remotely receiving abnormal alarm, remotely viewing unlocking history, smart interactions and the away mode.

Unlock Alarm
Blinking: Door is not closed/locked O : Normal

Verification Indicator Light
White Light Breathes: Verified successfully
Red Light Blinks: Verification failed

Emergency Key hole Cover

1. Press the cover

2. Remove the cover after it pops up


Low Battery Alarm
Blinking: Low battery
O : Normal

Front Panel Handle

Unlock: Pull down the handle after successful verification

Lock: Lift up the handle

Set Button
Short press to pair by Bluetooth if the door lock has not been bound to the App. Short press to enter the Set mode if the door lock has been bound to the App.
Note: A er entering the Set mode, please use Aqara Home App to add the lock and users first.

Back Panel Handle

Unlock: Pull down the handle after pressing the button

Lock: Lift up the handle

Reset Button
Long press for 5 seconds to reset the lock.

Door Lock Knob

Rotate 90° clockwise or counterclockwise

Door Lock Installation

Please hire a professional staff for the installation.

Scan the QR code for more details and video instructions.

Preparations

1. Open the battery cover and insert 8 AA batteries;
   Note: It is recommended to use original batteries as others may leak and thus cause damage to the product when used for a long time.
2. Long press the reset button for 5 seconds and release after you hear a voice prompt, which indicates that you have reset the product successfully.
   Note: Once the product is successfully reset, no users are available in the app and the lock cannot work normally.
   Please complete the setup for the lock as soon as possible according to the instructions.

   Long press for 5 seconds and release after you hear the voice prompt.

Quick Settings

1. Connect to Aqara Home App
   *Scan the QR code to download and install Aqara Home app, or search "Aqara Home"in the App store to download and install.
   *Open Aqara Home App, tap "+" in the upper right corner and follow the instructions to add this product.

   Note: After the door lock is successfully added, it will try to connect to the hub devices available in your account automatically. The effective communication range of the door lock is 10m, but it may be affected by obstacles such as walls.
2. Add Users
   Go to the Lock's page in the App and follow the instructions to add the first user who is the administrator by default.
   Note: The door lock can not work normally without adding users.
3. HomeKit Connection (for iOS users)
   Open Apple "Home"App. Tap "+" in the upper right corner and choose "add accessory". Follow the instructions to scan or type the HomeKit setting code in the door lock back cover or cover of this manual to finish adding (please properly keep the HomeKit setting code).

Daily Use

Verified Successfully: The white indicator light breathes, accompanied by a voice prompt under the unmuted status.
Verification Failed: The red indicator light blinks, accompanied by a voice prompt under the unmuted status.

1. Unlock with Fingerprint
   1. Place the finger whose fingerprint has been added in the App onto the fingerprint sensor.

   2. Pull down the handle to unlock after successful verification. Pull down the handle to unlock after successful verification.

2. Unlock with Password
   1. Enter the added password and press the Confirm button.

   2. Pull down the handle to unlock after successful verification.

3. Unlock with Emergency Key
   1. Press the emergency keyhole cover.

   2. Open the cover after it pops up.

   3. Insert the key and turn it to unlock.

      Note: Please do not keep the emergency key inside the house. Choose an accessible place for safe keeping so that you can use it in emergency situation.
4. Unlock with NFC
   1. Bring the added NFC device close to the NFC reader.

   2. Pull down the handle to unlock a er successful verification.

5. Unlock from Inside
   1. Press and hold the peep hole unlocking button.

   2. Pull down the handle to unlock.

6. Lock from Inside/Outside
   1. Lift up the handle after closing the door.

7. Double Lock from inside
   1. Turn the knob 90° clockwise or counterclockwise to lock.

   2. Turn the lock 90° backwards to unlock.

      For more instructions and product information, please scan the QR code in the "Door Lock Installation"section of this manual. Or follow the App's Help and Guidance.

Local Settings Mode

Should it be inconvenient to use the App to set up the door lock, the following operations can be performed after pressing the "Set" button under the battery cover of the lock and verifying the administrator's fingerprint or password:

1. Add/Delete users
2. Set the door lock volume
3. Set the door lock voice language (supports English/Russian)

Note: Please add the door lock and users to your Aqara Home App first in Local Settings.

Specifications

Name: Smart Door Lock N100
Model: ZNMS16LM
Product code: DZFDS-L-B-II/ZNMS16LM
Dimensions: 380.9*76.9*25mm(panel)
Net weight: 4.2kg
Power supply: AA battery x 8 (6V ). Type-C emergency power supply (5V )
Wireless connectivity: Bluetooth5.0, Zigbee3.0
Operating temperature: -25℃~70℃
Operating humidity: 0~93% RH. No condensation.

User Agreement

1. This product is an accessory that supports Apple HomeKit. If you want to use it remotely or create automation scenes, Apple TV ( the 4th generation and tv iOS 12.0 or above is needed) or iPad (iOS 12.0 or above) or HomePod is required to be the home center and work with iPod, iPhone or iPad (iOS 12.0 or above).
2. The communication between this product and iPhone, iPad, iPod is protected by HomeKit technology.
3. The symbol Works with Apple HomeKit means the accessory is designed for connecting with iPod touch, iPhone or iPad and has passed MFi to meet the Apple function standard. Apple is not responsible for the product operation or the safety of it.
4. The trademarks of Apple, Apple Watch, HomeKit, iPad, iPad Air and iPhone are registered and owned by Apple Inc., registered in the United States or other countries. The HomePod trademark is registered and owned by Apple Inc.

*The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Lumi United Technology Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

Before using the product, please read the manual carefully and keep it properly.

Service website: www.aqara.com/support
Service e-mail: support@aqara.com
Manufacturer: Lumi United Technology Co., Ltd.
Address: 8th Floor, JinQi Wisdom Valley, No.1 Tangling Road, Liuxian Ave, Taoyuan Residential
District, Nanshan District, Shenzhen, China
For more details, please visit www.aqara.com
