Aqara ZNMS11LM User Manual

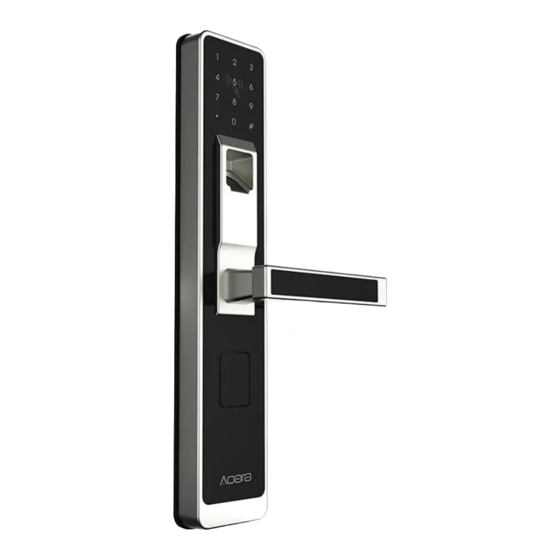

Smart lock Aqara Smart Door Lock
User guide
Overview
The smart lock uses the ZigBee wireless protocol, supports opening with a fingerprint,
password, contactless card and usual mechanical key, has the function of blocking
through the peephole and alarms, according with a device, that has a function of a
network gateway (hereinafter «gateway»), you can configure the alarm mode through
the gateway and synchronize the lock with other smart devices.

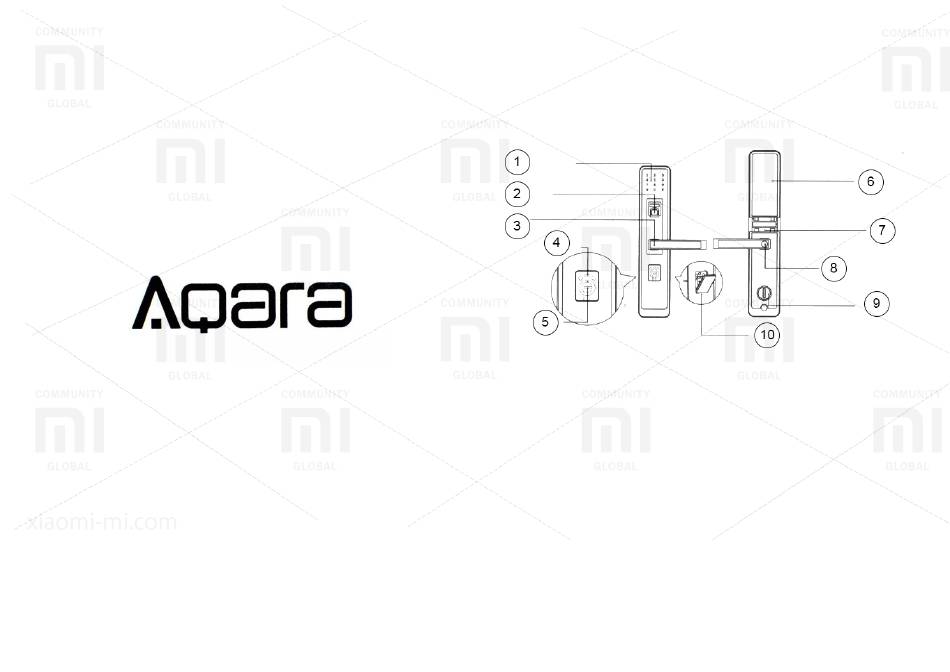

1 - Touch keypad for entering the password;
Reading area of the contactless card;
2 - Fingerprint sensor
3 - Handle;
4 - Micro-USB - power connector for emergency cases (Micro-USB);
5 - Keyhole for emergency cases;
6 - Battery cover slider for batteries;
7 - Hole of the reset button;
8 - Lock button for opening the handle through the door peephole (to open the door, hold
the button and pull the handle down)
9 - Swivel bolt for locking the lock from the back;
10 - To open the keyhole cover, simultaneously press the left and right bottom corner of
the cover.
