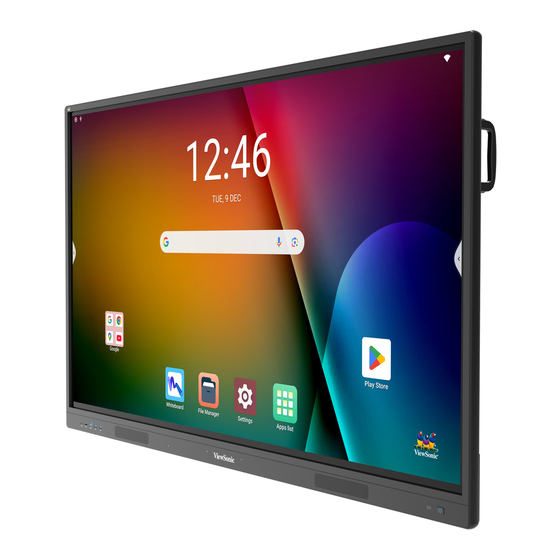

IN01 Series

Commercial Touch Display

User Guide

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in

a safe manner, as well as registering your product for future service. Warranty information contained in this User

Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at

http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.

Model No. VS20038 | VS20039

P/N: IN6501 | IN6501-G | IN7501 | IN7501-G

Need help?

Do you have a question about the ViewBoard IN01 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ViewSonic ViewBoard IN01 Series

Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
Page 2 As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.
Page 3 Do not place any heavy objects on the device or connection cables. • If smoke, an abnormal noise, or a strange odor is present, immediately turn the device off and call your dealer or ViewSonic®. It is dangerous to continue using the device. •...
Page 4 • Only use attachments/accessories specified by the manufacturer. • When a cart is used, use with caution when moving the cart/equipment combination to avoid injury from tipping over. • Disconnect the power plug from the AC outlet if the device is not being used for a long period of time.
Page 5 Contents Safety Precautions ............3 Introduction .............. 10 Package Contents ....................10 Wall Mount Kit Specifications (VESA) ..............11 Product Overview - IN6501 ..................12 Front View ......................12 Rear View ......................12 Control Panel and Front I/O - IN6501..............13 Product Overview - IN7501 ..................14 Front View ......................
Page 6 Using the Display ............32 Turning On/Off the Display ...................32 Initial Launch Setup ....................33 Home Screen ......................36 Negative One Screen ....................37 Status Bar ......................38 Toolbar .........................39 Comments ......................41 Control Panel ......................43 Shortcut Tools ....................... 43 Sidebar ........................46 Applications ......................47 Input Source ......................49 Compass .......................50 Low Blue Light Filter and Eye Health ..............
Page 7 System Settings ............53 Network ........................53 Wi-Fi ........................54 Ethernet ........................ 55 Hotspot ........................56 Bluetooth ......................57 General .........................58 Custom ........................59 Sound ........................61 Display ........................62 Compass ........................ 63 Gesture Interaction ....................65 Screen Record Settings ..................66 Channel .........................67 Channel Image .......................
Page 8 Pre-installed Applications and Settings ...... 78 EShare ........................78 Key Features ......................79 Device Requirements .................... 79 Network Requirements ..................80 Bandwidth Requirements..................80 EShare Application ....................81 Download the EShare Application ................. 81 For Android/iOS Devices ..................82 For Windows/macOS/ChromeOS/Ubuntu Devices ..........88 EShare Pro Receiver ....................93 Key Features ......................
Page 9 RS-232 Protocol ............124 Description ......................124 RS-232 Hardware Specification ................124 LAN Hardware Specification ................125 RS-232 Communication Setting ................125 LAN Communication Setting ................125 Command Message Reference ................125 Protocol ......................126 Set-Function Listing ..................... 126 Set-Function Table (Basic Function) ..............127 Appendix ..............
Page 10 4 inches (10 cm) (10 cm) 4 inches (10 cm) 5m Touch USB Cable (for IN6501) IN01 Series Support Center www.viewsonic.com HDMI cable 3m Touch USB Cable (for IN7501) Compliance Statement Retractable stylus (IN7501 Only) 적합성 선언 Declaration de conformite Hinweise Declaración de conformidad...
Page 11 Wall Mount Kit Specifications (VESA) NOTE: Please follow the instructions in the wall mount installation guide to install your wall mount. If attaching to other building materials, please contact your nearest dealer. Model VESA Spec. (A x B) Standard Screw (C x D) Quantity IN6501 500 x 400 mm...
Page 12 Product Overview - IN6501 Front View TOUCH HDMI Front I/O Speaker Speaker Control Panel Rear View OPS Slot Side I/O Rear I/O Power Switch & AC IN...
Page 13 Control Panel and Front I/O - IN6501 TOUCH HDMI Number Item Description • USB Type B. • USB 2.0 standard. • Touch signal output to external computer. TOUCH • After connection (with an external computer), the device connected to the USB port can directly be used by the external computer.
Page 14 Product Overview - IN7501 Front View TOUCH HDMI Front I/O Speaker Speaker Control Panel Rear View OPS Slot Side I/O Rear I/O Power Switch & AC IN...
Page 15 Control Panel and Front I/O - IN7501 TOUCH HDMI Number Item Description • USB Type B. • USB 2.0 standard. • Touch signal output to external computer. TOUCH • After connection (with an external computer), the device connected to the USB port can directly be used by the external computer.
Page 16 I/O Panels - IN6501/IN7501 Rear I/O HDMI OUT RS232 AUDIO OUT SPDIF Number Item Description • HDMI output. HDMI OUT • Extend content out to another display device. • Supports 4K display; HDMI 2.0. Serial interface; used for mutual transfer of data between RS232 devices AUDIO OUT...
Page 17 Side I/O AUDIO IN HDMI 2 HDMI 1 TOUCH Number Item Description AUDIO IN External computer audio input. • VGA signal input • Connect to a PC with VGA output, set-top box, or other video device. • HDMI input. • Connect to a computer with HDMI output, set-top box, HDMI 2 or other video device.
Page 18 Remote Control Number Description Power on/off Input source selection Scroll up, down, left, right Confirm selection Freeze screen Go to the Home screen Return to previous Switch to OPS Launch the whiteboard Take a screenshot Decrease the volume Mute/unmute Increase the volume...
Page 19 Inserting Remote Control Batteries To insert batteries into the remote control: 1. Remove the cover on the rear of the remote control. 2. Insert two “AAA” batteries, ensuring the “+” symbol on the battery matches the “+” on the battery post. 3.
Page 20 Remote Control Receiver Range The working range of the remote control is shown here. It has an effective range of ° 8 meters, 30 degrees left and right. Please make sure there is nothing obstructing the remote control’s signal to the receiver. TOUCH HDMI...
Page 21 Using Gestures Touch gestures allow the user to use pre-determined commands without using a keyboard or mouse. Using gestures on the ViewBoard, the user can select/deselect objects, change the location of an object, access settings, erase digital ink, and much more. Select and Deselect an Object (Clicking) Press and release the ViewBoard to select/deselect options or objects.
Page 22 Moving an Object Press and hold the object on the ViewBoard and slowly drag it with your finger to your desired location. Erasing Digital Ink Use your flattened hand, palm, or fist on the ViewBoard and move your hand across the area which you wish to erase.
Page 23 Making Connections Connecting to Power 1. Connect the power cord to the AC IN jack at the rear of the display. 2. Plug the power cord plug into a power outlet.
Page 24 Connecting to External Devices and Enabling Touch USB Cable TOUCH HDMI Cable HDMI USB Cable Computer TOUCH VGA Cable Your external device(s) can be connected in any of the following configurations: HDMI Connection To connect via HDMI: 1. Connect an HDMI cable from your external device to the HDMI/HDMI 1/HDMI 2 port on the display.
Page 25 RS-232 Connection RS-232 Computer When you use a RS-232 serial cable to connect the display to an external computer or control system, certain functions can be controlled remotely such as: power on and off, volume adjustment, input select, brightness, and more.
Page 26 USB Connection Just like any PC, it is easy to connect various USB devices and other peripherals to the display. USB Type A USB Device Plug the USB device or storage drive into a USB Type A port of the display. USB Type C USB Device Plug the USB device or storage drive into the USB Type C port of the display.
Page 27 Network Connection Network To connect to a local network, connect an Ethernet cable to your network, then connect the other end to a LAN port of the display.
Page 28 Media Connection HDMI IN Media Source To connect to a media source: 1. Connect an HDMI cable to a HDMI port on the display and peripheral device. Press the INPUT button on the remote control and switch to the HDMI input source.
Page 29 Audio Connection The display supports Audio In, Audio Out, and SPDIF. Audio In To play audio from your external device through the display’s speakers, connect one end of an audio cable to your external device, and the other end to the display’s AUDIO IN port.
Page 30 Video Output Connection (HDMI Out) HDMI OUT Projector To output video via a display device: 1. Connect an HDMI cable to the HDMI IN port of your display device, and the other end to the HDMI OUT port of the display. Press the INPUT button on the remote control and switch to the HDMI IN input source.
Page 31 Optional Connections The display comes with an OPS Slot for an optional add-on such as a slot-in PC (e.g., VPC-25-O). Slot-in PC (OPS Slot) Installation 1. Carefully insert the slot-in PC into the OPS Slot of the display. 2. Secure the slot-in PC to the display.
Page 32 Using the Display Turning On/Off the Display 1. Make sure the power cord is connected, plugged into a power outlet, and the Power Switch is in the “on” position. NOTE: The Power Switch is located at the rear of the display. 2.
Page 33 Initial Launch Setup When you first turn on your display, an initial setup wizard will launch. 1. Choose your preferred Language. 2. Setup and connect to a network.
Page 34 3. Set and adjust the Date and Time. 4. Enter a name for the display.
Page 35 5. Complete the initial setup.
Page 36 Home Screen After the display is turned on and setup the Home Screen will load. Item Description Input source preview window. Select the arrow in the top right corner to collapse the preview window. Source Window Digital whiteboarding application. Whiteboard Wireless screen sharing application.
Page 37 Negative One Screen On the Home Screen you can slide left and right. The left negative one screen displays the input source and the right screen displays an application.
Page 38 Status Bar The Status Bar shows the device name and network status. Item Description Shows the name of the display. Device Name Shows the network name and status. Network Status Shows the Wi-Fi network name and status. Wi-Fi Status...
Page 39 Toolbar The Toolbar is where your applications and tools can be found. Trigger icons are on the edge of the launcher for quick access. To launch an application or tool: 1. Select a Toolbar trigger icon. 2. Select the application or tool icon. Item Description Return to the previous operation screen.
Page 40 Item Description Select and change the input signal. Input Source...
Page 41 Comments Select the Comments icon ( ) in the Toolbar or on the Compass to start annotating on screen. Item Description Close the Comment feature. Close Save the content of the canvas. Save Annotate on screen. Select the icon to adjust the line thickness and color.
Page 42 Item Description Change the Comments’ toolbar position. Switch...
Page 43 Control Panel The Control Panel is divided into three sections: Shortcut Tools, Sidebar, and Applications. Shortcut Tools Item Description Enable or disable LAN connection. Ethernet Enable or disable Wireless network connection. Wireless Enable or disable the hotspot function. Hotspot Enable or disable Bluetooth connection. Bluetooth Take a screenshot of the current screen and resize.
Page 44 Item Description Reduce the blue light emission of the screen. Vision Care Enable or disable the Touch Sensor function. NOTE: When enabled, the brightness of the screen will reduce by 30% when touched. The brightness level will return to Touch Sensing normal after five seconds without touch.
Page 45 Item Description Power off the display. Power Off Restart the display. Restart Freeze the current screen to write annotations. Freeze Screen Turn off or turn on the sound. Mute Concentrates the screen backlight in a designated area and the rest is dark. You can adjust the size of the spot area, or adjust the darkness of the rest of the area.
Page 46 Sidebar Set the behavior of the trigger icons and quickly adjust the volume and brightness levels. Item Description Adjust the sound level. Volume Adjust the screen brightness level. Brightness...
Page 47 Applications View and open installed applications. Long pressing the application icon will give the option for Multi-Window. Applications can be accessed from the Toolbar, directly from the Home Screen, or by selecting the More Apps icon (...
Page 48 Multi-Window Multi-Window allows the user to open up to four smaller application windows at the same time. There are two methods to use Multi-Window: 1. From More Apps After selecting the More Apps icon ( ), long press the application and select Free window from the pop-up window.
Page 49 Input Source Item Description Select and change the input signal. Input Source...
Page 50 Compass The Compass acts as a quick access method to select features and applications. To activate the Compass, long press the display’s screen with five fingers. NOTE: Please make sure Compass is enabled in: System Settings > General > Compass.
Page 51 Low Blue Light Filter and Eye Health The low blue light filter blocks high-energy blue light for a more comfortable viewing experience. Calculating Breaks When viewing screens for extended periods, it is recommended to take periodic breaks from viewing. Short breaks of at least 10 minutes are recommended after one (1) hour of continuous viewing.
Page 52 Eye and Neck Exercises Eye Exercises Eye exercises can help minimize eye strain. Slowly roll your eyes to the left, right, up, and down. Repeat as many times as needed. Exercises for the eyes (1) Keep the body and the (3) Move the eyes to look (2) Move the eyes le and head upright.
Page 53 System Settings Network Set up and manage Wi-Fi, Ethernet, Hotspot, and Bluetooth settings.
Page 54 Wi-Fi Setup and manage wireless access points. Item Description Turn Wi-Fi on or off. Refresh the available networks list. Add a hidden network by entering the network’s name and password. Connect to the listed network.
Page 55 Ethernet Set the local network and proxy. Item Description Turn Ethernet on or off. Manually enter the IP address, default gateway, subnet mask, Auto Acquire DNS1, and DNS2 settings. Configure Select any network in the list and enter the login password to Manually connect.
Page 56 Hotspot Set and share the display’s internet connection with other devices. Item Description Turn Hotspot on or off. Hotspot Shows the current hotspot password. Select Change to modify Password the hotspot password. Devices Shows the devices that are connected to the hotspot. Connected Blacklist Shows the blocked devices that cannot connect to the hotspot.
Page 57 Bluetooth Manage connections, set the device name and discoverability, and share files. Item Description Turn Bluetooth on or off. File Received Show all received files. Bluetooth Set the name of the display’s Bluetooth name. Name Paired Device Shows all connected devices. Available Shows all available devices that can be connected to.
Page 58 General Set up and manage Custom, Sound, Display, Compass, Gesture, and Screen Recording settings.
Page 59 Custom Item Description Choose from two themes that will modify the layout of the Home Theme Screen. The system provides 10 wallpapers by default. Select any of the Wallpaper images to change the wallpaper. Select the add icon to add a custom wallpaper.
Page 60 Item Description Item Description Reminder Set reminders on the Home Page. Small When enabled, the user name and Wi-Fi Components Status bar information will be displayed in the top left corner of the screen. Channel preview The preview window on the Home Screen will display information about the signal source.
Page 61 Sound Item Description Volume Adjust the sound level. Max volume Set the maximum volume level. Balance Adjust the left and right channel balance. Sound mode Select from one of the preset modes or create your own. When connected to a USB or Bluetooth audio device, the device Sound output name will be displayed.
Page 62 Display Item Description Brightness Adjust the background black levels of the screen image. Pager mode Simulate the display effect of different types of paper. Image mode Select from one of the preset modes or create your own. Color Adjust the color appearance using the Kelvin scale. temperature...
Page 63 Compass Item Description Turn the Compass feature on or off. Auto fold Set the display time of the Compass. Folded into small circles The floating ball will turn into small circles. Folded state Fade away The floating ball will gradually disappear. Compass style Set the style of the compass: circle or list.
Page 64 Item Description Custom compass Customize the Compass applications.
Page 65 Gesture Interaction Item Description Activate Long press the display’s screen with five fingers to activate the compass Compass. Sleep/wake When enabled, double tapping the display’s screen with two fingers will lock the screen/wake it. When enabled, using three fingers to swipe down from the top of the screen will move the entire screen down.
Page 66 Screen Record Settings Item Description Screen Record Set the recording resolution. resolution Sound source Set the sound source for recordings. Screen Record Set the maximum recording time. time limit...
Page 67 Channel Set up and manage input source settings. After successfully connecting to HDMI OUT, HDMI OUT Settings will appear and users can choose the corresponding resolution output.
Page 68 Channel Image Item Description Scale Mode Set the display scale of the current input source on the display. PC Mode Set the screen display mode.
Page 69 More Settings Item Description Redirect Automatically redirect channels when there is no signal in the when there is current channel. no signal Automatic When the system is running, it will automatically redirect after redirection connecting to the signal source. When the display is in standby or sleep mode, automatically Auto wake up wake up the device.
Page 70 System Set up and manage Date & Time, Language & Input method, Power Status, System Update, and System Security settings.
Page 71 Date & Time Item Description Auto update Automatically synchronize network time when there is an time internet connection. Adjust the date and time. Date & Time NOTE: Automatic updates need to be turned off to manually adjust the date and time. Date format Select the preferred formatting style.
Page 72 Language & Input Method Item Description Input method Select the preferred input method. System Select the preferred language for the display’s system. Language...
Page 73 Power Status Item Description Power on Set the display’s status after being turned on. status When enabled, the display’s screen will turn off after a set Auto sleep period of inactivity. Auto power Set the display to automatically shut down after no signal or after entering sleep mode.
Page 74 System Update Item Description Displays the current firmware version. Selecting the refresh icon System will detect the latest version available. When there is a new update version available, an update button will show on screen.
Page 75 System Security Item Description Set a pattern or password to lock the display. If you forget the User password, you can only restore the display through factory Management reset. Auto screen Set the lock screen time. lock When enabled, insert the USB drive with the lock screen key to lock or unlock the display’s screen.
Page 76 Item Description Allows unknown sources to Allow installation of applications from unknown sources. install third- party App...
Page 77 About Item Description Device name Edit the name of the display. Running Shows the used memory and total memory ratio. memory Storage space Shows the used storage and total storage ratio. Resolution Shows the display’s current resolution. Android Shows the current version of Android. version CPU cores Shows the total number of CPU cores.
Page 78 Pre-installed Applications and Settings EShare EShare is a full-featured multi-screen interactive software designed for casting, wireless display, and remote control between mobile devices (e.g., phones, tablets, laptops, etc.) and large format displays.
Page 79 Key Features Item Description Mirror client device screens (supporting iPhone, iPad, Android, MacBook, Chromebook, Windows, Ubuntu, etc.) to the display, Mirroring and use touch control on the display to wirelessly control client devices. Share files (such as audio, video, photo, office document, PDF, File Casting etc.) from phones or tablets to the display.
Page 80 Network Requirements When using EShare on your network, please use the below ports. Port Type Service or Protocol Used By Hypertext Transfer Protocol (HTTP, HTTPS) Destination: 80/443 WebCast casts.app gw.casts.app h1.ee-share.com 1900 Simple Service Discovery Protocol (SSDP) Bonjour 51010-51060 EShare Proprietary EShare Apps, AirPlay 8121, 57395, 8080, 52025,...
Page 81 EShare Application Download the EShare Application NOTE: Please make sure the client device (e.g., phone, laptop, etc.) is connected to the same network as the display. 1. On the display, launch the ESharePro application. 2. On the client device, scan the QR code or go to: eshare.app. 3.
Page 82 For Android/iOS Devices NOTE: Please make sure the client device (e.g., phone) is connected to the same network as the display. Connecting to the Display There are four ways to connect the client device to the display. Connection Method Description Device Name Select the display’s name from the Device List.
Page 83 File Sharing Item Description Image Select any image file to share to the display. Audio/Video Select any audio/video file to share to the display. Select any document (e.g., Word, PPT, Excel, TXT, etc.) to share to the display. Select Storage in the top right corner of the Doc sharing page to Storage enable wireless storage, then visit the URL shown on the client device to upload or download files from storage.
Page 84 Screen Sharing • Android Devices Select Share Screen to share the client device’s screen to the display. • iOS Devices Select Share Screen then follow the iOS screen sharing guide to share the client device’s screen to the display.
Page 85 Full Screen If two or more client devices are sharing the display’s screen, selecting Full-Screen will display a single client device’s screen only. TV Mirror Select TV Mirror to mirror the screen of the display to the client device and control...
Page 86 Wireless Annotations After selecting TV Mirror, select the pen icon to start wireless annotation on the display. Camera Select Camera to share photos or audio from your client device’s camera or microphone to the display in real-time.
Page 87 Remote Control Select Remote to use the client device as a wireless mouse, remote control, keyboard, etc. Share Files from Other Applications to the Display In email, browser, file manager, and other applications, you can share files to the display through the EShare application or you can share files to the display with other applications supporting DLNA.
Page 88 For Windows/macOS/ChromeOS/Ubuntu Devices NOTE: Please make sure the client device (e.g., laptop) is connected to the same network as the display. Connecting to the Display There are four ways to connect the client device to the display. Connection Method Description Device Name Select the display’s name from the Device List.
Page 89 Screen Sharing Select Share Screen to share the client device’s screen to the display. Extend Screen NOTE: Only for Windows 10 1607 or later. For Windows users, an extended screen can be shared by selecting Source then Share extend screen.
Page 90 Desktop Shortcut for Quick Screen Sharing NOTE: Only for Windows devices. Once the client device is connected to the display, select Shortcut to create a desktop shortcut on the client device that will quickly share the client device’s screen when selected. TV Mirror Select TV Mirror to mirror the screen of the display to the client device and control...
Page 91 Wireless Annotations After selecting TV Mirror, select the pen icon to start wireless annotation on the display. Full Screen If two or more client devices are sharing the display’s screen, selecting Full-Screen will display a single client device’s screen only.
Page 92 Invitation for Mirroring Set the preference for when a moderator sends an invitation for screen sharing. Item Description Automatically accept the invitation. When the Moderator Auto-accept selects Screen Share in the Moderator Control Center, the client device’s screen will be shared on the display. When the Moderator selects Screen Share in the Moderator Need authorization Control Center, the client device’s screen will not be shared until...
Page 93 EShare Pro Receiver Key Features The main page of EShare Pro Receiver will show the network name, QR code, device name, IP address, and user guide. In the bottom right are the Display Group, Moderator Control Center, and Settings.
Page 94 Settings Adjust the Device Name, Connection Mode, Multiple Screens, and other settings. Item Description Show Device Name When enabled, the client device’s name will be shown in the on Screen top left of the display. When enabled, the client device’s screen will cover the entire Auto Full Screen display screen.
Page 95 Multiple Screens Multiple Screens Setting Select the Settings icon to set the number of Multiple Screens. NOTE: A maximum of nine screens can be set. Multiple Screens Display Multiple client device screens can be shared to the display at the same time and the display screen will be split automatically.
Page 96 Switch the Audio Source The audio of the last sharing device will be output by default from the display when in Multiple Screen mode. Selecting any one of the split windows on the display will change the audio output source. NOTE: ...
Page 97 Display Group The main screen can be duplicated to multiple displays simultaneously, and the client device can also be mirrored to multiple receiver displays. NOTE: EShare Pro must be installed and activated and the devices are on the same Local Area Network (LAN).
Page 98 Options for Duplicate Displays Item Description Other EShare Pro preinstalled displays in the same network (if Enable any) will be listed. Select a display to add to the display group, then select OK to apply the settings. Only valid in client Only when the sender is casting a screen, will the devices in the screen sharing display group be synchronized to the display.
Page 99 Options for Invitation Item Description Other displays can share their screen to this display without any Auto-accept permissions. You will see a dialog box when your screen is invited to join the Notify me group, and other displays can share their screen to this display only when you allow the invitation.
Page 100 Moderator Control Center Select the Moderator Control Button in the bottom right corner to enter the Moderator Control Center. The Moderator Control Center can also be entered by selecting the floating moderator button. Item Description Other displays can share their screen to this display without any Auto-accept permissions.
Page 101 Options for Screen Sharing Item Description Client devices can share their screen or share image/audio/ All allowed video files to the display. The client application for iOS or Android can also share the camera to the display in real-time. Client devices can share their screen or share image/audio/ videos files or camera to the display only when the option Need authorization “Allow”...
Page 102 Options for View, Control, and Wireless Annotation Item Description Client devices can view and control the display. They can also do All allowed annotations in TV Mirror or Remote Control mode. Client devices can view the display in TV Mirror but cannot View Only control the display or do annotations.
Page 103 Other Options in the Moderator Control Center NOTE: The client device needs to be connected to the display. Invite the Client Device to Share Their Screen Select any one client device in the Moderator Control Center, and select the button to invite the client device to share their screen.
Page 104 Disconnect the Client Device Select the Disconnect button and then OK in the dialog box to disconnect the client device. Casting without EShare If the AirPlay, Miracast, Chromecast and DLNA applications are preinstalled on the display, you can find the corresponding switches on the EShare Pro settings page to enable them.
Page 105 AirPlay With AirPlay enabled, Apple devices (e.g., iPhone, iPad, MacBook, iMac) can cast content to the display. For iPhones: Directly select Screen Mirroring then select the display to cast to.
Page 106 For MacBooks: Directly select Screen Mirroring then select the display to cast to.
Page 107 Miracast Wirelessly cast content from Windows and Android devices to the display. NOTE: Please make sure the Windows and Android devices are connected to the same network as the display. For Windows devices: 1. On the Windows device, press Win + K and select the display to cast to. 2.
Page 108 Other Default Applications Browser Web browser for surfing the Internet.
Page 109 Easy Upload Upload mobile phone pictures and text to the display for convenient sharing by scanning the QR code.
Page 110 File Manager View files on both the local storage of the display and connected external devices.
Page 111 Gallery View pictures by swiping left or right on the display.
Page 112 Hardware Detection Detect whether the display’s hardware is healthy. It can detect local memory, storage, CPU, network status, OPS access, detection module, etc. and can optimize memory, storage space, and CPU usage.
Page 113 Screen Record Record the display’s screen, with or without system sound.
Page 114 Screenshot Capture screen content and save it.
Page 115 Timer The Timer application can be used as both a countdown timer and a stopwatch. To use as a stopwatch: 1. Open the Timer application by selecting the application icon ( 2. Select the start icon ( ) to start the stopwatch. Select the pause icon ( ) to pause the stopwatch.
Page 116 VoteKit Set voting topics. NOTE: VoteKit requires a network connection to be used. 1. Open the VoteKit application by selecting the application icon ( 2. Enter the voting subject and add any necessary options. Select Next Step. 3. Set whether the vote will be single or multiple choice. Select Start Voting. 4.
Page 117 Welcome Choose from templates or create your own welcome screen.
Page 118 Whiteboard Select the Whiteboard icon ( ) to open the digital whiteboarding application. Menu Item Description Create a new whiteboard page. Open a file. Open...
Page 119 Item Description Save the current file. Save Save another file on the basis of the current file. Save as Upload the whiteboard’s content to cloud. Upload to Cloud Share the canvas via QR code. NOTE: Click on the encryption above the QR code to generate a digital password.
Page 120 Settings Item Description Time Display Choose to display the time on the whiteboard. Switch Background Set the background color and grid style. Settings Set the sender’s email address for sharing the whiteboard canvas Email Settings by email. Threshold Adjust the line thickness when writing and the size of the eraser. Adjust Write While Hide the bottom toolbar.
Page 121 Page Mangement Item Description Previous Page Go to the previous page (if the canvas has multiple pages). Page Number Indicates the page number. Next Page Go to the next page (if the canvas has multiple pages). Add Page Add a new canvas. Divide the whiteboard area into up to 4 zones for simultaneous Partition writing.
Page 122 Bottom Toolbar Item Description Paint Brush Writing tools with customization options. Eraser Select to erase canvas content. Select Select elements on the canvas. Graphics Draw various types of graphics on the canvas. Insert images, forms, mind maps, and other elements onto the Insert canvas.
Page 123 Mini Whiteboard On any page, swipe up from the bottom of the display to quickly bring up the mini whiteboard. Item Description Paint Brush Writing tools with customization options. Eraser Select to erase canvas content. Share the canvas via QR code. NOTE: Click on the encryption above the QR code to generate a QR Code digital password.
Page 124 RS-232 Protocol This document describes the hardware interface and software protocols of RS-232 interface communication between the ViewSonic LED Display and computers or other control units with RS-232 protocol. The protocol contains three command sections: • Set-Function • Get-Function • Remote control pass-through mode NOTE: ...
Page 125 LAN Hardware Specification ViewSonic LFD communication port on the rear side: 1. Connector type: 8P8C RJ45 2. Pin Assignment: Pin # Signal Remark Output from Display Output from Display Input to Display BI_D3+ For 1G case BI_D3- For 1G case...
Page 126 Protocol Set-Function Listing The PC can control the Display for specific actions. The Set-Function command allows you to control the Display behavior at a remote site through the RS-232 port. The Set-Function packet format consists of 9 bytes. Item Description Communication interface RS-232 Communication protocol...
Page 127 Set-Function Table (Basic Function) Whole Machine Management Return Code Description Command Code Response Code Note Description Wake up serial FE 08 58 42 48 43 4D FE 09 58 42 48 43 4D Power On port during 44 01 F0 CF 44 01 F0 01 CF standby FE 08 58 42 48 43 4D...
Page 128 Return Code Description Command Code Response Code Note Description LL: Data length, excluding header, footer and itself. Get the FE LL 58 42 48 43 4D Turn off Get the software Mainboard FE 08 58 42 48 43 4D 44 02 27 X1 X2 ...Xn display and model name Software...
Page 129 Return Code Description Command Code Response Code Note Description XX: Channel number FF: Undefined channel 05: VGA 09: HDMI1 0A: HDMI2 Get Current FE 08 58 42 48 43 4D FE 09 58 42 48 43 4D 0F: F_HDMI1 Channel 44 02 39 CF 44 02 39 XX CF 13: OPS1...
Page 130 Source Management Return Code Description Command Code Response Code Note Description FE 08 58 42 48 43 4D FE 09 58 42 48 43 4D Signal Source 44 01 11 CF 44 01 11 01 CF FE 08 58 42 48 43 4D FE 09 58 42 48 43 4D HD1 (HDMI1) 44 01 03 CF...
Page 131 Sound Management Return Code Description Command Code Response Code Note Description 00: Mute 01: Unmute Set Mute/ FE 09 58 42 48 43 4D FE 0A 58 42 48 43 4D Unmute 44 03 12 XX CF 44 03 12 XX YY CF 00: Fail 01: Success Get Mute...
Page 132 Return Code Description Command Code Response Code Note Description XX indicates image mode: 0x00: Standard 0x01: Dynamic 0x02: User The video Set Image FE 09 58 42 48 43 4D FE 0A 58 42 48 43 4D defined signal source Mode 44 03 02 XX CF 44 03 02 XX YY CF...
Page 133 Backlight Management Return Code Description Command Code Response Code Note Description XX: Indicates the brightness value (0~100), corresponding Set Backlight FE 09 58 42 48 43 4D FE 0A 58 42 48 43 4D to hexadecimal: Brightness 44 03 04 XX CF 44 03 04 XX YY CF 00~64 00: Fail...
Page 134 Authority Management Return Code Description Command Code Response Code Note Description Turn On Child FE 09 58 42 48 43 4D FE 0A 58 42 48 43 4D 00: Fail Lock Mode 44 03 07 01 CF 44 03 07 01 XX CF 01: Success Turn Off Child FE 09 58 42 48 43 4D...
Page 135 Function Shortcuts Key Return Code Description Command Code Response Code Note Description Listen Alone FE 08 58 42 48 43 4D FE 09 58 42 48 43 4D - On 44 01 17 CF 44 01 17 01 CF Listen Alone FE 08 58 42 48 43 4D FE 09 58 42 48 43 4D - Off...
Page 136 Network Management Return Code Description Command Code Response Code Note Description 00: Off Turn Wired 01: On FE 09 58 42 48 43 4D FE 0A 58 42 48 43 4D Network On/ 44 03 16 XX CF 44 03 16 XX YY CF 00: Fail 01: Success Get Wired...
Page 137 Touch Management Return Code Description Command Code Response Code Note Description FE 09 58 42 48 43 4D FE 0A 58 42 48 43 4D Touch Lock 00: Fail 44 03 06 00 CF 44 03 06 00 XX CF 01: Success FE 09 58 42 48 43 4D FE 0A 58 42 48 43 4D...
Page 138 Appendix Specifications Item Category Specifications P/N. IN6501 IN7501 Model VS20038 VS20039 Display Size 65” 75” 1,428.48 × 803.52 mm 1,649.664 × 927.936 mm Active Size (H x V) 56.24” x 31.63” 64.95” x 36.53” Anti-Glare (Haze 25%) Display Surface Treatment Hard-Coating (9H) Brightness 400 nits (Typical)
Page 139 Item Category Specifications 2,500 m Altitude 8,202.1 ft Storage Relative Humidity 0%~93% (non-condensing) Conditions -25° C~55° C Temperature -13° F~131° F 1,493.4 x 898.5 x 93.7 1,715.6 x 1,021.9 x 93.7 Physical Dimensions (W x H x D) 58.80” x 35.37” x 3.69” 67.54”...
Page 140 Resolution and Timings HDMI Resolution Refresh Rate (@) 640 x 480 60, 75 Hz 720 x 400 70 Hz 720 x 480 60 Hz 720 x 756 50 Hz 800 x 600 60, 75 Hz 1024 x 768 60 Hz 1280 x 720 24, 25, 30, 50, 60 Hz 1920 x 1080...
Page 141 Troubleshooting This section describes some common problems that you may experience when using the ViewBoard. Problem or Issue Possible Solutions 1. Check whether something is obstructing the display’s remote control receiver. Remote Control is not 2. Check whether the batteries in the remote control working are installed correctly.
Page 142 Touch Function Problem or Issue Possible Solutions 1. Check that drivers are installed correctly. 2. Reinstall driver(s). Touch function does not work 3. Check setup and align it. 4. Check whether the touch pen is working properly. Video Not Working Properly Problem or Issue Possible Solutions 1.
Page 143 Some chemical cleaners have been reported to damage the screen and/or case of the device. • ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. NOTE: If condensation appears between the glass and the panel, keep the...
Page 144 Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. Declaration of RoHS2 Compliance This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued...
Page 145 Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®...
Page 146 Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries. ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation. VESA is a registered trademark of the Video Electronics Standards Association.
Page 147 For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia Bangladesh www.viewsonic.com/au/ www.viewsonic.com/bd/ 中国 (China) www.viewsonic.com.cn 香港 (繁體中文) www.viewsonic.com/hk/ Hong Kong (English) India www.viewsonic.com/hk-en/ www.viewsonic.com/in/...
Page 148 ViewSonic® Smart White Board What the warranty covers: ViewSonic® warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, and as your sole remedy, repair or replace the product with a similar product.
Page 149 (e) the serial number of the product. • Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®. • For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®. Limitation of implied warranties:...
Page 150 Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: • Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of...
Page 151 If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components &...
Page 152 Exclusion of damages: ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: • Damage to other property caused by any defects in the product, damages...
Page 153 Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas, Col. San Fernando Huixquilucan, Estado de México Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004 Hermosillo: Villahermosa: Distribuciones y Servicios Computacionales SA de CV.
