Connecting to External Devices and Enabling Touch
TOUCH
HDMI
or
TOUCH
VGA

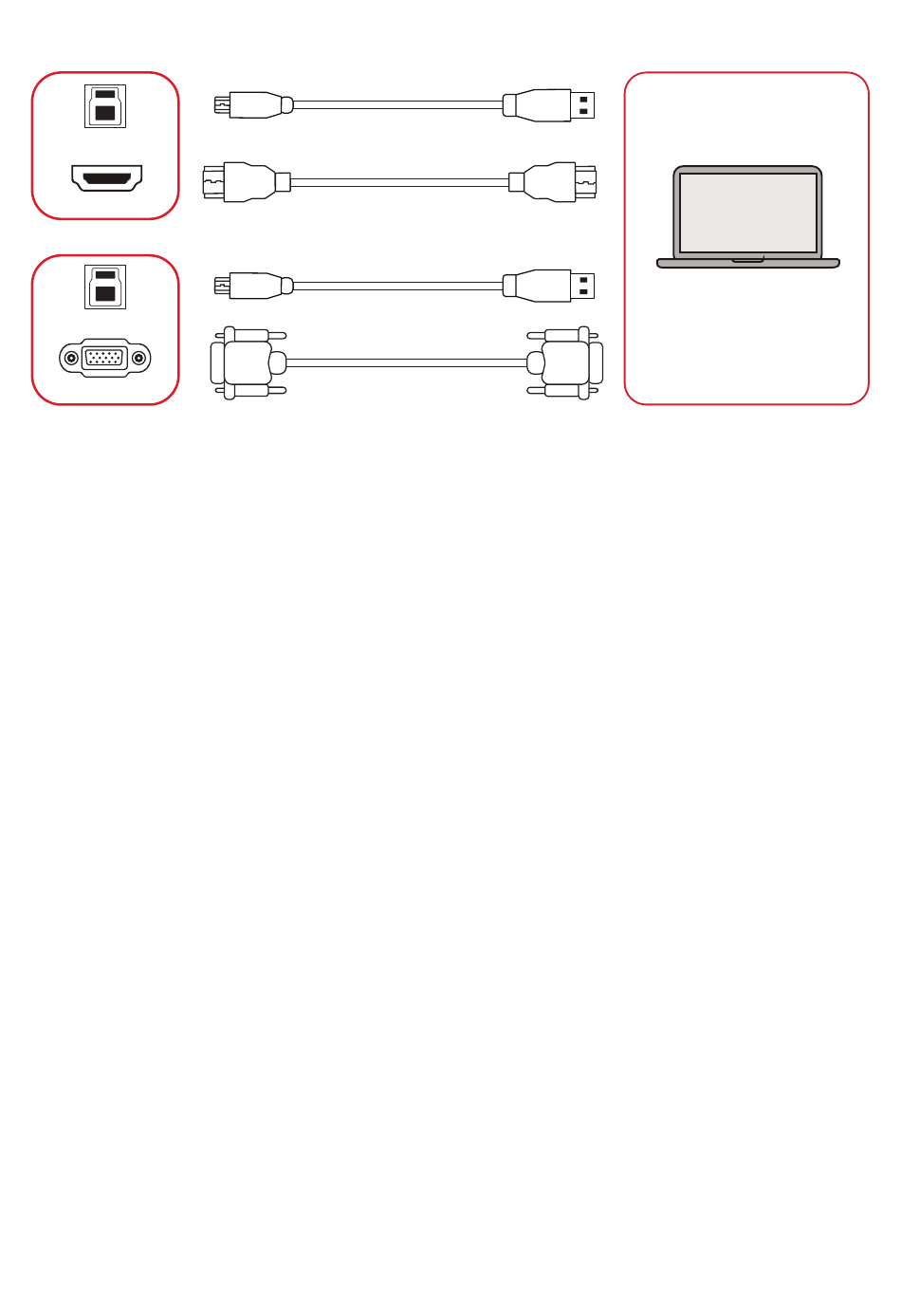

Your external device(s) can be connected in any of the following configurations:
HDMI Connection
To connect via HDMI:
1. Connect an HDMI cable from your external device to the HDMI/HDMI 1/HDMI 2
port on the display.
2. Connect a USB Type B to A to the external device from the appropriate TOUCH
port of the display.
NOTE: The front I/O TOUCH port is for the front I/O HDMI port. The side I/O
TOUCH port is for the HDMI 1, HDMI 2, and VGA ports.
VGA Connection
To connect via VGA:
1. Connect a VGA cable from your external device to the VGA port on the display.
2. Connect a USB Type B to A to the external device from the TOUCH port of the
display.
NOTE: The front I/O TOUCH port is for the front I/O HDMI port. The side I/O
TOUCH port is for the HDMI 1, HDMI 2, and VGA ports.
USB Cable
HDMI Cable
USB Cable
VGA Cable
24
Computer
