Projecta EVC2KW Manual

Type 2 2.4kw portable ev charger
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

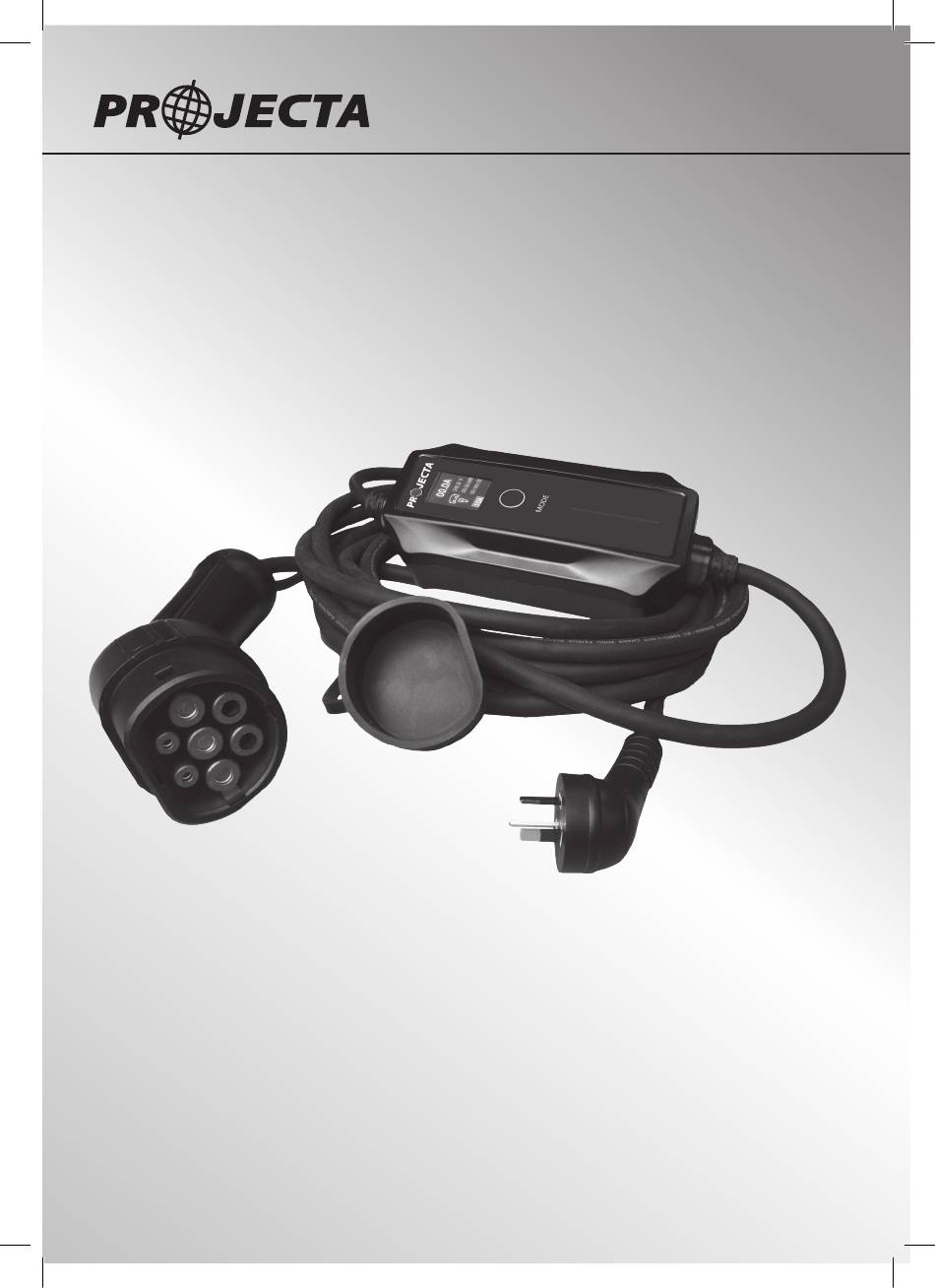

TYPE 2 2.4KW
PORTABLE EV CHARGER
P/No. EVC2KW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVC2KW and is the answer not in the manual?

Questions and answers

Related Manuals for Projecta EVC2KW

Summary of Contents for Projecta EVC2KW

  • Page 1 TYPE 2 2.4KW PORTABLE EV CHARGER P/No. EVC2KW...
  • Page 2 • Ensure the charger is used for 240VAC 50Hz. 10Amp. • If the charger fails to operate correctly as per the instructions, do not use it, and seek advice from PROJECTA customer support. • Ensure the 240V plug is not connected via an adapter. High current is required.

  • Page 3: Specifications

    • The charger is fitted with an In Cord - Control and Protection Device (IC-CPD) which allows communication between the EV vehicle and the charger. SPECIFICATIONS PART NO. EVC2KW POWER PLUG AS/NZS 3112 CABLE LENGTH 5m (Total length) CHARGING RATE 10A (2.4KWH)
  • Page 4 Type 2 outlet LCD screen Cable length 800±30mm Rubber protection Cable length 4200±30mm cover Battery level Mode AC plug indicator light button INSTRUCTIONS FOR USE START • Connect the power cord. • Press button for 3 seconds to set delay start timer (2/4/6/8 hrs) or skip this step without timer •...
  • Page 5 Delay Start Timer 02:00:00 2:00:00 4:00:00 6:00:00 8:00:00...
  • Page 6 1. Connect to the AC Mains Power. 2. Set Delay Timer if required. Delay Start Delay Start Delay Start Delay Start Timer Timer Timer Timer Delay Start Delay Start 04:00:00 06:00:00 08:00:00 02:00:00 Timer Timer Delay Start Timer 04:00:00 02:00:00 02:00:00 Error St Flash light...

  • Page 7: Error Mode

    5. Charging completed. 6. Error mode. Light Light Light Light Error Mode Error State Recovery Method Over Temperature Wait, (Control Box) retry charging Over Current Disconnect the charging plug, retry charging Leakage (RCD) Disconnect the charging plug, retry charging Leakage Device Disconnect the Self Test charging plug, retry...

  • Page 8: Warranty Statement

    WARRANTY STATEMENT Brown & Watson International Pty Ltd (“BWI”) of 1500 Ferntree Gully Road, Knoxfield, Vic., telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue will under normal use and service be free of failures in material and workmanship for a period of one (1) year from the date of the original purchase by the customer as marked on the invoice.
