Rohde & Schwarz RTB 2 User Manual

Oscilloscope

Table Of Contents

Advertisement

Quick Links

Download this manual

®

R&S

RTB 2

Oscilloscope

User Manual

(=Q@;2)

1333161102

Version 13

Table of Contents

Advertisement

Need help?

Need help?

Do you have a question about the RTB 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rohde & Schwarz RTB 2

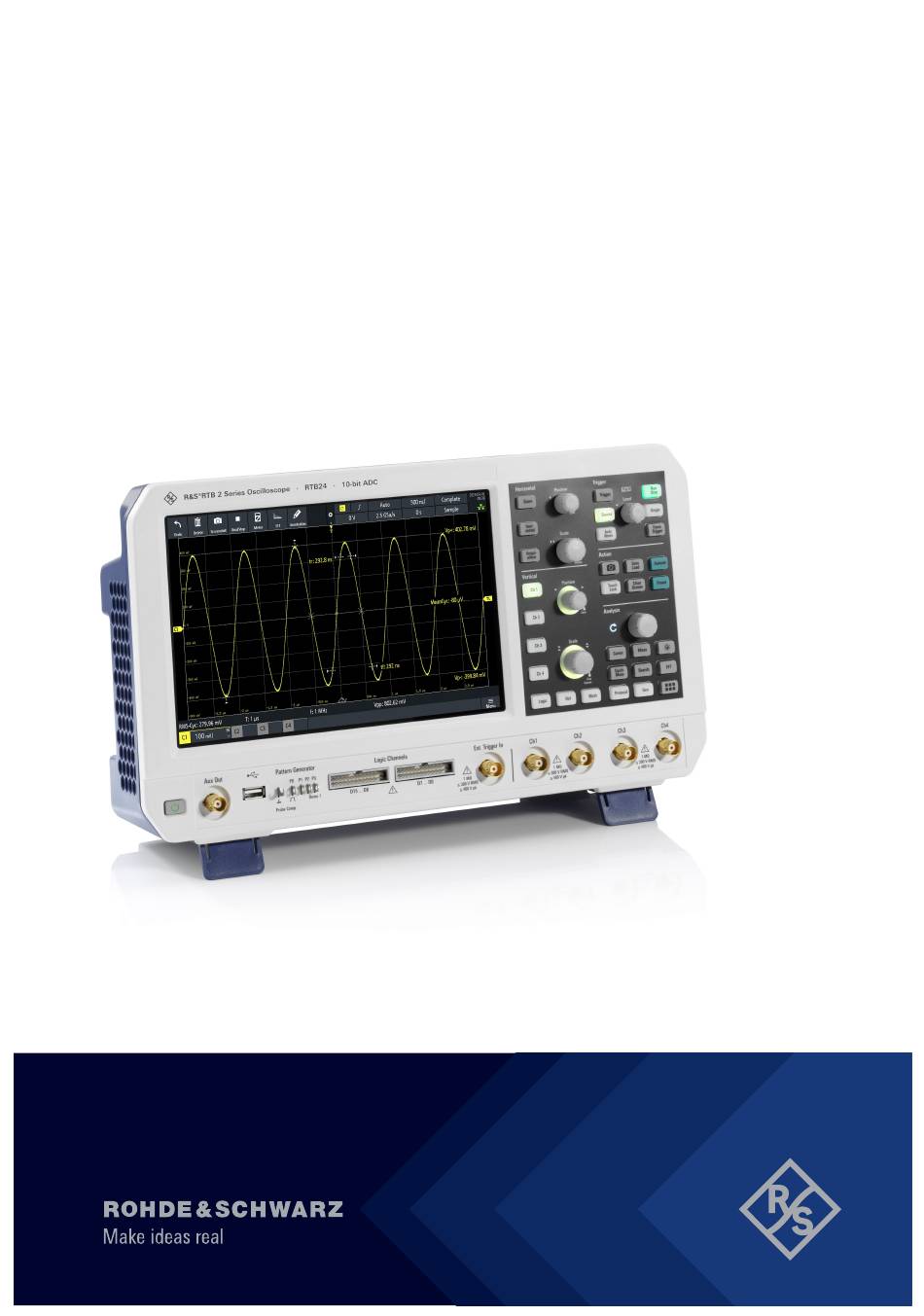

Page 1 ® R&S RTB 2 Oscilloscope User Manual (=Q@;2) 1333161102 Version 13...
Page 2 ® This documentation describes the following R&S RTB 2 models with firmware version 03.000 and higher: ● ® R&S RTB22 (1333.1005K02) ● ® R&S RTB24 (1333.1005K04) ® The documentation is also valid for R&S RTB2000 models with firmware update to version 03.000 and higher.
Page 3: Table Of Contents
® Contents R&S RTB 2 Contents 1 Safety and regulatory information............15 Safety instructions......................15 Labels on the product....................21 Warning messages in the documentation..............21 CE declaration of conformity..................22 Where to find key documents on Rohde & Schwarz..........22 Korea certification class A..................22 2 Preface....................
Page 4 ® Contents R&S RTB 2 4 Operating basics.................. 35 Display overview......................35 Selecting the application....................36 Using the touchscreen....................36 4.3.1 Accessing functionality using the main menu............... 36 4.3.2 Accessing functionality using shortcuts.................38 4.3.3 Entering data.........................38 4.3.4 Using gestures......................39 Front panel keys......................40 4.4.1...
Page 5 ® Contents R&S RTB 2 6 Trigger....................67 Trigger controls......................68 Shortcuts for trigger settings..................69 General trigger settings....................70 Edge trigger......................... 72 Width trigger........................74 Video trigger........................ 76 Pattern trigger......................78 Runt trigger........................81 Rise time trigger......................82 6.10 Timeout trigger......................84 6.11 Actions on trigger....................... 86 7 Waveform analysis................89...
Page 6 ® Contents R&S RTB 2 7.4.5 Exporting history data....................112 Search........................115 7.5.1 Search conditions and results..................115 7.5.2 General search settings....................118 7.5.3 Edge search........................ 119 7.5.4 Width search....................... 120 7.5.5 Peak search........................ 122 7.5.6 Rise/fall time search....................122 7.5.7 Runt setup........................124 7.5.8...
Page 7 ® Contents R&S RTB 2 9.4.2 Meter settings......................165 Counter........................166 Bode plot (option R&S RTB-K36)................167 9.6.1 About the bode plot..................... 167 9.6.2 Using a bode plot......................169 9.6.3 Bode plot window controls..................170 9.6.4 Bode plot settings......................172 10 Documenting results................. 175 10.1...
Page 8 ® Contents R&S RTB 2 12.2.2 USB VCP........................204 12.2.3 USB MTP........................204 12.3 Remote access using a web browser..............204 12.3.1 Accessing the instrument using a web browser............204 12.3.2 Instrument home......................205 12.3.3 Screenshot........................205 12.3.4 SCPI device control.....................206 12.3.5...
Page 9 ® Contents R&S RTB 2 13.4.3 UART trigger....................... 240 13.4.4 UART decode results....................242 13.5 CAN (option R&S RTB-K3)..................243 13.5.1 About the CAN protocol....................244 13.5.2 CAN configuration....................... 245 13.5.3 CAN trigger......................... 247 13.5.4 CAN decode results....................251 13.5.5 Search on decoded CAN data..................
Page 10 ® Contents R&S RTB 2 15.2.1 Pattern selection......................293 15.2.2 Settings for square wave pattern................294 15.2.3 Settings for counter pattern..................295 15.2.4 Settings for arbitrary pattern..................295 15.2.5 Settings for manual pattern..................299 15.2.6 Settings for serial buses....................299 16 Remote control commands...............301 16.1...
Page 11 ® Contents R&S RTB 2 16.6 Waveform analysis....................347 16.6.1 Zoom........................... 347 16.6.2 Mathematics........................348 16.6.3 Reference waveforms....................352 16.6.4 Search.........................357 16.6.5 History......................... 372 16.7 Measurements......................384 16.7.1 Quick measurements....................384 16.7.2 Automatic measurements................... 385 16.7.3 Cursor measurements....................398 16.8 Applications.......................404 16.8.1 General........................404 16.8.2...
Page 12 ® Contents R&S RTB 2 16.11.3 I²C (option R&S RTB-K1).................... 483 16.11.4 UART (option R&S RTB-K2)..................494 16.11.5 CAN (option R&S RTB-K3)..................503 16.11.6 LIN (option R&S RTB-K3)................... 520 16.12 Logic analyzer MSO....................533 16.12.1 Logic channels......................533 16.12.2 Parallel buses......................541 16.13...
Page 13 ® Contents R&S RTB 2 A.3.1 Instrument messages....................581 A.3.2 LAN interface messages..................... 582 B Remote control - status reporting system........583 Structure of a SCPI status register................583 Hierarchy of status registers................... 584 Contents of the status registers................586 B.3.1 Status byte (STB) and service request enable register (SRE)........586 B.3.2...
Page 14 ® Contents R&S RTB 2 User Manual 1333.1611.02 ─ 13...
Page 15: Safety And Regulatory Information
Intended use The R&S RTB 2 oscilloscope is designed for measurements on circuits that are only indirectly connected to the mains or not connected at all. It is not rated for any mea- surement category.
Page 16 ® Safety and regulatory information R&S RTB 2 Safety instructions Reconfigure or adjust the product only as described in the product documentation or the specifications document. Any other modifications can affect safety and are not per- mitted. Never open the casing of the product. Only service personnel authorized by Rohde &...
Page 17 ® Safety and regulatory information R&S RTB 2 Safety instructions If you mount products in a rack, ensure that the rack has sufficient load capacity and stability. Observe the specifications of the rack manufacturer. Always install the prod- ucts from the bottom shelf to the top shelf so that the rack stands securely. Secure the product so that it cannot fall off the rack.
Page 18 ® Safety and regulatory information R&S RTB 2 Safety instructions Performing measurements Take the following measures for your safety: ● To ascertain a voltage-free state, use an appropriate voltage tester. Any measure- ment setup including an oscilloscope is not suitable for this purpose.
Page 19 ® Safety and regulatory information R&S RTB 2 Safety instructions The delivered input leads might have a jacket wear indicator that indicates a worn jacket by different jacket color. In this case, do not use the input lead. Replace it with a new one.
Page 20 ® Safety and regulatory information R&S RTB 2 Safety instructions Measurement categories IEC 61010-2-030 defines measurement categories that rate instruments on their ability to resist short transient overvoltages that occur in addition to the working voltage. Use the measurement setup only in electrical environments for which they are rated.
Page 21: Labels On The Product
® Safety and regulatory information R&S RTB 2 Warning messages in the documentation Electrical hazard Indicates live parts. Risk of electric shock, fire, personal injury or even death. Protective conductor terminal Connect this terminal to a grounded external conductor or to protective ground. This connec- tion protects you against electric shock if an electric problem occurs.
Page 22: Ce Declaration Of Conformity
® Safety and regulatory information R&S RTB 2 Korea certification class A 1.4 CE declaration of conformity The CE declaration of conformity of the instrument is delivered with the product. Keep the document for further reference. The current version of this CE declaration of conformity is available at: www.rohde-schwarz.com/company-documents/rtb2000/...
Page 23: Preface
You find the manuals on the product page at: www.rohde-schwarz.com/manual/rtb2000 Getting started manual Introduces the R&S RTB 2 and describes how to set up the product. A printed English version is included in the delivery. User manual Contains the description of all instrument modes and functions. It also provides an...
Page 24: Specifications And Product Brochure
2.1.2 Specifications and product brochure The specifications document, also known as the data sheet, contains the technical specifications of the R&S RTB 2. It also lists the firmware applications and their order numbers, and optional accessories. The product brochure provides an overview of the instrument and deals with the specific characteristics.
Page 25: Conventions For Procedure Descriptions
® Preface R&S RTB 2 Conventions used in the documentation Convention Description Filenames, commands, Filenames, commands, coding samples and screen output are distin- program code guished by their font. Input Input to be entered by the user is displayed in italics.
Page 26: Getting Started
If the delivery is incomplete or equipment is damaged, contact Rohde & Schwarz. Delivery contents The delivery package contains the following items: ● R&S RTB 2 oscilloscope ● R&S RT-ZP03S probes (2x for R&S RTB22; 4x for R&S RTB24) ●...
Page 27: Setting Up The Product
® Getting started R&S RTB 2 Preparing for use Electromagnetic compatibility classes The electromagnetic compatibility (EMC) class indicates where you can operate the product. The EMC class of the product is given in the specifications document. ● Class B equipment is suitable for use in: –...
Page 28 ® Getting started R&S RTB 2 Preparing for use 4. NOTICE! Overheating can damage the product. Prevent overheating as follows: ● Keep a minimum distance of 10 cm between the fan openings of the product and any object in the vicinity to provide sufficient airflow and ventilation.
Page 29: Considerations For Test Setup
"Connecting to power and grounding" on page 17. The R&S RTB 2 can be used with different AC power voltages and adapts itself auto- matically to it. The nominal ranges are the following. They are also indicated on a label near the power connector on the instrument and in the specifications document.
Page 30: Switching On Or Off
® Getting started R&S RTB 2 Preparing for use ● max. 60 W 1. Plug the AC power cable into the AC power connector on the rear panel of the product. Only use the AC power cable that is delivered with the product.
Page 31: Instrument Tour
3.2 Instrument tour 3.2.1 Front panel Figure 3-1 shows the front panel of the R&S RTB 2. The function keys are grouped in functional blocks to the right of the display. Figure 3-1: Front panel of R&S RTB24 with 4 input channels...
Page 32: Input Connectors
Input connectors BNC inputs (4 and 5) The R&S RTB 2 has two or four channel inputs (4) to connect the input signals. The external trigger input (5) is used to control the measurement by an external signal. The trigger level can be set from -5 V to 5 V.
Page 33: Rear Panel
10 MHz reference frequency, and as waveform generator (with option R&S RTB-B6). 3.2.2 Rear panel Figure 3-2 shows the rear panel of the R&S RTB 2 with its connectors. Figure 3-2: Rear panel view of R&S RTB 2 1 = LAN connector...
Page 34 ® Getting started R&S RTB 2 Instrument tour 4 = Kensington lock slot to secure the instrument against theft 5 = Loop for lock to secure the instrument against theft 6 = not used [LAN] (1) 8-pin connector RJ-45 used to connect the instrument to a Local Area Network (LAN).
Page 35: Operating Basics
The touchscreen display of the instrument shows the waveforms and measurement results, and also information and everything that you need to control the instrument. Figure 4-1: Display of the R&S RTB 2 with 4 channels 1 = Toolbar 2 = Trigger source, main trigger parameter (here: slope for edge trigger), trigger level...
Page 36: Selecting The Application
4.3.1 Accessing functionality using the main menu Using the touchscreen of the R&S RTB 2 is as easy as using your mobile phone. To open the main menu, tap the "Menu" button in the right bottom corner of the display.
Page 37 ® Operating basics R&S RTB 2 Using the touchscreen Figure 4-2: Open the main menu and select a menu item Figure 4-3: Switch on or off (left) and select a parameter value (right) User Manual 1333.1611.02 ─ 13...
Page 38: Accessing Functionality Using Shortcuts
® Operating basics R&S RTB 2 Using the touchscreen ► To close the menu, tap "Back", or tap into the diagram outside the menu. 4.3.2 Accessing functionality using shortcuts The labels in information bar at the top of the display, the channel labels and also the results at the bottom provide shortcuts to the most important settings.
Page 39: Using Gestures
® Operating basics R&S RTB 2 Using the touchscreen Figure 4-5: Enter numerical value and unit 4.3.4 Using gestures Drag one finger Drag horizontally in the diagram to change the horizontal position of all waveforms. In frequency domain, the center frequency is changed.
Page 40: Front Panel Keys
® Operating basics R&S RTB 2 Front panel keys Spread or pinch two fingers in horizontal direction to change the horizontal scale of all waveforms. In frequency domain, the frequency span is changed. Swipe two fingers Swipe two fingers in the diagram to scrolls through the history segments.
Page 41: Analysis Controls
® Operating basics R&S RTB 2 Front panel keys [Clear Screen] Deletes all waveforms, annotations and the measurement results of deleted wave- forms. All settings remain unchanged. Remote command: on page 454 DISPlay:CLEar[:SCReen] 4.4.2 Analysis controls The controls in the [Analysis] functional block open various menus for signal analysis.
Page 42: Using The Toolbar
® Operating basics R&S RTB 2 Using the toolbar [QuickMeas] Displays the results of basic automatic measurements for the selected channel below the grid and directly on the waveform. Press the key to stop quick measurements. Note: Channels other than the selected one are switched off in quick measurement mode.
Page 43: Quick Access
® Operating basics R&S RTB 2 Quick access 2. Disable the functions that you do not need. 3. Tap the functions that you need. You can select maximum 8 functions. 4. Close the dialog box. 4.6 Quick access If the measurement task requires to change the settings from different menus repeat- edly, you can use the "QuickAccess".
Page 44: Menu History
The menu history is another way to speed up and simplify the usage of the R&S RTB 2. The menu history is also a user-defined menu, which can be added to the toolbar. It logs all menus that you used during the current session.
Page 45: Getting Help
® Operating basics R&S RTB 2 Getting help 4.8 Getting help In most menus and dialogs, graphics explain the meaning of the selected setting. For further information, you can open the help, which provides functional description of selected setting. To open the help window 1.
Page 46: Waveform Setup
® Waveform setup R&S RTB 2 Connecting probes and displaying a signal 5 Waveform setup This chapter describes how to connect and set up probes, to adjust the horizontal and vertical settings, and to control the acquisition. 5.1 Connecting probes and displaying a signal...
Page 47: Horizontal Setup
® Waveform setup R&S RTB 2 Horizontal setup 1 Ω resistor and a 10:1 probe is used, the V/A-value of the resistor is 1 V/A. The attenuation factor of the probe is 0.1, and the resulting current probe attenuation is 100 mV/A.
Page 48 ® Waveform setup R&S RTB 2 Horizontal setup the horizontal acquisition window to the waveform section of interest, you can use the following parameters: ● The horizontal position defines the time distance of the trigger point (the zero point of the diagram) to the reference point. Changing the horizontal position, you can move the trigger point, even outside the screen.
Page 49: Horizontal Controls
® Waveform setup R&S RTB 2 Horizontal setup 5.2.1 Horizontal controls [Position] The knob changes the trigger position, the time distance from the trigger point to the reference point (trigger offset). The trigger point is the zero point of the diagram. Thus, you can set the trigger point even outside the diagram and analyze the signal some time before or after the trigger.
Page 50: Shortcuts For Horizontal Settings
® Waveform setup R&S RTB 2 Horizontal setup [Horizontal] Opens the menu to configure horizontal scale, position, and reference point. The cur- rent scale and position is shown in the top information bar. If zoom is active, you can also find the zoom scale and zoom position in this menu.
Page 51: Vertical Setup
® Waveform setup R&S RTB 2 Vertical setup The reference point defines which part of the waveform is shown. By default, the refer- ence point is displayed in the center of the window, and you can move it to the left or right.
Page 52: Vertical Controls
® Waveform setup R&S RTB 2 Vertical setup There are several ways to adjust vertical settings: ● Use the controls in the Vertical functional block of the front panel to select the channel, to scale the waveform, and to set the position.
Page 53: Channel :Position
® Waveform setup R&S RTB 2 Vertical setup [Offset/Position (upper knob)] The upper vertical knob adjusts the following, depending on the selected waveform: ● Offset or position of an analog channel (adjustable: main menu > "Vertical"). The visual effect is the same. While the offset sets a voltage, the position is a graphical setting given in divisions.
Page 54: Short Menu For Analog Channels
® Waveform setup R&S RTB 2 Vertical setup [Math] Displays the math waveforms with their last configuration. A math waveform is a wave- form that is calculated from the captured data. The second keypress opens the menu, where you can activate and configure math waveforms, and save and load equation sets.
Page 55 ® Waveform setup R&S RTB 2 Vertical setup b) Select "Vertical". 2. Select the parameter that is assigned to the upper vertical knob: "Offset" or "Posi- tion". 3. Open the channel menu. ► To open the channel menu directly, press the corresponding channel key.
Page 56 ® Waveform setup R&S RTB 2 Vertical setup Vert. Position Knob Selects the parameter to be changed with the [Offset/Position (upper knob)]: "Offset" or "Position". By default, position is set. [Preset] does not affect the assignment. Channel <n> Opens the channel menu.
Page 57 ® Waveform setup R&S RTB 2 Vertical setup Remote command: on page 316 CHANnel<m>:BANDwidth Vertical Scale Sets the vertical scale in Volts per division to change the displayed amplitude of the selected waveform. The current value is shown in the waveform label below the grid.
Page 58: Threshold Settings
® Waveform setup R&S RTB 2 Vertical setup Deskew compensates delay differences between channels caused by the different length of cables, probes, and other sources. Correct deskew values are important for accurate triggering. Signals that are routed over lines with different lengths have a dif- ferent propagation delay.
Page 59: Label Settings
® Waveform setup R&S RTB 2 Vertical setup Threshold A threshold is used for digitization of analog signals. If the signal value is higher than the threshold, the signal state is high (1 or true for the Boolean logic). Otherwise, the signal state is considered low (0 or false) if the signal value is below the threshold.
Page 60: Probes
5.4 Probes With R&S RTB 2, you can use voltage and current probes that have a BNC connector. To get correct measurement results, always set the appropriate attenuation factor and the unit in the "Probe" menu.
Page 61: Probe Settings
® Waveform setup R&S RTB 2 Probes 3. Follow the instructions of the wizard. It guides you through the compensation proc- ess. Use the compensation trimmer of the probe to get optimum square wave response. For details, refer to the documentation of your probe.
Page 62: Acquisition Setup
Starts the probe adjustment procedure. A wizard explains the adjustment step by step. 5.5 Acquisition setup During an acquisition, the R&S RTB 2 captures the signal and converts it to digital samples. The digital samples are processed according to the acquisition settings. The result is a waveform record that is displayed on the screen and stored in memory.
Page 63: Acquisition Settings
® Waveform setup R&S RTB 2 Acquisition setup 1 = start or stop a continuous acquisition, or start a single acquisition if [Single] is active 2 = adjust the acquisition mode 3 = shows the current sample rate for information 5.5.2 Acquisition settings...
Page 64 Sample decimation reduces the data stream of the ADC to a stream of waveform points with lower sample rate and a less precise time resolution. The R&S RTB 2 uses decimation, if the waveform sample rate is less than the ADC sample rate. The acquisi- tion modes "Peak Detect"...
Page 65 ® Waveform setup R&S RTB 2 Acquisition setup on page 325 CHANnel<m>:TYPE on page 326 ACQuire:PEAKdetect on page 326 ACQuire:HRESolution No. of Averages Defines the number of waveforms used to calculate the average waveform. The higher the number, the better the noise is reduced.
Page 66 ® Waveform setup R&S RTB 2 Acquisition setup "Linear" Two adjacent ADC sample points are connected by a straight line, the interpolated points are placed on the line. You see a polygonal wave- form similar to the real signal, and also the ADC sample points as vertexes.
Page 67: Trigger
● Use the comprehensive menu to select the trigger type and to adjust all trigger set- tings. The R&S RTB 2 can output a pulse at the Aux Out connector when the instrument trig- gers. See "Pulse" on page 87.
Page 68: Trigger Controls
® Trigger R&S RTB 2 Trigger controls 6.1 Trigger controls The keys and the rotary knob in the Trigger functional block adjust the trigger and start or stop acquisition. The green LED above the [Levels] knob lights up when the instrument triggers.
Page 69: Shortcuts For Trigger Settings
® Trigger R&S RTB 2 Shortcuts for trigger settings Remote command: on page 332 TRIGger:A:LEVel<n>[:VALue] on page 333 TRIGger:A:FINDlevel [Force Trigger] Provokes an immediate single acquisition. Use this key if the acquisition is running in normal mode and no valid trigger occurs. Thus, you can confirm that a signal is availa- ble and use the waveform display to determine how to trigger on it.
Page 70: General Trigger Settings
® Trigger R&S RTB 2 General trigger settings 1 = adjust the trigger source 2 = open the keypad to enter the value of the trigger level or threshold 3 = adjust slope or polarity 4 = adjust the trigger mode...
Page 71 ® Trigger R&S RTB 2 General trigger settings "Width" Triggers on pulse width. Chapter 6.5, "Width trigger", on page 74. "Video" Triggers on various PAL, NTSC and HDTV standard video signals. Chapter 6.6, "Video trigger", on page 76. "Pattern" Triggers on logical combinations of the input channels.
Page 72: Edge Trigger
® Trigger R&S RTB 2 Edge trigger Remote command: on page 331 TRIGger:A:HOLDoff:MODE on page 332 TRIGger:A:HOLDoff:TIME Actions on Trigger, Configuration Enables and select the actions to be done on the trigger event. For details, see Chap- ter 6.11, "Actions on trigger",...
Page 73 ® Trigger R&S RTB 2 Edge trigger Slope Sets the edge direction for the trigger. You can trigger on: ● rising edge, that is a positive voltage change ● falling edge, that is a negative voltage change ● rising and falling edge. In a continuous acquisition, the instrument triggers on alternating edges.
Page 74: Width Trigger
® Trigger R&S RTB 2 Width trigger 6.5 Width trigger The width trigger compares the pulse width (duration) with given time limits. It detects pulses with an exact pulse width, pulses shorter or longer than a given time, and also pulses inside or outside the allowable time range.
Page 75 ® Trigger R&S RTB 2 Width trigger Polarity.......................... 75 Comparison........................75 Time t..........................76 Variation........................76 Time t1, Time t2......................76 Threshold........................76 Hysteresis........................76 Polarity Sets the polarity of the pulse. You can trigger on: ● positive going pulse, the width is defined from the rising to the falling slopes.
Page 76: Video Trigger
® Trigger R&S RTB 2 Video trigger "Inside"[, ]"Out- Triggers on pulses inside or outside a range specified with "Time t1" side" and "Time t2". This method is an alternative setting to the range definition with "Time t" and "Variation". The values are interdependent. "Variation"...
Page 77 ® Trigger R&S RTB 2 Video trigger First select the standard and the signal polarity, then decide to trigger on lines or fields and enter the specific settings. ► [Trigger] > "Trigger Type" = "Video" Figure 6-5: Video trigger menu Standard........................77...
Page 78: Pattern Trigger
® Trigger R&S RTB 2 Pattern trigger Signal Selects the polarity of the signal. Note that the sync pulse has the opposite polarity. If the video modulation is positive, the sync pulses are negative. If the modulation is neg- ative, sync pulses are positive. The edges of the sync pulses are used for triggering, therefore incorrect polarity setting causes a sporadic triggering by the video informa- tion.
Page 79 ® Trigger R&S RTB 2 Pattern trigger ► [Trigger] > "Trigger Type" = "Pattern" > "Edit Pattern" Figure 6-7: Pattern trigger with logic editor Thresholds At the bottom of the "Logic Editor", you see the current threshold settings of all chan- nels.
Page 80 ® Trigger R&S RTB 2 Pattern trigger Remote command: on page 337 TRIGger:A:PATTern:SOURce And | Or Sets the logical combination of the channel states. "AND" All defined states must be true. "OR" At least one of the defined states must be true.
Page 81: Runt Trigger
® Trigger R&S RTB 2 Runt trigger Remote command: on page 339 TRIGger:A:PATTern:MODE on page 339 TRIGger:A:PATTern:WIDTh:RANGe on page 339 TRIGger:A:PATTern:WIDTh[:WIDTh] on page 340 TRIGger:A:PATTern:WIDTh:DELTa 6.8 Runt trigger A runt is a pulse lower than normal in amplitude. The amplitude crosses the first threshold twice in succession without crossing the second one.
Page 82: Rise Time Trigger
® Trigger R&S RTB 2 Rise time trigger Upper Level Sets the upper voltage threshold for runt detection. A negative runt crosses the upper level twice without crossing the lower level. Remote command: on page 340 TRIGger:A:LEVel<n>:RUNT:UPPer Lower Level Sets the lower voltage threshold for runt detection. A positive runt crosses the lower level twice without crossing the upper level.
Page 83 ® Trigger R&S RTB 2 Rise time trigger Polarity.......................... 83 Comparison........................83 Rise Time........................84 Variation........................84 Upper Level........................84 Lower Level........................84 Hysteresis........................84 Find Threshold......................84 Polarity Sets the edge, the transition time of which is to be analyzed: ● rise time trigger ●...
Page 84: Timeout Trigger
® Trigger R&S RTB 2 Timeout trigger ± Varia- "Equal" Triggers on transition times inside the time range Rise Time tion. ± Varia- "Not equal" Triggers on transition times outside the time range Rise Time tion. Remote command: on page 342...
Page 85 ® Trigger R&S RTB 2 Timeout trigger time Figure 6-8: Timeout trigger with range Stays High ► [Trigger] > "Trigger Type" = "Timeout" Figure 6-9: Timeout trigger menu Range Selects the relation of the signal level to the threshold: Stays High The signal level stays above the trigger level.
Page 86: Actions On Trigger
® Trigger R&S RTB 2 Actions on trigger Hysteresis Hysteresis of the trigger source channel, see "Hysteresis" on page 59. Remote command: on page 319 CHANnel<m>:THReshold:HYSTeresis 6.11 Actions on trigger A trigger event can be used to initiate one or several actions. All available actions can be initiated at the same time, and for all trigger types.
Page 87 ® Trigger R&S RTB 2 Actions on trigger Actions on Trigger Activates the selected actions on trigger event. Remote command: on page 344 TRIGger:EVENt[:ENABle] Configuration Opens a menu to select the actions that are initiated on trigger event. Pulse Generates a pulse on the Aux Out connector on trigger event. The acquisition is not delayed, the pulse generation runs asynchronously.
Page 88 ® Trigger R&S RTB 2 Actions on trigger Remote command: on page 346 TRIGger:EVENt:WFMSave TRIGger:EVENt:WFMSave:DESTination, 1, en_US References Saves reference waveforms of all active channels, and activates the references. This action works only with single acquisition. The channels are assigned to the references: C1 to R1, C2 to R2 and so on. If a chan- nel is off, the assigned reference is also not active.
Page 89: Waveform Analysis
® Waveform analysis R&S RTB 2 Zoom 7 Waveform analysis ● Zoom........................89 ● Mathematics......................92 ● Reference waveforms................... 102 ● History and segmented memory................107 ● Search........................115 7.1 Zoom The zoom magnifies a part of the waveform to view more details. The zoom is applied to all active analog and digital channels and math waveforms.
Page 90 ® Waveform analysis R&S RTB 2 Zoom Figure 7-1: Display of horizontal zoom: zoom in bottom window, normal waveform in upper window = Tap to activate zoom settings = Tap to activate normal waveform settings 3 (blue) = Horizontal zoom scale and width of the zoom area...
Page 91: Modifying The Zoom
® Waveform analysis R&S RTB 2 Zoom 7.1.2 Modifying the zoom There are several ways to adjust the zoom: ● Use finger gestures on the screen. ● Use the [Scale] and [Position] knobs. ● Tap the zoom scale or zoom position label in the zoom window and enter a value on the keypad.
Page 92: Zoom Settings
® Waveform analysis R&S RTB 2 Mathematics 7.1.3 Zoom settings Zoom settings are listed in the "Horizontal" menu if the zoom is active. 1. If the zoom is off, activate the zoom. 2. Press the [Horizontal] key. Zoom Scale Defines the horizontal scale for the zoom window in seconds per division. The scaling determines the width of the zoom area (12 divisions * scaling per division), the time- base of the zoom window.
Page 93: Short Menu For Math Waveforms
® Waveform analysis R&S RTB 2 Mathematics When the instrument is in roll mode, some math functions are non-calculable. 7.2.1 Short menu for math waveforms The math waveform label at the bottom of the screen shows the main settings of the math waveform: sources, operation, unit, and vertical scale.
Page 94: Settings For Math Waveforms
® Waveform analysis R&S RTB 2 Mathematics Optionally, add label to the math waveform. The label is shown at the right edge of the grid. 4. Close the "Equation Set Editor". 5. To adjust vertical scale and position using vertical knobs: a) Select a math waveform in the short menu.
Page 95 ® Waveform analysis R&S RTB 2 Mathematics Figure 7-3: Mathematics menu and Equation Set Editor The "Mathematics" menu is described in Chapter 7.2.3, "Settings for math waveforms", on page 94. In the "Equation Set Editor", you configure up to 5 math waveforms, set their visibility, and define a label for each waveform.
Page 96 ® Waveform analysis R&S RTB 2 Mathematics Division Source1 / Source2 Divides the first source by the second source. For small amplitudes of the second source, the result increases quickly. If the second source crosses zero, the result would be a range of +∞...
Page 97: Filters
50 and 5000. Select a smaller value for smaller timebases or smaller record lengths. 7.2.5 Filters The R&S RTB 2 provides several ways to filter the input signal: ● Lowpass filter by selecting a bandwidth limit in the acquisition path (vertical chan- nel settings), see Chapter 5.3.3, "Vertical...
Page 98: Tracks
The track is a waveform that shows measurement values in time-correlation to the measured signal. It is the graphical interpretation of measurement values of a single acquisition. The R&S RTB 2 can track frequency, period, pulse width, and duty cycle of pulse width modulated waveforms (PWM) and pulse density modulated waveforms (PDM).
Page 99 ® Waveform analysis R&S RTB 2 Mathematics Track pulse width TPW(Source) in s Tracks the pulse width of the source waveform. For a PWM source signal, the result is the demodulated waveform. Figure 7-5. Track duty cycle TDCY(Source) in % Tracks the duty cycle of the source waveform.
Page 100 ® Waveform analysis R&S RTB 2 Mathematics Figure 7-6: Unipolar PDM waveform with pulse width track M1 in green and period track M2 in blue 7.2.6.1 Settings for tracks The determination of track values requires a threshold. When the pulse crosses the threshold, the pulse width is measured and displayed as track value.
Page 101: Saving And Loading Formularies
7. Tap "Start". 7.2.6.3 Example signals for tracks To get familiar with track functions, the R&S RTB 2 provides several pre-configured signals with track waveforms. These example waveforms require option R&S RTB-B6. To display an example signal: 1. Press the [Apps Selection] key.
Page 102: Reference Waveforms
® Waveform analysis R&S RTB 2 Reference waveforms To save an equation set 1. In the "Mathematics" menu, tap "Save". 2. Select the "Destination": internal storage or USB, and the directory. The destination /USB_FRONT is only active, if a USB flash drive is connected to the front USB port.
Page 103: Using References
RTB 2 Reference waveforms TRF is the specific binary format for reference waveforms of the R&S RTB 2. It con- tains the amplitude value of each sample that is displayed on the screen (8 bit or 16 bit long). For peak-detect waveforms, 2 values per sample are saved. The file contains also time information (time of the first sample and the sample interval) and current instrument settings.
Page 104: Settings For Reference Waveforms
® Waveform analysis R&S RTB 2 Reference waveforms 9. Tap "Save" 10. Close the dialog box. To load a reference waveform 1. To open the "References" menu, tap the menu icon and select "References". 2. Select the target "Reference" waveform.
Page 105 ® Waveform analysis R&S RTB 2 Reference waveforms State..........................105 Load Reference......................105 Load Setup........................105 Save Reference......................106 Waveform Color......................106 Label........................... 106 └ Bit........................106 └ Label......................106 └ Predefined Label...................106 └ Edit Label...................... 106 Source Defines the source of the reference waveform. Any active channel, math or reference waveform can be selected.
Page 106 ® Waveform analysis R&S RTB 2 Reference waveforms Remote command: on page 355 REFCurve<m>:LOAD:STATe Save Reference Opens a dialog box to save a waveform as reference waveform: "Source" Select the waveform to be saved. You can save any active analog channel, math or reference waveform, or logic pod.
Page 107: History And Segmented Memory
You can analyze history segments in the same way as the waveform of the latest acquisition. All R&S RTB 2 measurement and analysis tools are available: zoom, cur- sor measurements, quick and automatic measurements, mask test, serial protocol analysis, mixed signal functions and so on.
Page 108: Activating The History
® Waveform analysis R&S RTB 2 History and segmented memory ● All logic channels if at least one logic is active. ● Decoded bus data if the bus is active (with at least one serial protocol option, for example, R&S RTB-K1 or K2).
Page 109 ® Waveform analysis R&S RTB 2 History and segmented memory 3. Set the "Record Length", or "No. of Segments". The record length and the number of segments are interdependent, if one parame- ter is set, the other is adjusted by the instrument.
Page 110: Segment Table And History Player
® Waveform analysis R&S RTB 2 History and segmented memory See also: Chapter 7.4.1, "Segmented memory", on page 107 Remote command: on page 374 ACQuire:COUNt Fast Segmentation If enabled, the acquisitions are performed as fast as possible, without processing and displaying the waveforms.
Page 111 ® Waveform analysis R&S RTB 2 History and segmented memory 2. Stop the acquisition. 3. Set the "Time Format" to be shown in the table: absolute or relative time. 4. Set the "Speed". 5. To play all segments once, tap "Run".
Page 112: Exporting History Data
® Waveform analysis R&S RTB 2 History and segmented memory Remote command: ...:HISTory:PLAYer:STATe Prev. Steps back to the next older segment. Next Steps forward to the next newer segment. Repeat If selected, the playback of the selected history segments repeats automatically.
Page 113 ® Waveform analysis R&S RTB 2 History and segmented memory one channel. In addition, you can save the complete time information of the segment table. 7.4.5.1 Saving history to file Before you can save history data, acquire the waveform and activate the history, so that the segment table is visible.
Page 114 ® Waveform analysis R&S RTB 2 History and segmented memory 2. In the segment table window, tap "Save". 3. To select the target folder, double-tap it. 4. Tap "New File". 5. Enter the filename. 6. Tap "Enter". The file is saved immediately, and the window is closed.
Page 115: Search
7.5 Search 7.5.1 Search conditions and results The search functions of R&S RTB 2 can find all edges, pulse widths, peaks, or other events in an acquisition that match the search conditions. For each search type, spe- cific settings are available. Searches can be performed on channel, math or reference waveforms, available sources depend on the search type.
Page 116 ® Waveform analysis R&S RTB 2 Search The located events and the search conditions are shown in the result table at the bot- tom of the display. The table shows the following result values: result number, time value, and optional value depending on the search type (voltage, width).
Page 117 ® Waveform analysis R&S RTB 2 Search 3. In the "Search" menu, select "Track event". The selected event is moved to the reference point. If you select another event, it is shown at the same position. To save search results 1.
Page 118: General Search Settings
® Waveform analysis R&S RTB 2 Search 5. Tap "Save". The data is saved to a CSV file. 7.5.2 General search settings General search settings are independent of the search type. They are described in the current section. The specific settings for individual search types are described in the following sections.
Page 119: Edge Search
® Waveform analysis R&S RTB 2 Search "Runt" The runt search finds pulses lower than normal in amplitude. In addi- tion, you can define a time limit for the runt. For settings, see Chapter 7.5.7, "Runt setup", on page 124.
Page 120: Width Search
® Waveform analysis R&S RTB 2 Search ► [Search] > "Search Type" = "Edge" > "Setup" Slope Sets the slope to be found: rising, falling, or both slopes. Remote command: on page 359 SEARch:TRIGger:EDGE:SLOPe Level Sets the voltage level for the search. To let the instrument set the level, tap "Find Threshold".
Page 121 ® Waveform analysis R&S RTB 2 Search Polarity Indicates the polarity of the pulse to be searched for. Remote command: on page 360 SEARch:TRIGger:WIDTh:POLarity Level Sets the voltage level on which the pulse width is measured. To let the instrument set the level, tap "Find Threshold".
Page 122: Peak Search
® Waveform analysis R&S RTB 2 Search Remote command: on page 361 SEARch:TRIGger:WIDTh:WIDTh Variation Sets a range Δt to the reference "Width" if comparison is set to "Equal" or "Not equal". The instrument finds pulses inside or outside the range width ± Δt.
Page 123 ® Waveform analysis R&S RTB 2 Search Edge Sets the slope to be found: ● "Rising" to search for rise time ● "Falling" to search for fall time ● "Both" to search for rise and fall time Remote command: on page 362...
Page 124: Runt Setup
® Waveform analysis R&S RTB 2 Search Rise/Fall Time Sets the reference rise or fall time, the nominal value for comparisons. Remote command: on page 363 SEARch:TRIGger:RISetime:TIME Variation Sets a range Δt to the reference "Rise/Fall Time" if comparison is set to "Equal" or "Not equal".
Page 125: Data2Clock
® Waveform analysis R&S RTB 2 Search Upper Level Sets the upper voltage threshold for runt detection. A negative runt crosses the upper level twice without crossing the lower level. Remote command: on page 364 SEARch:TRIGger:LEVel:RUNT:UPPer Lower Level Sets the lower voltage threshold for runt detection. A positive runt crosses the lower level twice without crossing the upper level.
Page 126 ® Waveform analysis R&S RTB 2 Search Clock Selects the input channel of the clock signal. Remote command: on page 366 SEARch:TRIGger:DATatoclock:CSOurce Data Selects the input channel of the data signal. Remote command: on page 358 SEARch:SOURce Level Set the voltage levels for clock and data signals. The crossing of clock level and clock edge defines the start point for setup and hold time.
Page 127: Pattern Search
® Waveform analysis R&S RTB 2 Search "Rising" Only positive clock edges are considered. "Falling" Only negative clock edges are considered. "Either" The clock edges next to the data edge are considered regardless of the clock slope. Use this setting, for example, for signals with double data rate.
Page 128 ® Waveform analysis R&S RTB 2 Search Threshold, Hysteresis Sets the search threshold value for each analog channel. If the signal value is higher than the threshold, the signal state is high. Otherwise, the signal state is considered low. For each analog channel, set a hysteresis to avoid unwanted search results caused by noise oscillation of the signal.
Page 129 ® Waveform analysis R&S RTB 2 Search Remote command: on page 368 SEARch:TRIGger:PATTern:FUNCtion Comparison Sets the condition how the duration of a steady pattern is compared with the given limit. The three settings "Width" "Variation" and "Comparison" define the time range how long the true result of the state pattern must be valid.
Page 130: Measurements
® Measurements R&S RTB 2 Quick measurements 8 Measurements 8.1 Quick measurements Quick measurement performs a set of automatic measurements on the selected input channel. The measurements cannot be configured. The results are displayed directly at the waveform (WF) or in the bottom result line (L) and are updated continuously.
Page 131: Automatic Measurements
® Measurements R&S RTB 2 Automatic measurements Quick measurement is not available on math and reference waveforms. Channels other than the selected one are switched off in quick measurement mode. When quick measurement is active, cursor measurements are not possible, but you can use auto- matic measurements in parallel.
Page 132 ® Measurements R&S RTB 2 Automatic measurements Figure 8-1: Results of four active measurements Measurement errors are indicated as follows: A result cannot be determined. Adjust the horizontal and vertical settings if the instrument cannot measure. "clipping+" or "clipping-" The measurement result is outside the measurement range and clipping occurs.
Page 133 ® Measurements R&S RTB 2 Automatic measurements Figure 8-2: Statistic results of four active measurements 1. To delete all measurement results, and to restart statistical evaluation, tap the "Reset" button. 2. To write statistic and measurement results to CSV file, tap the "Save" button.
Page 134: Measurement Types
Automatic measurements Figure 8-3: Exported statistic results, converted to columns with comma delimiter 8.2.2 Measurement types The R&S RTB 2 provides many measurement types to measure time and amplitude characteristics, and to count pulses and edges. User Manual 1333.1611.02 ─ 13...
Page 135 ® Measurements R&S RTB 2 Automatic measurements 8.2.2.1 Horizontal measurements (time) Meas. type Symbol Description Graphic / formula Frequency Frequency of the signal, reciprocal value of the measured f = 1 / T first period. in Hz Period Time of the first period, measured on the middle reference level.
Page 136 ® Measurements R&S RTB 2 Automatic measurements Meas. type Symbol Description Graphic / formula Delay Time difference between two slopes of the same or different waveforms, measured on the middle reference level. The in s settings of slope selection are described in Chapter 8.2.4,...
Page 137 ® Measurements R&S RTB 2 Automatic measurements Meas. type Symbol Description Graphic / formula Mean Cycle MeanCyc Mean value of the signal period during which the trigger occurs. If the trigger is outside the screen, the left-most sig- in V nal period is used.
Page 138: Settings For Automatic Measurements
® Measurements R&S RTB 2 Automatic measurements Meas. type Symbol Description Graphic / formula σ-Std. Dev. Cycle σ-Cyc Standard deviation of one cycle of the signal period during which the trigger occurs. If the trigger is outside the screen, σ...
Page 139 ® Measurements R&S RTB 2 Automatic measurements In the measurement menu, you can configure up to 8 parallel measurements (also called measurement places). Available measurement types depend on the type of the selected waveform. Meas. Place Selects one of the 8 available measurement places to be configured or activated.
Page 140 ® Measurements R&S RTB 2 Automatic measurements Remote command: on page 387 MEASurement<m>:SOURce Measure Source, Measure Source 2 Set the source waveforms for delay and phase measurement, where two sources are required. Remote command: on page 387 MEASurement<m>:SOURce Delay Setup Opens a menu to configure the delay measurement or the delay to trigger measure- ment.
Page 141: Delay Setup
® Measurements R&S RTB 2 Automatic measurements Remote command: on page 397 REFLevel:RELative:MODE on page 397 REFLevel:RELative:LOWer on page 397 REFLevel:RELative:MIDDle on page 397 REFLevel:RELative:UPPer Gate Setup Define a gate to limit the measurement to a time range. You can set the "Start" and "Stop"...
Page 142: Cursor Measurements
® Measurements R&S RTB 2 Cursor measurements 8.3 Cursor measurements The cursor measurement determines the results at the current cursor positions. You can set the cursor lines manually at fixed positions, or they can follow the waveform. Cursors are available in time and frequency domain. You can measure on one wave- form, or on two different waveforms (sources) if the sources are in the same domain (time domain or frequency domain).
Page 143: Cursor Settings
® Measurements R&S RTB 2 Cursor measurements 4. Select the "Source", the waveform you want to measure. 5. If you want to measure different sources: a) Enable "Second Source". b) Select the second waveform. 6. Set additional settings if necessary:...
Page 144 ® Measurements R&S RTB 2 Cursor measurements Remote command: on page 398 CURSor<m>:STATe Type Selects the cursor type. Depending on the type, different results are displayed in the result line at the bottom of the display. The cursor lines can be set to the required position using the "Navigation" rotary knob, or by dragging a cursor line on the screen.
Page 145 ® Measurements R&S RTB 2 Cursor measurements Figure 8-7: Cursor on one source Figure 8-8: Cursor on two sources. Sources are indicated with the measurement results. Remote command: on page 400 CURSor<m>:USSource on page 400 CURSor<m>:SSOurce Track Scaling If enabled, the cursor lines are adjusted when the vertical or horizontal scales are changed.
Page 146 ® Measurements R&S RTB 2 Cursor measurements Coupling If enabled, the cursors lines are coupled and moved together. Press the [Navigation] key to select whether both cursors or one cursor is moved. If coupling is disabled, pressing the [Navigation] key toggles the single cursor lines.
Page 147: Applications
® Applications R&S RTB 2 Mask testing 9 Applications All available applications are provided in the "Apps Selection" dialog. ► To select an application, press the [Apps Selection] key. See also: Chapter 4.2, "Selecting the application", on page 36. Applications are grouped on several tabs: ●...
Page 148: Using Masks
MASK:VCOunt? File format for masks: MSK MSK is the specific binary format for masks of the R&S RTB 2. It contains pairs of amplitude values (in divisions) , their sample indexes and current instrument settings. Thus, the amplitude values are not related to time and voltage. The mask data is saved in the internal storage and can be loaded back when needed.
Page 149 ® Applications R&S RTB 2 Mask testing To create and set up a mask You create a mask based on a channel waveform, then optimize it by changing its posi- tion and proportions, and save it. 1. Select and adjust the channel waveform that you want to use as the basis for the mask.
Page 150 ® Applications R&S RTB 2 Mask testing 6. To save the mask for later use, tap "Save". To load a mask 1. Press the [Apps Selection] key. 2. Tap "Mask". 3. Tap "Load". 4. Select the mask file. 5. Tap "Load".
Page 151: Mask Window
® Applications R&S RTB 2 Mask testing 6. Tap "Reset" to delete the results. 7. To finish the test, tap "Stop". 9.1.3 Mask window The mask window provides the most important function to set up a mask, and to run the test.
Page 152: Mask Menu
® Applications R&S RTB 2 Mask testing Save, Load Saves the created mask to a file, or loads a previously saved mask. The file format is MSK. Remote command: on page 406 MASK:SAVE on page 406 MASK:LOAD Capt. Fails If selected, only failed acquisitions are saved in memory segments.
Page 153 ® Applications R&S RTB 2 Mask testing Test Performs a mask test for the selected signal, i.e. the signal amplitudes are compared with the specified mask. If the amplitude exceeds the limits of the mask, a violation is detected. Remote command:...
Page 154: Fft Analysis
MASK:CAPTure[:MODE] 9.2 FFT analysis The R&S RTB 2 provides basic FFT calculation, which is included in the firmware. During FFT analysis, a time-based waveform is converted to a spectrum of frequen- cies. As a result, the magnitude of the determined frequencies is displayed: the power vs.
Page 155: Fft Display
In the short menu, tap "FFT Off". 9.2.1 FFT display When the FFT is activated on the R&S RTB 2, the record length and maximum number of FFT samples is fixed. The stop frequency is steering the effective sample rate. Both numbers determine the overall timebase, and this results in the bin width.
Page 156: Performing Fft Analysis
® Applications R&S RTB 2 FFT analysis 1 = Enable FFT 2 = Signal vs. time display 3 = FFT parameters 4 = Spectrum, result of the FFT analysis 5 = FFT label with vertical scale (range per division). Color indicates the source waveform of FFT calcula- tion.
Page 157: Fft Setup
® Applications R&S RTB 2 FFT analysis 4. In the "Waveform" menu, select the waveform types you want to display (see "Waveform" on page 161). 5. If you want to adjust the resolution bandwidth manually, disable "Automatic RBW". 6. On top of the FFT window, define the frequency range to be displayed in the spec- trum window.
Page 158 ® Applications R&S RTB 2 FFT analysis 1 = Start frequency 2 = Stop frequency 3 = Center 4 = Span 5 = Resolution bandwidth (RBW) 6 = Width of the timebase extract 7 = Position of timebase extract Start Defines the start frequency of the FFT waveform.
Page 159 ® Applications R&S RTB 2 FFT analysis If "Automatic RBW" is selected, the RBW value is adjusted automatically and the value is shown for information. When you set the RBW manually, the instrument adjusts the time gate. Remote command: on page 414...
Page 160 The R&S RTB 2 provides various window functions to suit different input signals. Each window function has specific characteristics, including some advantages and some trade-offs. Consider these characteristics to find the optimum solution for the measure- ment task.
Page 161 ® Applications R&S RTB 2 FFT analysis Waveform Selects the waveform type to be displayed. Several types of waveforms can be dis- played in parallel, but at least one waveform type must be selected. By default, the "Spectrum" waveform is selected. From each waveform type, you can also create a reference waveform for further analysis, and perform cursor measurements.
Page 162: Xy-Diagram
It is also possible to define two source signals in y-direction for compar- ison. The XY-diagram is provided in a dedicated application on the R&S RTB 2. If the XY- application is active, reference waveforms are not available in all diagrams.
Page 163 Source Y2 Defines an optional second source to be displayed in y-direction in an XY-diagram. The source can be any of the analog channels. The setting is only relevant for 4-channel R&S RTB 2 instruments. User Manual 1333.1611.02 ─ 13...
Page 164: Digital Voltmeter
® Applications R&S RTB 2 Digital voltmeter Remote command: on page 420 DISPlay:XY:Y2Source 9.4 Digital voltmeter The integrated three-digit digital voltmeter simplifies measurements, in particular for service personnel. You can measure up to four parameters on different sources at the same time and define the position of the measurement results.
Page 165: Meter Settings
® Applications R&S RTB 2 Digital voltmeter ● Press the [Apps Selection] key. Tap "Meter". To deactivate meter measurements ► Use one of the following ways: ● Tap the "Meter" icon on the toolbar again. ● Close the "Meter" result box.
Page 166: Counter
® Applications R&S RTB 2 Counter Meter Selects one of the four available meter measurements. The configuration of the selected meter is displayed in the menu. Source Selects an analog channel as the source of the selected meter measurement. Remote command: on page 420 DVM<m>:SOURce...
Page 167: Bode Plot (Option R&S Rtb-K36)
® Applications R&S RTB 2 Bode plot (option R&S RTB-K36) 1. To toggle frequency and period results, tap inside the box. 2. To show the counter results of active waveforms, tap the source icon ("Trg") and select a waveform. 3. To move the result box to the best position, can drag the box on the screen.
Page 168 ® Applications R&S RTB 2 Bode plot (option R&S RTB-K36) 1 = Bode plot parameters 2 = Bode plot diagram, gain: blue color; phase: orange color 3 = Save 4 = Bode result table 5 = Marker value table 6 = Bode plot window controls...
Page 169: Using A Bode Plot
® Applications R&S RTB 2 Bode plot (option R&S RTB-K36) ● on page 429 BPLot:AMPLitude:POSition ● on page 427 BPLot:GAIN:SCALe ● on page 427 BPLot:GAIN:POSition ● on page 428 BPLot:PHASe:SCALe? ● on page 428 BPLot:PHASe:POSition? 9.6.2 Using a bode plot To run a Bode plot measurement 1.
Page 170: Bode Plot Window Controls
® Applications R&S RTB 2 Bode plot (option R&S RTB-K36) To avoid measurement uncertainties, make sure that the cables connecting the input and the output of your DUT to the oscilloscope are from similar length. Starting the Bode plot 1. Press the [Apps Selection] key.
Page 171 ® Applications R&S RTB 2 Bode plot (option R&S RTB-K36) Remote command: on page 425 BPLot:FREQuency:STOP on page 423 BPLot:AUToscale Points Selects the number of points per decade that are measured from a predefined list. You can also set a different value from the predefined ones in the "Setup" menu.
Page 172: Bode Plot Settings
® Applications R&S RTB 2 Bode plot (option R&S RTB-K36) Remote command: on page 426 BPLot:RESet Setup Opens the "Setup" menu to define the Bode plot settings. Save Saves the created Bode plot to a file. The file format is CSV.
Page 173 ® Applications R&S RTB 2 Bode plot (option R&S RTB-K36) If this function is enabled, a diagram of the amplitudes for the different frequencies can be displayed on the screen. To do that, press at the bottom of the Bode plot window.
Page 174 ® Applications R&S RTB 2 Bode plot (option R&S RTB-K36) Remote command: on page 426 BPLot:POINts:LOGarithmic Maximum Phase Sets the upper boundary of the vertical phase window. The lower boundary is given by "Maximum Phase" - 360°. By default, the "Maximum Phase"...
Page 175: Documenting Results
® Documenting results R&S RTB 2 10 Documenting results The R&S RTB 2 can store various data to files for further usage, analysis and report- ing: ● Instrument settings: Chapter 10.1, "Saving and loading instrument settings", on page 176 ●...
Page 176: Saving And Loading Instrument Settings
® Documenting results R&S RTB 2 Saving and loading instrument settings external storage location (USB_FRONT). This location is only available if the USB flash drive is connected. Using a USB hub is not supported. Reference waveforms and instrument settings, which are intended for further use on the instrument, are usually saved to the internal storage (/INT).
Page 177: Saving Waveform Data
® Documenting results R&S RTB 2 Saving waveform data Save Opens a dialog box to save the current instrument setup to a file. To change the storage location, select "Destination" > "Location". Change the filename if the auto name does not fit. The file extension SET is set auto- matically.
Page 178: Waveform Export Settings
® Documenting results R&S RTB 2 Saving waveform data 2. Press the [Save Load] key. 3. Select "Waveforms". 4. Adjust the settings in the dialog box. 5. Tap "Save". 10.2.1 Waveform export settings Destination The destination /USB_FRONT is only active if a USB flash drive is connected to the front USB port.
Page 179: Waveform File Formats
® Documenting results R&S RTB 2 Saving waveform data For a description of the file formats, see Chapter 10.2.2, "Waveform file formats", on page 179. Source Select the channels to be saved: either one active channel, or all active channels together.
Page 180 ® Documenting results R&S RTB 2 Saving waveform data The first column contains the time values of the samples in relation to the trigger point, and the second column contains the associated amplitude values. The first line indi- cates the units of the values in each column, and the name of the waveform. Pairs of values are listed as two single values with the same time value (minimum and maxi- mum).
Page 181: Annotations
10.2.2.5 TRF format TRF is the specific binary format for reference waveforms of the R&S RTB 2. It con- tains the amplitude value of each sample that is displayed on the screen (8 bit or 16 bit long). For peak-detect waveforms, 2 values per sample are saved. The file contains also time information (time of the first sample and the sample interval) and current instrument settings.
Page 182: Screenshots
You can create and save screenshots of the current display of your waveforms and measurement results. The R&S RTB 2 saves screenshots to a USB flash drive or inter- nal memory. To save screenshots quickly, you can use the "Screenshot" toolbar icon or the [Camera] key.
Page 183: Screenshot Settings
® Documenting results R&S RTB 2 Screenshots To configure screenshots: 1. Press the [Save Load] key. 2. Select "Screenshots". 3. Adjust the target directory ("Destination"), filename, format, and color mode. Chapter 10.4.1, "Screenshot settings", on page 183. You can save the current display with "Save", or close the dialog box. The screen- shot settings are saved and applied when you create screenshots with the key.
Page 184: Quick Save With Onetouch
® Documenting results R&S RTB 2 Quick save with OneTouch Format Selects the file format. ● "BMP": Bitmap is an uncompressed format, files are large and saving can take some time. ● "PNG": Portable Network Graphics is a graphic format with lossless data compres- sion.
Page 185: Export And Import
® Documenting results R&S RTB 2 Export and import ● Save reference waveforms. ● Save search results. ● Decoded bus data ("Bus Table", requires at least one protocol option for serial bus. ● Statistical results. OneTouch is the only way to save statistical results.
Page 186 Select the folder that contains the source file. d) Select the file. A small screenshot helps to identify the file. e) Tap "Load". The source file is selected, but not loaded to the R&S RTB 2. 5. Define the target directory. a) Tap "Dest. Path".
Page 187 ® Documenting results R&S RTB 2 Export and import The source file is copied to the destination directory with the specified name and format. User Manual 1333.1611.02 ─ 13...
Page 188: General Instrument Setup
® General instrument setup R&S RTB 2 Instrument settings 11 General instrument setup The general instrument settings are available in all operating modes. 11.1 Instrument settings To open the Setup menu 1. Tap "Menu" in the lower right corner of the screen.
Page 189 ® General instrument setup R&S RTB 2 Instrument settings Interface Activates or deactivates additional instrument interfaces. Use these interfaces to com- municate with the instrument, for example to read out data or automate the measuring station. USB and Ethernet (LAN) interfaces are installed in the rear panel. After select- ing an interface, tap "Parameter"...
Page 190 ® General instrument setup R&S RTB 2 Instrument settings "Trigger Out" Outputs a pulse when the instrument triggers. "10 MHz" Outputs a 10 MHz reference frequency. "Function Generator" Outputs the waveform specified in the "Function Generator" dialog. "Mask Violation" Outputs a pulse when a mask is violated.
Page 191: Display Settings
® General instrument setup R&S RTB 2 Display settings "Set Password" You can enter a password to prevent unauthorized activation or deac- tivation of the education mode. "Clear Password" Deletes the password and allows all users enabling or disabling the education mode.
Page 192 ® General instrument setup R&S RTB 2 Display settings ► To remove all waveforms and results from the display, press the [Clear Screen] key at the front panel. Persistence Defines the persistence (afterglow effect) of the waveform on the display. Persistence does not affect digital channels.
Page 193 ® General instrument setup R&S RTB 2 Display settings Waveform ← Intensities Defines the brightness of the waveform lines in the diagram. Enter a percentage between 0 (barely visible) and 100% or turn the [Navigation] knob to adjust the wave- form brightness directly.
Page 194: Reset
® General instrument setup R&S RTB 2 Reset Grid Defines how the grid is displayed. "Lines" Displays the grid as horizontal and vertical lines. "Reticle" Displays crosshairs instead of a grid. "Off" Removes the grid from the display. Remote command:...
Page 195: Locking The Touchscreen
® General instrument setup R&S RTB 2 Performing a self-alignment Preset does not change the display settings, for example, intensities and brightness. To reset these settings, restore the factory settings. To restore the factory settings: 1. Press [Save Load]. 2. Tap "Setup".
Page 196: Calibration:state
® General instrument setup R&S RTB 2 Setting the date, time and language Preparing the instrument for self-alignment Make sure that the instrument has been running and warming up before you start the self-alignment. The minimum warm-up time is indicated in the specifications document.
Page 197 ® General instrument setup R&S RTB 2 Setting the date, time and language To set date and time 1. Open the "Setup" menu. 2. Scroll down the menu. Tap "Date & Time". 3. Select the date: Scroll the year, month, and day columns until the required date is displayed.
Page 198: Options
R&S License Manager before they can be activated on the instrument. 1. If you received the option key in a file, save the file to a USB flash drive. 2. Connect the drive to the R&S RTB 2. 3. Tap "Menu" in the lower right corner of the screen.
Page 199: Updating The Firmware
® General instrument setup R&S RTB 2 Updating the firmware If you received a key in digital form as a file, tap "Read option key from file". Select the path /USB_FRONT and the option key file. 8. If you want to activate several options, repeat step 5 for each option.
Page 200: Network Connections And Remote Operation
12 Network connections and remote operation 12.1 LAN connection The R&S RTB 2 is equipped with a network interface and can be connected to an Ethernet LAN (local area network). A LAN connection is necessary for remote control of the instrument, and for access from a computer using a web browser.
Page 201 ® Network connections and remote operation R&S RTB 2 LAN connection Figure 12-1: Example of the Ethernet setup dialog and menu IP Mode Selects the Internet protocol mode: ● "Manual": To be used if the network does not support dynamic host configuration protocol (DHCP).
Page 202 ® Network connections and remote operation R&S RTB 2 LAN connection IP Port, VXI-11 Port Specify the IP port number (default = 5025) and the VXI-11 port number (default = 1024). Remote command: on page 463 SYSTem:COMMunicate:INTerface:ETHernet:IPPort on page 464...
Page 203: Usb Connection
® Network connections and remote operation R&S RTB 2 USB connection 12.2 USB connection Alternatively to a LAN connection, you can use the USB type B (device USB) connec- tor at the rear panel to access the instrument via USB.
Page 204: Usb Vcp
Control the instrument remotely 12.3.1 Accessing the instrument using a web browser To access the R&S RTB 2, you need a LAN connection and the IP address of the instrument. 1. Obtain the IP address of the R&S RTB 2: ●...
Page 205: Instrument Home
"Setup" menu > "Interface" > "Ethernet" > "Parameter" > "IP". 2. Open an Internet browser on the control computer. 3. Enter the IP address of the R&S RTB 2 in the address line: http://xxx.yyy.zzz.xxx. The "Instrument Home" page opens. If already another user is using the instrument via web access, connection is not possi- ble, and you get an information about that.
Page 206: Scpi Device Control
® Network connections and remote operation R&S RTB 2 Remote access using a web browser ● "Preset" = [Preset] key on the instrument Screenshots ● "Auto refresh" and "Update" Get the current screen content from the instrument. With "Auto refresh", you can set the interval of automatic updates.
Page 207: Save/Load
® Network connections and remote operation R&S RTB 2 Remote access using a web browser If the sent command has an error, an error message is created in the background, and you do not get any response. You can see the error messages using "Last Error Mes- sage"...
Page 208: Network Settings
® Network connections and remote operation R&S RTB 2 Remote access using a web browser 4. Click "Save". 12.3.6 Network settings On the "Network Setting" page, you can change the port settings, switch off DHCP address and enter an IP address in a more comfortable way than directly on the instru- ment.
Page 209: Change Password
® Network connections and remote operation R&S RTB 2 Remote access using a web browser 12.3.7 Change password On the "Change Password" page, you can change or remove the password to protect remote access to the instrument. Alternatively, you can change the password in the Ethernet settings dialog on the instrument.
Page 210: Serial Bus Analysis
RTB 2 Basics of protocol analysis 13 Serial bus analysis Using the R&S RTB 2 and additional options, you can analyze the following serial pro- tocols: ● SPI no CS (Serial Peripheral Interface with 2 lines) and SPI with CS (Serial Periph- eral Interface with 3 lines) - requires option R&S RTB-K1...
Page 211: Protocol - Common Settings
® Serial bus analysis R&S RTB 2 Basics of protocol analysis 13.1.1 Protocol - common settings ► To open the protocol setup, press the [Protocol] key. The common settings in the "Protocol" menu define the bus type and open further menus to adjust the display of the decoded bus signal.
Page 212: Displaying Decode Results
® Serial bus analysis R&S RTB 2 Basics of protocol analysis ● Chapter 13.2.2, "SPI configuration", on page 220 ● Chapter 13.3.2, "I²C configuration", on page 230 ● Chapter 13.4.2, "UART configuration", on page 237 ● Chapter 13.5.2, "CAN configuration", on page 245 ●...
Page 213 ® Serial bus analysis R&S RTB 2 Basics of protocol analysis To decode a serial bus ► In the "Bus" menu, enable "Decode". The bus signal with combs is shown. The colors of the combs are protocol-specific and described in the "Decode Results" chapters of the protocol description.
Page 214: Bus Table: Decode Results
® Serial bus analysis R&S RTB 2 Basics of protocol analysis Remote command: on page 469 BUS<b>:DSIGnals 13.1.3 Bus table: decode results The bus table shows the detailed decoded data for each frame of the acquisition. At running acquisition, the table results are updated continuously. In stop mode, you can access the individual frames and analyze them.
Page 215 ® Serial bus analysis R&S RTB 2 Basics of protocol analysis 3. In the "Bus Table" menu, select "Track Frame". 4. Tap a frame in the bus table. The start of the selected frame is marked by a line and a rhomb. This marker is moved to the center of the diagram, followed by the decoded data.
Page 216: Bus Labels
® Serial bus analysis R&S RTB 2 Basics of protocol analysis Save Opens the "Save" menu to save the decoded data in a CSV file (comma-separated list). 13.1.4 Bus labels A bus label is a name of a bus. The bus label is shown on the right side of the display at the bus signal, and in the bus table.
Page 217: Label List
® Serial bus analysis R&S RTB 2 Basics of protocol analysis 13.1.5 Label list For all protocols using ID or address identification, it is possible to create label lists containing addresses or IDs, a symbolic name for each node (symbolic label), and some protocol-specific information.
Page 218 ® Serial bus analysis R&S RTB 2 Basics of protocol analysis To trigger on an identifier or address using the label Prerequisites: The bus is configured, decoding is enabled, and a decoded signal is visi- ble. 1. Open the "Bus" menu.
Page 219: Spi Bus (Option R&S Rtb-K1)
® Serial bus analysis R&S RTB 2 SPI bus (option R&S RTB-K1) Standard lines Standard lines define the contents of the label list. The rules for standard lines follow the csv convention, they are: ● Values are separated by commas ●...
Page 220: About The Spi Protocol
® Serial bus analysis R&S RTB 2 SPI bus (option R&S RTB-K1) 13.2.1 About the SPI protocol A 4-channel instrument is required for full support of the SPI protocol, or the MSO option R&S RTB-B1. The Serial Peripheral Interface SPI is used for communication with slow peripheral devices, in particular, for transmission of data streams.
Page 221 ® Serial bus analysis R&S RTB 2 SPI bus (option R&S RTB-K1) 3. Select the "Bus Type" = "SPI (no CS)" or "SPI (with CS)". 4. Select "Configuration". 5. Select the sources of the signal lines, the channels to which the lines are connec- ted.
Page 222 ® Serial bus analysis R&S RTB 2 SPI bus (option R&S RTB-K1) Chip Select........................222 Clock........................... 222 Slope........................... 222 MOSI / MISO.......................222 Polarity........................222 Threshold, Find Threshold..................223 Word Size........................223 Idle Time........................223 Chip Select Selects the input channel of the chip select (CS) line: active analog or digital channel.
Page 223: Spi Trigger
® Serial bus analysis R&S RTB 2 SPI bus (option R&S RTB-K1) Remote command: on page 472 BUS<b>:SPI:MOSI:POLarity BUS<b>:SPI:DATA:POLarity on page 473 BUS<b>:SPI:MISO:POLarity on page 475 BUS<b>:SSPI:MOSI:POLarity BUS<b>:SSPI:DATA:POLarity on page 476 BUS<b>:SSPI:MISO:POLarity Threshold, Find Threshold Set the signal threshold for the source channel. Enter a value, or use "Find Threshold"...
Page 224 ® Serial bus analysis R&S RTB 2 SPI bus (option R&S RTB-K1) 3. Select "Trigger". This selection has several effects: ● Enables decoding, if necessary. ● Sets the "Trigger Type" to "Serial Bus" and the trigger source to the selected bus.
Page 225 ® Serial bus analysis R&S RTB 2 SPI bus (option R&S RTB-K1) Figure 13-7: SPI trigger settings with an example of an SPI serial pattern = Hex value of the 1 nibble, with the binary value 1001 $ (blue) = Hex value of the 3 nibble, which includes some "X"...
Page 226: Spi Decode Results
® Serial bus analysis R&S RTB 2 SPI bus (option R&S RTB-K1) "Serial Pattern" Expands the trigger setup dialog to configure the bit pattern to be trig- gered at. Set "Number of Bits" on page 226 and "Data" on page 226 to define the pattern, and "Bit Offset"...
Page 227: I²C (Option R&S Rtb-K1)
® Serial bus analysis R&S RTB 2 I²C (option R&S RTB-K1) The instrument captures and decodes the signal according to the protocol definition and the configuration settings. The color-coding of the various protocol sections and errors simplifies the interpretation of the visual display. The decode information condenses or expands, depending on the horizontal scale.
Page 228: About The I²C Protocol
Acknowledge: takes place after every byte. The receiver of the address or data sends the acknowledge bit to the transmitter. The R&S RTB 2 supports all operating speed modes: high-speed, fast mode plus, fast mode, and standard mode. Data transfer The format of a simple I²C message (frame) with 7-bit addressing consists of the fol-...
Page 229 Figure 13-11: 10-bit address, read access Trigger The R&S RTB 2 can trigger on various parts of I²C messages. The data and clock lines must be connected to the input channels, triggering on math and reference waveforms is not possible.
Page 230: I²C Configuration
® Serial bus analysis R&S RTB 2 I²C (option R&S RTB-K1) ● Repeated start condition ● Transfer direction (read or write) ● Bytes with missing acknowledge bit ● Specific target address ● Specific data pattern in the message 13.3.2 I²C configuration The correct setup of the protocol parameters and the threshold is the condition for decoding the signal.
Page 231: I²C Trigger
® Serial bus analysis R&S RTB 2 I²C (option R&S RTB-K1) Remote command: on page 483 BUS<b>:I2C:CLOCk:SOURce Selects the source channel to which the data line is connected: active analog or digital channel. Remote command: on page 483 BUS<b>:I2C:DATA:SOURce Threshold, Find Threshold Set the signal threshold for the source channel.
Page 232 ® Serial bus analysis R&S RTB 2 I²C (option R&S RTB-K1) I2C trigger settings Figure 13-13: Trigger setup dialog to trigger on a combination of address and data = Hex value of the 1 byte, with the binary value 10100101 = Hex value of the 2 byte.
Page 233 ® Serial bus analysis R&S RTB 2 I²C (option R&S RTB-K1) To specify the target address, set the following properties: ● Set the length of the target address: "7Bit" or "10Bit". ● Toggle the trigger condition between "Read" and "Write" access of the controller.
Page 234: I²C Decode Results
® Serial bus analysis R&S RTB 2 I²C (option R&S RTB-K1) 13.3.4 I²C decode results When the configuration of the serial bus is complete, the signal can be decoded: 1. In the "Bus" menu, enable "Decode". 2. In the "Display" menu, select the result display settings.
Page 235: I²C Label List
® Serial bus analysis R&S RTB 2 I²C (option R&S RTB-K1) Column Description Hexadecimal value of the address Length Number of words in the frame Data Hexadecimal values of the data words State Overall state of the frame Remote commands are described in Chapter 16.11.3.3, "I²C - decode...
Page 236: Uart / Rs-232 (Option R&S Rtb-K2)
® Serial bus analysis R&S RTB 2 UART / RS-232 (option R&S RTB-K2) Figure 13-15: Label list for I2C Figure 13-16: Decoded I2C signal with applied label list and zoom on second frame 13.4 UART / RS-232 (option R&S RTB-K2) ●...
Page 237: About The Uart / Rs-232 Interface
The UART protocol has no clock for synchronization. The receiver synchronizes by the start and stop bits, and the bit rate that must be known to the receiver. Trigger The R&S RTB 2 can trigger on specified parts of UART serial signals: ● Start bit ●...
Page 238 ® Serial bus analysis R&S RTB 2 UART / RS-232 (option R&S RTB-K2) 6. Set the threshold. Use one of the following methods: ● Tap "Find Threshold". The instrument evaluates the signal and sets the thresh- old. ● Enter the threshold value in the numeric field.
Page 239 ® Serial bus analysis R&S RTB 2 UART / RS-232 (option R&S RTB-K2) Remote command: on page 495 BUS<b>:UART:DATA:POLarity on page 495 BUS<b>:UART:POLarity Threshold, Find Threshold Set the signal threshold for the source channel. Enter a value, or use "Find Threshold"...
Page 240: Uart Trigger
® Serial bus analysis R&S RTB 2 UART / RS-232 (option R&S RTB-K2) Idle Time Sets the minimal time between two data frames (packets), that is, between the last stop bit and the start bit of the next frame. Remote command: on page 497 BUS<b>:UART:BITime...
Page 241 ® Serial bus analysis R&S RTB 2 UART / RS-232 (option R&S RTB-K2) UART trigger settings Figure 13-19: Trigger setup dialog with an example of a UART serial pattern = Hex value of the 1 symbol, with the binary value 01010101...
Page 242: Uart Decode Results
® Serial bus analysis R&S RTB 2 UART / RS-232 (option R&S RTB-K2) "Pattern" Triggers on a data pattern at a specified position. The pattern setup consists of the "Symbol Offset" on page 242, the "Numb. of Symb." on page 242, and the "Data"...
Page 243: Can (Option R&S Rtb-K3)
® Serial bus analysis R&S RTB 2 CAN (option R&S RTB-K3) The instrument captures and decodes the signal according to the protocol definition and the configuration settings. The color-coding of the various protocol sections and errors simplifies the interpretation of the visual display. The decode information condenses or expands, depending on the horizontal scale.
Page 244: About The Can Protocol
® Serial bus analysis R&S RTB 2 CAN (option R&S RTB-K3) ● About the CAN protocol..................244 ● configuration....................245 ● trigger......................247 ● CAN decode results....................251 ● Search on decoded CAN data................253 ● CAN label list......................255 13.5.1 About the CAN protocol This chapter provides an overview of the protocol characteristics, frame types, informa- tion transfer and message formats.
Page 245: Can Configuration
® Serial bus analysis R&S RTB 2 CAN (option R&S RTB-K3) CAN data message format The CAN protocol defines two formats for the data frame: the base frame format and the extended frame format. The data frames are built as follows:...
Page 246 ® Serial bus analysis R&S RTB 2 CAN (option R&S RTB-K3) To set up and decode a CAN signal 1. Press the [Protocol] key in the Analysis area of the front panel. 2. Select the bus that you want to use: B1 or B2.
Page 247: Can Trigger
® Serial bus analysis R&S RTB 2 CAN (option R&S RTB-K3) Remote command: on page 318 CHANnel<m>:THReshold on page 319 CHANnel<m>:THReshold:FINDlevel on page 536 DIGital<m>:THReshold Type Selects the CAN-High or CAN-Low line. CAN uses both lines for differential signal transmission.
Page 248 ® Serial bus analysis R&S RTB 2 CAN (option R&S RTB-K3) To trigger on CAN signals: 1. Press the [Protocol] key in the Analysis area of the front panel. 2. Select the bus that is configured for CAN. 3. Select "Trigger".
Page 249 ® Serial bus analysis R&S RTB 2 CAN (option R&S RTB-K3) "End of Frame" Triggers on the end of the frame (7 recessive bits). "Frame" Triggers on the frame type that is selected with "Frame". See: "Frame" on page 249.
Page 250 ® Serial bus analysis R&S RTB 2 CAN (option R&S RTB-K3) Stuff Bit ← Error The following frame segments are coded by the bit stuffing method: ● Start of frame ● Arbitration field ● Control field ● Data field ●...
Page 251: Can Decode Results
® Serial bus analysis R&S RTB 2 CAN (option R&S RTB-K3) Bin / Hex pattern ← Identifier condition Defines the identifier or data pattern in binary and hexadecimal format. To set an indi- vidual binary bit or hex nibble (half byte), tap it and enter it via the on-screen keypad.
Page 252 ® Serial bus analysis R&S RTB 2 CAN (option R&S RTB-K3) The instrument captures and decodes the signal according to the protocol definition and the configuration settings. The color-coding of the various protocol sections and errors simplifies the interpretation of the visual display. The decode information condenses or expands, depending on the horizontal scale.
Page 253: Search On Decoded Can Data
® Serial bus analysis R&S RTB 2 CAN (option R&S RTB-K3) 13.5.5 Search on decoded CAN data Using the search functionality, you can find the same events in the decoded data which you also can trigger on. Unlike trigger, the search finds all events in an acquisition that fulfill the search condition.
Page 254 ® Serial bus analysis R&S RTB 2 CAN (option R&S RTB-K3) CAN search settings Figure 13-26: Settings for search on CAN bus for frames with identifier 567 (hex) that have an error Event Sets the event or combination of events to be searched for. For example, you can search for frames, errors, data, or IDs.
Page 255: Can Label List
® Serial bus analysis R&S RTB 2 CAN (option R&S RTB-K3) Frame Type Selects the frame type to be searched for, if "Event" = "Identifier" is selected. You can search for data and/or remote frames. Remote command: on page 518...
Page 256 ® Serial bus analysis R&S RTB 2 CAN (option R&S RTB-K3) Example: CAN PTT file # ---------------------------------------------------------------------------- @FILE_VERSION = 1.00 @PROTOCOL_NAME = can # --------------------------------------------------------------------------- # Labels for CAN protocol Column order: Identifier type, Identifier value, Label # --------------------------------------------------------------------------- 11,064h,Diag_Response...
Page 257: Lin (Option R&S Rtb-K3)
® Serial bus analysis R&S RTB 2 LIN (option R&S RTB-K3) Figure 13-28: Decoded CAN signal with bus table and applied label list 13.6 LIN (option R&S RTB-K3) The Local Interconnect Network (LIN) is a simple, low-cost bus system used within automotive network architectures.
Page 258 ● Synchronization mechanism for clock recovery by secondary nodes without crystal or ceramic resonator The R&S RTB 2 supports several versions of the LIN standard, for example, v1.3, v2.0, v2.1 and the American SAE J2602. Data transfer Basic communication concept of LIN: ●...
Page 259: Lin Configuration
Trigger The R&S RTB 2 can trigger on various parts of LIN frames. The data line must be con- nected to an input channel, triggering on math and reference waveforms is not possi- ble.
Page 260 ® Serial bus analysis R&S RTB 2 LIN (option R&S RTB-K3) LIN Configuration Settings Figure 13-31: LIN setup dialog Source.........................260 Idle..........................260 Threshold, Find Threshold..................260 Version........................260 Rate........................261 Source Sets the source of the data line: active analog or digital channel.
Page 261: Lin Trigger
® Serial bus analysis R&S RTB 2 LIN (option R&S RTB-K3) Remote command: on page 521 BUS<b>:LIN:STANdard Bit Rate Sets the number of transmitted bits per second. The LIN standard defines a maximum bit rate of 20 kbit/s. "Predefined" To select a bit rate from the list of predefined values, set "Bit Rate" to "Predefined"...
Page 262 ® Serial bus analysis R&S RTB 2 LIN (option R&S RTB-K3) LIN Trigger Settings Figure 13-32: Trigger setup to trigger on identifier and data patterns o (blue) = Selected bit in the 2 byte of the data pattern, where the blue color indicates that the keypad is active for this bit Trigger........................
Page 263 ® Serial bus analysis R&S RTB 2 LIN (option R&S RTB-K3) Remote command: on page 522 TRIGger:A:LIN:TYPE Error Select one or more error types as trigger condition. Checksum ← Error Checksum error. The checksum verifies the correct data transmission. It is the last byte of the frame response.
Page 264: Lin Decode Results
® Serial bus analysis R&S RTB 2 LIN (option R&S RTB-K3) Symbolic ID ← Identifier condition If a label list with symbolic names was loaded and applied in the bus configuration, you can select a symbolic name from the list instead of entering the numeric identifier. The instrument triggers on the identifier of the selected node.
Page 265: Search On Decoded Lin Data
® Serial bus analysis R&S RTB 2 LIN (option R&S RTB-K3) The instrument captures and decodes the signal according to the protocol definition and the configuration settings. The color-coding of the various protocol sections and errors simplifies the interpretation of the visual display. The decode information condenses or expands, depending on the horizontal scale.
Page 266 ® Serial bus analysis R&S RTB 2 LIN (option R&S RTB-K3) Figure 13-34: Search on a LIN bus for errors To search for events in a LIN signal 1. Configure and decode the bus correctly. 2. Acquire decoded data. 3. Press the Search key.
Page 267 ® Serial bus analysis R&S RTB 2 LIN (option R&S RTB-K3) LIN Search Settings Figure 13-35: Search on LIN bus for frames with identifier 2C (hex) that have an error Event........................... 267 Frame Setup....................... 267 Error..........................267 Identifier condition....................... 267 Data condition......................
Page 268: Lin Label List
® Serial bus analysis R&S RTB 2 LIN (option R&S RTB-K3) After setting the "Compare" condition, you can enter the identifier value by setting the state high, low, or X (do not care) for each single bit. Alternatively, you can enter a hex- adecimal value for each half byte.
Page 269 ® Serial bus analysis R&S RTB 2 LIN (option R&S RTB-K3) # Following ID is provided as integer 33,Mirror 0x37,Indoor lights # Labels for reserved addresses 0x3C,Master_Request_Frame 0x3D,Slave_Response_Frame # ---------------------------------------------------------------------------- Figure 13-36: Label list for LIN Figure 13-37: Decoded LIN signal with frame table and applied label list...
Page 270 ® Serial bus analysis R&S RTB 2 LIN (option R&S RTB-K3) gray = synchronization break, synchronization byte, correct checksum yellow = identifier green = parity bits blue = data words (UART words) User Manual 1333.1611.02 ─ 13...
Page 271: Logic Analyzer Mso
® Logic analyzer MSO R&S RTB 2 Short menu for logic channels 14 Logic analyzer MSO The Mixed Signal Option MSO adds logic analyzer functions to the classical oscillo- scope functions. Using the logic analyzer, you can analyze and debug embedded sys- tems with mixed signal designs that use analog signals and time-correlated digital sig- nals simultaneously.
Page 272 ® Logic analyzer MSO R&S RTB 2 Short menu for logic channels 1 = selects all/one logic channel 2 = displays the logic channel 3 = scales all visible channels to a minimum 4 = scales all visible channels to a maximum...
Page 273: Logic Analyzer Settings
® Logic analyzer MSO R&S RTB 2 Logic analyzer settings 14.2 Logic analyzer settings Prerequisite: a logic probe is connected to the instrument. 1. If logic analysis is not active, press the [Logic] key to activate it. 2. Press the [Logic] key again.
Page 274 ® Logic analyzer MSO R&S RTB 2 Logic analyzer settings "ECL: -1.3V" Sets the threshold to -1.3 V, which is typically used in emitter-coupled logic (ECL). "User Level" Selects the user-defined threshold. Enter the value in User Level. Remote command: on page 535 DIGital<m>:TECHnology...
Page 275: Triggering On Logic Channels
You can also export the waveform data: [Save Load] key > "Waveforms" 14.5 Parallel buses The R&S RTB 2 can display and decode up to 16 lines of a parallel bus. You can assign the logic channels to the bus bits individually.
Page 276: Parallel Bus Configuration
® Logic analyzer MSO R&S RTB 2 Parallel buses 14.5.1 Parallel bus configuration You can configure a parallel bus or a parallel clocked bus. For the parallel clocked bus, a clock line and an optional chip select line are defined in addition to the other settings.
Page 277 ® Logic analyzer MSO R&S RTB 2 Parallel buses Figure 14-2: Configuration menu Parallel clocked bus The menus offer the following settings: Width........................277 Thresholds........................277 Source.........................278 Set to Default......................278 Chip Select........................278 Polarity........................278 Slope........................... 278 Bus Width Sets the number of lines (bits) of the logic channels D0 to D15 to be analyzed in the parallel or clocked parallel bus.
Page 278: Decode Results
® Logic analyzer MSO R&S RTB 2 Parallel buses Remote command: on page 536 DIGital<m>:THReshold Source Selects the input line for each bit of the parallel or clocked parallel bus. If you use a clocked parallel bus, in the last two lines you can select the source for the "Clock"...
Page 279 ® Logic analyzer MSO R&S RTB 2 Parallel buses Figure 14-3: Decoded Parallel bus signal with bus table Figure 14-4: Decoded Parallel clocked bus signal The bus table shows the data of decoded frames and the corresponding start time. Remote commands are described in Chapter 16.12.2.3, "Parallel buses - decode...
Page 280: Signal Generation (Option R&S Rtb-B6)
RTB 2 Function generator 15 Signal generation (option R&S RTB-B6) The R&S RTB 2 has an integrated function and pattern generator which can generate signals while testing circuits, for instance. The waveform generator can output simple functions, modulated sine waveform, arbi- trary waveforms and sweep waveforms.
Page 281 ® Signal generation (option R&S RTB-B6) R&S RTB 2 Function generator 4. Activate "Output" to output the waveform at the [Aux Out] connector at the front panel. To generate a modulated waveform Modulation settings are described in Chapter 15.1.4, "Modulation settings",...
Page 282 ® Signal generation (option R&S RTB-B6) R&S RTB 2 Function generator 9. Tap "Visible" to enable the arbitrary waveform. The arbitrary waveform is shown in magenta color. If the arbitrary waveform was created from a part of the displayed channel waveform, this part is stretched in hor- izontal direction to fill all divisions.
Page 283: Basic Settings Of The Function Generator
® Signal generation (option R&S RTB-B6) R&S RTB 2 Function generator To configure a burst Burst settings are described in Chapter 15.1.5, "Burst settings", on page 289. 1. Press the [Gen] key on the front panel. 2. Configure the signal waveform as described above.
Page 284 ® Signal generation (option R&S RTB-B6) R&S RTB 2 Function generator Output Enables the function generator. Remote command: on page 548 WGENerator:OUTPut[:ENABle] Function Selects the type of waveform to be generated. For all waveforms, you can set the Fre- quency, Amplitude, Offset, and Noise.
Page 285 ® Signal generation (option R&S RTB-B6) R&S RTB 2 Function generator Amplitude Sets the amplitude of the waveform. Remote command: on page 546 WGENerator:VOLTage Offset Sets the vertical offset of the generated waveform. Remote command: on page 546 WGENerator:VOLTage:OFFSet Noise Sets the noise of the generated waveform.
Page 286: Sweep Settings
Remote command: on page 548 WGENerator:OUTPut:LOAD 15.1.3 Sweep settings Access: [Gen] key > "Sweep" In the sweep mode, the R&S RTB 2 generates a signal whose frequency gradually changes from the Start Frequency to the Stop Frequency for a certain Sweep Time.
Page 287: Modulation Settings
® Signal generation (option R&S RTB-B6) R&S RTB 2 Function generator Remote command: on page 554 WGENerator:SWEep:FSTart Stop Frequency Sets the stop frequency of the sweep signal. Remote command: on page 554 WGENerator:SWEep:FEND Sweep Time Sets the duration of the sweep.
Page 288 ® Signal generation (option R&S RTB-B6) R&S RTB 2 Function generator Remote command: on page 552 WGENerator:MODulation[:ENABLE] Modulation Type Selects the modulation type, which defines how the carrier signal is modified. "AM" Amplitude modulation. The amplitude of the carrier signal is varied according to the modulation signal.
Page 289: Burst Settings
® Signal generation (option R&S RTB-B6) R&S RTB 2 Function generator Remote command: on page 553 WGENerator:MODulation:ASK:DEPTh Polarity Sets the polarity of the ramp function for AM and FM modulation. Remote command: on page 554 WGENerator:MODulation:RAMP:POLarity Hop. Frequency Sets the second frequency of the FSK-modulated signal.
Page 290: Arbitrary Setup Settings
® Signal generation (option R&S RTB-B6) R&S RTB 2 Function generator Burst Enables or disables the burst. Remote command: on page 551 WGENerator:BURSt[:STATe] N-Cycle Sets the number of times the generator outputs one cycle of the waveform per burst. Remote command:...
Page 291 ® Signal generation (option R&S RTB-B6) R&S RTB 2 Function generator Visible Enables the display of the arbitrary waveform. Remote command: on page 550 WGENerator:ARBitrary:VISible Source Selects the source of the arbitrary waveform. You can load an existing file or load the current oscilloscope waveform.
Page 292 ® Signal generation (option R&S RTB-B6) R&S RTB 2 Function generator Set Period ← Cut Waveform Sets the copy area to the first period of the waveform. Set To Screen ← Cut Waveform Sets the copy area within the screen.
Page 293: Pattern Generator
® Signal generation (option R&S RTB-B6) R&S RTB 2 Pattern generator 15.2 Pattern generator The pattern generator outputs parallel patterns on the four pins P0 to P3 on the front panel of the instrument. 1. Press the [Apps Selection] key.
Page 294: Settings For Square Wave Pattern
® Signal generation (option R&S RTB-B6) R&S RTB 2 Pattern generator "UART, SPI, I2C, CAN, LIN, Audio-I2S, Audio-TDM" Generate a bus signal for measurements without measurement object. Remote command: on page 556 PGENerator:FUNCtion 15.2.2 Settings for square wave pattern Access: "Menu"...
Page 295: Settings For Counter Pattern
® Signal generation (option R&S RTB-B6) R&S RTB 2 Pattern generator Remote command: on page 557 PGENerator:PATTern:SQUarewave:DCYCle 15.2.3 Settings for counter pattern Access: "Menu" > "Pattern Gen." > "Pattern" = "Counter" Frequency Sets the switching frequency, how fast the pattern condition changes. The square waveforms at the pins have the following resulting frequencies: ●...
Page 296 ® Signal generation (option R&S RTB-B6) R&S RTB 2 Pattern generator ● General settings....................296 ● Pattern setup......................297 ● Timing setup......................298 15.2.4.1 General settings Pattern Setup Opens the menu to define the individual bit values of the pattern. Chapter 15.2.4.2, "Pattern setup",...
Page 297 ® Signal generation (option R&S RTB-B6) R&S RTB 2 Pattern generator Pattern trigger Selects the mode for the trigger for the ARB signal. You can select an automatic con- tinuous trigger or a manual one time trigger. If "1x" is selected, tap "Manual" to initiate the trigger.
Page 298 ® Signal generation (option R&S RTB-B6) R&S RTB 2 Pattern generator 15.2.4.3 Timing setup Access: "Menu" > "Pattern Gen." > "Pattern" = "Arbitrary" Bit Time Sets the time at which each sample is applied. The time is identical for all samples.
Page 299: Settings For Manual Pattern
® Signal generation (option R&S RTB-B6) R&S RTB 2 Pattern generator 15.2.5 Settings for manual pattern Access: "Menu" > "Pattern Gen." > "Pattern" = "Manual" P0/P1/P2/P3 Sets the states to high or low for the respective pin of the manual pattern.
Page 300 ® Signal generation (option R&S RTB-B6) R&S RTB 2 Pattern generator Data Rate Select the data rate of the bus signal. The following values are available for the specific bus: ● UART: 9600 Bit/s, 115.2 kBit/s, 1 MBit/s ● SPI: 100 kBit/s, 250 kBit/s, 1 MBit/s ●...
Page 301: Remote Control Commands
This chapter provides the description of all remote commands available for R&S RTB 2. The commands are sorted according to the menu structure of the instru- ment. A list of commands in alphabetical order ist given in the "List of Commands" at the end of this documentation.
Page 302: Programming Examples
● Conformity Commands that are taken from the SCPI standard are indicated as "SCPI con- firmed". All commands used by the R&S RTB 2 follow the SCPI syntax rules. ● Asynchronous commands A command which does not automatically finish executing before the next com- mand starts executing (overlapping command) is indicated as an "Asynchronous...
Page 303 ® Remote control commands R&S RTB 2 Programming examples HCOP:LANG PNG HCOP:COL:SCH COL MMEM:NAME "COLORED" HCOP:IMM HCOP:COL:SCH GRAY MMEM:NAME "GRAY" HCOP:IMM MMEM:CAT? "*.PNG" MMEM:DATA? "GRAY.PNG" 16.2.1.2 Saving, copying, and loading setup data Save instrument settings to a file on internal storage device, duplicate this file and save it to a USB stick attached to the front panel.
Page 304 ® Remote control commands R&S RTB 2 Programming examples MMEM:CDIR "/INT/SETTINGS" MMEM:LOAD:STAT 1,"ZOOM_USB.SET" // Load settings 16.2.1.3 Reading waveform data in real format Set data format and sample range, read channel header and data. Command description in Chapter 16.9.1, "Transfer of waveform data",...
Page 305 ® Remote control commands R&S RTB 2 Programming examples CHAN:DATA:XOR? // Read time of the first sample <-- -4.998000058E-7 CHAN:DATA:XINC? // Read time between two adjacent samples <-- 2.000000023E-10 FORM UINT,8;FORM? // Set data format to unsigned integer, 8 bit <--...
Page 306: Firmware Update
To prepare the remote update, configure the instrument's interface to Ethernet, USB TMC or USB VCP. Connect to the R&S RTB 2 using a socket connection, Visa or a terminal program. 16.2.2.1 Using MMEM:DATA + DIAGnostic:UPDate:LOAD 1.
Page 307: Search
® Remote control commands R&S RTB 2 Programming examples 2. Send the firmware update file data to the internal RAM of the instrument: :DIAG:UPD:TRAN:DATA offset,checksum,blockdata\n The offset parameter specifies the byte offset of the blockdata in the file. The checksum parameter is a CRC-16-CCITT type checksum calculated for the raw binary data in blockdata.
Page 308: Function Generator
® Remote control commands R&S RTB 2 Common commands 1.684724e-04,0,WIDTH,POSITIVE,1.215160e-05,10,1.953216e-04,0,WIDTH,POSITIVE, 3.027200e-06,11,2.044716e-04,0,WIDTH,POSITIVE,6.052000e-06,12,2.252212e-04,0, WIDTH,POSITIVE,3.052000e-06,13,2.435456e-04,0,WIDTH,POSITIVE,3.027200e-06,14, 2.496456e-04,0,WIDTH,POSITIVE,6.702000e-06 16.2.4 Function generator Configure and output a sine waveform. Command description in: Chapter 16.13.1, "Function generator", on page 545. Prerequesite: To see the generated waveform on the oscilloscope, connect the "Gen"...
Page 309 ® Remote control commands R&S RTB 2 Common commands Usage: Query only *CLS Clear status Sets the status byte (STB), the standard event register (ESR) and the EVENt part of the QUEStionable and the OPERation registers to zero. The command does not alter the mask and transition parts of the registers.
Page 310 ® Remote control commands R&S RTB 2 Common commands Sets bit 0 in the event status register when all preceding commands have been execu- ted. This bit can be used to initiate a service request. The query writes a "1" into the output buffer when all preceding commands have been executed, which is useful for command synchronization.
Page 311: Waveform Setup
® Remote control commands R&S RTB 2 Waveform setup Parameters: <Contents> Contents of the service request enable register in decimal form. Bit 6 (MSS mask bit) is always 0. Range: 0 to 255 *STB? Status byte query Reads the contents of the status byte in decimal form.
Page 312: Automatic Setup
® Remote control commands R&S RTB 2 Waveform setup 16.4.1 Automatic setup AUToscale Performs an autoset process for analog channels: analyzes the enabled analog chan- nel signals, and adjusts the horizontal, vertical, and trigger settings to display stable waveforms Usage:...
Page 313: Vertical Settings
® Remote control commands R&S RTB 2 Waveform setup Parameters: <NSingleCount> Number of waveforms. Range: 1 to maximum number that depends on the record length. *RST: Manual operation: "Nx Single" on page 65 STOP Stops the running acquistion. Usage: Event...
Page 314 ® Remote control commands R&S RTB 2 Waveform setup ....................317 CHANnel<m>:POLarity ......................317 CHANnel<m>:SKEW ..................317 CHANnel<m>:ZOFFset[:VALue] ....................318 CHANnel<m>:WCOLor ....................318 CHANnel<m>:THReshold ................319 CHANnel<m>:THReshold:FINDlevel ................319 CHANnel<m>:THReshold:HYSTeresis .......................319 CHANnel<m>:LABel .....................320 CHANnel<m>:LABel:STATe CHANnel<m>:STATe <State> Switches the channel signal on or off.
Page 315 ® Remote control commands R&S RTB 2 Waveform setup Parameters: <Scale> Scale value, given in Volts per division. Range: 1e-3 to 10 (without probe attenuation) *RST: 5e-3 Default unit: V/div Manual operation: "[Scale]" on page 53 "Vertical Scale" on page 57 CHANnel<m>:RANGe <Range>...
Page 316 ® Remote control commands R&S RTB 2 Waveform setup Suffix: <m> 1..4 Selects the input channel. The number of channels depends on the instrument. Parameters: <Offset> Offset value Range: Depend on vertical scale and probe attenuation. Increment: Depends on vertical scale and probe attenuation.
Page 317 ® Remote control commands R&S RTB 2 Waveform setup Limit to 20 MHz. Higher frequencies are removed to reduce noise. *RST: FULL Manual operation: "Bandwidth" on page 56 CHANnel<m>:POLarity <Polarity> Turns the inversion of the signal amplitude on or off. To invert means to reflect the volt- age values of all signal components against the ground level.
Page 318 ® Remote control commands R&S RTB 2 Waveform setup Suffix: <m> 1..4 Selects the input channel. The number of channels depends on the instrument. Parameters: <ZeroOffset> *RST: Default unit: V Manual operation: "Zero Adjust" on page 58 CHANnel<m>:WCOLor <WaveformColor> Selects the color scale for the waveform color. Each scale comprises a set of colors, where each color represents a certain frequency of occurrence.
Page 319 ® Remote control commands R&S RTB 2 Waveform setup TTL: 1.4 V ECL: -1.3 V CMOS: 2.5 V Default unit: V Manual operation: "Threshold" on page 59 "Threshold" on page 76 "Threshold" on page 85 "Threshold, Find Threshold" on page 223 CHANnel<m>:THReshold:FINDlevel...
Page 320: Passive Probes
® Remote control commands R&S RTB 2 Waveform setup Suffix: <m> 1..4 Selects the input channel. The number of channels depends on the instrument. Parameters: <Label> String value String with max. 8 characters, only ASCII characters can be used Manual operation: "Label"...
Page 321: Horizontal Settings
® Remote control commands R&S RTB 2 Waveform setup Suffix: <m> 1..4 Selects the input channel. The number of channels depends on the instrument. Parameters: <ManualAttenuation> Range: 0.0001 to 10e6 Manual operation: "User" on page 61 PROBe<m>:SETup:GAIN:UNIT <Unit> Selects the unit that the probe can measure.
Page 322 ® Remote control commands R&S RTB 2 Waveform setup Parameters: <TimeScale> Range: 1e-9 to 50; lower limits are possible if zoom or FFT is enabled. Increment: 1e-9 *RST: 100e-6 Default unit: s/div Manual operation: "[Scale]" on page 49 "Time Scale"...
Page 323: Acquisition Settings
® Remote control commands R&S RTB 2 Waveform setup TIMebase:ACQTime <AcquisitionTime> TIMebase:RANGe <AcquisitionTime> Defines the time of one acquisition, that is the time across the 12 divisions of the dia- gram: Horizontal scale*12. Parameters: <AcquisitionTime> Range and increment depend on time base (horizontal scale)
Page 324 ® Remote control commands R&S RTB 2 Waveform setup ...................... 328 ACQuire:INTerpolate ....................328 ACQuire:POINts:ARATe? ......................329 ACQuire:SRATe? ACQuire:POINts:AUTomatic <AutoRecordLength> Enables or disables the automatic record length. The instrument sets a value that fits to the selected timebase. If you set a specific value with ACQuire:POINts[:VALue], the automatic assign- ment of a record length is turned off.
Page 325 ® Remote control commands R&S RTB 2 Waveform setup Parameters: <RecordLength> Record length in Samples. If the entered value differs from the predefined values, the instrument sets the closest value. Manual operation: "Record Length" on page 63 "Record Length" on page 109 CHANnel<m>:TYPE <DecimationMode>...
Page 326 ® Remote control commands R&S RTB 2 Waveform setup CHANnel<m>:ARIThmetics <TrArith> Selects the method to build the resulting waveform from several consecutive acquisi- tions of the signal. Suffix: <m> 1..4 The command affects all channels regardless of the indicated channel number. The suffix can be omitted.
Page 327 ® Remote control commands R&S RTB 2 Waveform setup ACQuire:NSINgle:COUNt <NSingleCount> Sets the number of waveforms acquired with RUNSingle. Parameters: <NSingleCount> Number of waveforms. Range: 1 to maximum number that depends on the record length. *RST: Manual operation: "Nx Single"...
Page 328 ® Remote control commands R&S RTB 2 Waveform setup Parameters: <AutomaticRoll> ON | OFF *RST: Manual operation: "Roll" on page 65 TIMebase:ROLL:MTIMe <MinTimeBase> The roll mode is enabled automatically if the time base exceeds the MinTimeBase, and if on page 327 is set ON.
Page 329: Waveform Data
® Remote control commands R&S RTB 2 Trigger ACQuire:SRATe? <SampleRate> Returns the sample rate, that is the number of recorded waveform samples per sec- ond. Parameters: <SampleRate> Default unit: Sa/s Usage: Query only 16.4.7 Waveform data Use the following commands are described in Chapter 16.9.1.2, "Analog...
Page 330: General Trigger Settings
® Remote control commands R&S RTB 2 Trigger 16.5.1 General trigger settings This section describes general trigger commands that are independent of the trigger type......................330 TRIGger:A:MODE ....................... 330 TRIGger:A:SOURce ......................331 TRIGger:A:TYPE .....................331 TRIGger:A:HOLDoff:MODE ....................332 TRIGger:A:HOLDoff:TIME TRIGger:A:MODE <TriggerMode>...
Page 331 ® Remote control commands R&S RTB 2 Trigger D0..D15 Digital channels D0 to D15, can be used as trigger sources for edge, width, timeout and pattern trigger. Manual operation: "[Source]" on page 68 "Source" on page 71 TRIGger:A:TYPE <Type> Sets the trigger typer.
Page 332: Edge Trigger
® Remote control commands R&S RTB 2 Trigger TRIGger:A:HOLDoff:TIME <HoldOffTime> Defines the holdoff time. The next trigger occurs only after the holdoff time has passed. Parameters: <HoldOffTime> Default unit: s Manual operation: "Hold Off, Hold Off Time" on page 71 16.5.2 Edge trigger...
Page 333 ® Remote control commands R&S RTB 2 Trigger Manual operation: "[Levels]" on page 68 "Trigger Level, Threshold" on page 73 "Threshold" on page 76 "Threshold" on page 85 TRIGger:A:FINDlevel Sets the trigger level to 50% of the signal amplitude. Usage:...
Page 334: Width Trigger
® Remote control commands R&S RTB 2 Trigger Parameters: <State> ON | OFF *RST: Manual operation: "HF Reject" on page 73 TRIGger:A:EDGE:FILTer:NREJect <State> Turns an additional 100 MHz lowpass filter in the trigger path on or off. This filter removes higher frequencies and is available with AC and DC coupling.
Page 335 ® Remote control commands R&S RTB 2 Trigger TRIGger:A:WIDTh:RANGe <RangeMode> Defines how the measured pulse width is compared with the given limits. Parameters: <RangeMode> WITHin | OUTSide | SHORter | LONGer WITHin | OUTSide Triggers on pulses inside or outside a range defined by time ±...
Page 336: Video/Tv Trigger
® Remote control commands R&S RTB 2 Trigger 16.5.4 Video/TV trigger ....................336 TRIGger:A:TV:STANdard ....................336 TRIGger:A:TV:POLarity ...................... 336 TRIGger:A:TV:FIELd ......................337 TRIGger:A:TV:LINE TRIGger:A:TV:STANdard <Standard> Selects the color television standard. Parameters: <Standard> PAL | NTSC | SECam | PALM | I576 | P720 | P1080 | I1080...
Page 337: Pattern Trigger
® Remote control commands R&S RTB 2 Trigger All fields, triggers on the frame start (progressive scanning) or any field start (interlaced scanning). LINE Triggers on the beginning of a specified line in any field. The line number is set with TRIGger:A:TV:LINE.
Page 338 ® Remote control commands R&S RTB 2 Trigger Example: Without MSO option: TRIG:A:PATT:SOUR "1X10" C1 and C3 is set to high, C4 to low, and C2 does not matter (don't care). Example: With MSO option: TRIG:A:PATT:SOUR "XXXX111101010011XXXX" Analog channels C1 to C4 do not matter (don't care). Digital channels D0 to D11 are set to high or low, D12 to D15 do not matter.
Page 339 ® Remote control commands R&S RTB 2 Trigger TRIGger:A:PATTern:MODE <PatternMode> Disables the time limitation or sets the time comparison mode. Parameters: <PatternMode> OFF | TIMeout | WIDTh Disables the time limitation. TIMeout Defines how long at least the result of the state pattern condition must be true or false.
Page 340: Runt Trigger
® Remote control commands R&S RTB 2 Trigger TRIGger:A:PATTern:WIDTh:DELTa <PatternDelta> Defines a range around the pattern width value specified using TRIGger:A: PATTern:WIDTh[:WIDTh]. Parameters: <PatternDelta> Default unit: s Manual operation: "Time limitation" on page 80 16.5.6 Runt trigger ................. 340 TRIGger:A:LEVel<n>:RUNT:LOWer ..................340...
Page 341: Risetime Trigger
® Remote control commands R&S RTB 2 Trigger Parameters: <Variation> Range: Depends on various settings, mainly time base and sample rate Manual operation: "Variation" on page 84 TRIGger:A:RUNT:POLarity <Polarity> Indicates the polarity of a the runt to be triggered on.
Page 342 ® Remote control commands R&S RTB 2 Trigger ..................342 TRIGger:A:RISetime:RANGe ................... 343 TRIGger:A:RISetime:SLOPe ....................343 TRIGger:A:RISetime:TIME TRIGger:A:LEVel<n>:RISetime:LOWer <Level> Sets the lower voltage threshold. When the signal crosses this level, the rise time mea- surement starts or stops depending on the selected slope.
Page 343: Timeout Trigger
® Remote control commands R&S RTB 2 Trigger WITHin Triggers on rise/fall times inside the range time ± Δt. OUTSide Triggers on rise/fall times outside the range time ± Δt. *RST: LONG Manual operation: "Comparison" on page 83 TRIGger:A:RISetime:SLOPe <Polarity>...
Page 344: Serial Bus
® Remote control commands R&S RTB 2 Trigger The signal level stays below the trigger level. *RST: HIGH Manual operation: "Range" on page 85 TRIGger:A:TIMeout:TIME <Time> Sets the time limit for the timeout at which the instrument triggers. Parameters: <Time>...
Page 345 ® Remote control commands R&S RTB 2 Trigger Parameters: <EventsEnabled> ON | OFF *RST: Manual operation: "Actions on Trigger" on page 87 TRIGger:EVENt:SOUNd <SoundEnable> If ON, the instrument generates a beep on trigger event. The acquisition is not delayed, the sound generation runs asynchronously. The minimum time between two beeps is 1 s.
Page 346 ® Remote control commands R&S RTB 2 Trigger Manual operation: "Screenshot" on page 87 TRIGger:EVENt:SCRSave:DESTination <File> Defines the target directory and file name for a screenshot that is saved on trigger event when is ON. TRIGger:EVENt:SCRSave Parameters: <File> String parameter...
Page 347: Waveform Analysis
® Remote control commands R&S RTB 2 Waveform analysis TRIGger:EVENt:WFMSave:DESTination <File> Defines the target directory and file name for a waveform that is saved on trigger event when is ON. TRIGger:EVENt:WFMSave Parameters: <File> String parameter String with path and file name 16.6 Waveform analysis...
Page 348: Mathematics
® Remote control commands R&S RTB 2 Waveform analysis TIMebase:ZOOM:TIME <Time> Defines the distance of the trigger point to the reference point in the zoom window. The value determines the position of the zoom area that is displayed in the zoom window.
Page 349 ® Remote control commands R&S RTB 2 Waveform analysis ..................351 CALCulate:MATH<m>:SCALe ..................351 CALCulate:MATH<m>:WCOLor ................351 CALCulate:MATH<m>:TRACk:EDGE ............352 CALCulate:MATH<m>:TRACk:THReshold:HYSTeresis ............352 CALCulate:MATH<m>:TRACk:THReshold[:UPPer] CALCulate:MATH<m>:STATe <State> Activates the mathematics function and displays the defined math waveforms. Suffix: <m> 1..5 Selects the math waveform.
Page 350 ® Remote control commands R&S RTB 2 Waveform analysis Operation Expression string Comment Inverse "INV(CH1)" Common logarithm (basis 10) "LOG(CH1)" Natural logarithm (basis e) "LN(CH1)" Derivative DERI(CH1,1.000E+03) in V CH1 – Source waveform 1.000E+03 – constant value, number of samples averaged for calculation. See Chapter 7.2.4.1,...
Page 351 ® Remote control commands R&S RTB 2 Waveform analysis CALCulate:MATH<m>:POSition <Position> Sets the vertical position of the math waveform. Suffix: <m> 1..5 Selects the math waveform. Parameters: <Position> Position value, given in divisions. Manual operation: "[Offset/Position (upper knob)]" on page 53 CALCulate:MATH<m>:SCALe <Scale>...
Page 352: Reference Waveforms
® Remote control commands R&S RTB 2 Waveform analysis Parameters: <Polarity> ON | OFF Manual operation: "Edge" on page 101 CALCulate:MATH<m>:TRACk:THReshold:HYSTeresis <Hysteresis> Sets the hysteresis for correct edge detection. Suffix: <m> 1..5 Parameters: <Hysteresis> Default unit: V Manual operation: "Hyst"...
Page 353 CH1 | CH2 | CH3 | CH4 | MA1 | MA2 | MA3 | MA4 | MA5 | RE1 | RE2 | RE3 | RE4 Any active channel, math, or reference waveform. CH3 and CH4 are only available with 4-channel R&S RTB 2 oscilloscopes. D70 | D158 Logic probes SPEC | MINH | MAXH | AVER FFT waveforms: spectrum, min hold, max hold, average.
Page 354 ® Remote control commands R&S RTB 2 Waveform analysis Suffix: <m> 1..4 Selects the reference waveform. Parameters: <State> ON | OFF *RST: Manual operation: "State" on page 105 REFCurve<m>:UPDate Updates the selected reference by the waveform defined with REFCurve<m>:SOURce. Suffix: <m>...
Page 355 ® Remote control commands R&S RTB 2 Waveform analysis REFCurve<m>:LOAD:STATe Loads the instrument settings in addition to the reference waveform data. The wave- form data must be loaded before the settings, see on page 354. REFCurve<m>:LOAD The settings are only available if the file was stored to the internal storage and never written to a USB flash device.
Page 356 ® Remote control commands R&S RTB 2 Waveform analysis Manual operation: "[Offset/Position (upper knob)]" on page 53 REFCurve<m>:VERTical:SCALe <Scale> Changes the vertical scale of the reference waveform. Suffix: <m> 1..4 Selects the reference waveform. Parameters: <Scale> Default unit: V/div Manual operation: "[Scale]"...
Page 357: Search
® Remote control commands R&S RTB 2 Waveform analysis 16.6.4 Search ● General search settings..................357 ● Edge search configuration..................359 ● Width search configuration..................359 ● Peak search configuration..................361 ● Rise/fall time search configuration................ 362 ● Runt search configuration..................364 ●...
Page 358 ® Remote control commands R&S RTB 2 Waveform analysis RUNT The runt search finds pulses lower than normal in amplitude. The amplitude crosses the first threshold twice without crossing the second one. In addition to the threshold amplitudes, you can...
Page 359 ® Remote control commands R&S RTB 2 Waveform analysis Manual operation: "Source" on page 119 "Data" on page 126 16.6.4.2 Edge search configuration ..................359 SEARch:TRIGger:EDGE:SLOPe ..................359 SEARch:TRIGger:EDGE:LEVel ................359 SEARch:TRIGger:EDGE:LEVel:DELTa SEARch:TRIGger:EDGE:SLOPe <Slope> Sets the slope to be searched for.
Page 360 ® Remote control commands R&S RTB 2 Waveform analysis SEARch:TRIGger:WIDTh:POLarity <Polarity> Indicates the polarity of the pulse to be searched for. Parameters: <Polarity> POSitive | NEGative *RST: Example: Chapter 16.2.3.1, "Searching for a pulse of specified width", on page 307 Manual operation: "Polarity"...
Page 361 ® Remote control commands R&S RTB 2 Waveform analysis *RST: WITH Example: Chapter 16.2.3.1, "Searching for a pulse of specified width", on page 307 Manual operation: "Comparison" on page 121 SEARch:TRIGger:WIDTh:WIDTh <Width> Sets the reference pulse width, the nominal value for comparisons.
Page 362 ® Remote control commands R&S RTB 2 Waveform analysis Parameters: <Magnitude> Default unit: V Manual operation: "Magnitude" on page 122 16.6.4.5 Rise/fall time search configuration ................. 362 SEARch:TRIGger:RISetime:SLOPe ................ 362 SEARch:TRIGger:LEVel:RISetime:LOWer .................362 SEARch:TRIGger:LEVel:RISetime:UPPer ................363 SEARch:TRIGger:RISetime:RANGe ..................363 SEARch:TRIGger:RISetime:TIME .................. 363 SEARch:TRIGger:RISetime:DELTa SEARch:TRIGger:RISetime:SLOPe <Polarity>...
Page 363 ® Remote control commands R&S RTB 2 Waveform analysis SEARch:TRIGger:RISetime:RANGe <Range> Sets how the measured rise or fall time is compared with the given limit(s). To set the rise/fall time, use SEARch:TRIGger:RISetime:TIME. To set the range ± Δt, use SEARch:TRIGger:RISetime:DELTa.
Page 364 ® Remote control commands R&S RTB 2 Waveform analysis 16.6.4.6 Runt search configuration ..................364 SEARch:TRIGger:RUNT:POLarity ................364 SEARch:TRIGger:LEVel:RUNT:LOWer ................364 SEARch:TRIGger:LEVel:RUNT:UPPer ..................364 SEARch:TRIGger:RUNT:RANGe ..................365 SEARch:TRIGger:RUNT:WIDTh ..................365 SEARch:TRIGger:RUNT:DELTa SEARch:TRIGger:RUNT:POLarity <Polarity> Indicates the polarity of a the runt to be searched for.
Page 365 ® Remote control commands R&S RTB 2 Waveform analysis LONGer Finds pulses longer than the given width. SHORter Finds pulses shorter than the given width. WITHin Finds pulses inside the range width ± Δt. OUTSide Finds pulses outside the range width ± Δt.
Page 366 ® Remote control commands R&S RTB 2 Waveform analysis SEARch:TRIGger:DATatoclock:CSOurce <ClockSource> Selects the input channel of the clock signal. Parameters: <ClockSource> CH1 | CH2 | CH3 | CH4 *RST: Manual operation: "Clock" on page 126 SEARch:TRIGger:DATatoclock:CLEVel <ClockLevel> Sets the voltage level for the clock signal. The crossing of clock level and clock edge defines the start point for setup and hold time.
Page 367 ® Remote control commands R&S RTB 2 Waveform analysis SEARch:TRIGger:DATatoclock:HTIMe <HoldTime> Sets the minimum time after the clock edge while the data signal must stay steady above or below the data level. The hold time can be negative. In this case, the hold time ends before the clock edge, and the setup time must be positive and longer than the absolute value of the hold time.
Page 368 ® Remote control commands R&S RTB 2 Waveform analysis Example: CHAN1:STAT ON CHAN2:STAT ON CHAN3:STAT ON CHAN4:STAT ON SEAR:STAT ON SEAR:COND PATT SEAR:TRIG:PATT:SOUR '1X10' CH1, CH3 are high, CH4 is low. These states are logically com- bined with SEARch:TRIGger:PATTern:FUNCtion. CH2 does not matter (don't care) and can be off.
Page 369 ® Remote control commands R&S RTB 2 Waveform analysis SEARch:TRIGger:PATTern:LEVel<n>:DELTa <LevelDelta> Sets a hysteresis range to the threshold of the specified source channel to avoid unwanted search results caused by noise oscillation around the level. Suffix: <n> 1..4 Selects the input channel. The number of channels depends on the instrument.
Page 370 ® Remote control commands R&S RTB 2 Waveform analysis SEARch:TRIGger:PATTern:WIDTh:DELTa <DeltaTime> Sets a range Δt to the reference pattern duration set with SEARch:TRIGger: PATTern:WIDTh[:WIDTh], if is set to SEARch:TRIGger:PATTern:WIDTh:RANGe WITHin or OUTSide. Parameters: <DeltaTime> Default unit: s Manual operation: "Variation"...
Page 371: Search:result
® Remote control commands R&S RTB 2 Waveform analysis 4. Type of the search result (Edge, Peak, ...) 5. Slope or polarity of the search result 6. For peak searches, the value contains the peak voltage. For width searches, it contains the pulse width. For edge searches, the value is not relevant.
Page 372: History
® Remote control commands R&S RTB 2 Waveform analysis EXPort:SEARch:NAME <FileName> Defines the path and filename for search results that will be saved with EXPort: SEARch:SAVE. The file format is CSV, the filename is incremented automatically. You can change the file name manually in the [Search] > "Save" dialog. Remote con- trol uses the recent settings.
Page 373 ® Remote control commands R&S RTB 2 Waveform analysis ACQuire:POINts:AUTomatic <AutoRecordLength> Enables or disables the automatic record length. The instrument sets a value that fits to the selected timebase. If you set a specific value with ACQuire:POINts[:VALue], the automatic assign- ment of a record length is turned off.
Page 374 ® Remote control commands R&S RTB 2 Waveform analysis Parameters: <RecordLength> Record length in Samples. If the entered value differs from the predefined values, the instrument sets the closest value. Manual operation: "Record Length" on page 63 "Record Length" on page 109 ACQuire:COUNt Sets the number of segments to be captured.
Page 375 ® Remote control commands R&S RTB 2 Waveform analysis Manual operation: "Fast Segmentation" on page 110 ACQuire:AVERage:CURRent? Returns the current amount of acquired waveforms that contribute to the average. The value is independent of the number of available segments, there are more waveforms in the average available than segments in history.
Page 376 ® Remote control commands R&S RTB 2 Waveform analysis ....................377 DIGital<m>:HISTory:STOP ....................377 LOGic<p>:HISTory:STOP ....................377 SPECtrum:HISTory:STOP ..................377 CHANnel<m>:HISTory:STOP ..............377 CALCulate:MATH<m>:HISTory:PLAYer:SPEed ..................377 BUS<b>:HISTory:PLAYer:SPEed ................. 377 DIGital<m>:HISTory:PLAYer:SPEed ...................377 LOGic<p>:HISTory:PLAYer:SPEed .................. 378 SPECtrum:HISTory:PLAYer:SPEed ................378 CHANnel<m>:HISTory:PLAYer:SPEed ................378 CALCulate:MATH<m>:HISTory:REPLay ....................378 BUS<b>:HISTory:REPLay...
Page 377: Channel :History
® Remote control commands R&S RTB 2 Waveform analysis where n is the number of acquired segments. CALCulate:MATH<m>:HISTory:PALL <PlayAll> BUS<b>:HISTory:PALL <PlayAll> DIGital<m>:HISTory:PALL <PlayAll> LOGic<p>:HISTory:PALL <PlayAll> SPECtrum:HISTory:PALL <PlayAll> CHANnel<m>:HISTory:PALL <PlayAll> Enables the replay of all acquired segments. Parameters: <PlayAll> ON | OFF If set to OFF, define the range of segments to be shown using CHANnel<m>:HISTory:STARt...
Page 378 ® Remote control commands R&S RTB 2 Waveform analysis SPECtrum:HISTory:PLAYer:SPEed <PlayerSpeed> CHANnel<m>:HISTory:PLAYer:SPEed <PlayerSpeed> Sets the speed of the history replay. Parameters: <PlayerSpeed> SLOW | MEDium | FAST | AUTO *RST: AUTO CALCulate:MATH<m>:HISTory:REPLay <Replay> BUS<b>:HISTory:REPLay <Replay> DIGital<m>:HISTory:REPLay <Replay> LOGic<p>:HISTory:REPLay <Replay> SPECtrum:HISTory:REPLay <Replay>...
Page 379 ® Remote control commands R&S RTB 2 Waveform analysis ● BUS<b>: Selects the bus, range 1..4 .............. 379 CALCulate:MATH<m>:HISTory:TTABle[:ENABle] .................. 379 BUS<b>:HISTory:TTABle[:ENABle] ................379 DIGital<m>:HISTory:TTABle[:ENABle] ................379 LOGic<p>:HISTory:TTABle[:ENABle] ................379 CHANnel<m>:HISTory:TTABle[:ENABle] ..............380 CALCulate:MATH<m>:HISTory:TSRelative? ..................380 BUS<b>:HISTory:TSRelative? ..................380 DIGital<m>:HISTory:TSRelative? ..................380 LOGic<p>:HISTory:TSRelative? ..................
Page 380 ® Remote control commands R&S RTB 2 Waveform analysis Parameters: <TimeTableEnable> ON | OFF *RST: CALCulate:MATH<m>:HISTory:TSRelative? BUS<b>:HISTory:TSRelative? DIGital<m>:HISTory:TSRelative? LOGic<p>:HISTory:TSRelative? SPECtrum:HISTory:TSRelative? CHANnel<m>:HISTory:TSRelative? Returns the time difference of the selected segment to the newest segment. To select a segment, use CHANnel<m>:HISTory:CURRent. Return values: <TimeToNewestAcq>...
Page 381 ® Remote control commands R&S RTB 2 Waveform analysis SPECtrum:HISTory:TSABsolute? CHANnel<m>:HISTory:TSABsolute? Returns the absolute daytime of the selected acquisition (CHANnel<m>:HISTory: CURRent). Return values: <Hour>, <Minute>, Comma-separated list <Seconds> Example: CHAN:HIST:CURR -1 CHAN:HIST:TSAB? --> 16,24,3.302100000000E+01 Usage: Query only CALCulate:MATH<m>:HISTory:TSABsolute:ALL? BUS<b>:HISTory:TSABsolute:ALL? DIGital<m>:HISTory:TSABsolute:ALL? LOGic<p>:HISTory:TSABsolute:ALL?
Page 382 ® Remote control commands R&S RTB 2 Waveform analysis CALCulate:MATH<m>:HISTory:TSDate:ALL? BUS<b>:HISTory:TSDate:ALL? DIGital<m>:HISTory:TSDate:ALL? LOGic<p>:HISTory:TSDate:ALL? SPECtrum:HISTory:TSDate:ALL? CHANnel<m>:HISTory:TSDate:ALL? Returns the dates of all history segments. Return values: <Year>, <Month>, Comma-separated list of year, month, and day values. <Day> The list starts with the oldest segment, and the newest segment is the last one.
Page 383 ® Remote control commands R&S RTB 2 Waveform analysis CHANnel<m>:HISTory:EXPort:NAME <ExportPath> EXPort:ATABle:NAME <ExportPath> Parameters: <ExportPath> String parameter Example: EXPort:ATABle:NAME "/USB_FRONT/EXPORT/TIMES" Manual operation: "Save" on page 111 BPLot:EXPort:SAVE BUS<b>:HISTory:EXPort:SAVE DIGital<m>:HISTory:EXPort:SAVE LOGic<p>:HISTory:EXPort:SAVE SPECtrum:HISTory:EXPort:SAVE CHANnel<m>:HISTory:EXPort:SAVE EXPort:ATABle:SAVE Saves the acquisition timestamps table to the file that is defined by the EXPort: command.
Page 384: Measurements
® Remote control commands R&S RTB 2 Measurements 16.7 Measurements 16.7.1 Quick measurements In the quick measurement commands, the numeric suffix <m> is irrelevant, omit it....................384 MEASurement<m>:AON ....................384 MEASurement<m>:AOFF ..................384 MEASurement<m>:ARESult? ..................384 MEASurement<m>:ALL[:STATe] MEASurement<m>:AON Starts the quick measurement.
Page 385: Automatic Measurements
® Remote control commands R&S RTB 2 Measurements 16.7.2 Automatic measurements ● Measurement settings...................385 ● Measurements results...................389 ● Measurement gate....................394 ● Reference levels....................396 16.7.2.1 Measurement settings ...................385 MEASurement<m>[:ENABle] ....................385 MEASurement<m>:MAIN ................... 387 MEASurement<m>:SOURce ...................388 MEASurement<m>:DELay:SLOPe ................388 MEASurement<m>:STATistics[:ENABle] ................388 MEASurement<m>:STATistics:RESet...
Page 386: Relative Mode
® Remote control commands R&S RTB 2 Measurements PERiod Length of the left-most signal period within the displayed section of the waveform of the selected channel. PEAK Peak-to-peak value within the displayed section of the waveform of the selected channel.
Page 387 ® Remote control commands R&S RTB 2 Measurements STDDev Standard deviation of the waveform. CYCStddev Standard deviation of one cycle, usually of the first, left-most sig- nal period. DELay Time difference between two edges of the same or different waveforms.
Page 388 ® Remote control commands R&S RTB 2 Measurements <SignalSource2> None | CH1..4 | MA1 | RE1..4 | D0..15 Second source waveform, which is required for delay and phase measurements ("Measure Source 2"). Manual operation: "Source" on page 139 "Measure Source, Measure Source 2"...
Page 389 ® Remote control commands R&S RTB 2 Measurements Manual operation: "Reset Statistics" on page 140 16.7.2.2 Measurements results You can query the statistical results using the MEAS:STAT commands. To export statistical results to a csv file, use the EXP:MEAS:STAT commands. Note that export of statistics is possible only remotely, but not in manual operation.
Page 390 ® Remote control commands R&S RTB 2 Measurements Parameters: <AutomaticMode> ON | OFF *RST: MEASurement<m>:RESult[:ACTual]? [<MeasType>] Returns the result of the specified measurement type. Suffix: <m> 1..8 Selects the measurement place. Query parameters: <MeasType> FREQuency | PERiod | PEAK | UPEakvalue | LPEakvalue |...
Page 391 ® Remote control commands R&S RTB 2 Measurements Usage: Query only MEASurement<m>:RESult:NPEak? <NegativePeak> Returns the minimum measurement result of the current measurement series. Suffix: <m> 1..8 Selects the measurement place. Query parameters: <NegativePeak> Minimum measurement result Usage: Query only MEASurement<m>:RESult:PPEak? <PositivePeak>...
Page 392 ® Remote control commands R&S RTB 2 Measurements Usage: Query only MEASurement<m>:STATistics:VALue:ALL? Returns all values from the statistics buffer. Note: Valid buffered values can only be read if the acquisition is stopped. As long as the acquisition is running, the buffer contents is changing and the buffered values are not valid for reading.
Page 393 ® Remote control commands R&S RTB 2 Measurements EXPort:MEASurement<m>:STATistics:SAVE Saves statistical results of the indicated measurement place to the file that is defined by the command. EXPort:MEASurement<m>:STATistics:NAME Suffix: <m> 1..8 Selects the measurement place. Usage: Event See also: on page 393.
Page 394 ® Remote control commands R&S RTB 2 Measurements Example: The file contains general information, statistical results, long term statistics, and the individual values that are used to calcu- late the statistics. The number of values is "Average No." "Vendor","Rohde&Schwarz", "Device/Mat.-No.","RTB2004 / 1333.1005K04", "Serial No.","3900001",...
Page 395 ® Remote control commands R&S RTB 2 Measurements MEASurement<m>:GATE <State> Activates or deactivates the measurement gate. To set the gate, use: ● MEASurement<m>:GATE:MODE ● MEASurement<m>:GATE:ABSolute:STARt MEASurement<m>:GATE: ABSolute:STOP ● MEASurement<m>:GATE:RELative:STARt MEASurement<m>:GATE: RELative:STOP Suffix: <m> 1..8 The suffix is irrelevant. One gate is used for all measurement places.
Page 396 ® Remote control commands R&S RTB 2 Measurements MEASurement<m>:GATE:ABSolute:STOP <StopTime> Defines the absolute end time for the measurement gate. Suffix: <m> 1..8 The suffix is irrelevant. One gate is used for all measurements. Parameters: <StopTime> *RST: 300e-6 Default unit: s Manual operation: "Gate Setup"...
Page 397 ® Remote control commands R&S RTB 2 Measurements REFLevel:RELative:MODE <RelativeMode> Sets the lower and upper reference levels for rise and fall time mesurements (cursor and automatic mesurements) as well as the middle reference level for phase and delay measurements. The levels are defined as percentages of the high signal level. The set- ting is valid for all measurement places.
Page 398: Cursor Measurements
® Remote control commands R&S RTB 2 Measurements Manual operation: "Reference Level" on page 140 16.7.3 Cursor measurements 16.7.3.1 Cursor settings ......................398 CURSor<m>:AOFF ......................398 CURSor<m>:STATe ....................398 CURSor<m>:FUNCtion ....................399 CURSor<m>:SOURce ....................400 CURSor<m>:USSource ....................400 CURSor<m>:SSOurce ..................400 CURSor<m>:TRACking[:STATe] ....................401 CURSor<m>:X1Position...
Page 399 ® Remote control commands R&S RTB 2 Measurements Suffix: <m> 1, the suffix is irrelevant. Parameters: <Type> HORizontal | VERTical | HVERtical To set the V-marker measurement, use CURSor<m>: TRACking[:STATe]. *RST: VERTical Manual operation: "Type" on page 144 Value Description...
Page 400 ® Remote control commands R&S RTB 2 Measurements D0..15 Active digital channels D0 to D15. On individual digital channels, only vertical (time) cursor mea- surements are possible. D70 | D158 Active digital channels D0...D7 (pod 1) and D8...D15 (pod 2). On pods, only V-marker measurement is possible.
Page 401 ® Remote control commands R&S RTB 2 Measurements Parameters: <State> ON | OFF *RST: Manual operation: "Type" on page 144 CURSor<m>:X1Position <Xposition1> CURSor<m>:X2Position <Xposition2> The commands specify or return the positions of vertical cursor lines on the x-axis (time, frequency for FFT).
Page 402 ® Remote control commands R&S RTB 2 Measurements CURSor<m>:SWAVe Autoset for cursor lines, sets the cursor lines to typical points of the waveform depend- ing on the selected cursor type. For example, for voltage measurement ("Horizontal"), the cursor lines are set to the upper and lower peaks of the waveform. For time mea- surement ("Vertical"), the cursor lines are set to the edges of two consecutive positive...
Page 403 ® Remote control commands R&S RTB 2 Measurements To get the measurement values of horizontal cursor lines (voltage, current, level for FFT), use: ● on page 401 CURSor<m>:Y1Position ● on page 401 CURSor<m>:Y2Position ..................403 CURSor<m>:XDELta[:VALue]? ..................403 CURSor<m>:XDELta:INVerse? ..................403 CURSor<m>:YDELta[:VALue]? ..................404...
Page 404: Applications
® Remote control commands R&S RTB 2 Applications CURSor<m>:YDELta:SLOPe? Returns the inverse value of the vertical difference (e.g. voltage difference) - the recip- Δ V. rocal of the vertical distance of two horizontal cursor lines: 1/ Suffix: <m> 1, the suffix is irrelevant.
Page 405 ® Remote control commands R&S RTB 2 Applications MASK:SOURce <Source> Defines the channel to be compared with the mask, and also the channel from which the mask is created. Parameters: <Source> CH1 | CH2 | CH3 | CH4 CH3 and CH4 are only available on 4-channel models.
Page 406 ® Remote control commands R&S RTB 2 Applications Parameters: <Xaddition> The value is added to the positive x-values and subtracted from the negative x-values of the mask limits in relation to the mask center. Default unit: div Manual operation: "Width X"...
Page 407 ® Remote control commands R&S RTB 2 Applications .................407 MASK:ACTion:STOP:EVENt:MODE ................408 MASK:ACTion:STOP:EVENt:COUNt ................408 MASK:ACTion:SCRSave:DESTination ................408 MASK:ACTion:WFMSave:DESTination ..................409 MASK:ACTion:YOUT:ENABle MASK:ACTion:SOUNd:EVENt:MODE <EventMode> MASK:ACTion:SCRSave:EVENt:MODE <EventMode> MASK:ACTion:WFMSave:EVENt:MODE <EventMode> MASK:ACTion:PULSe:EVENt:MODE <EventMode> Defines when and how often the action is executed. ● SOUNd: Generates a beep sound on mask violation.
Page 408 ® Remote control commands R&S RTB 2 Applications CYClic The acquisition is stopped at defined violation of the mask. The action is done only once, there is no automatic restart of the acquisition. *RST: Example: MASK:STATe ON MASK:SOURce CH1 MASK:CHCopy...
Page 409 ® Remote control commands R&S RTB 2 Applications Parameters: <Path> String parameter Example: Prerequisite: a mask is defined, and a waveform that hits the mask. MASK:ACT:WFMS:DEST "/USB_FRONT/MASKS" //directory must exist FORM CSV,0 MASK:ACT:WFMS:EVEN:MODE EACH MASK:TEST RUN On first violation, the waveform data is saved to <name>01.CSV, on second violation to <name>02.CSV, the...
Page 410 ® Remote control commands R&S RTB 2 Applications MASK:COUNt? Returns the number of tested acquisitions. Return values: <TotalCount> Total number of tested acquisitions Usage: Query only MASK:VCOunt? Returns the number of acquisitions that hit the mask. Return values: <ViolationCount> Total number of violations...
Page 411: Fft Analysis
® Remote control commands R&S RTB 2 Applications 16.8.3 FFT analysis ● General settings....................411 ● Frequency settings....................413 ● Time settings......................415 ● Waveform settings....................415 ● Waveform data......................416 16.8.3.1 General settings ......................411 SPECtrum[:STATe] ......................411 SPECtrum:SOURce ................411 SPECtrum:FREQuency:WINDow:TYPE ..............412 SPECtrum:FREQuency:MAGNitude:SCALe ..................412...
Page 412 ® Remote control commands R&S RTB 2 Applications HAMMing The Hamming window has higher noise level inside the spec- trum than Hann or Blackman, but smaller than the rectangular window. The width of the spectral lines is thinner than the other bell-shaped functions.
Page 413 ® Remote control commands R&S RTB 2 Applications SPECtrum:FREQuency:SCALe Sets the vertical scale of the spectrum analysis waveform. Parameters: <Scale> Range values and unit depend on SPECtrum:FREQuency: MAGNitude:SCALe. DISPlay:CBAR:FFT[:POSition] <DividerPosition> Defines the position of the divide bar between normal waveform and FFT window.
Page 414 ® Remote control commands R&S RTB 2 Applications Manual operation: "Span" on page 158 SPECtrum:FREQuency:STARt Defines the start frequency of the displayed frequency domain at the left display edge: Center - Span/2 You can set start and stop frequency instead of defining a center frequency and span.
Page 415 ® Remote control commands R&S RTB 2 Applications 16.8.3.3 Time settings ....................415 SPECtrum:TIME:POSition ....................415 SPECtrum:TIME:RANGe SPECtrum:TIME:POSition <TimePosition> Sets the time position of the analyzed time range. Parameters: <TimePosition> Manual operation: "P" on page 159 SPECtrum:TIME:RANGe <TimeRange> Sets the time range for the time domain diagram.
Page 416 ® Remote control commands R&S RTB 2 Applications Manual operation: "Waveform" on page 161 SPECtrum:FREQuency:AVERage:COMPlete? Returns the state of spectrum averaging. Parameters: <AverageComplete> Usage: Query only SPECtrum:FREQuency:RESet Resets the Min Hold, Max Hold, Spectrum and Average waveforms to the current waveform.
Page 417 ® Remote control commands R&S RTB 2 Applications ............418 SPECtrum:WAVeform:AVERage:DATA:YRESolution? ............418 SPECtrum:WAVeform:MAXimum:DATA:YRESolution? ............418 SPECtrum:WAVeform:MINimum:DATA:YRESolution? ............418 SPECtrum:WAVeform:SPECtrum:DATA:YRESolution? SPECtrum:WAVeform:AVERage:DATA? SPECtrum:WAVeform:MAXimum:DATA? SPECtrum:WAVeform:MINimum:DATA? SPECtrum:WAVeform:SPECtrum:DATA? Returns the data of the indicated waveform points for transmission from the instrument to the controlling computer. The waveform data can be used in MATLAB, for example.
Page 418 ® Remote control commands R&S RTB 2 Applications Usage: Query only SPECtrum:WAVeform:AVERage:DATA:XORigin? SPECtrum:WAVeform:MAXimum:DATA:XORigin? SPECtrum:WAVeform:MINimum:DATA:XORigin? SPECtrum:WAVeform:SPECtrum:DATA:XORigin? Returns the frequency of the first sample of the indicated waveform. Return values: <Xorigin> Usage: Query only SPECtrum:WAVeform:AVERage:DATA:YINCrement? SPECtrum:WAVeform:MAXimum:DATA:YINCrement? SPECtrum:WAVeform:MINimum:DATA:YINCrement? SPECtrum:WAVeform:SPECtrum:DATA:YINCrement? Returns the voltage value per bit of the indicated waveform.
Page 419: Xy-Waveforms
Defines the source to be displayed in x-direction in an XY-diagram, replacing the usual time base. Parameters: <Source> CH1 | CH2 | CH3 | CH4 CH3 and CH4 are only available with 4-channel R&S RTB 2 oscilloscopes. *RST: Manual operation: "Source X"...
Page 420: Digital Voltmeter
RTB 2 Applications DISPlay:XY:Y2Source <Source> Defines an optional second source to be displayed in y-direction in an XY-diagram. The command is only relevant for 4-channel R&S RTB 2 instruments. Parameters: <Source> NONE | CH1 | CH2 | CH3 | CH4...
Page 421 ® Remote control commands R&S RTB 2 Applications Set OFF to disable the measurement. Suffix: <m> 1..4 Sets the number of the meter measurement. Parameters: <MeasurementType> DC | ACDCrms | ACRMs | OFF DC: mean value of the signal ACDCrms: RMS value of the signal (AC+DC RMS) ACRMs: RMS value of the signal's AC component (AC RMS) OFF: disables the selected meter measurement.
Page 422: Trigger Counter
® Remote control commands R&S RTB 2 Applications Example: DVM:SOUR CH1 DVM:TYPE MEAN DVM:RES:STAT? <-- 4.968E-01,5 The result value of the mean measurement on channel 1 is 496.1 mV. The result status is 5 (decimal) = 0101 (binary). That means, the result is valid (bit 0 = 1), and the signal is clipped by the limits of the ADC range (bit 3 = 1).
Page 423: Bode Plot (Option R&S Rtb-K36)
® Remote control commands R&S RTB 2 Applications Usage: Query only 16.8.7 Bode plot (option R&S RTB-K36) 16.8.7.1 Bode plot setup ....................... 423 BPLot:ENABle ......................423 BPLot:AUToscale .................. 423 BPLot:AMPLitude:PROFile:COUNt ............. 424 BPLot:AMPLitude:PROFile:POINt<n>:AMPLitude ............424 BPLot:AMPLitude:PROFile:POINt<n>:FREQuency ....................424 BPLot:AMPLitude:MODE ....................424 BPLot:FREQuency:DATA? ....................425...
Page 424 ® Remote control commands R&S RTB 2 Applications Parameters: <NumberOfPoints> Range: 2 to 16 Increment: 1 *RST: Manual operation: "Points" on page 173 BPLot:AMPLitude:PROFile:POINt<n>:AMPLitude Sets the amplitude of the specified point of the amplitude profile. Parameters: <AmplitudeMode> Manual operation: "Configuration"...
Page 425 ® Remote control commands R&S RTB 2 Applications BPLot:FREQuency:STARt Sets the start frequency of the sweep for the Bode plot. Parameters: <StartFrequency> Range: 10 to 25e6 Increment: 1 *RST: Manual operation: "Start" on page 170 BPLot:FREQuency:STOP Sets the stop frequency of the sweep for the Bode plot.
Page 426 ® Remote control commands R&S RTB 2 Applications BPLot:OUTPut[:SOURce] Selects the channel for the output signal of the DUT. Parameters: <OutputSource> CH1 | CH2 | CH3 | CH4 *RST: Manual operation: "Output" on page 171 BPLot:POINts:LOGarithmic Sets the number of points per decade that are measured.
Page 427 ® Remote control commands R&S RTB 2 Applications 16.8.7.2 Bode plot diagram settings ......................427 BPLot:GAIN:DATA? ...................... 427 BPLot:GAIN:ENABle ..................... 427 BPLot:GAIN:POSition ....................... 427 BPLot:GAIN:SCALe ..................... 428 BPLot:PHASe:DATA? ....................428 BPLot:PHASe:ENABle? ....................428 BPLot:PHASe:POSition? ....................428 BPLot:PHASe:SCALe? ....................428 BPLot:AMPLitude:ENABle ..................... 429 BPLot:AMPLitude:POSition ....................429...
Page 428 ® Remote control commands R&S RTB 2 Applications BPLot:PHASe:DATA? Returns the data of the phase waveform. Parameters: <PhaseData> Usage: Query only BPLot:PHASe:ENABle? Enables the phase waveform for the Bode plot. Parameters: <Enable> ON | OFF *RST: Usage: Query only Manual operation: "Phase"...
Page 429 ® Remote control commands R&S RTB 2 Applications BPLot:AMPLitude:POSition Sets the vertical position of the amplitude waveform in divisions. Parameters: <WaveformPosition> Range: -10.0 to 10.0 Increment: 0.1 *RST: -5.0 BPLot:AMPLitude:SCALe Sets the vertical scale for the amplitude waveform. Parameters: <WaveformScale>...
Page 430 ® Remote control commands R&S RTB 2 Applications Usage: Query only BPLot:MARKer<m>:DIFFerence:PHASe? Returns the delta value of the phase between the two markers. Suffix: <m> 1..2 The suffix is irrelevant. Parameters: <PhaseDifference> Usage: Query only BPLot:MARKer<m>:FREQuency Returns the frequency for the specified marker.
Page 431: Documenting Results
® Remote control commands R&S RTB 2 Documenting results Suffix: <m> 1..2 Selects the marker number. Parameters: <GainValue> Usage: Query only BPLot:MARKer<m>:SSCReen Resets the marker to their initial positions. This is helpful if the markers have disap- peared from the display or need to be moved for a larger distance.
Page 432 ® Remote control commands R&S RTB 2 Documenting results ● on page 438 REFCurve<m>:DATA? Parameters: <DataFormat> ASCii | REAL | UINTeger ASCii List of values, for example, 1.23,1.22,1.24,.. File format for waveform export is TXT. <Accuracy> is 0 which means that the instrument selects the number of digits to be returned.
Page 433 ® Remote control commands R&S RTB 2 Documenting results 32 - for REAL 8 | 16 | 32 - for UINT *RST: Example: Set the ASCII data format: FORM ASC Example: Query for data format: FORM? -> ASC,0 Example: Set the unsigned integer format, 16 bit data length: FORM UINT,16 FORMat:BORDer <ByteOrder>...
Page 434 ® Remote control commands R&S RTB 2 Documenting results Suffix: <m> 1..4 Selects the input channel. The number of channels depends on the instrument. Return values: <Data> List of values according to the format settings - the voltages of recorded waveform samples.
Page 435 ® Remote control commands R&S RTB 2 Documenting results Depending on the current settings, the memory can contains more data samples than the screen is able to display. In this case, you can decide which data will be saved: samples stored in the memory or only the displayed samples.
Page 436 ® Remote control commands R&S RTB 2 Documenting results CHANnel<m>:DATA:ENVelope? Returns the data of the envelope. The envelope consists of two waveforms. The wave- forms data can be used in MATLAB, for example. Use this command only for envelope waveforms. For other channel waveforms use CHANnel<m>:DATA?.
Page 437 ® Remote control commands R&S RTB 2 Documenting results 16.9.1.3 Math waveforms In addition to the commands described below, consider also the following commands: ● on page 441 CALCulate:MATH<m>:DATA:XINCrement? ● on page 441 CALCulate:MATH<m>:DATA:XORigin? ● on page 442 CALCulate:MATH<m>:DATA:YINCrement? ●...
Page 438 ® Remote control commands R&S RTB 2 Documenting results Suffix: <m> 1..5 Selects the math waveform. Return values: <DataPoints> Number of data points Usage: Query only 16.9.1.4 Reference waveforms In addition to the commands described below, consider also the following commands: ●...
Page 439 ® Remote control commands R&S RTB 2 Documenting results Parameters: <Header> Comma-separated value list Example: -9.477E-008,9.477E-008,200000,1 Usage: Query only 16.9.1.5 Masks In addition to the commands described below, consider also the following commands: ● on page 441 MASK:DATA:XINCrement? ● on page 441 MASK:DATA:XORigin? ●...
Page 440 ® Remote control commands R&S RTB 2 Documenting results 16.9.1.6 Logic channels Chapter 16.12.1.3, "Logic channels - waveform data", on page 538 16.9.1.7 Parameters for data evaluation To analyze waveform data, you need some parameters, which are queried using the following commands.
Page 441 ® Remote control commands R&S RTB 2 Documenting results ..................442 LOGic<p>:DATA:YRESolution? ..................442 DIGital<m>:DATA:YRESolution? .................442 REFCurve<m>:DATA:YRESolution? CHANnel<m>:DATA:XORigin? CHANnel<m>:DATA:ENVelope:XORigin? CALCulate:MATH<m>:DATA:XORigin? MASK:DATA:XORigin? LOGic<p>:DATA:XORigin? DIGital<m>:DATA:XORigin? REFCurve<m>:DATA:XORigin? Return the time of the first sample of the indicated waveform. The commands are relevant for data conversion if binary data format is defined (FORM UINT, 8|16|32).
Page 442 ® Remote control commands R&S RTB 2 Documenting results CALCulate:MATH<m>:DATA:YORigin? MASK:DATA:YORigin? LOGic<p>:DATA:YORigin? DIGital<m>:DATA:YORigin? REFCurve<m>:DATA:YORigin? Return the voltage value for binary value 0 of the indicated waveform. The commands are relevant for data conversion if binary data format is defined (FORM UINT, 8|16|32).
Page 443: Waveform Data Export To File
® Remote control commands R&S RTB 2 Documenting results The commands are relevant for data conversion if binary data format is defined (FORM UINT, 8|16|32). Suffix: <m> 1..4 Return values: <Yresolution> For default waveforms, the resolution is 8 bit. If high resolution, average or filter are set for the waveform, the resolution is 16 bit.
Page 444: Screenshots
® Remote control commands R&S RTB 2 Documenting results Example: EXP:WFMS:DEST "/USB_FRONT/WFM" Sets the path for saved waveforms to USB flash drive. Manual operation: "Destination" on page 178 "Destination" on page 183 EXPort:WAVeform:NAME <FileName> Defines the path and filename for a waveform data file that will be saved with EXPort: WAVeform:SAVE.
Page 445 ® Remote control commands R&S RTB 2 Documenting results ......................446 HCOPy:SIZE:X? ......................446 HCOPy:SIZE:Y? ....................446 HCOPy:COLor:SCHeme EXPort:SCRSave:DESTination Defines the directory where screenshots are saved. The specified directory must exist before the command is sent. Parameters: <File> String parameter String with directory path Example: EXP:SCRS:DEST "/USB_FRONT/SCREEN"...
Page 446 ® Remote control commands R&S RTB 2 Documenting results HCOPy:DATA? Returns the data of the image file. The file format is defined using HCOPy:LANGuage (BMP | PNG) Return values: <ScreenShot> 488.2 block data Usage: Query only HCOPy:FORMat <Format> HCOPy:LANGuage <Format>...
Page 447: Instrument Settings: Mass Memomory Subsystem
The Mass MEMomory subsystem provides commands to access the storage media and to save and reload instrument settings and data. The R&S RTB 2 has the following storage devices indicated as drives: ● /INT: internal storage with default directories for each data type ●...
Page 448 ® Remote control commands R&S RTB 2 Documenting results MMEMory:MSIS <Drive> Changes the default storage location (drive). Parameters: <Drive> One of the available drives: /INT, or /USB_FRONT Example: MMEM:MSIS '/USB_FRONT' Sets the USB flash drive connected to the front panel as storage location.
Page 449 ® Remote control commands R&S RTB 2 Documenting results Setting parameters: <DirectoryName> String parameter, absolute path or relative to the current direc- tory Example: MMEM:RDIR "/INT/TEST" Deletes the directory TEST in the internal storage device, and all files and subdirectories in the directory.
Page 450 ® Remote control commands R&S RTB 2 Documenting results Query parameters: <PathName> String parameter Specifies the directory. Return values: <DirCount> Number of directories. Example: MMEMory:DCATalog? Usage: Query only MMEMory:CATalog? <PathName>[,<Format>] Returns the a list of files contained in the specified directory. The result corresponds to the number of files returned by the MMEMory:CATalog:LENgth? command.
Page 451 ® Remote control commands R&S RTB 2 Documenting results MMEMory:CATalog:LENGth? <PathName> Returns the number of files in the specified directory. The result corresponds to the number of files returned by the MMEMory:CATalog? command. Query parameters: <PathName> String parameter Directory to be queried, absolute or relative path Return values: <Count>...
Page 452 ® Remote control commands R&S RTB 2 Documenting results MMEMory:DELete <FileSource> Removes a file from the specified directory. Setting parameters: <FileSource> String parameter File name and path of the file to be removed. If the path is omit- ted, the specified file will be deleted in the current directory. Fil- ters are not allowed.
Page 453: General Instrument Setup
® Remote control commands R&S RTB 2 General instrument setup Example: Chapter 16.2.1.2, "Saving, copying, and loading setup data", on page 303 Usage: Setting only Manual operation: "Save" on page 177 MMEMory:LOAD:STATe <StateNumber>,<FileName> Loads the device settings from the specified file in the current directory.
Page 454 ® Remote control commands R&S RTB 2 General instrument setup .....................456 DISPlay:GRID:STYLe ....................456 DISPlay:INTensity:GRID ..................457 DISPlay:INTensity:WAVeform ......................457 DISPlay:PALette ......................457 DISPlay:STYLe ................458 DISPlay:GRID:ANNotation[:ENABle] ...................458 DISPlay:GRID:ANNotation:TRACk DISPlay:LANGuage <Language> Selects the language in which the button labels and other screen information is dis- played.
Page 455: Persistence:time
® Remote control commands R&S RTB 2 General instrument setup Data points remain on the screen infinitely until persistence is set to OFF. *RST: Manual operation: "Persistence" on page 192 DISPlay:PERSistence:TIME <Time> Persistence time if persistence is active (DISPlay:PERSistence[:STATe] is set to TIME.
Page 456 ® Remote control commands R&S RTB 2 General instrument setup DISPlay:PERSistence:INFinite <InfinitePersistence> Sets the persistence time to infinite if is ON. each DISPlay:PERSistence[:STATe] new data point remains on the screen infinitely until this setting is changed or the per- sistence is cleared.
Page 457 ® Remote control commands R&S RTB 2 General instrument setup Parameters: <Intensity> Range: 0 to 100 Increment: 1 *RST: not available, *RST does not change the intensity Default unit: % Manual operation: "Grid" on page 193 DISPlay:INTensity:WAVeform <Intensity> Defines the brightness of the waveform lines in the diagram.
Page 458: System Settings
® Remote control commands R&S RTB 2 General instrument setup VECTors Individual data points are connected by a line. DOTS Only the data points are displayed. *RST: VECT Manual operation: "Dots Only" on page 193 DISPlay:GRID:ANNotation[:ENABle] <State> Enables or disables the display of scale values and units for the x-axis and y-axis at the grid lines.
Page 459 ® Remote control commands R&S RTB 2 General instrument setup ..................462 SYSTem:EDUCation:PRESet ......................462 SYSTem:DFPRint? ......................462 SYSTem:TREE? CALibration Calibration starts the self-alignment process. It can take several minutes. Consider your timeout settings. Calibration? returns information on the state of the self-alignment. Return values ≠...
Page 460 ® Remote control commands R&S RTB 2 General instrument setup <Day> Range: 1 to 31 Increment: 1 Default unit: d Usage: SCPI confirmed Manual operation: "Date & Time" on page 197 SYSTem:TIME <Hour>,<Minute>,<Second> Specifies the internal time for the instrument.
Page 461 ® Remote control commands R&S RTB 2 General instrument setup SYSTem:BEEPer:TRIG:STATe Enables or disables the beep if a trigger occurs. Parameters: <TriggerBeep> ON | OFF SYSTem:BEEPer[:IMMediate] Generates an immediate beep. You can use this command, for example, to locate the instrument.
Page 462: Lan Settings
® Remote control commands R&S RTB 2 General instrument setup SYSTem:PRESet Resets the instrument to the default state, has the same effect as *RST. Usage: Event Manual operation: "Factory Default" on page 177 SYSTem:EDUCation:PRESet Deletes the password of the education mode.
Page 463 ® Remote control commands R&S RTB 2 General instrument setup SYSTem:COMMunicate:INTerface:ETHernet:DHCP Enables DHCP for automatic network parameter distribution. Parameters: <DHCP> ON | OFF Use the following commands to specify connection parameters: SYSTem:COMMunicate:INTerface:ETHernet:IPADdress on page 463 SYSTem:COMMunicate:INTerface:ETHernet:SUBNet on page 463 SYSTem:COMMunicate:INTerface:ETHernet:GATeway...
Page 464: Usb Settings
® Remote control commands R&S RTB 2 General instrument setup SYSTem:COMMunicate:INTerface:ETHernet:VXIPort <VXIport> Specifies the VXI-11 port number. Parameters: <VXIport> Range: 0 to 65535 *RST: 1024 Manual operation: "IP Port, VXI-11 Port" on page 202 SYSTem:COMMunicate:INTerface:ETHernet:HTTPport <HTTPport> Returns the HTTP port number.
Page 465: Trigger Out
® Remote control commands R&S RTB 2 General instrument setup SYSTem:COMMunicate:INTerface:USB:CLASs Selects the USB mode. ● USB TMC (Test & Measurement Class) ● USB VCP (Virtual Com Port) ● USB MTP (Media Transfer Protocol) Parameters: <USBClass> TMC | VCP | MTP 16.10.5 Trigger out...
Page 466: Firmware Update
® Remote control commands R&S RTB 2 General instrument setup TRIGger:OUT:POLarity <Polarity> Defines the polarity of the pulse at the [Aux Out] front connector (at trigger event or mask viaolation). Parameters: <Polarity> POSitive | NEGative *RST: Manual operation: "Pulse" on page 87 16.10.6 Firmware update...
Page 467: Serial Bus Analysis
® Remote control commands R&S RTB 2 Serial bus analysis Usage: Event DIAGnostic:UPDate:INSTall <Path> Starts the firmware update. Setting parameters: <Path> Empty string Example: Chapter 16.2.2.2, "Using DIAGnostic:UPDdate:TRANsfer", on page 306 Usage: Setting only 16.11 Serial bus analysis ● General......................... 467 ●...
Page 468 ® Remote control commands R&S RTB 2 Serial bus analysis BUS<b>:STATe <State> Switches protocol decoding on or off. Suffix: <b> 1 | 2 Parameters: <State> ON | OFF *RST: Manual operation: "Decode" on page 211 BUS<b>:FORMat <Format> Sets the decoding format for the display on the screen.
Page 469 ® Remote control commands R&S RTB 2 Serial bus analysis BUS<b>:DSIGnals <BitsSignals> Displays the individual bit lines above the decoded bus line. Suffix: <b> 1 | 2 Parameters: <BitsSignals> ON | OFF *RST: Manual operation: "Bits" on page 213 BUS<b>:DSIZe <DisplaySize>...
Page 470: Spi (Option R&S Rtb-K1)
® Remote control commands R&S RTB 2 Serial bus analysis 16.11.2 SPI (option R&S RTB-K1) The Serial Peripheral Interface (SPI) is used for communication with slow peripheral devices, in particular, for transmission of data streams. SPI (no CS) is a Simplified SPI configuration without chip select line.
Page 471 ® Remote control commands R&S RTB 2 Serial bus analysis BUS<b>:SPI:CS:POLarity <Polarity> Selects whether the chip select signal is high active (high = 1) or low active (low = 1). Suffix: <b> 1 | 2 Parameters: <Polarity> POSitive | NEGative...
Page 472 ® Remote control commands R&S RTB 2 Serial bus analysis Parameters: <MosiSource> CH1 | CH2 | CH3 | CH4 | D0..D15 *RST: Manual operation: "MOSI / MISO" on page 222 BUS<b>:SPI:MISO:SOURce <MisoSource> Selects the input channel of the optional MISO line.
Page 473 ® Remote control commands R&S RTB 2 Serial bus analysis BUS<b>:SPI:MISO:POLarity <MisoPolarity> Selects whether transmitted data is high active (high = 1) or low active (low = 1) on the MISO line. Suffix: <b> 1, bus 2 is not available if the MISO source is used.
Page 474 Selects the input channel of the clock line. Suffix: <b> 1 | 2 Parameters: <Source> CH1 | CH2 | CH3 | CH4 | D0..D15 CH3 and CH4 are only available with 4-channel R&S RTB 2 oscilloscopes. *RST: Manual operation: "Clock" on page 222 BUS<b>:SSPI:CLOCk:POLarity <Polarity>...
Page 475 ® Remote control commands R&S RTB 2 Serial bus analysis Parameters: <MosiSource> CH1 | CH2 | CH3 | CH4 | D0..D15 *RST: Manual operation: "MOSI / MISO" on page 222 BUS<b>:SSPI:MISO:SOURce <MisoSource> Selects the input channel of the optional MISO line.
Page 476 ® Remote control commands R&S RTB 2 Serial bus analysis BUS<b>:SSPI:MISO:POLarity <MisoPolarity> Selects whether transmitted data is high active (high = 1) or low active (low = 1) on the MISO line. Suffix: <b> 1, bus 2 is not available if the MISO source is used.
Page 477 ® Remote control commands R&S RTB 2 Serial bus analysis Parameters: <SymbolSize> Range: 4 to 32 Increment: 1 *RST: Default unit: Bit Manual operation: "Word Size" on page 223 16.11.2.3 SPI - trigger To configure the protocol trigger, make sure to set first: ●...
Page 478 ® Remote control commands R&S RTB 2 Serial bus analysis PATTern Sets the trigger event to a serial pattern. To define the pattern, use TRIGger:A:SPI:PATTern. For a complete configuration of the pattern mode, you also have to set TRIGger:A:SPI:PLENgth TRIGger:A:SPI: POFFset.
Page 479 ® Remote control commands R&S RTB 2 Serial bus analysis Manual operation: "Bit Offset" on page 226 16.11.2.4 SPI - decode results In all BUS<b>:SPI... and BUS<b>:SSPI... commands, the suffix <b> selects the bus.....................479 BUS<b>:SPI:FCOunt? .................. 479 BUS<b>:SPI:FRAME<n>:STATus? ..................480 BUS<b>:SPI:FRAME<n>:STARt?
Page 480 ® Remote control commands R&S RTB 2 Serial bus analysis BUS<b>:SPI:FRAME<n>:STARt? Returns the start time of the specified frame. Suffix: <b> 1 | 2 <n> Return values: <StartTime> Range: depends on sample rate, record length, and time base Increment: depends on the time base...
Page 481 ® Remote control commands R&S RTB 2 Serial bus analysis BUS<b>:SPI:FRAME<n>:DATA:MISO? Returns the data words of the specified frame of the MISO line. Suffix: <b> 1 | 2 <n> Selects the frame. Return values: <DataMiso> List of decimal values of data bytes...
Page 482 ® Remote control commands R&S RTB 2 Serial bus analysis BUS<b>:SPI:FRAME<n>:WORD<o>:STOP? Returns the end time of the specified data word. Suffix: <b> 1 | 2 <n> Selects the frame. <o> Selects the word number. Return values: <StopTime> Range: depends on sample rate, record length, and time...
Page 483 Sets the input channel to which the clock line is connected. Suffix: <b> 1 | 2 Parameters: <Source> CH1 | CH2 | CH3 | CH4 | D0..D15 CH3 and CH4 are only available with 4-channel R&S RTB 2 oscilloscopes. *RST: Manual operation: "SCL" on page 230 BUS<b>:I2C:DATA:SOURce <Source>...
Page 484 Remote control commands R&S RTB 2 Serial bus analysis Parameters: <Source> CH1 | CH2 | CH3 | CH4 | D0..D15 CH3 and CH4 are only available with 4-channel R&S RTB 2 oscilloscopes. *RST: Manual operation: "SDA" on page 231 16.11.3.2 I²C - trigger...
Page 485 ® Remote control commands R&S RTB 2 Serial bus analysis PATTern Triggers on a set of trigger conditions: read or write access of the master, to an address, or/and to a bit pattern in the mes- sage. For a complete configuration of the pattern mode, you have to...
Page 486 ® Remote control commands R&S RTB 2 Serial bus analysis Example: TRIG:A:I2C:AMOD EXT TRIG:A:I2C:ADDR "10X1" TRIG:A:I2C:ADDR? Return value (10bit address): "XXXXXXXXXX" Manual operation: "Slave Address" on page 232 TRIGger:A:I2C:PATTern <DataPattern> Defines the bit pattern as trigger condition. Make sure that the correct pattern length has been defined before with TRIGger:A:I2C:PLENgth.
Page 487 ® Remote control commands R&S RTB 2 Serial bus analysis Parameters: <PatternByteOffset> Number of ignored bytes Range: 0 to 4095 Increment: 1 *RST: Manual operation: "Byte Offset" on page 233 16.11.3.3 I²C - decode results In all BUS<b>:I2C... commands, the suffix <b> selects the bus.
Page 488 ® Remote control commands R&S RTB 2 Serial bus analysis <n> Selects the frame. Return values: <DataWords> Comma-separated list of decimal values of the data bytes. BUS:I2C:FRAM2:DATA? Example: returns four data bytes: -> 69,158,174,161 Usage: Query only BUS<b>:I2C:FRAMe<n>:STATus? Returns the overall state of the frame.
Page 489 ® Remote control commands R&S RTB 2 Serial bus analysis <n> Selects the frame. Return values: <EndTime> Range: depends on sample rate, record length, and time base Increment: depends on the time base Default unit: s Usage: Query only BUS<b>:I2C:FRAMe<n>:AACCess? Returns the address acknowledge bit value for the indicated frame.
Page 490 ® Remote control commands R&S RTB 2 Serial bus analysis Return values: <AddressComplete> ON | OFF Address was received completely. Usage: Query only BUS<b>:I2C:FRAMe<n>:ADBStart? Returns the start time of the address acknowledge bit. Suffix: <b> 1 | 2 <n> Selects the frame.
Page 491 ® Remote control commands R&S RTB 2 Serial bus analysis Return values: <SlaveAddress> Decimal value Range: 0 to 1023 Increment: 1 Usage: Query only BUS<b>:I2C:FRAMe<n>:AMODe? Returns the address length. Suffix: <b> 1 | 2 <n> Selects the frame. Return values: <AddressMode>...
Page 492 ® Remote control commands R&S RTB 2 Serial bus analysis Example: BUS:I2C:FRAM2:BCO? -> 4 Usage: Query only BUS<b>:I2C:FRAMe<n>:BYTE<o>:ACCess? Returns the acknowledge bit value of the specified data byte. Suffix: <b> 1 | 2 <n> Selects the frame. <o> Selects the byte number.
Page 493 ® Remote control commands R&S RTB 2 Serial bus analysis <o> Selects the byte number. Return values: <ByteComplete> ON | OFF Data byte was received completely. Usage: Query only BUS<b>:I2C:FRAMe<n>:BYTE<o>:STARt? Returns the start time of the specified data byte. Suffix: <b>...
Page 494: Uart (Option R&S Rtb-K2)
Selects the input channel of the data line. Suffix: <b> 1 | 2 Parameters: <Source> CH1 | CH2 | CH3 | CH4 | D0..D15 CH3 and CH4 are only available with 4-channel R&S RTB 2 oscilloscopes. *RST: Manual operation: "RX / TX" on page 238 BUS<b>:UART:TX:SOURce <Source>...
Page 495 ® Remote control commands R&S RTB 2 Serial bus analysis Parameters: <TxSource> CH1 | CH2 | CH3 | CH4 | NONE | D0..D15 NONE Disables the optional TX line. *RST: NONE Manual operation: "RX / TX" on page 238 BUS<b>:UART:POLarity <IdleState>...
Page 496 ® Remote control commands R&S RTB 2 Serial bus analysis Parameters: <SymbolSize> Range: 5 to 9 Increment: 1 *RST: Default unit: Bit Manual operation: "Data Size" on page 239 BUS<b>:UART:PARity <Parity> Defines the optional parity bit that is used for error detection.
Page 497 ® Remote control commands R&S RTB 2 Serial bus analysis BUS<b>:UART:BITime <BurstIdleTime> Sets the minimal time between two data frames (packets), that is, between the last stop bit and the start bit of the next frame. Suffix: <b> 1 | 2 Parameters: <BurstIdleTime>...
Page 498 ® Remote control commands R&S RTB 2 Serial bus analysis SYMBol Triggers if a pattern occurs in a symbol at any position in a burst. PATTern Triggers on a serial pattern at a defined position in the burst. To define the pattern, use TRIGger:A:UART:PLENgth TRIGger:A:UART:PATTern.
Page 499 ® Remote control commands R&S RTB 2 Serial bus analysis Parameters: <PatternByteOffset> Number of ignored symbols Range: 0 to 4095 Increment: 1 *RST: Manual operation: "Symbol Offset" on page 242 16.11.4.3 UART - decode results In all BUS<b>:UART... commands, the suffix <b> selects the bus.
Page 500 ® Remote control commands R&S RTB 2 Serial bus analysis Return values: <FrameCount> Total number of decoded frames. Usage: Query only BUS<b>:UART:FRAMe<n>:STARt? BUS<b>:UART:RX:FRAMe<n>:STARt? BUS<b>:UART:TX:FRAMe<n>:STARt? Return the start time of the specified frame. Suffix: <b> 1 | 2 <n> Selects the frame.
Page 501 ® Remote control commands R&S RTB 2 Serial bus analysis STER: start error, no start bit found. SPERr: stop error, no stop condition found. PRER: parity error, which indicates a transmission error. BRE: break condition found. A start bit is not followed by a stop bit, and the data line remains at logic 0 for longer than a UART word.
Page 502 ® Remote control commands R&S RTB 2 Serial bus analysis Suffix: <b> 1 | 2 <n> Selects the frame. <o> Selects the word number. Return values: <Status> OK | FRSTart | FRENd | FRMError | STERror | SPERror | PRERror | INSufficient | BREak OK: the frame is valid.
Page 503 ® Remote control commands R&S RTB 2 Serial bus analysis BUS<b>:UART:FRAMe<n>:WORD<o>:STOP? BUS<b>:UART:RX:FRAMe<n>:WORD<o>:STOP? BUS<b>:UART:TX:FRAMe<n>:WORD<o>:STOP? Returns the end time of the specified symbol (word). Suffix: <b> 1 | 2 <n> Selects the frame. <o> Selects the word number. Return values: <StopTime> Range:...
Page 504 ® Remote control commands R&S RTB 2 Serial bus analysis ● CAN - configuration....................504 ● CAN - trigger......................505 ● CAN - decode results.................... 509 ● CAN - search......................515 16.11.5.1 CAN - configuration Start the bus configuration with the threshold setting. Use one of the following com- mands: ●...
Page 505 ® Remote control commands R&S RTB 2 Serial bus analysis Manual operation: "Type" on page 247 BUS<b>:CAN:SAMPlepoint <SamplePoint> Sets the position of the sample point within the bit in percent of the nominal bit time. See also: "Sample Point" on page 247.
Page 506 ® Remote control commands R&S RTB 2 Serial bus analysis TRIGger:A:CAN:TYPE <TriggerType> Specifies the trigger mode for CAN. Parameters: <TriggerType> STOFrame | EOFrame | ID | IDDT | FTYPe | ERRCondition STOFrame Start of frame EOFrame End of frame Sets the trigger to a specific message "Identifier" or an "Identi- fier"...
Page 507 ® Remote control commands R&S RTB 2 Serial bus analysis TRIGger:A:CAN:ITYPe <IdentifierType> Selects the length of the identifier: 11 bit for CAN base frames, or 29 bits for CAN extended frames. The command is relevant if is set to ID, IDDT, or FTYPe (data TRIGger:A:CAN:TYPE and remote frames).
Page 508 ® Remote control commands R&S RTB 2 Serial bus analysis Parameters: <DataCondition> EQUal | NEQual | GTHan | LTHan *RST: Manual operation: "Compare" on page 251 TRIGger:A:CAN:DLC <DataLength> Defines the length of the data pattern - the number of bytes in the pattern.
Page 509 ® Remote control commands R&S RTB 2 Serial bus analysis Parameters: <BitStuffingError> ON | OFF *RST: Manual operation: "Stuff Bit" on page 250 TRIGger:A:CAN:CRCerror <CRCerror> Triggers on errors in the Cyclic Redundancy Check. The command is relevant if is set to ERRCondition.
Page 510 ® Remote control commands R&S RTB 2 Serial bus analysis .................514 BUS<b>:CAN:FRAMe<n>:BCOunt? ..............515 BUS<b>:CAN:FRAMe<n>:BYTE<o>:STATe? ..............515 BUS<b>:CAN:FRAMe<n>:BYTE<o>:VALue? BUS<b>:CAN:FCOunt? Returns the number of received frames. Suffix: <b> 1 | 2 Return values: <FrameCount> Total number of decoded frames. Usage: Query only BUS<b>:CAN:FRAMe<n>:TYPE?
Page 511 ® Remote control commands R&S RTB 2 Serial bus analysis INSufficient: frame is not completely contained in the acquisition. The acquired part of the frame is valid. Usage: Query only BUS<b>:CAN:FRAMe<n>:STARt? Returns the start time of the specified frame. Suffix: <b>...
Page 512 ® Remote control commands R&S RTB 2 Serial bus analysis Suffix: <b> 1 | 2 <n> Selects the frame (1...n). Return values: <AcknowledgeState> OK | UNDF UNDF: Undefined Usage: Query only BUS<b>:CAN:FRAMe<n>:ACKValue? Returns the value of the acknowledge field. Suffix: <b>...
Page 513 ® Remote control commands R&S RTB 2 Serial bus analysis Usage: Query only BUS<b>:CAN:FRAMe<n>:DLCState? Returns the state of the data length code. Suffix: <b> 1 | 2 <n> Selects the frame (1...n). Return values: <DLCState> OK | UNDF UNDF: Undefined...
Page 514 ® Remote control commands R&S RTB 2 Serial bus analysis Suffix: <b> 1 | 2 <n> Selects the frame (1...n). Return values: <IdentifierType> ANY | B11 | B29 Usage: Query only BUS<b>:CAN:FRAMe<n>:IDValue? Returns the identifier of the specified frame. Suffix: <b>...
Page 515 ® Remote control commands R&S RTB 2 Serial bus analysis BUS<b>:CAN:FRAMe<n>:BYTE<o>:STATe? Returns the state of the specified data byte. Suffix: <b> 1 | 2 <n> Selects the frame (1...n). <o> Selects the byte number (1...m). Return values: <ByteStatus> OK | UNDF...
Page 516 ® Remote control commands R&S RTB 2 Serial bus analysis SEARch:PROTocol:CAN:CONDition <SearchCondition> Sets the event or combination of events to be searched for. Depending on the selected event, further settings are required. Parameters: <SearchCondition> FRAMe | ERRor | IDENtifier | IDData | IDERror FRAMe Search for a frame type.
Page 517 ® Remote control commands R&S RTB 2 Serial bus analysis REM29: remote frame with 29bit identifier *RST: Manual operation: "Frame Setup" on page 254 "Frame Setup" on page 267 SEARch:PROTocol:CAN:ACKerror <AcknowledgeError> Searches for acknowledgement errors. An acknowledgement error occurs when the transmitter does not receive an acknowledgment - a dominant bit during the Ack Slot.
Page 518 ® Remote control commands R&S RTB 2 Serial bus analysis The command is relevant if is set to ERRor or SEARch:PROTocol:CAN:CONDition IDERror. Parameters: <FormError> ON | OFF *RST: Manual operation: "Error" on page 254 SEARch:PROTocol:CAN:FTYPe <FrameType> Specifies the frame type to be searched for if SEARch:PROTocol:CAN:CONDition set to IDENtifier.
Page 519 ® Remote control commands R&S RTB 2 Serial bus analysis SEARch:PROTocol:CAN:IDENtifier <Identifier> Defines the identifier pattern. The pattern length is defined with SEARch:PROTocol: CAN:ITYPe. The command is relevant if is set to SEARch:PROTocol:CAN:CONDition IDENtifier, IDData, or IDERror. Parameters: <Identifier> String containing binary pattern with max. 29 bit. Characters 0, 1, and X are allowed.
Page 520 ® Remote control commands R&S RTB 2 Serial bus analysis Manual operation: "Data condition" on page 255 16.11.6 LIN (option R&S RTB-K3) The Local Interconnect Network (LIN) is a simple, low-cost bus system used within automotive network architectures. Note: SPI and UART protocols occupy two bus lines (bus 1 and 2 or bus 3 and 4). If one of these buses is configured, the number of buses (suffix <b>) is reduced.
Page 521 ® Remote control commands R&S RTB 2 Serial bus analysis Parameters: <Polarity> IDLHigh | IDLLow IDLHigh: Low active, negative polarity IDLLow: High active, positive polarity *RST: IDLL Manual operation: "Idle" on page 260 BUS<b>:LIN:STANdard <Standard> Selects the version of the LIN standard that is used in the DUT. The setting mainly defines the checksum version used during decoding.
Page 522 ® Remote control commands R&S RTB 2 Serial bus analysis ......................523 TRIGger:A:LIN:DATA .....................524 TRIGger:A:LIN:DCONdition ....................524 TRIGger:A:LIN:DLENgth TRIGger:A:LIN:TYPE <TriggerType> Specifies the trigger mode for LIN. Parameters: <TriggerType> SYNC | WKFRame | ID | IDDT | ERRCondition SYNC Start of frame, triggers on the stop bit of the sync field.
Page 523 ® Remote control commands R&S RTB 2 Serial bus analysis The command is relevant if is set to ERRCondition. TRIGger:A:LIN:TYPE Parameters: <IdParityError> ON | OFF *RST: Manual operation: "Parity" on page 263 TRIGger:A:LIN:SYERror <SyncError> Triggers if synchronization caused an error.
Page 524 ® Remote control commands R&S RTB 2 Serial bus analysis The command is relevant if is set to IDDT. TRIGger:A:LIN:TYPE Parameters: <Data> String containing binary pattern with max. 64 bit. Characters 0, 1, and X are allowed. Make sure to enter complete bytes.
Page 525 ® Remote control commands R&S RTB 2 Serial bus analysis ..................528 BUS<b>:LIN:FRAMe<n>:SYValue? .................528 BUS<b>:LIN:FRAMe<n>:VERSion? .................. 528 BUS<b>:LIN:FRAMe<n>:BCOunt? ..............529 BUS<b>:LIN:FRAMe<n>:BYTE<o>:STATe? ..............529 BUS<b>:LIN:FRAMe<n>:BYTE<o>:VALue? BUS<b>:LIN:FCOunt? Returns the number of received frames of the active LIN bus. Suffix: <b> 1 | 2 Return values: <FrameCount>...
Page 526 ® Remote control commands R&S RTB 2 Serial bus analysis <n> Selects the frame (1...n). Return values: <StartTime> Range: depends on sample rate, record length, and time base Increment: depends on the time base Default unit: s Usage: Query only BUS<b>:LIN:FRAMe<n>:STOP?
Page 527 ® Remote control commands R&S RTB 2 Serial bus analysis <n> Selects the frame (1...n). Return values: <ChecksumValue> Decimal value Usage: Query only BUS<b>:LIN:FRAMe<n>:IDPValue? Returns the parity value. Suffix: <b> 1 | 2 <n> Selects the frame (1...n). Return values: <IdentifierParityValue>Decimal value...
Page 528 ® Remote control commands R&S RTB 2 Serial bus analysis Usage: Query only BUS<b>:LIN:FRAMe<n>:SYSTate? Returns the state of the sync field for the specified frame. Suffix: <b> 1 | 2 <n> Selects the frame (1...n). Return values: <SyncFieldState> OK | ERR | UNDF...
Page 529 ® Remote control commands R&S RTB 2 Serial bus analysis Suffix: <b> 1 | 2 <n> Selects the frame (1...n). Return values: <ByteCount> Number of words (bytes) Usage: Query only BUS<b>:LIN:FRAMe<n>:BYTE<o>:STATe? Returns the state of the specified data byte. Suffix: <b>...
Page 530 ® Remote control commands R&S RTB 2 Serial bus analysis 16.11.6.4 LIN - search .................. 530 SEARch:PROTocol:LIN:CONDition ..................530 SEARch:PROTocol:LIN:FRAMe ..................531 SEARch:PROTocol:LIN:IPERror ..................531 SEARch:PROTocol:LIN:CHKSerror ..................531 SEARch:PROTocol:LIN:SYERror ..................532 SEARch:PROTocol:LIN:ICONdition ..................532 SEARch:PROTocol:LIN:IDENtifier ..................532 SEARch:PROTocol:LIN:DLENgth ................532 SEARch:PROTocol:LIN:DCONdition ..................533 SEARch:PROTocol:LIN:DATA SEARch:PROTocol:LIN:CONDition <SearchCondition> Sets the event or combination of events to be searched for. Depending on the selected event, further settings are required.
Page 531 ® Remote control commands R&S RTB 2 Serial bus analysis The command is relevant if is set to FRAMe. SEARch:PROTocol:LIN:CONDition Parameters: <Frame> SOF | WAKeup SOF: start of frame WAKeup: Wakeup frame *RST: SEARch:PROTocol:LIN:IPERror <IdParityError> Searches for parity errors. The command is relevant if...
Page 532 ® Remote control commands R&S RTB 2 Serial bus analysis SEARch:PROTocol:LIN:ICONdition <IdCondition> Sets the comparison condition for the identifier: If the pattern contains at least one X (don't care), you can trigger on values equal or not equal to the specified value. If the pattern contains only 0 and 1, you can also trigger on a range greater than or lower than the specified value.
Page 533: Logic Channels
® Remote control commands R&S RTB 2 Logic analyzer MSO Parameters: <DataCondition> EQUal | NEQual | GTHan | LTHan *RST: Manual operation: "Data condition" on page 268 SEARch:PROTocol:LIN:DATA <Data> Defines the data pattern. The pattern length is defined with SEARch:PROTocol:LIN: DLENgth.
Page 534 ® Remote control commands R&S RTB 2 Logic analyzer MSO LOGic<p>:PROBe[:ENABle]? Checks if the logic probe is connected. Suffix: <p> 1..2 Selects the pod. Return values: <ProbeEnable> 1 | 0 1 = connected, 0 = not connected Usage: Query only LOGic<p>:CURRent:STATe:MAXimum?
Page 535 ® Remote control commands R&S RTB 2 Logic analyzer MSO ....................537 DIGital<m>:HYSTeresis ......................537 DIGital<m>:SIZE ...................... 537 DIGital<m>:POSition ......................538 DIGital<m>:LABel ....................538 DIGital<m>:LABel:STATe LOGic<p>:STATe Switches the logic pod on or off. Suffix: <p> 1..2 Selects the logic pod Parameters: <State>...
Page 536 ® Remote control commands R&S RTB 2 Logic analyzer MSO Suffix: <m> 0..15 Number of the logic channel Parameters: <ThresholdMode> TTL | ECL | CMOS | MANual TTL: 1.4 V ECL: -1.3 V CMOS: 2.5 V MANual: Set a user-defined threshold value with DIGital<m>:...
Page 537 ® Remote control commands R&S RTB 2 Logic analyzer MSO LOGic<p>:TYPE Selects the method to reduce the captured data of logical channels to a waveform with lower sample rate. Parameters: <DecimationMode> SAMPle | PDETect SAMPle Input data is acquired with a sample rate which is aligned to the timebase (horizontal scale) and the record length.
Page 538 ® Remote control commands R&S RTB 2 Logic analyzer MSO Suffix: <m> 0..15 Number of the logic channel Parameters: <Position> Vertical position in divisions Default unit: DIV DIGital<m>:LABel <Label> Defines a label for the indicated logic channel. Suffix: <m> 0..15...
Page 539 ® Remote control commands R&S RTB 2 Logic analyzer MSO ● on page 441 LOGic<p>:DATA:XORigin? ● on page 442 LOGic<p>:DATA:YINCrement? ● on page 442 LOGic<p>:DATA:YORigin? ● on page 442 LOGic<p>:DATA:YRESolution? ......................539 LOGic<p>:DATA? ......................539 DIGital<m>:DATA? ....................539 LOGic<p>:DATA:HEADer? .................... 539 DIGital<m>:DATA:HEADer? ....................
Page 540 ® Remote control commands R&S RTB 2 Logic analyzer MSO Suffix: <m> 0..15 Selects the logic channel <p> 1..2 Selects the logic pod Parameters: <Header> Comma-separated value list Example: -9.477E-008,9.477E-008,200000,1 Usage: Query only LOGic<p>:DATA:POINts <PointSelection> DIGital<m>:DATA:POINts <PointSelection> As a setting, the command selects a range of samples that will be returned with DIGital<m>:DATA?.
Page 541: Parallel Buses
® Remote control commands R&S RTB 2 Logic analyzer MSO Return values: <Points> Number of data points in the selected range. Default unit: Samples See also: CHANnel<m>:DATA:POINts 16.12.2 Parallel buses ● Parallel bus - line configuration................541 ● Parallel clocked bus configuration.................542...
Page 542 ® Remote control commands R&S RTB 2 Logic analyzer MSO Use the command for each bit of the bus. Suffix: <b> 1..2 Selects the parallel bus. <m> Sets the bit number. Parameters: <DataSource> D0..D15 Example: BUS:PARallel:Width 4 BUS:PARallel:DATA0:SOURce D8 BUS:PARallel:DATA1:SOURce D9...
Page 543 ® Remote control commands R&S RTB 2 Logic analyzer MSO BUS<b>:CPARallel:CS:ENABle <ChipSelectEnable> Enables and disables the chip select line. Suffix: <b> 1..2 Selects the parallel bus. Parameters: <ChipSelectEnable> ON | OFF *RST: Manual operation: "Chip Select" on page 278 BUS<b>:CPARallel:CS:SOURce <ChipSelectSource>...
Page 544 ® Remote control commands R&S RTB 2 Logic analyzer MSO ................544 BUS<b>:CPARallel:FRAMe<n>:STATe? ................545 BUS<b>:PARallel:FRAMe<n>:STARt? ................545 BUS<b>:CPARallel:FRAMe<n>:STARt? ................545 BUS<b>:PARallel:FRAMe<n>:STOP? ................545 BUS<b>:CPARallel:FRAMe<n>:STOP? BUS<b>:PARallel:FCOunt? BUS<b>:CPARallel:FCOunt? Returns the number of decoded frames. Suffix: <b> 1..2 Selects the parallel bus. Return values: <FrameCount>...
Page 545 ® Remote control commands R&S RTB 2 Signal generation (option R&S RTB-B6) BUS<b>:PARallel:FRAMe<n>:STARt? BUS<b>:CPARallel:FRAMe<n>:STARt? Returns the start time of the specified frame. Suffix: <b> 1..2 Selects the parallel bus. <n> Selects the frame. Return values: <StartTime> Default unit: s Usage: Query only BUS<b>:PARallel:FRAMe<n>:STOP?
Page 546 ® Remote control commands R&S RTB 2 Signal generation (option R&S RTB-B6) ................547 WGENerator:FUNCtion:RAMP:POLarity ..................548 WGENerator:NOISe:ABSolute ..................548 WGENerator:NOISe:RELative ................... 548 WGENerator:OUTPut:LOAD ..................548 WGENerator:OUTPut[:ENABle] WGENerator:FUNCtion <Function> Selects the function to be generated. Parameters: <Function> DC | SINusoid | SQUare | PULSe | TRIangle | RAMP | SINC |...
Page 547 ® Remote control commands R&S RTB 2 Signal generation (option R&S RTB-B6) WGENerator:FUNCtion:PULSe:DCYCle <DutyCycle> Defines the duty cycle value of the generator function pulse. Parameters: <DutyCycle> Numeric value Range: 1.000E+01 to 9.000E+01 *RST: 2.500E+01 Default unit: % Manual operation: "Duty Cycle"...
Page 548 ® Remote control commands R&S RTB 2 Signal generation (option R&S RTB-B6) Manual operation: "Polarity" on page 285 WGENerator:NOISe:ABSolute <AbsoluteNoise> Sets the noise of the waveform in volts. Parameters: <AbsoluteNoise> Manual operation: "Noise" on page 285 WGENerator:NOISe:RELative <RelativeNoise> Sets the noise of the generated waveform in percentage of the amplitude.
Page 549 ® Remote control commands R&S RTB 2 Signal generation (option R&S RTB-B6) Parameters: <Source> CH1 | CH2 | CH3 | CH4 *RST: Manual operation: "Source" on page 291 WGENerator:ARBitrary:RANGe:START <StartTime> Sets the start time of the copied waveform part. Parameters: <StartTime>...
Page 550 ® Remote control commands R&S RTB 2 Signal generation (option R&S RTB-B6) WGENerator:ARBitrary:VISible <ArbWaveformVisible> Enables the display of the arbitrary waveform. Parameters: <ArbWaveformVisible> ON | OFF *RST: Manual operation: "Visible" on page 291 16.13.1.3 Burst settings ....................550 WGENerator:BURSt:ITIMe ..................550 WGENerator:BURSt:NCYCle ................
Page 551 ® Remote control commands R&S RTB 2 Signal generation (option R&S RTB-B6) SINGle to output one WGENerator:BURSt:TRIGger:SINGle burst. *RST: CONT Manual operation: "Trigger" on page 290 WGENerator:BURSt:TRIGger:SINGle Outputs one burst if is set to SINGle. WGENerator:BURSt:TRIGger[:MODE] Usage: Event Manual operation: "Trigger"...
Page 552 ® Remote control commands R&S RTB 2 Signal generation (option R&S RTB-B6) WGENerator:MODulation[:ENABLE] <Enable> Activates or deactivates modulation of the function generator output. To define the modulation function, see WGENerator:MODulation:FUNCtion. Parameters: <Enable> ON | OFF Manual operation: "Modulation" on page 287 WGENerator:MODulation:FUNCtion <ModulationFunction>...
Page 553 ® Remote control commands R&S RTB 2 Signal generation (option R&S RTB-B6) Manual operation: "Frequency" on page 288 WGENerator:MODulation:AM:DEPTh <ModulationDepth> Sets the modulation depth, the percentage of the amplitude range that is used for AM modulation. Parameters: <ModulationDepth> Manual operation: "AM Depth"...
Page 554 ® Remote control commands R&S RTB 2 Signal generation (option R&S RTB-B6) WGENerator:MODulation:FSK:HFREquency <HoppingFrequency> Sets the second frequency of the FSK-modulated signal. Parameters: <HoppingFrequency> The range depends on the signal type: Sinus: 100mHz - 25MHz Sinc/Triangle/Ramp/Exponential: 100mHz - 1MHz Rectangle/Pulse/Arbitrary: 100mHz - 10MHz Manual operation: "Hop.
Page 555 ® Remote control commands R&S RTB 2 Signal generation (option R&S RTB-B6) Parameters: <StartFrequency> Manual operation: "Start Frequency" on page 286 WGENerator:SWEep:TIME <SweepTime> Sets the duration of the sweep. Parameters: <SweepTime> Manual operation: "Sweep Time" on page 287 WGENerator:SWEep:TYPE <SweepType>...
Page 556 ® Remote control commands R&S RTB 2 Signal generation (option R&S RTB-B6) PGENerator:FUNCtion <PatternFunction> Selects the pattern generator function. Parameters: <PatternFunction> SQUarewave | COUNter | ARBitrary | SPI | I2C | UART | CAN | LIN | MANual | I2S | TDM SQUarewave Square wave function (e.g.
Page 557 ® Remote control commands R&S RTB 2 Signal generation (option R&S RTB-B6) PGENerator:PATTern:TRIGger:EXTern:SLOPe Defines the slope of the external arbitrary pattern trigger. Parameters: <ExternSlope> POSitive | NEGative | EITHer POSitive Rising edge (rise). NEGative Falling edge (fall). EITHer Rising as well as the falling edge (both).
Page 558 ® Remote control commands R&S RTB 2 Signal generation (option R&S RTB-B6) Parameters: <PatternPeriod> Numeric value (Period = Pattern length * Bit time) Range: MIN 1 Sample * 20ns = 20ns to MAX 2048 Sam- ples * 42s = 10416s (approx. 2.89h) *RST: 2.000E-06...
Page 559 ® Remote control commands R&S RTB 2 Signal generation (option R&S RTB-B6) Parameters: <CountDirection> UPWard | DOWNward *RST: Manual operation: "Direction" on page 295 16.13.2.4 Arbitrary pattern ................559 PGENerator:PATTern:TRIGger:MODE ..............559 PGENerator:PATTern:ARBitrary:DATA[:SET] ..............559 PGENerator:PATTern:ARBitrary:DATA:LENGth ..............560 PGENerator:PATTern:ARBitrary:DATA:APPend ............560 PGENerator:PATTern:ARBitrary:DATA:APPend:BOR ............
Page 560 ® Remote control commands R&S RTB 2 Signal generation (option R&S RTB-B6) Parameters: <PatternLength> Numeric value Range: 1 to 2048 *RST: Manual operation: "Pattern Length" on page 297 PGENerator:PATTern:ARBitrary:DATA:APPend <AppendData> Defines the arbitrary pattern. Setting parameters: <AppendData> List of Values...
Page 561 ® Remote control commands R&S RTB 2 Signal generation (option R&S RTB-B6) PGENerator:PATTern:TRIGger:SINGle Manual output of a pattern (single trigger). Usage: Event Manual operation: "Pattern trigger" on page 297 PGENerator:PATTern:STIMe <SampleTime> Sets the time at which each sample is applied for the pattern generator function.
Page 562: Status Reporting
® Remote control commands R&S RTB 2 Status reporting Manual operation: "N-Cycle" on page 298 16.13.2.5 Manual pattern PGENerator:MANual:STATe<s> <State> Selects the pins S0 to S3 manually and sets their states to high (H) or low (L). Suffix: <s> 0..3...
Page 563: Status:questionable Registers
® Remote control commands R&S RTB 2 Status reporting Return values: <Condition> Condition bits in decimal representation. ALIGnment (bit 0) , SELFtest (bit 1) , AUToset (bit 2), WTRigger (bit 3). Range: 1 to 65535 Increment: 1 Usage: Query only STATus:OPERation:ENABle <Enable>...
Page 564 ® Remote control commands R&S RTB 2 Status reporting Figure 16-1: Structure of the STATus:QUEStionable register See also: ● Chapter B.1, "Structure of a SCPI status register", on page 583 ● Chapter B.3.4, "STATus:QUEStionable register", on page 588 The following commands are available: ......................565...
Page 565 ® Remote control commands R&S RTB 2 Status reporting ................ 565 STATus:QUEStionable:ADCState:ENABle ................566 STATus:QUEStionable:LIMit:ENABle ................566 STATus:QUEStionable:MASK:ENABle ..................566 STATus:QUEStionable[:EVENt]? ..............566 STATus:QUEStionable:COVerload[:EVENt]? ..............566 STATus:QUEStionable:ADCState[:EVENt]? ................566 STATus:QUEStionable:LIMit[:EVENt]? ................566 STATus:QUEStionable:MASK[:EVENt]? ................. 566 STATus:QUEStionable:NTRansition ..............566 STATus:QUEStionable:COVerload:NTRansition ..............566 STATus:QUEStionable:ADCState:NTRansition ................. 566 STATus:QUEStionable:LIMit:NTRansition ...............
Page 566 ® Remote control commands R&S RTB 2 Status reporting STATus:QUEStionable:LIMit:ENABle <Enable> STATus:QUEStionable:MASK:ENABle <Enable> Sets the ENABle part that allows true conditions in the EVENt part to be reported in the summary bit. If a bit is set to 1 in the enable part and its associated event bit transitions to true, a positive transition occurs in the summary bit and is reported to the next higher level.
Page 567 ® Remote control commands R&S RTB 2 Status reporting STATus:QUEStionable:PTRansition <PositiveTransition> STATus:QUEStionable:COVerload:PTRansition <PositiveTransition> STATus:QUEStionable:ADCState:PTRansition <PositiveTransition> STATus:QUEStionable:LIMit:PTRansition <PositiveTransition> STATus:QUEStionable:MASK:PTRansition <PositiveTransition> Sets the positive transition filter. If a bit is set, a 0 to 1 transition in the corresponding bit of the condition register causes a 1 to be written in the corresponding bit of the event register.
Page 568: Maintenance And Support
® Maintenance and support R&S RTB 2 Contacting customer support 17 Maintenance and support The instrument does not need periodic maintenance. Only the cleaning of the instru- ment is essential. To protect the front panel and to transport the instrument to another workplace safely and easily, several accessories are provided.
Page 569: Data Security
If you have to send the instrument to the service, or if the instrument is used in a secured environment, consider the document "Instrument Security Procedures" that is available on the R&S RTB 2 internet web page. You can delete all current instrument configuration data and user data with "Setup"...
Page 570 ® Maintenance and support R&S RTB 2 Disposal Figure 17-2: Labeling in line with EU directive WEEE Rohde & Schwarz has developed a disposal concept for the eco-friendly disposal or recycling of waste material. As a manufacturer, Rohde & Schwarz completely fulfills its obligation to take back and dispose of electrical and electronic waste.
Page 571: Scpi Command Structure
® Remote control basics R&S RTB 2 SCPI command structure Annex A Remote control basics A.1 SCPI command structure SCPI commands consist of a header and, usually, one or more parameters. The head- ers may consist of several mnemonics (keywords). Queries are formed by appending a question mark directly to the header.
Page 572 ® Remote control basics R&S RTB 2 SCPI command structure A.1.2 Syntax for instrument-specific commands Not all commands used in the following examples are necessarily implemented in the instrument. For demonstration purposes only, assume the existence of the following commands for this section: ●...
Page 573: Optional Mnemonics
® Remote control basics R&S RTB 2 SCPI command structure by a single value in the command. Entries without a suffix are interpreted as having the suffix 1. Example: Definition: HCOPy:PAGE:DIMensions:QUADrant[<N>] Command: HCOP:PAGE:DIM:QUAD2 This command refers to the quadrant 2.
Page 574 ® Remote control basics R&S RTB 2 SCPI command structure Allowed parameters are: ● Numeric values..................... 574 ● Special numeric values..................574 ● Boolean parameters....................575 ● Text parameters....................575 ● Character strings....................575 ● Block data......................576 A.1.3.1 Numeric values Numeric values can be entered in any form, i.e. with sign, decimal point and exponent.
Page 575: Character Strings
® Remote control basics R&S RTB 2 SCPI command structure ● NAN: Not A Number (NAN) represents the value 9.91E37. NAN is only sent as an instrument response. This value is not defined. Possible causes are the division of zero by zero, the subtraction of infinite from infinite and the representation of miss- ing values.
Page 576: Block Data
® Remote control basics R&S RTB 2 SCPI command structure Example: HCOP:ITEM:LABel "Test1" HCOP:ITEM:LABel 'Test1' A.1.3.6 Block data Block data is a format which is suitable for the transmission of large amounts of data. For example, a command using a block data parameter has the following structure: FORMat:READings:DATA #45168xxxxxxxx The ASCII character # introduces the data block.
Page 577: Structure Of A Command Line
® Remote control basics R&S RTB 2 SCPI command structure Table A-3: Special characters Parameters A pipe in parameter definitions indicates alternative possibilities in the sense of "or". The effect of the command differs depending on which parameter is used.
Page 578: Responses To Queries
® Remote control basics R&S RTB 2 SCPI command structure Example: HCOP:ITEM ALL;:HCOP:IMM This command line contains two commands. Both commands are part of the HCOP command system, i.e. they have one level in common. If the successive commands belong to the same system, having one or several levels in common, the command line can be abbreviated.
Page 579: Command Sequence And Synchronization
® Remote control basics R&S RTB 2 Command sequence and synchronization A.2 Command sequence and synchronization IEEE 488.2 defines a distinction between overlapped (asynchronous) and sequential commands: ● A sequential command finishes executing before the next command starts execut- ing. Commands that are processed quickly are usually implemented as sequential commands.
Page 580 ® Remote control basics R&S RTB 2 Command sequence and synchronization Table A-4: Synchronization using *OPC, *OPC? and *WAI Com- Action Programming the controller mand ● *OPC Sets the Operation Complete bit in the Stan- Setting bit 0 in the ESE ●...
Page 581: Instrument Messages
® Remote control basics R&S RTB 2 Messages Event status enable register (ESE) 1. Execute *ESE 1 Sets the OPC mask bit (bit No. 0) of the Standard Event Status Register (ESR) to 1 2. Send the overlapped command without *OPC, *OPC? or *WAI.
Page 582: Lan Interface Messages
® Remote control basics R&S RTB 2 Messages been standardized by the SCPI committee. These commands are marked as "SCPI compliant" in the command reference chapters. Commands without this SCPI label are device-specific, however, their syntax follows SCPI rules as per- mitted by the standard.
Page 583: Structure Of A Scpi Status Register
® Remote control - status reporting system R&S RTB 2 Structure of a SCPI status register B Remote control - status reporting system The status reporting system stores all information on the current operating state of the instrument, and on errors which have occurred. This information is stored in the status registers and in the error queue.
Page 584: Hierarchy Of Status Registers
® Remote control - status reporting system R&S RTB 2 Hierarchy of status registers – PTR bit =1: the EVENt bit is set. – PTR bit =0: the EVENt bit is not set. This part can be written into and read as required. Its contents are not affected by reading.
Page 585 ® Remote control - status reporting system R&S RTB 2 Hierarchy of status registers Figure B-2: Overview of the status registers hierarchy ● STB, SRE The STatus Byte (STB) register and its associated mask register Service Request Enable (SRE) form the highest level of the status reporting system. The STB pro- vides a rough overview of the instrument status, collecting the information of the lower-level registers.
Page 586: Contents Of The Status Registers
® Remote control - status reporting system R&S RTB 2 Contents of the status registers The output buffer contains the messages the instrument returns to the controller. It is not part of the status reporting system but determines the value of the MAV bit in the STB and thus is represented in the overview.
Page 587: Event Status Register (Esr) And Event Status Enable Register (Ese)
® Remote control - status reporting system R&S RTB 2 Contents of the status registers Bit No. Meaning MAV bit (message available) The bit is set if a message is available in the output queue which can be read. This bit can be used to enable data to be automatically read from the instrument to the controller.
Page 588: Status:questionable Register
® Remote control - status reporting system R&S RTB 2 Contents of the status registers Bit No. Meaning Command Error This bit is set if a command is received, which is undefined or syntactically incorrect. An error message with a number between -100 and -200, which denotes the error in greater detail, is entered into the error queue.
Page 589 ® Remote control - status reporting system R&S RTB 2 Contents of the status registers Figure B-3: Overview of the STATus:QUEStionable register Table B-4: Bits in the STATus:QUEStionable register Bit No. Meaning 0 to 2 not used COVerload This bit is set if a questionable channel overload occurs (see Chapter B.3.4.1, "STATus:QUES-...
Page 590 ® Remote control - status reporting system R&S RTB 2 Contents of the status registers Bit No. Meaning ADCState The bit is set if the signal is clipped on the upper or lower edge of the screen -overflow of the ADC occurs (see Chapter B.3.4.3, "STATus:QUEStionable:ADCState...
Page 591: Status:questionable:limit Register
® Remote control - status reporting system R&S RTB 2 Contents of the status registers B.3.4.3 STATus:QUEStionable:ADCState register This register contains all information about overflow of the ADC. The bit is set if the assigned channel signal is clipped on the upper or lower edge of the screen.
Page 592: Application Of The Status Reporting System
® Remote control - status reporting system R&S RTB 2 Application of the status reporting system B.4 Application of the status reporting system The purpose of the status reporting system is to monitor the status of one or several devices in a measuring system. To do this and react appropriately, the controller must receive and evaluate the information of all devices.
Page 593: Error Queue
® Remote control - status reporting system R&S RTB 2 Reset values of the status reporting system ● The common commands *ESR?, *IDN?, *IST?, *STB? query the higher-level registers. ● The commands of the STATus system query the SCPI registers (STATus:QUEStionable...)
Page 594 ® Remote control - status reporting system R&S RTB 2 Reset values of the status reporting system SYSTem:PRESet, influence the functional instrument settings. In particular, DCL does not change the instrument settings. Table B-10: Resest of the status reporting system...
Page 595 ® List of commands R&S RTB 2 List of commands *CAL?................................308 *CLS................................309 *ESE................................309 *ESR?................................309 *IDN?................................309 *OPC................................309 *OPT?................................310 *PSC................................310 *RST................................310 *SRE................................310 *STB?................................311 *TRG................................311 *WAI................................311 ACQuire:AVAilable?............................374 ACQuire:AVERage:COMPlete?........................327 ACQuire:AVERage:COUNt..........................327 ACQuire:AVERage:CURRent?........................375 ACQuire:AVERage:RESet..........................
Page 596 ® List of commands R&S RTB 2 BPLot:FREQuency:DATA?..........................424 BPLot:FREQuency:STARt..........................425 BPLot:FREQuency:STOP..........................425 BPLot:GAIN:DATA?............................427 BPLot:GAIN:ENABle............................427 BPLot:GAIN:POSition............................ 427 BPLot:GAIN:SCALe............................427 BPLot:INPut[:SOURce]..........................425 BPLot:MARKer<m>:DIFFerence:FREQ?...................... 429 BPLot:MARKer<m>:DIFFerence:GAIN?......................429 BPLot:MARKer<m>:DIFFerence:PHASe?.....................430 BPLot:MARKer<m>:FREQuency........................430 BPLot:MARKer<m>:GAIN?..........................430 BPLot:MARKer<m>:INDex..........................430 BPLot:MARKer<m>:PHASe?.........................430 BPLot:MARKer<m>:SSCReen........................431 BPLot:MEASurement:DELay.........................425 BPLot:MEASurement:POINt[:DISPLAY]......................425 BPLot:OUTPut[:SOURce]..........................426 BPLot:PHASe:DATA?............................ 428 BPLot:PHASe:ENABle?..........................428 BPLot:PHASe:POSition?..........................428 BPLot:PHASe:SCALe?..........................428...
Page 597 ® List of commands R&S RTB 2 BUS<b>:CPARallel:CLOCK:SLOPe......................542 BUS<b>:CPARallel:CLOCk:SOURce......................542 BUS<b>:CPARallel:CS:ENABle........................543 BUS<b>:CPARallel:CS:POLarity........................543 BUS<b>:CPARallel:CS:SOURce........................543 BUS<b>:CPARallel:DATA<m>:SOURce......................541 BUS<b>:CPARallel:FCOunt?.........................544 BUS<b>:CPARallel:FRAMe<n>:DATA?......................544 BUS<b>:CPARallel:FRAMe<n>:STARt?....................... 545 BUS<b>:CPARallel:FRAMe<n>:STATe?......................544 BUS<b>:CPARallel:FRAMe<n>:STOP?......................545 BUS<b>:CPARallel:WIDTh..........................541 BUS<b>:DSIGnals............................469 BUS<b>:DSIZe.............................. 469 BUS<b>:FORMat............................468 BUS<b>:HISTory:CONTrol:ENABle]......................376 BUS<b>:HISTory:CURRent........................... 376 BUS<b>:HISTory:EXPort:NAME........................382 BUS<b>:HISTory:EXPort:SAVE........................383 BUS<b>:HISTory:PALL..........................377 BUS<b>:HISTory:PLAYer:SPEed........................377 BUS<b>:HISTory:PLAYer:STATe........................378 BUS<b>:HISTory:REPLay..........................
Page 598 ® List of commands R&S RTB 2 BUS<b>:I2C:FRAMe<n>:STARt?........................488 BUS<b>:I2C:FRAMe<n>:STATus?........................ 488 BUS<b>:I2C:FRAMe<n>:STOP?........................488 BUS<b>:LABel...............................468 BUS<b>:LABel:STATe........................... 468 BUS<b>:LIN:BITRate.............................521 BUS<b>:LIN:DATA:SOURce......................... 520 BUS<b>:LIN:FCOunt?........................... 525 BUS<b>:LIN:FRAMe<n>:BCOunt?........................528 BUS<b>:LIN:FRAMe<n>:BYTE<o>:STATe?....................529 BUS<b>:LIN:FRAMe<n>:BYTE<o>:VALue?....................529 BUS<b>:LIN:FRAMe<n>:CSSTate?......................526 BUS<b>:LIN:FRAMe<n>:CSValue?......................526 BUS<b>:LIN:FRAMe<n>:DATA?........................525 BUS<b>:LIN:FRAMe<n>:IDPValue?......................527 BUS<b>:LIN:FRAMe<n>:IDSTate?........................527 BUS<b>:LIN:FRAMe<n>:IDValue?........................527 BUS<b>:LIN:FRAMe<n>:STARt?........................525 BUS<b>:LIN:FRAMe<n>:STATus?........................ 525 BUS<b>:LIN:FRAMe<n>:STOP?........................526 BUS<b>:LIN:FRAMe<n>:SYSTate?......................
Page 599 ® List of commands R&S RTB 2 BUS<b>:SPI:FRAME<n>:WORD<o>:STARt?....................481 BUS<b>:SPI:FRAME<n>:WORD<o>:STOP?....................482 BUS<b>:SPI:MISO:POLarity......................... 473 BUS<b>:SPI:MISO:SOURce......................... 472 BUS<b>:SPI:MOSI:POLarity......................... 472 BUS<b>:SPI:MOSI:SOURce......................... 471 BUS<b>:SPI:SSIZe............................473 BUS<b>:SSPI:BITime............................476 BUS<b>:SSPI:BORDer..........................476 BUS<b>:SSPI:CLOCk:POLarity........................474 BUS<b>:SSPI:CLOCk:SOURce........................474 BUS<b>:SSPI:DATA:POLarity........................475 BUS<b>:SSPI:DATA:SOURce........................474 BUS<b>:SSPI:MISO:POLarity........................476 BUS<b>:SSPI:MISO:SOURce........................475 BUS<b>:SSPI:MOSI:POLarity........................475 BUS<b>:SSPI:MOSI:SOURce........................474 BUS<b>:SSPI:SSIZe............................. 476 BUS<b>:STATe.............................. 468 BUS<b>:TYPE...............................467 BUS<b>:UART:BAUDrate..........................496 BUS<b>:UART:BITime...........................497...
Page 600 ® List of commands R&S RTB 2 BUS<b>:UART:TX:FCOunt?..........................499 BUS<b>:UART:TX:FRAMe<n>:STARt?......................500 BUS<b>:UART:TX:FRAMe<n>:STATe?......................500 BUS<b>:UART:TX:FRAMe<n>:STOP?......................500 BUS<b>:UART:TX:FRAMe<n>:WCOunt?..................... 501 BUS<b>:UART:TX:FRAMe<n>:WORD<o>:STARt?..................502 BUS<b>:UART:TX:FRAMe<n>:WORD<o>:STATe?..................501 BUS<b>:UART:TX:FRAMe<n>:WORD<o>:STOP?..................503 BUS<b>:UART:TX:FRAMe<n>:WORD<o>:VALue?..................503 BUS<b>:UART:TX:SOURce.......................... 494 CALCulate:MATH<m>:DATA:HEADer?......................437 CALCulate:MATH<m>:DATA:POINts?......................437 CALCulate:MATH<m>:DATA:XINCrement?....................441 CALCulate:MATH<m>:DATA:XORigin?......................441 CALCulate:MATH<m>:DATA:YINCrement?....................442 CALCulate:MATH<m>:DATA:YORigin?......................442 CALCulate:MATH<m>:DATA:YRESolution?....................442 CALCulate:MATH<m>:DATA?........................437 CALCulate:MATH<m>:HISTory:CONTrol:ENABle]..................376 CALCulate:MATH<m>:HISTory:CURRent..................... 376 CALCulate:MATH<m>:HISTory:PALL......................377 CALCulate:MATH<m>:HISTory:PLAYer:SPEed.....................377...
Page 601 ® List of commands R&S RTB 2 CHANnel<m>:DATA:ENVelope:HEADer?..................... 436 CHANnel<m>:DATA:ENVelope:XINCrement?....................441 CHANnel<m>:DATA:ENVelope:XORigin?..................... 441 CHANnel<m>:DATA:ENVelope:YINCrement?....................442 CHANnel<m>:DATA:ENVelope:YORigin?..................... 441 CHANnel<m>:DATA:ENVelope:YRESolution?....................442 CHANnel<m>:DATA:ENVelope?........................436 CHANnel<m>:DATA:HEADer?........................434 CHANnel<m>:DATA:POINts.......................... 434 CHANnel<m>:DATA:XINCrement?........................441 CHANnel<m>:DATA:XORigin?........................441 CHANnel<m>:DATA:YINCrement?........................442 CHANnel<m>:DATA:YORigin?........................441 CHANnel<m>:DATA:YRESolution?....................... 442 CHANnel<m>:DATA?.............................433 CHANnel<m>:HISTory:CONTrol:[ENABle]....................376 CHANnel<m>:HISTory:CURRent........................376 CHANnel<m>:HISTory:EXPort:NAME......................383 CHANnel<m>:HISTory:EXPort:SAVE......................383 CHANnel<m>:HISTory:PALL......................... 377 CHANnel<m>:HISTory:PLAYer:SPEed......................
Page 602 ® List of commands R&S RTB 2 CURSor<m>:SOURce........................... 399 CURSor<m>:SPPeak<n>..........................402 CURSor<m>:SSOurce...........................400 CURSor<m>:STATe............................398 CURSor<m>:SWAVe............................. 402 CURSor<m>:TRACking:SCALe[:STATe]....................... 402 CURSor<m>:TRACking[:STATe]........................400 CURSor<m>:USSource..........................400 CURSor<m>:X1Position..........................401 CURSor<m>:X2Position..........................401 CURSor<m>:XCOupling..........................401 CURSor<m>:XDELta:INVerse?........................403 CURSor<m>:XDELta[:VALue]?........................403 CURSor<m>:Y1Position..........................401 CURSor<m>:Y2Position..........................401 CURSor<m>:YCOupling..........................401 CURSor<m>:YDELta:SLOPe?........................404 CURSor<m>:YDELta[:VALue]?........................403 DEVice:MODE...............................
Page 603 ® List of commands R&S RTB 2 DIGital<m>:HISTory:TTABle[:ENABle]......................379 DIGital<m>:HYSTeresis..........................537 DIGital<m>:LABel............................538 DIGital<m>:LABel:STATe..........................538 DIGital<m>:POSition............................537 DIGital<m>:PROBe[:ENABle]?........................535 DIGital<m>:SIZE............................537 DIGital<m>:TECHnology..........................535 DIGital<m>:THReshold..........................536 DISPlay:CBAR:FFT[:POSition]........................413 DISPlay:CBAR:ZOOM[:POSition]........................348 DISPlay:CLEar[:SCReen]..........................454 DISPlay:DIALog:CLOSe..........................456 DISPlay:DIALog:MESSage..........................456 DISPlay:DTIMe.............................. 454 DISPlay:GRID:ANNotation:TRACk........................ 458 DISPlay:GRID:ANNotation[:ENABle]......................458 DISPlay:GRID:STYLe............................ 456 DISPlay:INTensity:GRID..........................456 DISPlay:INTensity:WAVeform........................457 DISPlay:LANGuage............................
Page 604 ® List of commands R&S RTB 2 FORMat:BORDer............................433 FORMat[:DATA]............................. 431 HCOPy:COLor:SCHeme..........................446 HCOPy:CWINdow............................445 HCOPy:DATA?...............................446 HCOPy:FORMat............................446 HCOPy:LANGuage............................446 HCOPy:SIZE:X?............................446 HCOPy:SIZE:Y?............................446 HCOPy[:IMMediate]............................445 LOGic<p>:CURRent:STATe:MAXimum?....................... 534 LOGic<p>:CURRent:STATe:MINimum?......................534 LOGic<p>:DATA:HEADer?..........................539 LOGic<p>:DATA:POINts..........................540 LOGic<p>:DATA:XINCrement?........................441 LOGic<p>:DATA:XORigin?..........................441 LOGic<p>:DATA:YINCrement?........................442 LOGic<p>:DATA:YORigin?..........................442 LOGic<p>:DATA:YRESolution?........................442 LOGic<p>:DATA?............................539 LOGic<p>:HISTory:CONTrol:ENABle]......................376 LOGic<p>:HISTory:CURRent........................
Page 605 ® List of commands R&S RTB 2 MASK:ACTion:WFMSave:EVENt:MODE...................... 407 MASK:ACTion:YOUT:ENABle........................409 MASK:CAPTure[:MODE]..........................410 MASK:CHCopy.............................. 405 MASK:COUNt?.............................. 410 MASK:DATA:HEADer?..........................439 MASK:DATA:XINCrement?..........................441 MASK:DATA:XORigin?..........................441 MASK:DATA:YINCrement?..........................442 MASK:DATA:YORigin?..........................442 MASK:DATA:YRESolution?........................... 442 MASK:DATA?..............................439 MASK:LOAD..............................406 MASK:RESet:COUNter..........................409 MASK:SAVE..............................406 MASK:SOURce..............................405 MASK:STATe..............................404 MASK:TEST..............................409 MASK:VCOunt?.............................410 MASK:XWIDth............................... 405 MASK:YPOSition............................405 MASK:YSCale..............................405...
Page 606 ® List of commands R&S RTB 2 MMEMory:CATalog:LENGth?........................451 MMEMory:CATalog?............................450 MMEMory:CDIRectory........................... 448 MMEMory:COPY............................451 MMEMory:DATA............................452 MMEMory:DCATalog:LENGth?........................449 MMEMory:DCATalog?............................449 MMEMory:DELete............................452 MMEMory:DRIVes?............................447 MMEMory:LOAD:STATe..........................453 MMEMory:MDIRectory...........................448 MMEMory:MOVE............................451 MMEMory:MSIS.............................448 MMEMory:NAME............................445 MMEMory:RDIRectory........................... 448 MMEMory:STORe:STATe..........................452 PGENerator:FUNCtion...........................556 PGENerator:MANual:STATe<s>........................562 PGENerator:PATTern:ARBitrary:DATA:APPend.................... 560 PGENerator:PATTern:ARBitrary:DATA:APPend:BAND................. 560 PGENerator:PATTern:ARBitrary:DATA:APPend:BOR...................
Page 607 ® List of commands R&S RTB 2 REFCurve<m>:HORizontal:SCALe....................... 355 REFCurve<m>:LABel............................ 356 REFCurve<m>:LOAD............................ 354 REFCurve<m>:LOAD:STATe.........................355 REFCurve<m>:SAVE.............................354 REFCurve<m>:SOURce..........................353 REFCurve<m>:SOURce:CATalog?....................... 353 REFCurve<m>:STATe............................353 REFCurve<m>:UPDate..........................354 REFCurve<m>:VERTical:POSition........................ 355 REFCurve<m>:VERTical:SCALe........................356 REFCurve<m>:WCOLor..........................356 REFLevel:RELative:LOWer........................... 397 REFLevel:RELative:MIDDle...........................397 REFLevel:RELative:MODE..........................397 REFLevel:RELative:UPPer..........................397 RUN................................312 RUNContinous...............................312 RUNSingle..............................312 SEARch:CONDition............................357 SEARch:MEASure:LEVel:PEAK:MAGNitude....................361 SEARch:MEASure:PEAK:POLarity.......................
Page 608 ® List of commands R&S RTB 2 SEARch:SOURce............................358 SEARch:STATe.............................. 357 SEARch:TRIGger:DATatoclock:CEDGe......................366 SEARch:TRIGger:DATatoclock:CLEVel......................366 SEARch:TRIGger:DATatoclock:CLEVel:DELTa..................... 366 SEARch:TRIGger:DATatoclock:CSOurce...................... 366 SEARch:TRIGger:DATatoclock:DLEVel......................366 SEARch:TRIGger:DATatoclock:DLEVel:DELTa..................... 366 SEARch:TRIGger:DATatoclock:HTIMe......................367 SEARch:TRIGger:DATatoclock:STIMe......................367 SEARch:TRIGger:EDGE:LEVel........................359 SEARch:TRIGger:EDGE:LEVel:DELTa......................359 SEARch:TRIGger:EDGE:SLOPe........................359 SEARch:TRIGger:LEVel:RISetime:LOWer....................362 SEARch:TRIGger:LEVel:RISetime:UPPer.....................362 SEARch:TRIGger:LEVel:RUNT:LOWer......................364 SEARch:TRIGger:LEVel:RUNT:UPPer......................364 SEARch:TRIGger:PATTern:FUNCtion......................368 SEARch:TRIGger:PATTern:LEVel<n>......................368 SEARch:TRIGger:PATTern:LEVel<n>:DELTa....................
Page 609 ® List of commands R&S RTB 2 SPECtrum:FREQuency:STARt........................414 SPECtrum:FREQuency:STOP........................414 SPECtrum:FREQuency:WINDow:TYPE......................411 SPECtrum:HISTory:CURRent........................376 SPECtrum:HISTory:EXPort:NAME........................ 382 SPECtrum:HISTory:EXPort:SAVE......................... 383 SPECtrum:HISTory:PALL..........................377 SPECtrum:HISTory:PLAYer:SPEed....................... 378 SPECtrum:HISTory:PLAYer:STATe........................ 378 SPECtrum:HISTory:REPLay.......................... 378 SPECtrum:HISTory:STARt..........................377 SPECtrum:HISTory:STOP..........................377 SPECtrum:HISTory:TSABsolute:ALL?......................381 SPECtrum:HISTory:TSABsolute?........................381 SPECtrum:HISTory:TSDate:ALL?........................382 SPECtrum:HISTory:TSDate?......................... 381 SPECtrum:HISTory:TSRelative:ALL?......................380 SPECtrum:HISTory:TSRelative?........................380 SPECtrum:SOURce............................411 SPECtrum:TIME:POSition..........................415 SPECtrum:TIME:RANGe..........................
Page 610 ® List of commands R&S RTB 2 SPECtrum:WAVeform:SPECtrum:DATA:XINCrement?................. 417 SPECtrum:WAVeform:SPECtrum:DATA:XORigin?..................418 SPECtrum:WAVeform:SPECtrum:DATA:YINCrement?................. 418 SPECtrum:WAVeform:SPECtrum:DATA:YORigin?..................418 SPECtrum:WAVeform:SPECtrum:DATA:YRESolution?.................418 SPECtrum:WAVeform:SPECtrum:DATA?...................... 417 SPECtrum:WAVeform:SPECtrum[:ENABle]....................415 SPECtrum[:STATe]............................411 STATus:OPERation:CONDition?........................562 STATus:OPERation:ENABle.......................... 563 STATus:OPERation:NTRansition........................563 STATus:OPERation:PTRansition........................563 STATus:OPERation[:EVENt]?........................563 STATus:PRESet.............................565 STATus:QUEStionable:ADCState:CONDition?....................565 STATus:QUEStionable:ADCState:ENABle....................565 STATus:QUEStionable:ADCState:NTRansition..................... 566 STATus:QUEStionable:ADCState:PTRansition..................... 567 STATus:QUEStionable:ADCState[:EVENt]?....................566 STATus:QUEStionable:CONDition?.......................565 STATus:QUEStionable:COVerload:CONDition?.................... 565 STATus:QUEStionable:COVerload:ENABle....................565...
Page 611 ® List of commands R&S RTB 2 SYSTem:COMMunicate:INTerface:ETHernet:SUBNet.................. 463 SYSTem:COMMunicate:INTerface:ETHernet:TRANsfer................464 SYSTem:COMMunicate:INTerface:ETHernet:VXIPort...................464 SYSTem:COMMunicate:INTerface:USB:CLASs.................... 465 SYSTem:COMMunicate:INTerface[:SELect]....................460 SYSTem:DATE...............................459 SYSTem:DFPRint?............................462 SYSTem:EDUCation:PRESet........................462 SYSTem:ERRor:ALL?............................461 SYSTem:ERRor[:NEXT]?..........................461 SYSTem:NAME..............................459 SYSTem:PRESet............................462 SYSTem:SET..............................461 SYSTem:TIME............................... 460 SYSTem:TREE?............................462 TCOunter:ENABle............................422 TCOunter:RESult[:ACTual]:FREQuency?..................... 422 TCOunter:RESult[:ACTual]:PERiod?......................422 TCOunter:SOURce............................422 TIMebase:ACQTime............................323 TIMebase:DIVisions?.............................323 TIMebase:POSition............................322...
