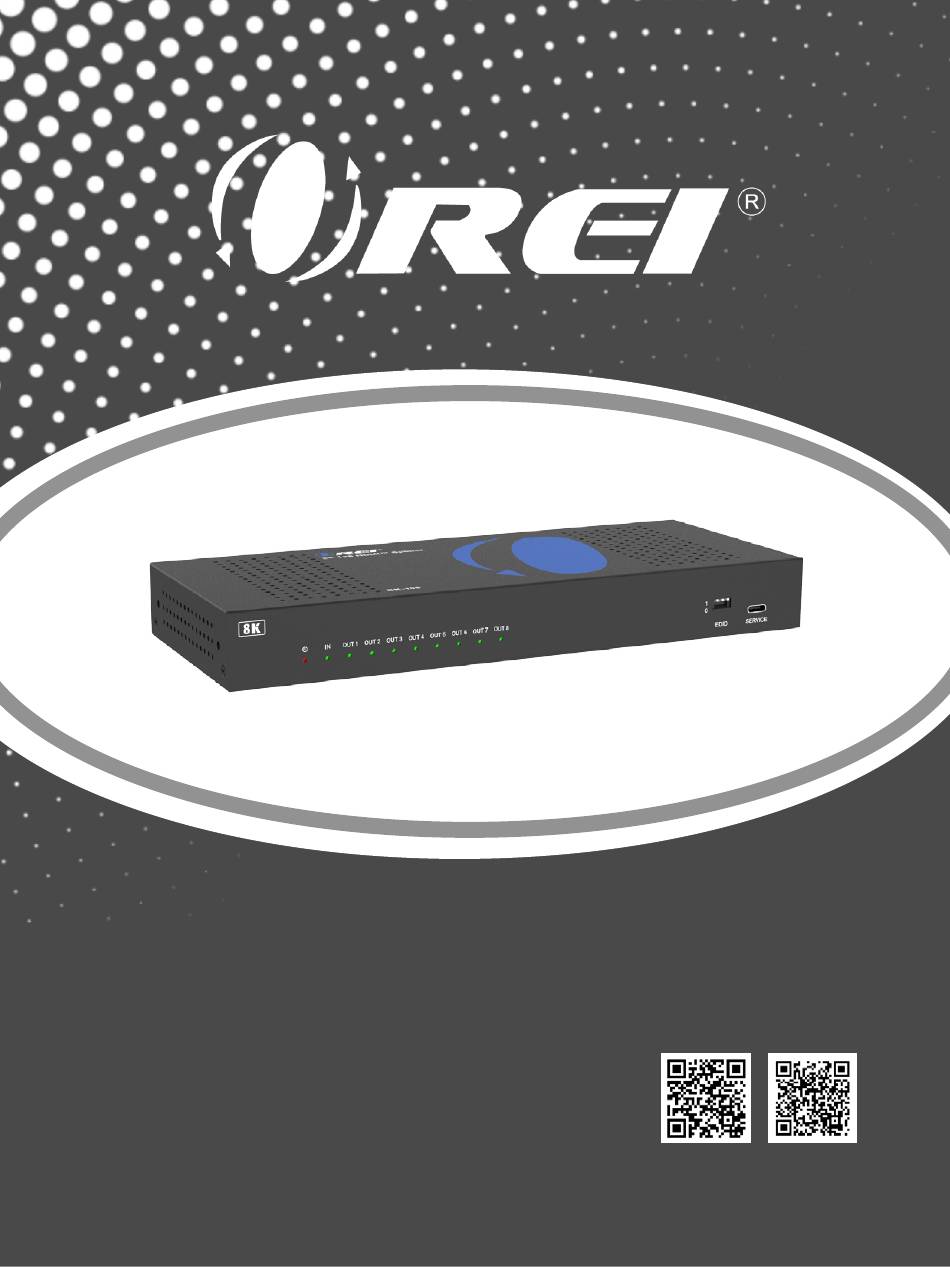

- Page 1 BK-108 Follow us on Youtube 8K 1x8 HDMI™ Splitter and Facebook U S E R M A N U A L www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Auto Downscaling & Auto Converting Application Example FAQs & Troubleshooting Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. -
Page 3: Registration Page
Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget. -
Page 4: Introduction
Introduction The BK-108 8K 1x8 Splitter is an advanced solution for splitting a single HDMI signal to 8 HDMI outputs synchronously, with video resolutions up to 8K@60Hz 4:2:0 12bit. It supports video bandwidth of up to 48Gbps FRL & 18Gbps TMDS, and complies with HDMI 2.1 and HDCP 2.3 requirements. -
Page 5: Features
7. 8K to 4K or 8K/4K to 1080P auto downscaling on all outputs 8. Automatic HDR to SDR Conversion on all outputs 9. Advanced EDID management 10. Compact design for easy and flexible installation Package Contents BK-108 Splitter 1pcs 12V/2.5A Power Adapter 1pcs Mounting Ear... -
Page 6: Specifications
Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3, HDCP 1.4 Video Bandwidth 48Gbps FRL and 18Gbps TMDS Video Resolution Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit Color Space RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 Color Depth 8/10/12bit HDR, HDR10, HDR10+, Dolby Vision, HLG HDMI input/output:... - Page 7 Specifications Mechanical Power Supply DC 12V/2.5A Power Consumption 12.2W (Max) Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) Recommended HDMI Cable Video Resolution 4K60 4K24 1080P HDMI Cable Length 3m/10ft...
-
Page 8: Operation Controls And Functions
Operation Controls and Functions Front Panel OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8 EDID SERVICE Name Function Description Power LED The red LED will light up when the device is powered on. When the HDMI IN port connects to an active source device, the IN LED green LED will light up. -
Page 9: Operation Controls
Operation Controls and Functions Rear Panel OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8 DC 12V Name Function Description Connect a media device such as a DVD Player, Streaming IN port device, etc. OUT port Connect a display device such as a TV, Monitor, etc. - Page 10 Auto Downscaling & Auto Converting 8K HDR TV 8K HDR Bypass 8K HDR TV 8K HDR Bypass 8K HDR TV 8K HDR Bypass Splitter 8K HDR TV 8K HDR 8K Source 8K HDR Downscaling & Converting 4K SDR TV 4K SDR Downscaling &...
- Page 11 Auto Downscaling & Auto Converting Bypass 8K HDR TV 4K HDR Bypass 4K HDR TV 4K HDR Bypass 4K HDR TV 4K HDR Downscaling & Converting Splitter 4K SDR TV 1080P SDR 4K Source 4K HDR Downscaling & Converting 1080P SDR TV 1080P SDR Downscaling &...
-
Page 12: Application Example
Application Example 8K TV 1 8K TV 8 OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8 DC 12V Power Supply DVD or Blu-ray Player Steps To Connect: 1. Connect your media devices such as DVD player, streaming device, etc. -
Page 13: Faqs & Troubleshooting
FAQs & Troubleshooting 1. What is the maxmum cable length this splitter supports? We suggest using high quality HDMI 2.1 cables under 30 feet with this Splitter. 2. Can I connect extra monitors to my laptop/PC and have different image on all monitors ? This is an HDMI splitter and it will only mirror your laptop/PC screen. - Page 14 8K 1x8 HDMI™ Splitter BK-108 www.orei.com © 2024...
