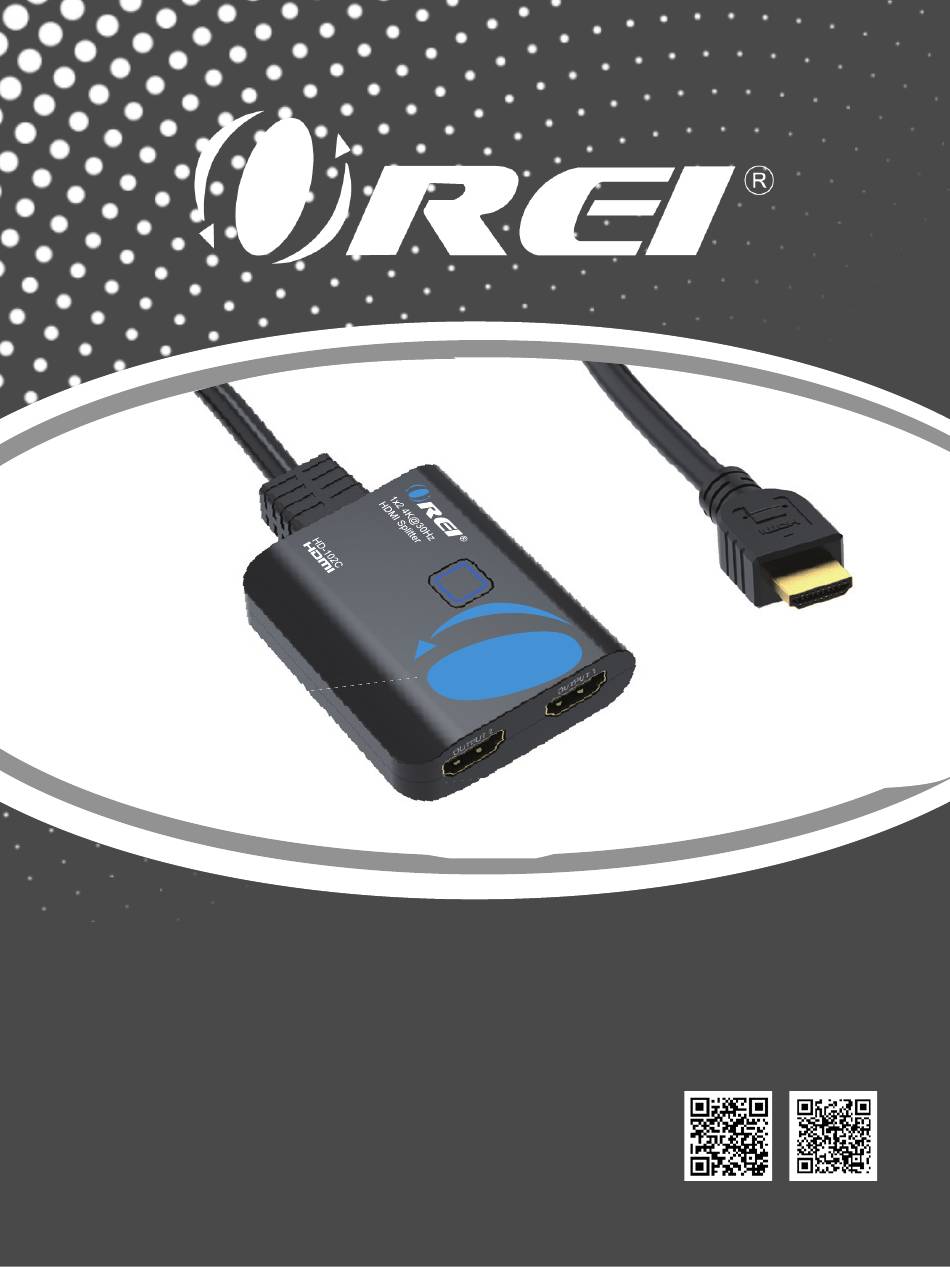

- Page 1 HD-102C 1x2 4K@30Hz HDMI Splitter Follow us on Youtube and Facebook USE R M A N UA L www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Control & Functions Application Example FAQs & Troubleshooting Thank you for purchasing this product For optimum performance and safety, please read these instructions care- fully before connecting, operating or adjusting this product. Please keep this manual for future reference. -
Page 3: Registration Page
Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to an- swer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget. -
Page 4: Introduction
Introduction The HD-102C 1x2 HDMI splitter is a perfect solution for taking any media signal and mirror it to two displays at the same time. It supports video resolutions up to 4K@30Hz and is HDMI 1.4 and HDCP 1.4 compliant. It comes with a HDMI male connector to connect to your input source. -
Page 5: Features
5, 12bit per channel (36bit all channels) deep color support 6, CEC support 7, Uncompressed LPCM and compressed DTS and Dolby Digital (including DTS-HD Master Audio and Dolby TrueHD) support. 8, Lightweight and robust ABS Plastic design Package Contents HD-102C 1pcs USB-A to USB-C cable 1pcs User Manual 1pcs... -
Page 6: Specifications
Specifications Technical HDMI Compliance HDMI 1.4 HDCP Compliance HDCP 1.4 3.4Gbps/3400MHz per channel(10.2Gbps all chan- Video Bandwidth nels) Video Resolution 4K@24/30Hz, 1080p, 720p, 480p Color Space 4:4:4/4:2:2/4:2:0 Color Depth 8/10/12bit LPCM/DTS/Dolby Digital/DTS-HD Master Audio/ Audio Formats Dolby TrueHD HDR & Dolby Vision Contact discharge (±4KV), air discharge (±8kv),lm- ESD Protection plementation of the standard: IEC61000-4-2... - Page 7 Specifications Mechanical Housing Color Black L: 65.5mm / 2.57in Dimensions W: 55.5mm / 2.18in H: 16mm / 0.62in Weight 77g / 2.72oz Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A Power Supply (US/EU standards, CE/FCC/UL certified) Power Consumption 5W (Max) Operation 0°C ~ 70°C / 32°F ~ 158°F Temperature...
-
Page 8: Operation Control & Functions
Operation Control & Functions 1x2 4K@30Hz HDMI Splitter HD-102C Page 08... - Page 9 Operation Control & Functions Name Function Description USB-C input port to power the device through the DC 5V included USB-A to USB-C cable HDMI Male connector to connect a source device such HDMI Male as a DVD Player, Streaming device, etc. The indicator will light up Blue when the device is Power LED powered on...
-
Page 10: Application Example
Application Example Page 10... -
Page 11: Faqs & Troubleshooting
FAQs & Troubleshooting 1. Power light is off and product is not working. How can I fix this? ->Please check the following: 1. Ensure that the power supply is properly connected. 2. Ensure that the power adapter or power source that you are using outputs DC 5V/1A as required by the splitter. - Page 12 1x2 4K@30Hz HDMI Splitter HD-102C www.orei.com © 2024...
