Summary of Contents for REI BK-102

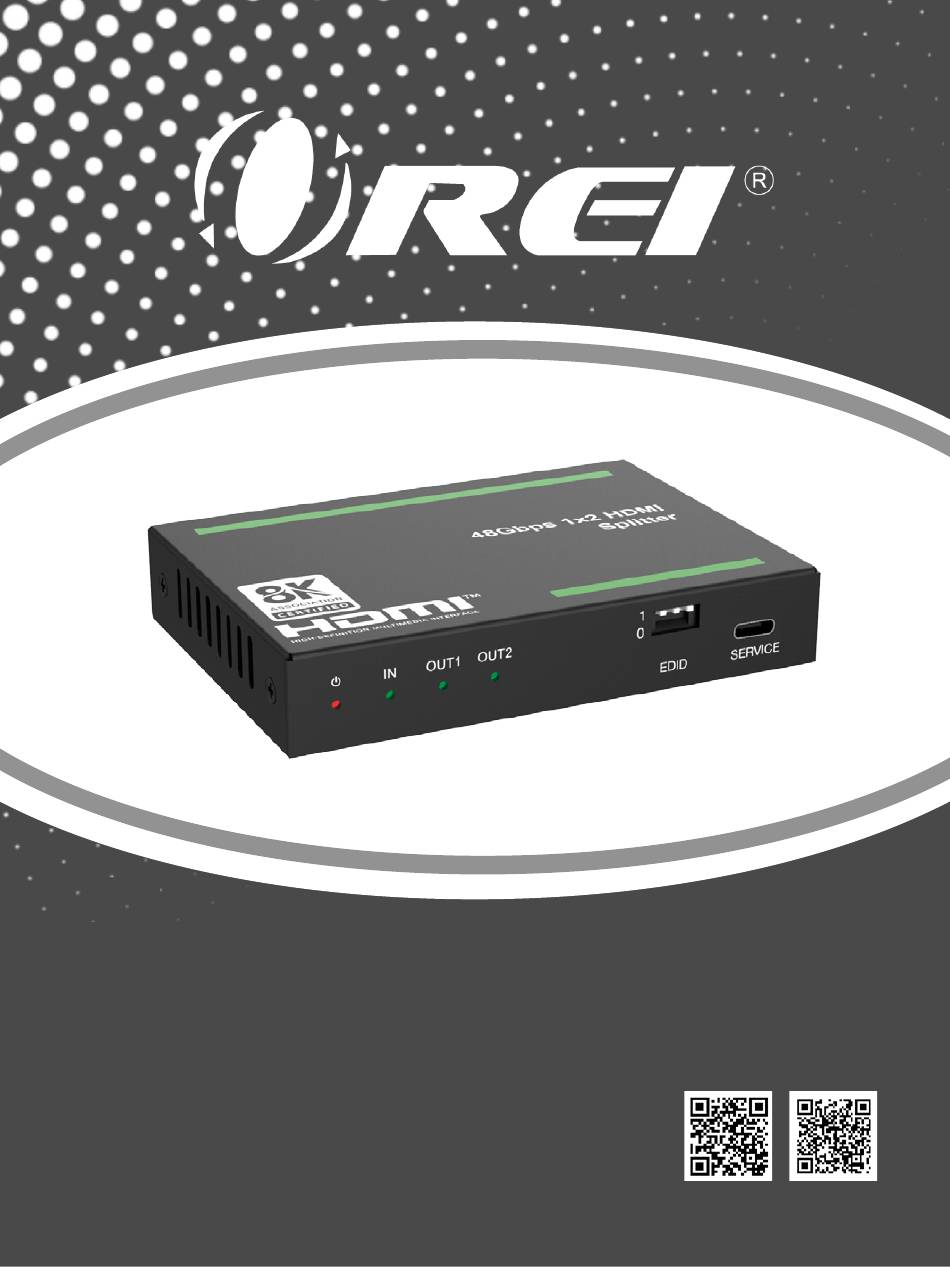

- Page 1 BK-102 48Gbps 1x2 HDMI Splitter Follow us on Youtube and Facebook US E R M ANUA L www.orei.com page 1...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Auto Downscaling & Auto Converting Application Example FAQs& Troubleshooting Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. - Page 3 Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget. Call, email or chat with us now.
-
Page 4: Introduction
Introduction The BK-102 Splitter is an advanced solution for splitting single HDMI signal to 2 HDMI outputs synchronously, with video reso- lution up to 8K@60Hz 4:2:0 12bit. It supports video bandwidth of up to 48Gbps and complies with HDMI 2.1 and HDCP 2.3 requirements. -
Page 5: Features
8K to 4K or 8K/4K to 1080P auto downscaling on all outputs Automatic HDR to SDR Conversion on all outputs Advanced EDID management 10. Compact design for easy and flexible installation Package Contents BK-102 Splitter 1pcs 5V/2A Multinational Power Supply 1pcs User Manual... -
Page 6: Specifications
Specifications Technical HDCP Compliance HDCP 2.3 HDMI Compliance HDMI 2.1 Video Bandwidth 48Gbps Video Resolution Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 8-bit, 10-bit, 12-bit LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Audio Formats Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS- HD Master Audio, DSD... - Page 7 Specifications Mechanical Housing Metal Enclosure Color Black Dimensions 95mm [L] × 68mm [W] × 18mm [H] Weight 177g / 6.24oz Input: AC 100-240V 50/60Hz, Output: DC 5V/2A Power Supply (US/EU standards, CE/FCC/UL certified) Power Consumption 4.3W (Max) Operation -10°C ~ 50°C / 14°F ~ 122°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F...
-
Page 8: Operation Controls And Functions
Operation Controls and Functions Front Panel OUT 1 OUT 2 EDID SERVICE Name Function Description The Red LED will light up when the device is powered Power LED The Green LED will light up when an active source is IN LED detected. - Page 9 Operation Controls and Functions Rear Panel OUT 1 OUT 2 DC 5V Name Function Description Connect a media device such as a DVD Player, set-top IN port box, etc. OUT port Connect a display device such as a TV or Monitor. (1~2) DC 5V DC 5V/2A power input port.
-
Page 10: Auto Downscaling & Auto Converting
Auto Downscaling & Auto Converting The BK-102 supports auto downscaling and auto converting on all outputs. Before downscaling it will compare all the EDID of the connected display devices and select the minimum resolu- tion to downscale and output. For example:... - Page 11 Auto Downscaling & Auto Converting Bypass Splitter 4K HDR TV 4K HDR 4K Source 4K HDR Downscaling & Converting 1080P DVI TV (No sound) 1080P DVI Bypass Splitter 4K HDR TV 1080P HDR 1080P Source 1080P HDR Downscaling & Converting 1080P SDR TV 1080P SDR Bypass...
-
Page 12: Application Example
Application Example DVD or Blu-ray Player Power Supply OUT 1 OUT 2 DC 5V 8K TV 2 8K TV 1 The term HDMI(High-Definition Multimedia interface), and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the Unit- ed States and other countries. -
Page 13: Faqs& Troubleshooting
FAQs & Troubleshooting 1. No Video Output -> Check if the HDMI cables are connected properly -> Try changing the cables -> Check if the LEDs on the device are lighting up 2. What is the maximum cable length of the device? We recommend using high quality HDMI cables under 30 feet. - Page 14 48Gbps 1x2 HDMI Splitter BK-102 www.orei.com © 2023 page 14...
Need help?
Do you have a question about the BK-102 and is the answer not in the manual?
Questions and answers
REI BK2 - INPUT Xfinity Cable Box / Output #1 4K Sony TV / Output #2 Sony Amplifier. What setting should I use to get 4K video and audio from Output #1 and audio from Output #2 for my amplifier?
To get 4K video from Output #1 to a Sony TV and audio from Output #2 to a Sony amplifier on the REI BK-102, adjust the EDID DIP switch settings as follows:
1. Set the EDID DIP switch to [DIP]=110 for 4K60 (4:4:4), 2.0CH if stereo audio is sufficient.
2. If multi-channel audio is required, use [DIP]=100 for FRL12G_8K_HDR, 5.1CH or [DIP]=011 for FRL12G_8K_HDR, 7.1CH.
3. Ensure the Sony TV is connected to Output #1 and the Sony amplifier is connected to Output #2.
4. Use an Ultra HDMI 2.1 cable for best performance.
This setup ensures 4K video output to the TV while sending the appropriate audio format to the amplifier.
