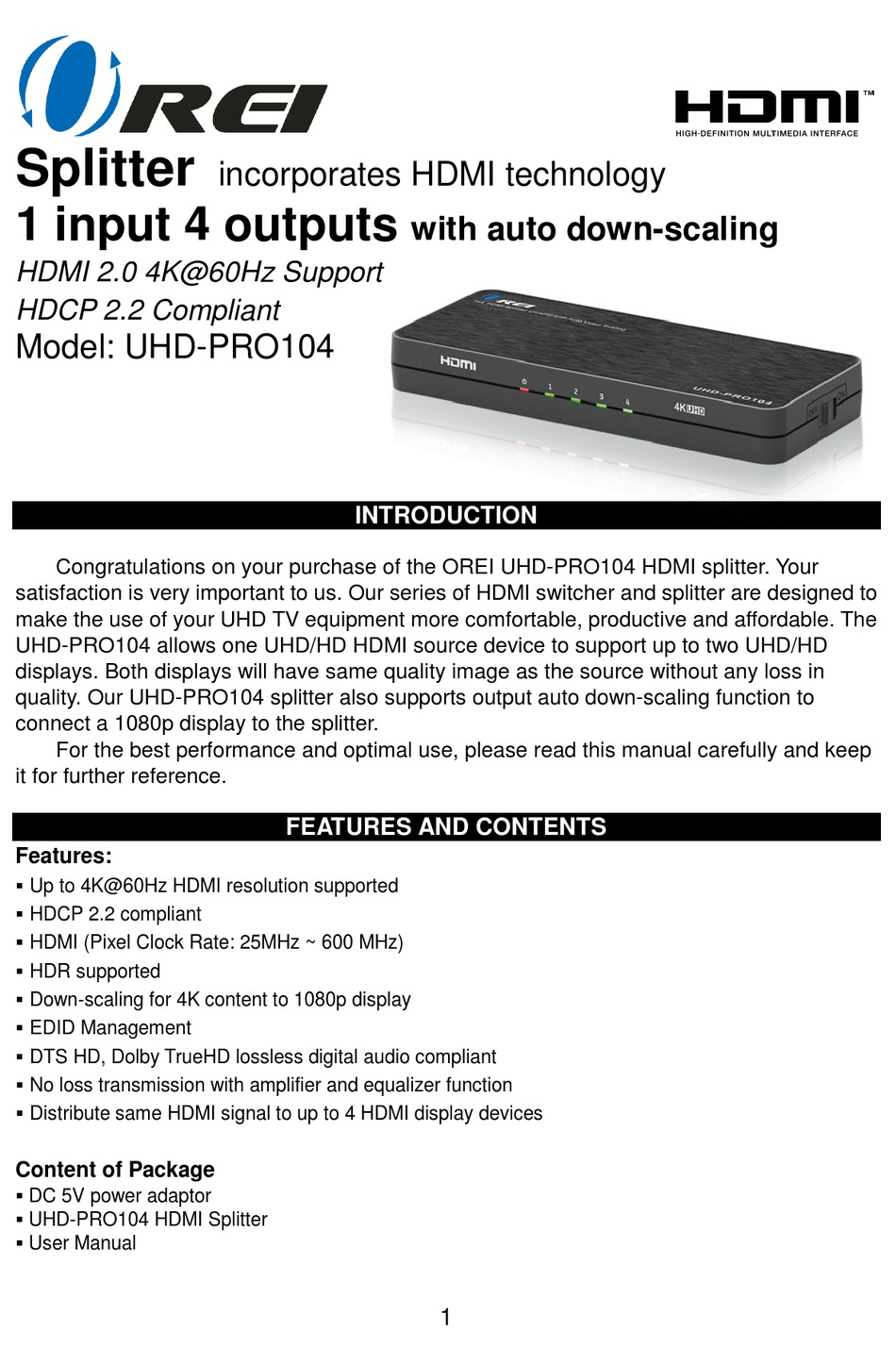

Page 1

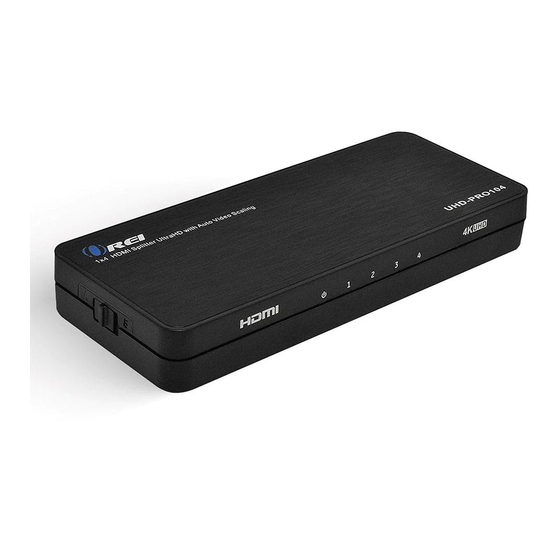

UHD TV equipment more comfortable, productive and affordable. The UHD-PRO104 allows one UHD/HD HDMI source device to support up to two UHD/HD displays. Both displays will have same quality image as the source without any loss in quality.
Page 2
CONNECTION ILLUSTRATION Blu-ray Power Adaptor Full HD TV UHD TV Full HD TV UHD TV CONNECTION AND OPERATION Connect your devices to the HDMI Splitter 1. Connect the HDMI source to the splitter's HDMI input port using a HDMI cable. 2.
Page 3
DETECTION MODE SELECTION Detection Mode Function 【Auto detection】 The HDMI Splitter will compare the EDID information of each sink device (Displays). And output of suitable video and audio content ※ If the connected displays are 4K and 1080P and the source is 4K (Highest then each will receive its desired resolution.
Page 4
TROUBLE SHOOTING TIPS Troubleshooting Tips If there is no video at output: Make sure the output resolution setting of source device can be displayed on all connected display devices. (4K@60 or 1080p@60) Reset the HDMI Splitter (disconnect from power supply and reconnect it after a min.) If there is video without any audio: ...
