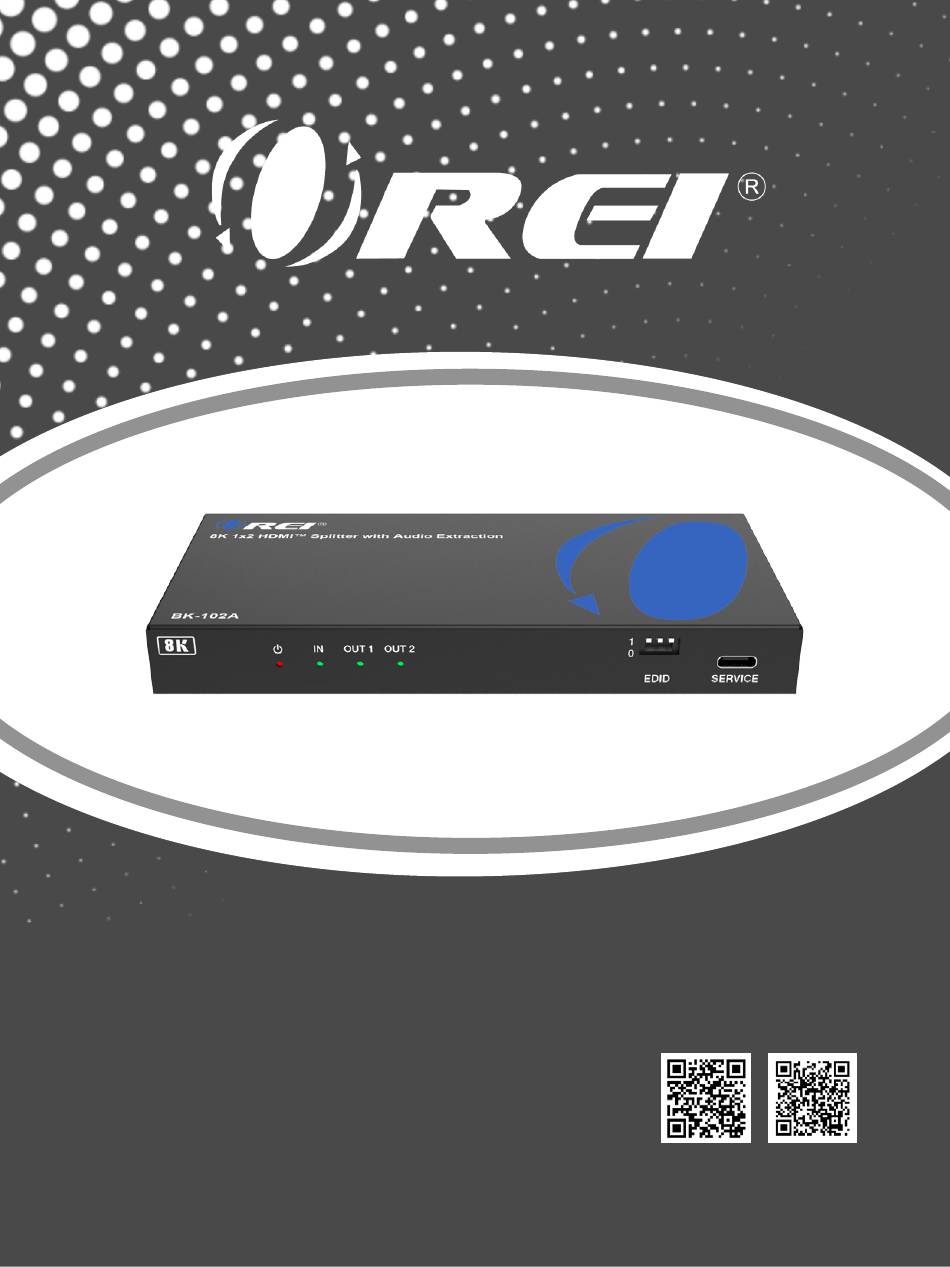

- Page 1 BK-102A 8K 1x2 HDMI™ Splitter with Follow us on Youtube Audio Extraction and Facebook U S E R M A N U A L www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Auto Downscaling & Auto Converting Application Example FAQs & Troubleshooting Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. - Page 3 Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget.
-
Page 4: Introduction
Introduction The BK-102A 8K 1x2 Splitter is an advanced solution for splitting a single HDMI signal to 2 HDMI outputs synchronously, with video resolutions up to 8K@60Hz 4:2:0 12bit. It features audio extraction via optical and analog outputs. It supports video bandwidth of up to 48Gbps FRL &... -
Page 5: Features
Advanced EDID management. 8K to 4K or 8K/4K to 1080P auto downscaling on all outputs. Automatic HDR to SDR Conversion on all outputs. Compact design for easy and flexible installation. Package Contents BK-102A Splitter 1pcs 5V/2A Power Adapter 1pcs User Manual... -
Page 6: Specifications
Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3, HDCP1.4 Video Bandwidth 48Gbps FRL and 18Gbps TMDS Video Resolution Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit Color Space RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 Color Depth 8/10/12-bit HDR, HDR10, HDR10+, Dolby Vision, HLG HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD... - Page 7 Specifications Mechanical L: 145mm / 5.71in Dimensions W: 68mm / 2.68in H: 17mm / 0.67in Weight 260g / 9.17Oz Input: AC 100-240V 50/60Hz, Output: DC 5V/2A Power Supply (US/EU standards, CE/FCC/UL certified) Power Consumption 4.5W (Max) Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity...
-
Page 8: Operation Controls And Functions
Operation Controls and Functions Front Panel OUT 1 OUT 2 EDID SERVICE Name Function Description Power LED The red LED will light up when the device is powered on. When the HDMI IN port connects to an active source device, the IN LED green LED will light up. -
Page 9: Auto Downscaling & Auto Converting
Operation Controls and Functions Rear Panel OUT 1 OUT 2 DC 5V Name Function Description Connect a media device such as a DVD Player, Streaming IN port device, etc. OUT port Connect a display device such as a TV, Monitor, etc. (1~2) OPTICAL Optical audio output port. - Page 10 Auto Downscaling & Auto Converting Bypass Splitter 8K HDR TV 8K Source 8K HDR 8K HDR Downscaling & Converting 4K SDR TV 4K SDR Downscaling Splitter & Converting 4K HDR TV 8K Source 1080P SDR 8K HDR Downscaling & Converting 1080P SDR TV 1080P SDR Bypass...
- Page 11 Auto Downscaling & Auto Converting Bypass Splitter 4K HDR TV 1080P HDR 1080P Source 1080P HDR Downscaling & Converting 1080P SDR TV 1080P SDR Bypass Splitter 1080P HDR TV 1080P HDR 1080P Source 1080P HDR Downscaling & Converting 1080P DVI TV 1080P DVI (No sound) Note: If the source resolution is downscaled and converted to 1080P...
-
Page 12: Application Example
Application Example 8K TV 2 DVD or Blu-ray Player Power Supply OUT 1 OUT 2 DC 5V Audio Amplifier 8K TV 1 2.0 Speakers The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the Unit- ed States and other countries. -
Page 13: Faqs & Troubleshooting
FAQs & Troubleshooting 1. What is the maxmum cable length this splitter supports? We suggest using high quality HDMI 2.1 cables under 30 feet with this Splitter. 2. Can I connect extra monitors to my laptop/PC and have different image on all monitors ? This is an HDMI splitter and it will only mirror your laptop/PC screen. - Page 14 8K 1x2 HDMI™ Splitter with Audio Extraction BK-102A www.orei.com © 2024...
