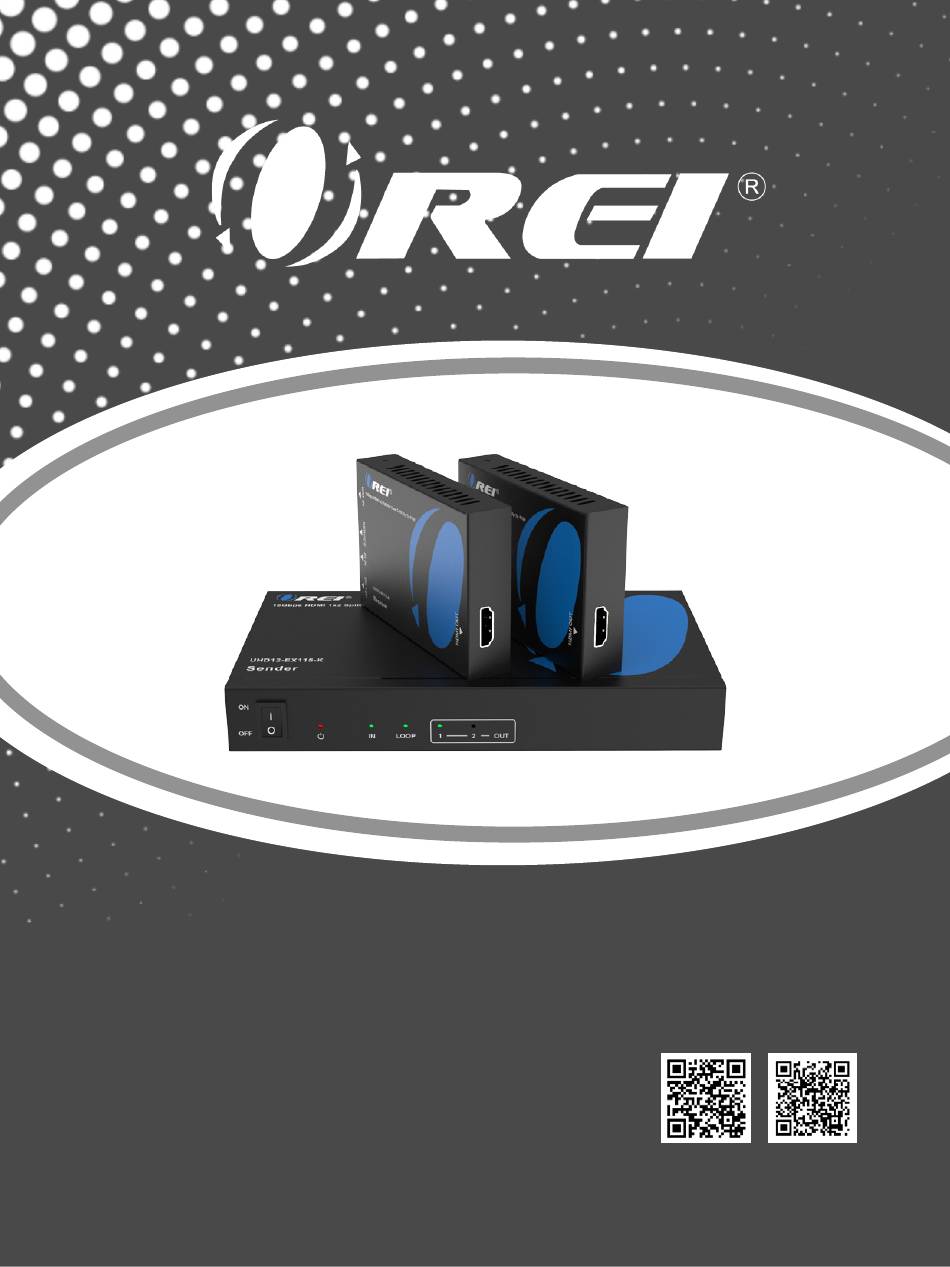

- Page 1 UHD12-EX115-K 18Gbps HDMI 1x2 Splitter Follow us on Youtube and Facebook Over CAT6 Up To 115ft U S E R M A N U A L www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions EDID Mode ASCII Commands Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. - Page 3 Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget.
-
Page 4: Introduction
Introduction The UHD12-EX115-K can distribute 1 HDMI source signal to 2 display devices up to 115ft, with video resolution up to 4K@50/60Hz 4:4:4. It features an HDMI loop output and 2 CAT outputs. The HDMI sig- nal can be extended up to 115ft/35m at the resolution of 4K@60Hz, or 164ft/50m at 4K@30Hz, or 197ft/60m at 1080P@60Hz via a single CAT6/6a/7 cable. -
Page 5: Features
One-way IR to control source equipment from the RX side Advanced EDID management Features One-way POC (Power Over Cable); meaning power sup- ply is only required at the Transmitter end. Package Contents UHD12-EX115-K (Transmitter) 1pcs Receiver Unit 2pcs IR Blaster Cable (1.5m) 1pcs IR Receiver Cable (1.5m) -
Page 6: Specifications
Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.x Video Bandwidth 594MHz/18Gbps Video Resolution 480i ~1080P@50/60Hz, 2K@24/30/60Hz, 4K@24/30/60Hz 8-bit, 10-bit, 12-bit (1080p@60Hz) Color Depth 8-bit (4K & 2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K & 2K@60Hz YCbCr 4:2:2/4:2:0) Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 HDR10, HDR10+, HLG, Dolby Vision LPCM, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24,... - Page 7 Specifications Connection Transmitter 1 × HDMI IN [Type A, 19-pin female] Input 1 × SERVICE [Micro USB, Update port] 1 × HDMI LOOP OUT [Type A, 19-pin female] 2 × CAT OUTPUT [RJ45, 8-pin female] Output 1 × IR OUT [3.5mm Stereo Mini-jack] 1 ×...
-
Page 8: Operation Controls And Functions
Operation Controls and Functions Transmitter: Front Panel LOOP Name Function Description Power switch Press this switch to power on/off the device. When the device is powered on, the red power LED will turn Power LED When an active source device is conncted to the HDMI IN IN LED port, the green LED will turn on. - Page 9 Operation Controls and Functions Transmitter: Rear Panel LOOP OUT AUDIO OUT HDMI CAT OUTPUT DC 12V Name Function Description AUDIO OUT Coaxial/analog audio output port; connect an amplifier or (COAX, L/R) speaker for audio. IN: HDMI input port; connect an HDMI source device such as DVD Player or set-top box with an HDMI cable.
- Page 10 Operation Controls and Functions CAT Receiver CAT IN SERVICE IR IN DC 12V HDMI OUT Name Function Description HDMI output port; connect an HDMI display such as TV or HDMI OUT Projector with an HDMI cable. Connect to the CAT OUTPUT port on the Transmitter with a CAT IN CAT cable.
- Page 11 Operation Controls and Functions IR Pin Definition IR Receiver IR Blaster IR Blaster IR Blaster Signal Power IR Receiver IR Signal Power Grounding Note: When the angle between the IR receiver and the remote con- trol is ± 45 °, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ±...
-
Page 12: Edid Mode
EDID Mode The defined EDID setting list of the product is shown below. 1 means “UP” and 0 means “DOWN” EDID EDID EDID Description EDID Description Mode Mode 11111 1080P, Stereo 2.0 01111 4K/2K60Hz_444, Dolby/DTS 5.1 11110 1080P, Dolby/DTS 5.1 01110 4K/2K60Hz_444, HD Audio 7.1 4K/2K60Hz_444, Stereo 2.0 11101 1080P, HD Audio 7.1... -
Page 13: Ascii Commands
ASCII Commands The product also supports ASCII command control. Connect the SER- VICE port of the product to a PC with an USB cable. Then, open a Serial Command tool on PC to send ASCII commands to control the product. The ASCII commands list is as below. - Page 14 Default Code System Setting help! List all commands help! r type! Get device model r type! UHD12-EX115-K Get the unit all status: Get device current r status! r status! power, in/out connec- status tion, edid mode r fw ver- r fw MCU BOOT: Vx.xx.xx...
- Page 15 ASCII Commands Command Function Descrip- Example Feedback Default Code tion Output Setting Set hdmi loop output Enable hdmi loop out s hdmi stream on/off s hdmi stream enable stream z! z=0~1 (0:disable,1:en- stream 1 ! Disable hdmi loop out able) stream Enable cat output 1 stream...
- Page 16 ASCII Commands Command Function Description Example Feedback Default Code Output Setting set cat output y port dsc mode cable status y=0~2 (0=all), z=1~3 s cat y dsc s cat 1 dsc cat out 1 dsc distance (1=Cat cable distance normal mode z! mode 2! mode 2...
- Page 17 ASCII Commands Command Function Description Example Feedback Default Code EDID Setting Set input EDID from default EDID z, z=1~24 1, 1080p,Stereo Audio 2.0 2, 1080p,Dolby/DTS 5.1 3, 1080p,HD Audio 7.1 4, 1080i,Stereo Audio 2.0 5, 1080i,Dolby/DTS 5.1 6, 1080i,HD Audio 7.1 7, 3D,Stereo Audio 2.0 8, 3D,Dolby/DTS 5.1 9, 3D,HD Audio 7.1...
-
Page 18: Application Example
Application Example DVD or Blu-ray Player IR Blaster Power Supply Transmitter LOOP OUT AUDIO OUT HDMI CAT OUTPUT DC 12V CAT6/6a/7 2.0 Speakers Amplifier HDMI OUT CAT IN SERVICE IR IN DC 12V Receiver IR Receiver The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trade- marks or registered trademarks of HDMI Licensing LLC in the United States and other countries. - Page 19 18Gbps HDMI 1x2 Splitter Over CAT6 Up To 115ft UHD12-EX115-K www.orei.com © 2023...
