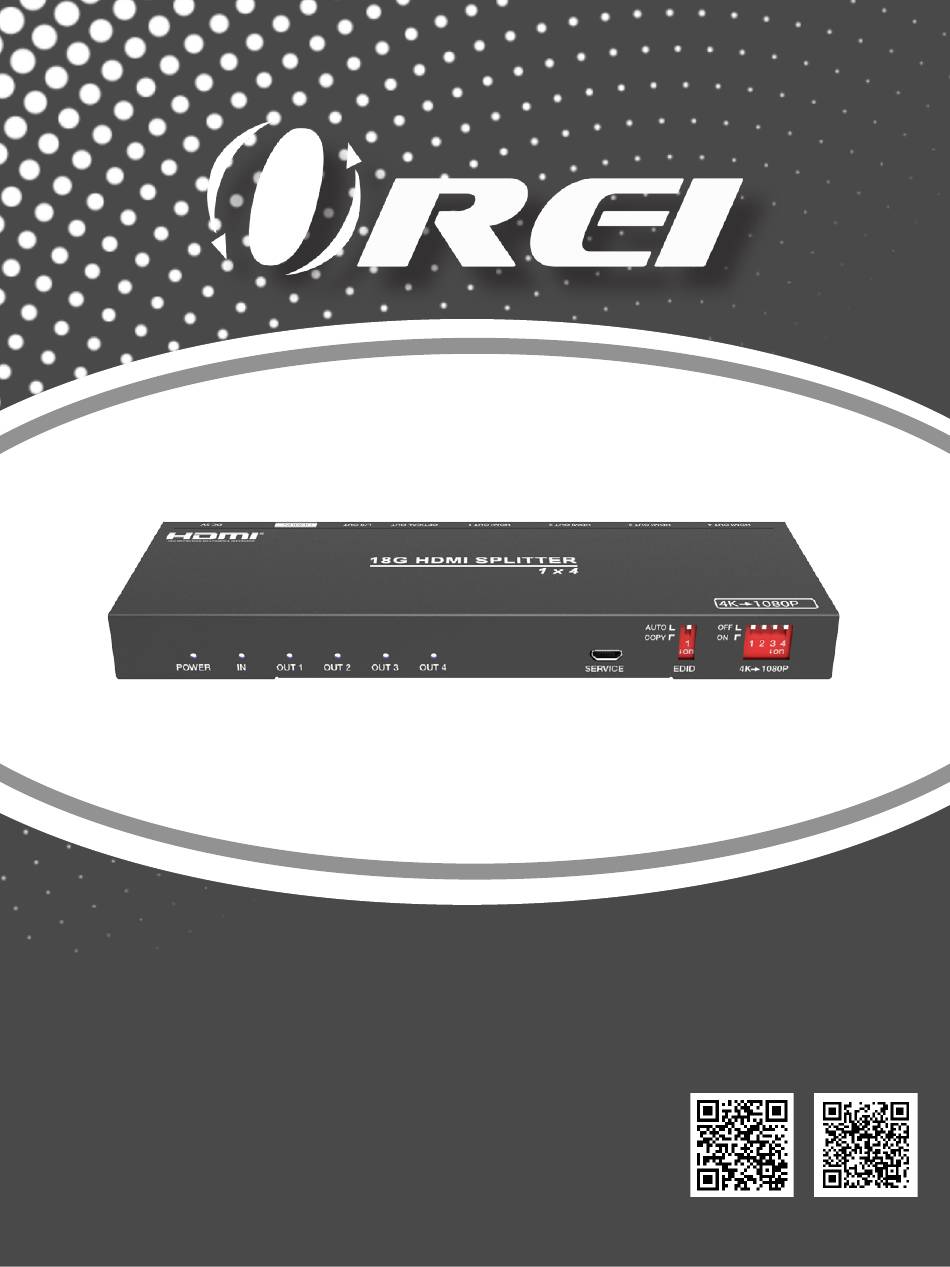

- Page 1 UHDS-104A 1x4 HDMI 2.0 Splitter with Follow us on Youtube Scaler and Audio Extraction and Facebook U S E R M A N U A L www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this prod- uct. - Page 3 Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget.
-
Page 4: Introduction
Introduction The UHDS-104A can distribute one HDMI source to four HDMI displays simulta- neously with video resolutions up to 4K@60Hz (4:4:4) and HDCP 2.2 support. The product supports audio de-embedding from HDMI signal source to optical and analog audio output ports. Built-in EDID DIP switch supports advanced EDID management (AUTO/COPY). -
Page 5: Features
Supports analog audio PCM 2.0 Supported optical audio pass-through formats - LPCM 2.0/2.1/5.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD- HRA 5.1 Package Contents UHDS-104A 1pcs 5V/1A Power Adapter 1pcs User Manual 1pcs... -
Page 6: Specifications
Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18Gbps 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, Video Resolution 4K2K@50/60Hz (4:4:4) Color Depth 4K60Hz 8-bit, 1080P 12-bit Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 L/R Audio Formats PCM 2.0 LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, HDMI Audio Formats... - Page 7 Specifications Mechanical Housing Metal Enclosure Silkscreen Color Black Dimensions 180mm (W) × 62mm (D) × 14mm (H) Weight 227g Power Consumption 3.5W (Max) Input: AC 100~240V 50/60Hz Power Supply Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) Operating Temperature 32-104°F / 0-40°C Storage Temperature -4-140°F / -20-60°C Relative Humidity...
-
Page 8: Operation Controls And Functions
Operation Controls and Functions Front Panel AUTO COPY POWER OUT 1 OUT 2 OUT 3 OUT 4 SERVICE EDID 1080P Name Function Description POWER LED The blue LED will be on, when the device is powered on. HDMI IN HDMI input signal indicator. The blue LED will be on, when there is signal input from the HDMI IN port. - Page 9 Operation Controls and Functions Rear Panel HDMI OUT 3 HDMI IN HDMI OUT 4 HDMI OUT 2 HDMI OUT 1 OPTICAL OUT L/R OUT DC 5V Name Function Description HDMI OUT (1~4) Connect to HDMI display device, such as TVs or monitors. Optical audio output port, connects to an amplifier, and OPTICAL OUT outputs audio from the HDMI IN port.
-
Page 10: Application Example
Application Example HDMI OUT 4 HDMI OUT 3 HDMI OUT 2 HDMI OUT 1 OPTICAL OUT L/R OUT HDMI IN DC 5V Power Adapter Amplifier UHDTV 4 UHDTV 2 DVD or Blu-ray Player Speakers UHDTV 3 UHDTV 1 The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. - Page 11 1x4 HDMI 2.0 Splitter with Scaler and Audio Extraction www.orei.com © 2023...
