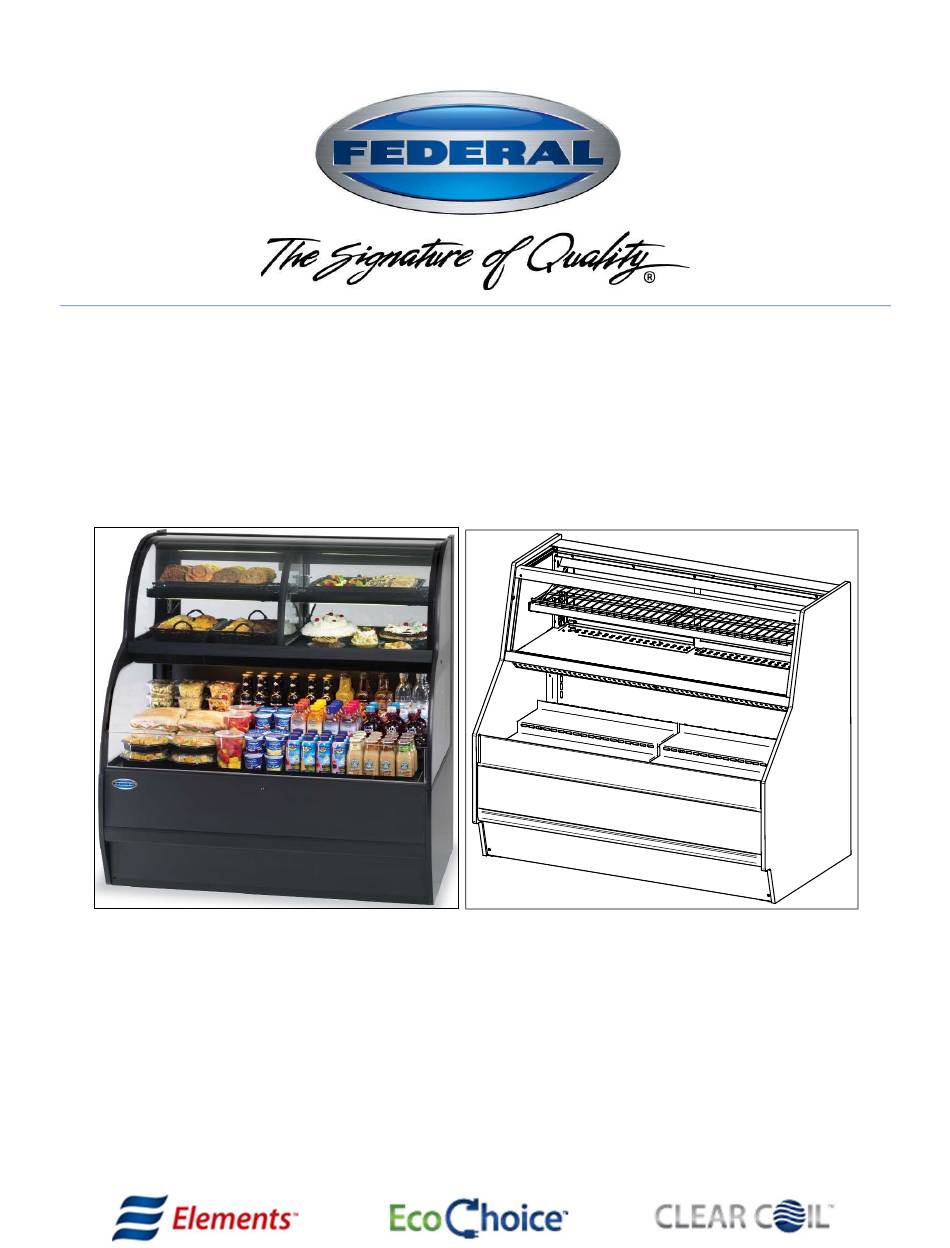

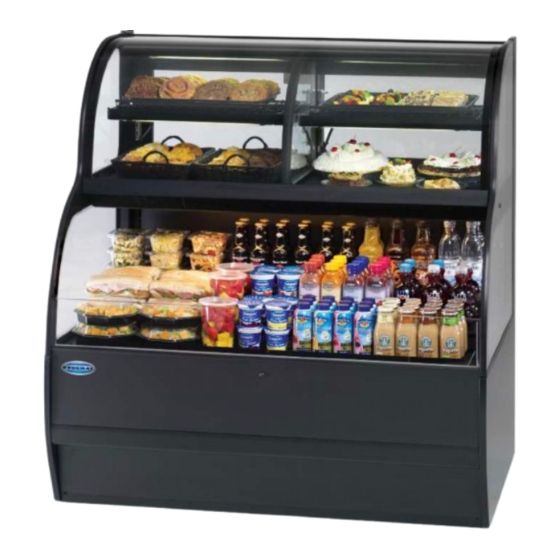

- Page 1 E3555-1 3/6/25 REV 0 INSTALLATION & OPERATIONS INSTRUCTIONS REFRIGERATED SSRC & ESSRC MODELS SSRC ESSRC Federal Industries Toll Free: (800) 356-4206 215 Federal AVE WI Phone: (608) 424-3331 Belleville, WI 53508 Fax: (608) 424-3234...
-
Page 2: Table Of Contents
(8) Shelving Installation & Removal ........................16 SHELF BRACKETS AND SUPPORTS INSTALLATION................16 (9) REAR DOORS ..............................19 (10) NIGHT CURTAIN (SSRC OPTION) ......................22 (11) SECURITY NIGHT COVER (SSRC OPTION) ..................23 (12) Operating Instructions ...........................24 User Controls Overview ............................24 Power Switch ..............................24 Page 2 of 43... - Page 3 Light Switch ................................24 Electronic Temperature Control ........................24 BUTTON AND DISPLAY OVERVIEW ......................24 POWERING ON CONTROL ..........................25 ADJUSTING THE SET POINT ........................25 ENTERING MANUAL DEFROST MODE ......................25 ERROR CODES ..............................26 Electronic Control Operation ..........................26 Initial Startup ...............................27 Top Section Refrigeration Louver Control .....................27 Placing Product in Case ...........................28 (13) MAINTENANCE (LIGHTS) ...........................28 (14) Periodic Maintenance (CLEAN CONDENSER) ..................29...
-
Page 4: Introduction
(1) INTRODUCTION Thank you for purchasing a Federal Industries display case. This manual contains important instructions for installing and servicing the convertible refrigerated self-service merchandisers (SSRC & ESSRC). A repair parts list and wiring diagram are also included in the manual. Read all of these documents carefully before installing or servicing your case. -
Page 5: Warning Labels & Safety Instructions
The warning and safety labels shown throughout this manual are placed on your Federal Industries case at the factory. Follow all warning label instructions. If any warning or safety labels become lost or damaged, call our customer service department at (800) 356-4206 for replacements. -
Page 6: Refrigeration Warning Installation-Repair-Decommissioning
3.2 DANGER Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. Do not puncture refrigerant tubing. Dispose of properly in accordance with federal or local regulations Consult repair manual/owner’s guide before attempting to service this product. All safety precautions must be followed. -
Page 7: Qualification
QUALIFICATION: ALL refrigeration and electrical maintenance, service, and repair must be performed by a Certified Technician that is trained in the required flammable refrigerants safety procedures. Technicians must read the entire section “REFRIGERATION WARNINGS SECTION” of this manual. Including but not limited to the following: a) breaking into the refrigerating circuit. -
Page 8: Repairs To Sealed Components
Ensure that the leak detection equipment being used is suitable for use with all applicable refrigerants, i.e., non-sparking, adequately sealed, or intrinsically safe. -If any hot work is to be conducted on the refrigerating equipment or any associated parts, appropriate fire extinguishing equipment shall be available on hand. -
Page 9: Detection Of Flammable Refrigerants
3.6 DETECTION OF FLAMMABLE REFRIGERANTS: Under no circumstances shall potential ignition sources be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used. The following leak detection methods are deemed acceptable for all refrigerant systems: -Electronic leak detectors may be used to detect refrigerant leaks but, in the case of FLAMMABLE REFRIGERANTS, the sensitivity might not be adequate or might need recalibration. -
Page 10: Labeling
being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of recovered refrigerant. It is essential that electrical power is available before the task commences. a. Become familiar with the equipment and its operation. b. -
Page 11: Pre-Installation Procedures
(4) PRE-INSTALLATION PROCEDURES INSPECTION FOR SHIPPING DAMAGE You are responsible for filing all freight claims with the delivering truck line. Inspect all cartons and crates for damage as soon as they arrive. If damage is noted to shipping crates, cartons, or if a shortage is found, note this on the bill of lading (all copies) prior to signing. -
Page 12: Electrical Information
5.3 ELECTRICAL INFORMATION (E3091-3 EXCEL) (6) REFRIGERATION OPERATION Self-Contained Models The self-contained models are shipped from the factory with a completely operational 290 refrigeration system and require no modifications or adjustments upon installation. Case must be installed as per the installation section of this manual to provide proper condensing air cooling. - Page 13 Remote Refrigeration Operation The remote models are designed to use R449 refrigerant and shipped from the factory with the evaporator coil, expansion valve, drier filter, sight glass and refrigerant solenoid valve. A thermostat senses evaporator temperature and opens and closes the refrigerant solenoid valve. The solenoid valve closes and shuts off the refrigeration flow to the unit and initiates a pump down cycle.
-
Page 14: Evaporator Condensate Drain Tube
Note: Check your State and Local regulations for approved refrigerants for your install location. Federal Industries is not liable for any alternate refrigerants used. The control is located in the front left corner of evaporator tub under the Display Deck Pan. -
Page 15: Installation Instructions
WARNING TO INSTALLER: Installer must determine if case was provided with condensate pump. Failure to hook up pump hose to drain will cause water on floor and cause a slip hazard. Instead of using heat energy to remove condensate run off from the evaporator coil a condensate pump moves the water to a nearby drain. -
Page 16: Cleaning
1. Remove crate top and sides and note missing or damaged items as explained in the pre-installation procedures outlined above. 2. Move the case as near as possible to the final location and before removing it from the shipping skid. 3. - Page 17 INSTALLATION REMOVAL SHELF STANDARD SHELF BRACKET TOP HOOK BOTTOM TAB CLEAR BUMPER TOWARDS END PANEL 6 v NOTCH 0 v NOTCH 1. Place shelf bracket top hook into desired shelf 1. Lift shelf bracket up to allow shelf bracket notch standard slot.
- Page 18 Wire Shelves Installation SNAP THE REAR RAIL OF WIRE SHELF THE WIRE SHELF INTO RETAINER CLIPS ON REAR SHELF SUPPORT WIRE SHELF RETAINER CLIPS 1. Install shelf brackets & shelf supports as described in Shelf Bracket & Supports Installation Section of this manual.
-
Page 19: Rear Doors
6. For SSRC top section glass shelf set the rear of the glass shelf onto the rear shelf support so that the back side of the glass shelf retainer sets into the slot on the rear shelf support. For ESSRC top section glass shelf and all optional bottom section glass shelves, set the rear of the glass shelf onto the rear shelf support so that the back side of the glass shelf retainer straddles the rear shelf support. - Page 20 TOP SECTION REAR SWINGING DOOR REMOVAL 1. ROTATE DOOR TO LOCKED OPEN POSITION 3. REMOVE SCREWS 2. REMOVE SCREW 1. Open the door. Continue to rotate the door past the 90º position until you feel it lock in the open position.
- Page 21 BOTTOM SECTION REAR DOORS REMOVAL (OPTIONAL) INNER DOOR UPPER TRACK INNER DOOR LOWER TRACK INNER DOOR CATCH SLOT 1. LIFT UP DOOR 2 SWING BOTTOM OUT 1. LIFT UP DOOR OUTER DOOR UPPER TRACK OUTSIDE DOOR SET 2 SWING BOTTOM OUT OUTER DOOR LOWER TRACK INNER DOOR CATCH 1.
-
Page 22: Night Curtain (Ssrc Option)
(10) NIGHT CURTAIN (SSRC OPTION) NIGHT CURTAIN SNAP NIGHT CURTAIN STRAP NIGHT CURTAIN HOLDER BRACKETS SNAP FRONT PANEL Opening: 1. Grasp the night curtain strap and lift the rolled night curtain out of the night curtain holder brackets. Pull the night curtain across the top of case and down the front. -
Page 23: Security Night Cover (Ssrc Option)
(11) SECURITY NIGHT COVER (SSRC OPTION) Removal: 1. Unlock the lock handles and turn handles to the vertical position to disengage from lock handle catches. Grasp the front grab handles and lift the cover straight up and out of the case opening. -
Page 24: Operating Instructions
(12) OPERATING INSTRUCTIONS NOTICE: This refrigerated display case is designed to operate in a maximum environment of 75°F (23.9°C) and 55% relative humidity. Exceeding these limits will cause poor case performance and excessive sweating. USER CONTROLS OVERVIEW TEMPERATURE CONTROL POWER SWITCH LIGHT SWITCH POWER SWITCH The unit has a power switch that turns off power to the entire unit, including the condensate evaporator and the... -
Page 25: Powering On Control
Press and hold this button for three seconds to initiate a manual defrost (and cancel defrost if initiated), also adjusts set point down when in set point adjust mode POWERING ON CONTROL To turn refrigeration control power on, press and hold for approx. -
Page 26: Error Codes
ERROR CODES It is possible for error codes to be displayed on the control screen. In the event of a malfunction an alarm will sound and the alarm indicator will be displayed on the display. An error code or codes will flash intermittently on the display. -
Page 27: Initial Startup
The coil sensor is strapped to the evaporator coil. This sensor location is critical for proper operation of the unit. Do not move or relocate this sensor. The temperature control is set to cut in at 39°F (3.9°C). The Temp control cuts out at 26°F (-3.3°C) at the coldest setting “9”... -
Page 28: Placing Product In Case
knob can either be facing the inside or the outside of the case. The side that the air control knob is facing will not affect case operation. NOTICE: If a top refrigerated section is required for potentially hazard food the air control louver must be completely open. -
Page 29: Periodic Maintenance (Clean Condenser)
5. Apply a new layer of double sided tape to the new LED and adhere to the front shelf support. Locate new LED by centering between (2) .09 dia holes on the front shelf support. (14) PERIODIC MAINTENANCE (CLEAN CONDENSER) CLEANING CONDENSER COIL (ALL SELF CONTAINED REFRIGERATED MODELS) NOTICE: Condenser coil must be cleaned a minimum of twice per month to insure proper refrigeration... - Page 30 NOTICE: Shut off lights and power switches and remove all product from case. Allow sufficient time for the unit to reach room temperature before proceeding with cleaning. NOTICE: Remove all product from case before proceeding with cleaning procedure. NOTICE: Acrylic front air deflector requires special washing procedures to prevent hazing and yellowing of material.
-
Page 31: Weekly Cleaning
3. On SSRC cases only, the upper front glass can be tilted open to allow easier access to clean upper section interior. Tilt the front glass up by standing in front of the case and grabbing the handle at the... - Page 32 The glass can then be cleaned with common window cleaners. 4. On SSRC cases only, there may be middle glass panels that will require cleaning. With the upper front glass open, remove middle glass panels (where equipped) by pulling it forward out of the glass retainer.
- Page 33 DISPLAY DECK PLASTIC AIR DEFLECTOR FAN SHROUD ASSEMBLY HONEYCOMB AIR DIFFUSER FAN SHROUD ASSEMBLY RETAINER LATCH ESSRC 1. If supplied with lower rear door option remove both inner & outer rear doors as described in the “Door Removal” section of this manual. 2.
-
Page 34: Sale & Disposal
All refrigeration and electrical work must be performed by certified technicians. OWNER RESPONSIBILITY If you sell or give away your Federal Industries case you must make sure that all safety labels and the Installation-Service Manual are included with it. If you need replacement labels or manuals, Federal Industries will provide them free of charge. -
Page 35: Service Information
(HFo’s) from being released into the atmosphere. If moisture or liquid is observed around or under a Federal Industries case, an immediate investigation should be made by qualified personnel to determine the source of the moisture or liquid. The investigation made should determine if the case is malfunctioning or if there is a simple housekeeping problem. -
Page 36: Lights Do Not Operate
CAUTION: Before servicing case, turn off power at the main breaker of fuse box. Case does not operate Check for disconnected power supply. Check for tripped breaker or blown fuse. Check that power switch is on. Lights do not operate ... -
Page 37: Wiring Diagrams
(19) WIRING DIAGRAMS SELF CONTAINED SSRC3652, ESSRC3652, SSRC5052 & ESSRC5052 SELF CONTAINED, SSRC5952, SSRC7752, ESSRC5052, ESSRC5952 & ESSRC 7752 Page 37 of 43... - Page 38 ALL FIELD WIRED R or RB EVAP. HEATER WIRES ONLY BLK/RIB BLK/RIB PLUG "TOP BLK or SM ON SSRC (1) AND SSRSP (2) SHELF" SHELF LIGHT PLUG - "TOP SHELF" OPTIONAL REMOTE PLUG PLUG 59 AND 77 MOUNTED & WIRED...
-
Page 39: Replacement Parts
REPLACEMENT PARTS Page 39 of 43... - Page 40 Page 40 of 43...
- Page 41 Page 41 of 43...
- Page 42 California Residents Only. WARNING This product can expose you to chemicals including chromium which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Page 42 of 43...
-
Page 43: Change Record
CHANGE RECORD APP’D DATE ECN# RELEASED 3/7/25 3943 Page 43 of 43...
