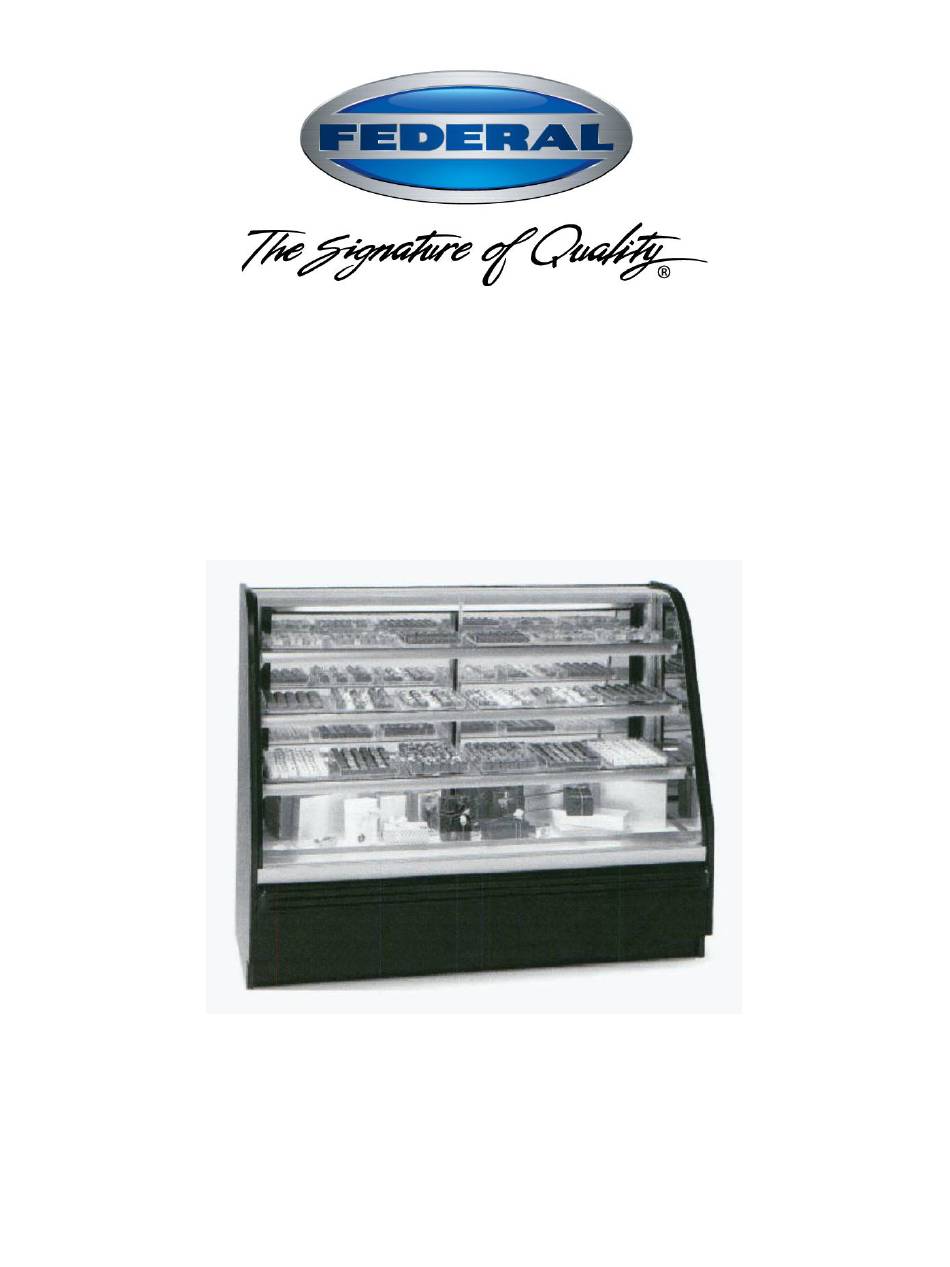

E3306
11/04/21
FCCR-4, FCCR-5, FCCR-6
Self-Contained, Remote, & Non Refrigerated Models
KEEP THIS MANUAL FOR FUTURE REFERENCE
Engineering and technical data are subject to change without notice.
FEDERAL INDUSTRIES
Toll Free 1(800) 356-4206
FCC-4, FCC-5, FCC-6
INSTALLATION &
OPERATION INSTRUCTIONS
215 Federal Avenue
WI Phone (608) 424-3331
Belleville, WI 53508
Fax: (608) 424-3234
1
Advertisement
Table of Contents
Related Manuals for Federal FCCR-4
Summary of Contents for Federal FCCR-4
- Page 1 E3306 11/04/21 FCCR-4, FCCR-5, FCCR-6 FCC-4, FCC-5, FCC-6 Self-Contained, Remote, & Non Refrigerated Models INSTALLATION & OPERATION INSTRUCTIONS KEEP THIS MANUAL FOR FUTURE REFERENCE Engineering and technical data are subject to change without notice. FEDERAL INDUSTRIES 215 Federal Avenue Belleville, WI 53508...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ............................3 WARNING LABELS & SAFETY INSTRUCTIONS ................4 PRE-INSTALLATION PROCEDURES ....................5 Inspection For Shipping Damage ....................5 INSTALLATION INSTRUCTIONS ..................... 5-7 Locating the Display Case ......................5 Removing Case From Shipping Skid ..................5 Removing Packaging Material ....................5 Leveling the Case ........................ -
Page 3: Introduction
INTRODUCTION Thank you for purchasing a Federal Industries display case. This manual contains important instructions for installing and servicing the Non-Refrigerated Curved Glass Hi-Style Display Case. A repair parts list and wiring diagram are also included in the manual. Read all of these documents carefully before installing or servicing your case. -
Page 4: Warning Labels & Safety Instructions
This is important installation, operation, or service information. If you ignore the message, you may damage your case. The warning and safety labels shown throughout this manual are placed on your Federal Industries case at the factory. Follow all warning label instructions. If any warning or safety labels become lost or damaged, call our customer service department at 1(800) 356-4206 for replacements. -
Page 5: Pre-Installation Procedures
PRE-INSTALLATION PROCEDURES Inspection for Shipping Damage You are responsible for filing all freight claims with the delivering truck line. Inspect all cartons and crates for damage as soon as they arrive. If damage is noted to shipping crates, cartons, or if a shortage is found, note this on the bill of lading (all copies) prior to signing. -
Page 6: Leveling The Case
Leveling the Case The case must be level for proper drainage of defrost condensate to the condensate evaporator reservoir. The case must be level for the front glass to seal properly. The leveled case can be sealed to the floor using a NSF Listed Sealant. -
Page 7: Shelving
Shelving The case is equipped with three tiers of adjustable glass shelves. The deepest shelf is at the bottom and the shallowest at the top. Each tier is supported by three (3) shelf brackets. Turn the shelf light switch “off”. Remove both rear doors from the track by lifting them upward until the bottom edge clears the lower door track and then outward. -
Page 8: Electrical Information & Grounding
ELECTRICAL INFORMATION & GROUNDING This Case Must Be Grounded DANGER: Improper or faulty hookup of electrical components in the display case can result in severe injury or death. Only a licensed electrician must perform all case electrical connections. All electrical wiring hookups must be done in accordance with all applicable local, regional, or national electrical standards. -
Page 9: Operating Instructions
"1" thru "9" - Currently selected set point (system is on) Hold 3 seconds for manual defrost "E" followed by any character - Error code see Federal owner's manual Hold 3 seconds to terminate manual defrost Some controls display green characters, some display red, the control is operating normally in either case. -
Page 10: Shelves
Light Switch This switch controls the power to the lighting circuit. The switch rocker is red in the “on” position, black in the “off” position. High Pressure Safety Control This is a safety device. It is nonadjustable and will shut off the compressor if system pressure exceeds 385#psig. -
Page 11: Refrigerated Storage Area
Refrigerated Storage Area Looking at the back of the case, there is a lockable refrigerated storage compartment in the lower right corner. The door swings down when opened. The storage door should always be closed tightly to ensure proper operation of the display case. Periodic Maintenance Cleaning Condenser Coil Disconnect power to the unit. -
Page 12: Interior Cleaning
NOTICE: Avoid splashing or soaking any electrical components with water to prevent electrical damage to the case. NOTICE: Shut off light and power switches and remove all product from case. Allow sufficient time for the unit to reach room temperature before proceeding with cleaning. -
Page 13: Service Information
Phone: (800) 356-4206 and choose the Warranty Parts Option Email: Parts@Federalind.com Federal Industries has partnered with Parts Town for ALL Non-Warranty Part Identification, Pricing, Lead Times, Orders & Freight Quotes. Please contact Parts Town directly if you need parts: Website: PartsTown.com... -
Page 14: Pre-Service Checklist
Pre-Service Checklist You may avoid the cost and inconvenience of an unnecessary service call by first reviewing this checklist of frequently encountered situations that can cause unsatisfactory case performance. CAUTION: Before servicing case, turn off power at the main breaker of fuse box. Case Does Not Operate Check for disconnected power supply. -
Page 15: Special Service Situations
SALE & DISPOSAL Owner Responsibility If you sell or give away your Federal Industries case, you must make sure that all safety labels and the Installation-Service Manual are included with it. If you need replacement labels or manuals, Federal Industries will provide them free of charge. Contact the customer service department at Federal Industries at (800) 356-4206. -
Page 16: Fccr Refrigeration, Electrical Data & Eplacement Parts
FRIGERATION & ELECTRICAL DATA BEFORE 01/01/2021 FCCR-4 FCCR-5 FCCR-6 Refrigerant (R-134A) 18 oz. 18 oz. 18 oz. ALL MODELS ARE 115 VOLT, 60 HERTZ, 1 PHASE AMPS AMPS AMPS Compressor 40.0 40.0 40.0 Condenser Fan Motor Evaporator Fan Motor Lamp Circuit 0.94... - Page 17 REPLACEMENT PARTS MODEL FCCR-4, FCCR-5, FCCR-6 Part Description Part Number Refrigeration System FCCR-4 FCCR-5 FCCR-6 Condensing Unit (Before 9/15/2014) 30-19110 30-19110 30-19110 Compressor (Before 9/15/2014) Condensing Unit (After 9/15/2014) 30-20294 30-20294 30-20294 Replacement Compressor (After 9/15/2014) 30-20350 30-20350 30-20350 Evaporator Coil...
- Page 18 REPLACEMENT PARTS MODEL FCCR-4, FCCR-5, FCCR-6 Part Description Part Number Misc. Components FCCR-4 FCCR-5 FCCR-6 Front Curved Glass 50-18464 50-18465 50-18466 Glass Shelf Top 52-12597 52-12600 52-12603 Glass Shelf Middle 52-12598 52-12601 52-12604 Glass Shelf Bottom 52-12599 52-12602 52-12605 Door R.H. Reflective...
-
Page 19: Fcc Electrical Data & Replacement Parts
ELECTRICAL DATA FCC-4 FCC-5 FCC-6 ALL MODELS ARE 120 VOLTS, 1 PHASE, 60 HERTZ AMPS AMPS AMPS Fan Motor Lamp Circuit Refer to the data plate attached to the rear of the case for Maximum Fuse Size and Minimum Circuit Ampacity. -
Page 20: Wiring Diagrams
WIRING DIAGRAM- FCCR-4 & FCCR-5... - Page 21 WIRING DIAGRAM- FCCR-6...
- Page 22 WIRING DIAGRAM- FCCR-4 & FCCR-5 REMOTE...
- Page 23 WIRING DIAGRAM- FCCR-6 REMOTE...
- Page 24 WIRING DIAGRAM – FCCR-4 & FCCR-5 AFTER 09/01/21 COLOR CODE BLK = BLACK W = WHITE R = RED B = BLUE 18GA. Y = YELLOW G = GREEN POWER LIGHT 14GA. BRN= BROWN 18GA. 14GA. SWITCH SWITCH HUMIDISTAT 76 5...
- Page 25 WIRING DIAGRAM FCC-4, FCCR-5, FCC-6 SHELF LIGHT PLUG RECP.& SHELF LIGHT PLUG RECP.& SHELF LIGHT PLUG RECP.& BALLAST TOP LIGHT 4X4 BOX LIGHT 2X4 BOX SWITCH UNIT MUST BE GROUNDED 120 VOLTS 60 HERTZ 1 PHASE SWITCH RECEPTACLE FAN MOTOR REFER TO DATA PLATE BLK (RIBBED) FOR LINE AND FUSE SIZING...
- Page 26 SHELF LIGHT RECP.& PLUG POWER SHELF LIGHT SUPPLY RECP.& PLUG 4X4 BOX LIGHT 2X4 BOX SWITCH SHELF LIGHT UNIT MUST BE GROUNDED 120 VOLTS 60 HERTZ POWER 1 PHASE TOP LIGHT SUPPLY SWITCH REFER TO DATA PLATE RECEPTACLE FOR LINE AND FUSE SIZING COLOR CODE BLK (RIBBED) FAN MOTOR...
- Page 27 APP’D CHANGE RECORD DATE ECN# ADDED R513 11/1/19 3552 ADDED DIGITAL CONTROL 09/07/21 3734 ADDED FCC CASES 11/04/21 3734 REV 1...
