E-1595
REV A
INSTALLATION & OPERATION INSTRUCTIONS
KEEP THIS MANUAL FOR FUTURE REFERENCE
Engineering and technical data are subject to change without notice.
FEDERAL INDUSTRIES
Toll Free 1(800)256-4206

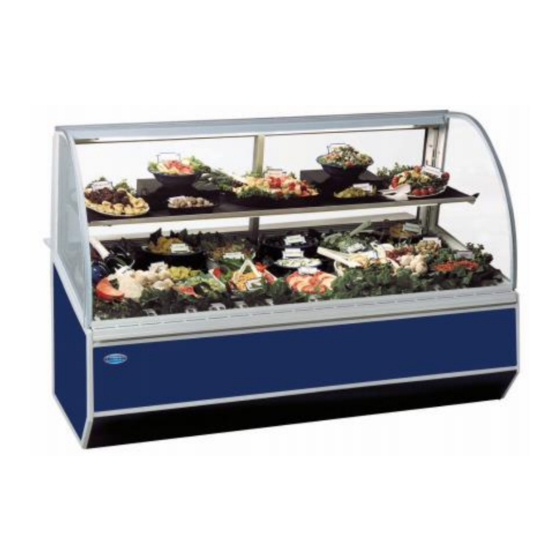

SN4CD, SN6CD, SN8CD
Self-Contained & Remote Models
215 Federal Avenue
WI Phone (608)424-3331
Belleville, WI 53508
Fax: (608)424-3234
09/01/18
Advertisement
Table of Contents
Related Manuals for Federal SN4CD
Summary of Contents for Federal SN4CD
- Page 1 E-1595 REV A 09/01/18 SN4CD, SN6CD, SN8CD Self-Contained & Remote Models INSTALLATION & OPERATION INSTRUCTIONS KEEP THIS MANUAL FOR FUTURE REFERENCE Engineering and technical data are subject to change without notice. FEDERAL INDUSTRIES 215 Federal Avenue Belleville, WI 53508 Toll Free 1(800)256-4206...
-
Page 2: Table Of Contents
Contents INTRODUCTION……………………………………………………………………………………….3 WARNING LABELS & SAFETY INSTRUCTIONS…………………………………………………4 PRE-INSTALLATION PROCEDURES……………………………………………………………….5 INSPECTION FOR SHIPPING DAMAGE……………………………………………………………….………..5 INSTALLATION INSTRUCTIONS………………………………………………......…5 LOCATING THE DISPLAY CASE………………………………………………………………………….…..…5 REMOVING CASE FROM SHIPPING SKID………………………………………………………………...…..5 REMOVING PACKAGING MATERIAL…………………………………………………………………….……6 LEVELING THE CASE…………………………………………………………………………....……...6 GRILL REMOVAL……………………………………………………………………………………………..…..6 CONDENSATE EVAPORATOR……………………………………………………………….…………………6 LIGHTS……………………………………………………………………………………………………..……..6 SHELVING……………………………………………………………………………………………..…..………7 DISPLAY COMPONENT CHECK……………………………………………………………………..………7 ELECTRICAL INFORMATION & GROUNDING……………………………………………….…8 OPERATING INSTRUCTIONS……………………………………………………………………….9 INITIAL START-UP…………………………………………………………………………………………………9 CONTROLS………………………………………………………………………………………………………..9... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing a Federal Industries display case. This manual contains important instructions for installing and servicing the Series ’90 Refrigerated Deli Display Cases. A repair parts list and wiring diagram are also included in this manual. Read all of these documents carefully before installing or servicing your case. -
Page 4: Warning Labels & Safety Instructions
This is important installation, operation, or service information. If you ignore the message, you may damage your case. The warning and safety labels shown throughout this manual are placed on your Federal Industries case at the factory. Follow all warning label instructions. If any warning or safety labels become lost or damaged, call our customer service department at 1(800)356-4206 for replacements. -
Page 5: Pre-Installation Procedures
This label is located on the back of the display case. PRE-INSTALLATION PROCEDURES Inspection for Shipping Damage You are responsible for filing all freight claims with the delivering truck line. Inspect all cartons and crates for damage as soon as they arrive. If damage is noted to shipping crates or cartons or if a shortage is found, note this on the bill of lading (all copies) prior to signing. -
Page 6: Removing Packaging Material
Removing Packaging Material Remove the brackets that held the case to the shipping skid. Remove the plastic ties that hold the metal shelf and shelf brackets in place. Remove the shipping tape that secures the doors and lift-up glass. If it is necessary to remove tape residue from plastic materials, use cleaning compounds recommended in the cleaning section of this manual. -
Page 7: Shelving
Shelving Remove both rear doors from the track by lifting them upward until the bottom edge clears the lower door track and then outward. Lift up the front glass to the fully open position. Put the shelf support assembly in the desired shelf standard slots. Plug the shelf light cords in the appropriate light socket. -
Page 8: Electrical Information & Grounding
ELECTRICAL INFORMATION & GROUNDING This Case Must Be Grounded DANGER: Improper or faulty hookup of electrical components in the display case can result in severe injury or death. All case electrical connections must be performed only by a licensed electrician. All electrical wiring hookups must be done in accordance with all applicable local, regional, or national electrical standards. -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS Initial Start-Up After all the checks outlined in the installation section of this manual have been made, the case is ready to be put into service. Controls Light Switch This switch controls power to the entire case. The switch rocker is red in the “on” position, black in the “off”... -
Page 10: Hinged Front Glass
Hinged Front Glass The front glass hinges up for easy cleaning of the case interior. Pneumatic cylinders assist in lifting the glass. The glass will hold in any position beyond approximately the first 20” of travel. In the first 20” of travel, the glass will gently close. See diagram below: The hinged glass mechanism will give years of reliable operation in normal usage. -
Page 11: Mezzanine Shelf
Mezzanine Shelf The shelf is adjustable up and down in 2” increments. To reposition the shelf: 1. Turn the light switch off. 2. Unplug the shelf light cord. 3. Remove the shelf from the shelf supports. 4. Grasp the shelf from the shelf supports. 5. -
Page 12: Rear Wrapping Board
Rear Wrapping Board The rear wrapping board is attached to the back side of the case and can be put into a position by swinging it up and pushing it forward. It can also be removed completely by lifting it upward off its mounting track while the wrapping board is in the down position. -
Page 13: Cleaning Instructions
CLEANING INSTRUCTIONS Daily Cleaning The case should be cleaned thoroughly, as described in the weekly cleaning section, before it is used for the first time. NOTICE: Avoid splashing or soaking any electrical components with water to prevent electrical damage to the case. NOTICE: Shut off lights and power switches and remove all product from case. -
Page 14: Interior Cleaning
NOTICE: Shut off light and power switches and remove all product from case. Allow sufficient time for the unit to reach room temperature before proceeding with cleaning. Interior Cleaning 1. Remove rear doors from track by lifting upward until the bottom of the door clears the lower door track and then outward. -
Page 15: Service Information
Plastic exterior surfaces can be cleaned with any ammoniated household cleaner. Stains can be removed by scrubbing with TRIALENE Soap, ETHYL CELLOSOLVE, CARBONA, or similar solvent base cleaning fluids. The surfaces must be thoroughly rinsed with water after using solvent based cleaners. SERVICE INFORMATION Before any service work is performed on the case, make sure all power is disconnected to... - Page 16 Case Does Not Operate Check for disconnected power supply. Check for tripped breaker or blown fuse. Check that the power switch and thermostat are not “off”. Pre-Service Checklist Lights Do Not Operate Check that the light switch is on. Be sure light is properly seated in the sockets. Check that light cords are tight in the sockets.
-
Page 17: Special Service Situations
SALE & DISPOSAL Owner Responsibility If you sell or give away your Federal Industries case you must make sure that all safety labels and the Installation-Service Manual are included with it. If you need replacement labels or manuals, Federal Industries will provide them free of charge. Contact the customer service department at Federal Industries at (800)356-4206. -
Page 18: Refrigeration & Electrical Data- Self-Contained Models
If you sell or give away your Federal Industries case and you evacuate the refrigerant charge before shipment, Federal Industries recommends that the charge be evacuated into a recovery system to prevent the possibility of HCFC’s from being released into the atmosphere. The release of these HCFC’s is a potential source of ozone depletion. -
Page 19: Refrigeration & Electrical Data- Remote Models
REFRIGERATION & ELECTRICAL DATA REMOTE MODELS SN4CD-R SN6CD-R SN8CD-R Refrigerant Charge R-22 R-22 R-22 ALL MODELS ARE 115 VOLT, 1 PHASE, 60 HERTZ, 2 WIRE AMPS AMPS AMPS Evaporator Fan Motor (2) 0.5 ea. 0.5 ea. 0.5 ea. Anti-Fogging Fan Motor (2) 0.5 ea. -
Page 20: Replacement Parts
REPLACEMENT PARTS MODELS SN4CD, SN6CD, & SN8CD Part Description Part Number Refrigeration System SN4CD SN6CD SN8CD Condensing Unit (Self-Contained Only) 30-11040 30-11041 30-11041 Compressor (Replacement) 30-11212 30-11213 30-11213 Evaporator Coil 33-50053 33-50037 33-11360 Expansion Valve 32-11452 32-11452 32-11369 Evaporator Fan Motor... -
Page 21: Replacement Parts
REPLACEMENT PARTS MODELS SN4CD, SN6CD & SN8CD Part Description Part Number Misc. Components SN4CD SN6CD SN8CD End Glass- Clear 50-11115 50-11115 50-11115 End Glass- Mirrored L.H. 50-11173 50-11173 50-11173 End Glass- Mirrored R.H. 50-11174 50-11174 50-11174 Front Glass- Clear 50-10995... -
Page 22: Wiring Diagram- Main Wiring Self-Contained Units
WIRING DIAGRAM- MAIN WIRING SELF-CONTAINED Series ’90 Cold Deli Display Page 22... -
Page 23: Wiring Diagram- Main Wiring Remote Units
WIRING DIAGRAM- MAIN WIRING REMOTE Series ’90 Cold Deli Display Page 23... -
Page 24: Wiring Diagram- Lights (48" & 59")
WIRING DIAGRAM- LIGHTS (48” & 59”) Series ’90 Cold Deli Display Page 24... -
Page 25: Wiring Diagram- Lights (77")
WIRING DIAGRAM- LIGHTS (77”) Series ’90 Cold Deli Display Page 25... -
Page 26: Wiring Diagram- Receptacle
WIRING DIAGRAM- WIRING RECEPTACLE California Residents Only. WARNING This product can expose you to chemicals including chromium which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Series ’90 Cold Deli Display Page 26...
