Step 1: Check what's in the box
DA3-24-H / DA3-28-H HDMI Switcher
Distribution Amplifier

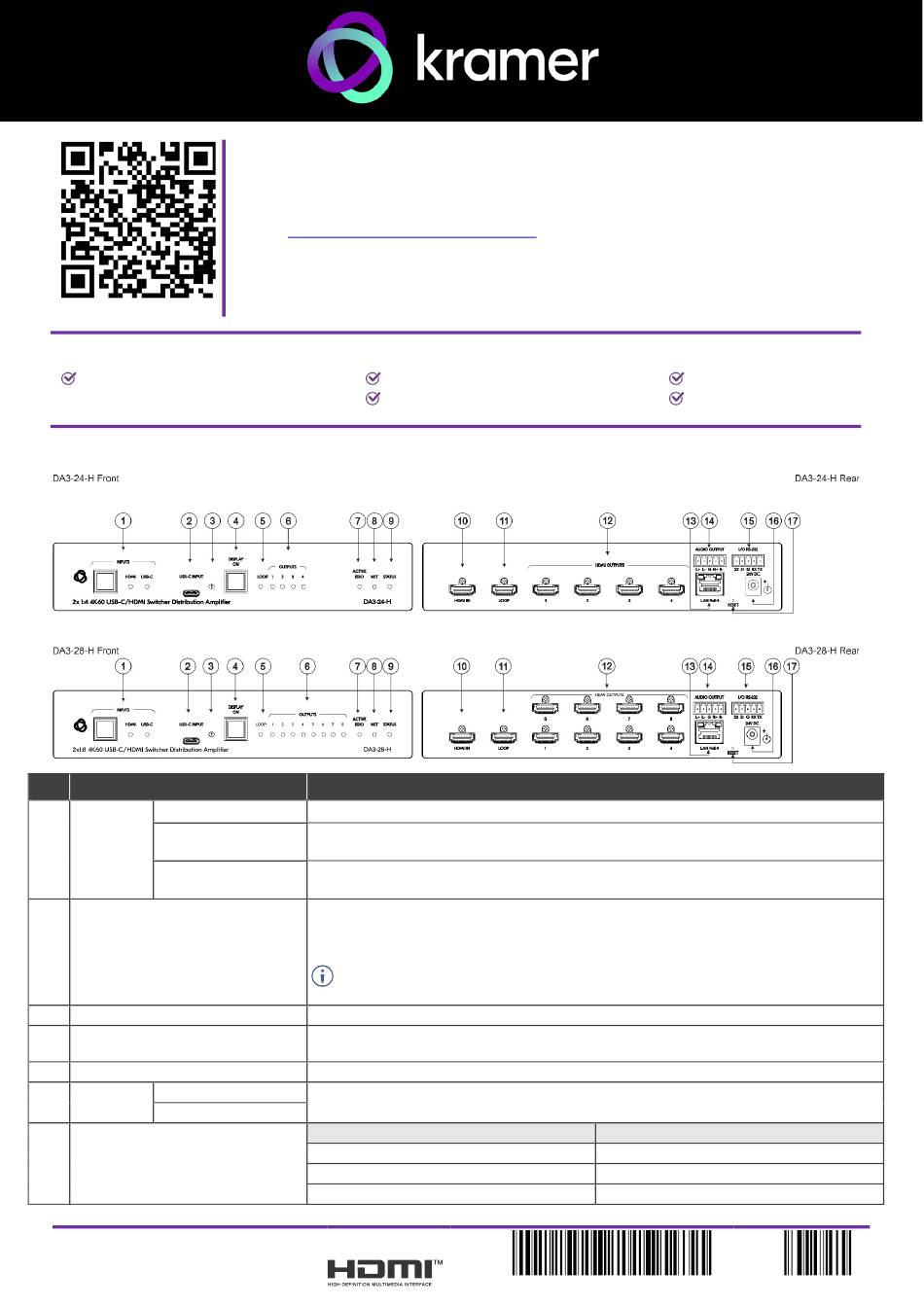

Step 2: Get to know your DA3-24-H, DA3-28-H
# Feature
1 LEDs INPUTS
HDMI
USB-C
2 USB-C INPUT
3 USB-C Charge LED
4 DISPLAY ON Button
5 LOOP LED
6 OUTPUTS DA3-24-H (X4)
LED
DA3-28-H (X8)
7 ACTIVE EDID LED
DA3-24-H, DA3-28-H Quick Start
DA3-24-H, DA3-28-H Quick Start Guide
This guide helps you install and use your DA3-24-H, DA3-28-H for the first time.
Go to www.kramerav.com/downloads/DA3-24-H
firmware upgrades are available.
1 Power cord and adapter
Set rubber foot
Function
Press to toggle between HDMI and USB-C inputs.
LED lights blue when an active input is detected and selected.
LED lights green when an active input is detected (but not selected).
LED lights blue when an active input is detected and selected.
LED lights green when an active input is detected (but not selected).
Connect to USB-C AV source:
• that supports DisplayPort Alternate Mode, (for example, a laptop) to share content.
to charge the connected source (that supports USB Power Delivery 3.0).
•
While charging, the charging icon (to the right of the connector) becomes visible
and lights yellow.
While charging, the charging icon becomes visible and lights yellow.
Press to mute/unmute the AV outputs.
LED lights orange when the AV outputs are muted.
LED lights blue when a local display is connected and an active input is selected.
LEDs light blue when an output(s) is connected and active.
LED status
Yellow
Blue
Green
to download the latest user manual and check if
Indicates
Default EDID is active
Output-acquired EDID is active
Custom EDID is active
P/N:
2900- 301815QS
1 Quick start guide
USB-C cable
Rev:
5
