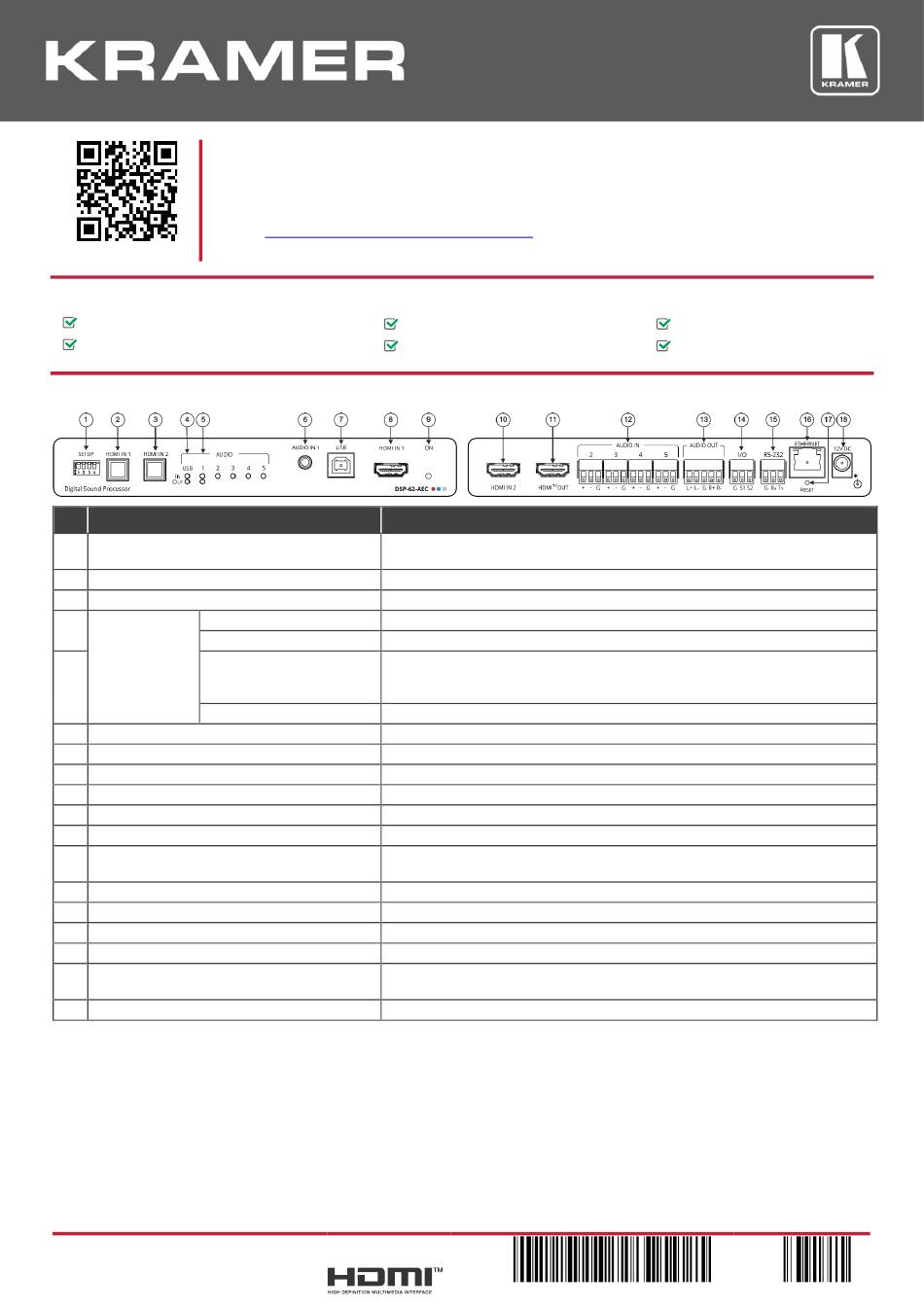

Kramer DSP-62-AEC Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
DSP-62-AEC Digital Sound Processor
1 Power adapter and cord

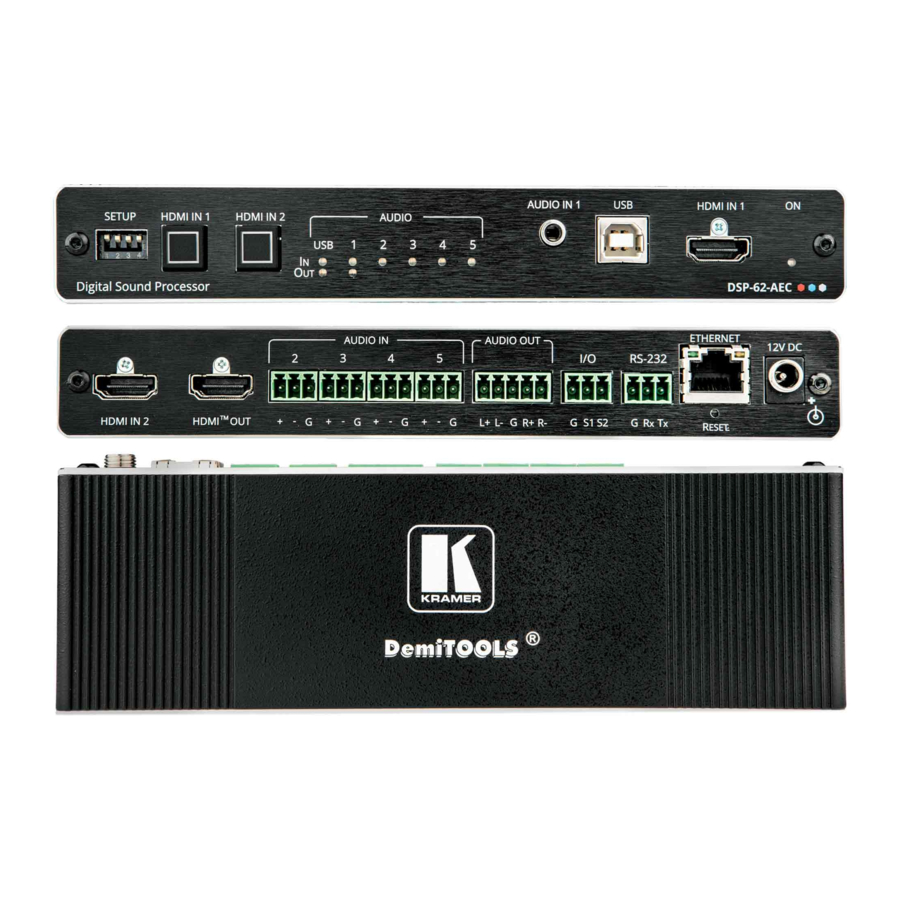

Step 2: Get to know your DSP-62-AEC
# Feature
SETUP DIP-switches
1
2 HDMI IN 1 Button
3 HDMI IN 2 Button
4 AUDIO LEDs USB IN
USB OUT
5 IN (1 to 5)
OUT
6 AUDIO IN 3.5mm Mini Jack
7 USB Type B Bi-Directional Host Port
8 HDMI IN 1 Connector
9 ON LED
10 HDMI IN 2 Connector
11 HDMI™ OUT Connector
12 AUDIO IN 3-pin Terminal Block Connectors
(2 to 5)
13 AUDIO OUT 5-pin Terminal Block Connector
14 I/O Terminal Block Connectors (1 to 2)
15 RS-232 (G, Rx, Tx) Terminal Block Connector Connect to a PC/serial controller
16 ETHERNET RJ-45 Connector
17 RESET Recessed Button
18 12V DC Power Connector
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
DSP-62-AEC Quick Start
DSP-62-AEC Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/DSP-62-AEC
firmware upgrades are available.
Function
Set DIP-switch 4 to ON to upgrade the firmware, OFF (default) for normal
operation (other DIP-switches are reserved for future use).
Press to select HDMI IN 1 input (on the front panel).
Press to select HDMI IN 2 input (on the rear panel).
Lights green when an audio source is received from the USB host port.
Lights green when an audio signal is sent to the USB host port.
Lights green when a signal is present, lights red when clipping is detected.
For IN 2 to IN 5, when connecting a microphone and setting to Mic mode via
the embedded Web pages, lights blue.
Lights green when a signal is present, lights red when clipping is detected.
Connect to an unbalanced audio source.
Connect to an audio source or acceptor.
Connect to an HDMI source.
Lights green when the device is powered.
Connect to an HDMI source.
Connect to an HDMI acceptor.
Connect to up to 4 mono balanced audio sources (mono or mic level with
selectable 48V).
Connect to a stereo balanced audio acceptor.
Connect to up to two sensors, switches, LEDs, or relays.
Connect to a PC via a LAN.
Press and hold while powering the device to reset to factory default values,
including IP settings.
Connect to the power supply and to the mains electricity.
DSP-62-AEC for the first time.
to download the latest user manual and check if
1 Kramer C-USB/AB-6 cable
1 Quick start guide
P/N: 2 9 0 0 - 3 0 1 3 6 3 QS
4 Rubber feet
1 Bracket set
Rev: 1
