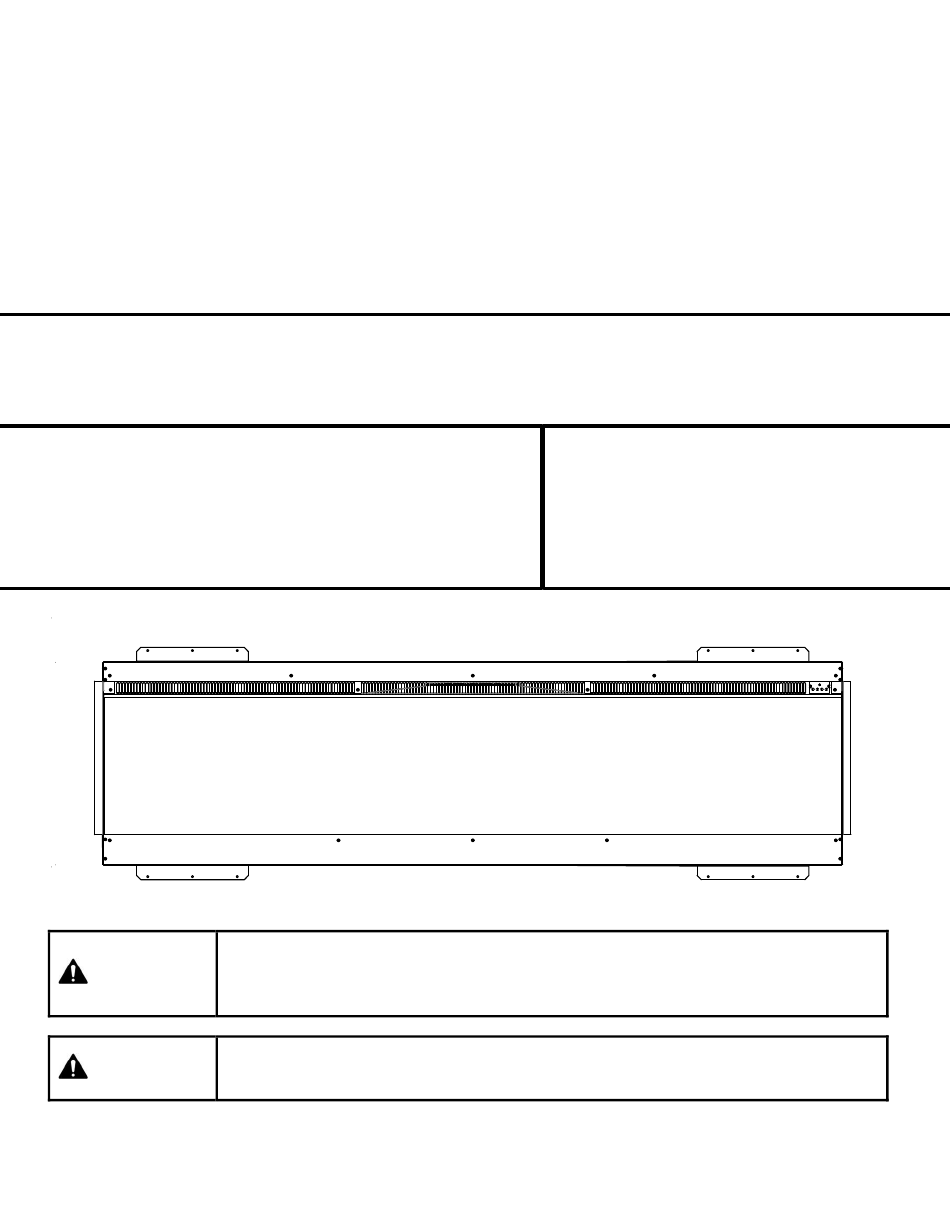

LCD FIREPLACE HEATER
OWNER'S MANUAL
Three Sided LCD FIREPLACE
WARNING
CAUTION
Read and understand this entire owner's manual including all safety
information, before plugging in or using this product. Failure to do so
could result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this
product away, make sure this manual accompanies this product.
LCD60
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Touchstone Sideline Infinity LCD60
Summary of Contents for Touchstone Sideline Infinity LCD60
- Page 1 LCD FIREPLACE HEATER OWNER’S MANUAL Three Sided LCD FIREPLACE LCD60 Read and understand this entire owner’s manual including all safety WARNING information, before plugging in or using this product. Failure to do so could result in fire, electric shock, or serious personal injury. Keep this owner’s manual for future reference.
-
Page 2: Table Of Contents
Contents Parts and Hardware ............................. 4 Tools Required ............................4 Unpacking and Setup ..........................4 Unpacking Instructions ..........................4 BOX CONTENTS ..........................4 Wiring ............................... 5 Testing the Fireplace Prior to Installation ..................... 5 Prong Outlet Installation ........................5 Power Data ..............................5 Installation .............................. - Page 3 IMPORTANT SAFETY INFORMATION WARNING • THIS FIREPLACE IS HOT WHEN IN OPERATION AND CAN CAUSE SEVERE BURNS • Do not operate fireplace before reading and understanding operation instructions. Failure to operate fireplace according to operation instructions could cause fire or injury. •...
-
Page 4: Parts And Hardware
Parts and Hardware Tools Required • Phillips screwdriver • Stud finder • Level • Tape measure • Electric drill • Wood drill bit Unpacking and Setup Unpacking Instructions • Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Check the parts list to make sure no parts are missing. -
Page 5: Wiring
Wiring The HM series recessed fireplace can be plugged into a grounded 3-prong outlet. Testing the Fireplace Prior to Installation • Before installing the fireplace, test the fireplace to make sure that it operates properly. Due to the motor the fire will have a slight noise when in operation •... -
Page 6: Installation
Installation WARNINGS • Due to high temperatures, keep the fireplace out of high traffic locations. • Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 1M away from the front of the fireplace. • Never install the fireplace where it may fall into a bathtub or other body of water. •... -
Page 7: Recessed Installation
Recessed Installation • Due to many different finish materials used on walls, it is highly recommended that you consult your local builder before you install this fireplace in the wall. • Select a location that is not prone to moisture and is located at least 1000mm away from combustible materials such as curtains, drapes, furniture, bedding, or other combustible materials. -
Page 8: Recessed Installation Overview
Recessed Installation Overview The HM three-sided Electric Fireplace can be installed in five different recessed configurations: Three-Sided Installation: • Glass exposed on the left, front, and right sides • Fireplace is fully recessed into the wall with both sides open Two-Sided Installation: •... -
Page 9: Recessed Installation
Recessed Installation Three-Sided Installation: 1. Prepare the framed opening according to the Rough Opening Dimensions chart. Provide a 230Vac 7.5amp circuit for wire install at the top right of the framed opening. 2. Install Metal Bracket. 3. Install the fire unit in the framed opening with a minimum 1 ¼ drywall screws to secure the unit. 4. -
Page 10: Installing The Crystal Ember And Log-Set
Partial Recess Installation (Optional): Follow the directions included with the Partial Recess. Slide-in cabinet installation (Optional): Follow the directions included with the Slide-in Cabinet. Installing the Crystal Ember and Log-set Once the fireplace is installed in the wall, place crystal media stones and artificial logs in the fireplace. Installing the Crystal Embers 1. -
Page 11: Operating Fireplace
Operating Fireplace Once the fireplace has been plugged into a grounded outlet, the fireplace is now ready for operation. Ensure that the house circuit breakers for the power supply are turned on. Power Plug the power cable into a 220v 7.5 amp grounded outlet. Make sure the outlet is in good condition and that the plug is not loose. -
Page 12: Method Of Operation
Method of Operation Control Panel Functions BUTTON ACTION & INDICATION FUNCTION ON: Enables control panel functions and 1. Press once. Indicator light turns on. Power turns remote control. Turns on flame effect. on. All functions enabled. OFF: Disables control panel functions and 2. -
Page 13: Method Of Operation
Method of Operation Wireless Remote Control Functions Power button Turn ON/OFF the fireplace Global or single group color adjustable,short press the up and down keys to select among 8 Color ring colors, long press the up and down keys to select among 64 colors Used for adjusting functions such as time, week, temperature, etc. -
Page 14: Remote Control Operation
Remote Control Operation • This remote control uses 2 AAA batteries • To improve operation of the remote control, aim the remote control at the front of the fireplace. DO NOT PRESS the buttons too quickly. Give the unit time to respond to each command. -
Page 15: Wi-Fi Controls
Wi-Fi Controls This fireplace is also capable of being controlled over Wi-Fi using an Apple or Android mobile device. Scan the QR code for an instructional walk through video on how to download and setup the app needed to control your Electric fireplace. Alternatively, you can follow the steps below. -
Page 16: Wi-Fi Controls
Wi-Fi Controls Next you will be prompted to connect to your existing home wireless network. Select the appropriate 2.4Ghz network and log in. Note - Only 2.4GHz wireless networks are compatible, 5GHz wireless networks cannot be used. If not available, contact your wireless service provider for further information on setting up a 2.4GHz wireless network. -
Page 17: Wi-Fi Controls
Wi-Fi Controls Creating a Heat Program With the fireplace now successfully paired it can be controlled in the same manner as the remote controls (see page 15). Added capabilities like Sleep Timer and Heat Program are only possible when using the app. -
Page 18: Wi-Fi Controls
Wi-Fi Controls Next, in the pop-up window select the The Heat Program is now set to turn the desired program settings: fireplace and heater on at 1:00PM every Switch - Turn fireplace on or off Wednesday to maintain a temperature of 20˚C until 6:00PM. -
Page 19: Bluetooth Controls
Bluetooth Controls Also you could add fireplace into Secondly, enter into Smartlife APP, the device Smartlife APP by Bluetooth. will show up automatically , click “Add” Firstly , power on fireplace, enable Finally, it will jump to WiFi information page, Bluetooth on your mobile phone;... -
Page 20: Warranty
Warranty Our electric fireplaces are to be free of defects in material and workmanship for one year from the date of purchase. This warranty only covers manufacturing faults. This warranty does not cover damages, accidents, lack of maintenance, abuse or neglect. The warranty does not cover paint scratches, cosmetic blemishes, dents, corrosion or other normal wear and tear associated with the fireplace.
