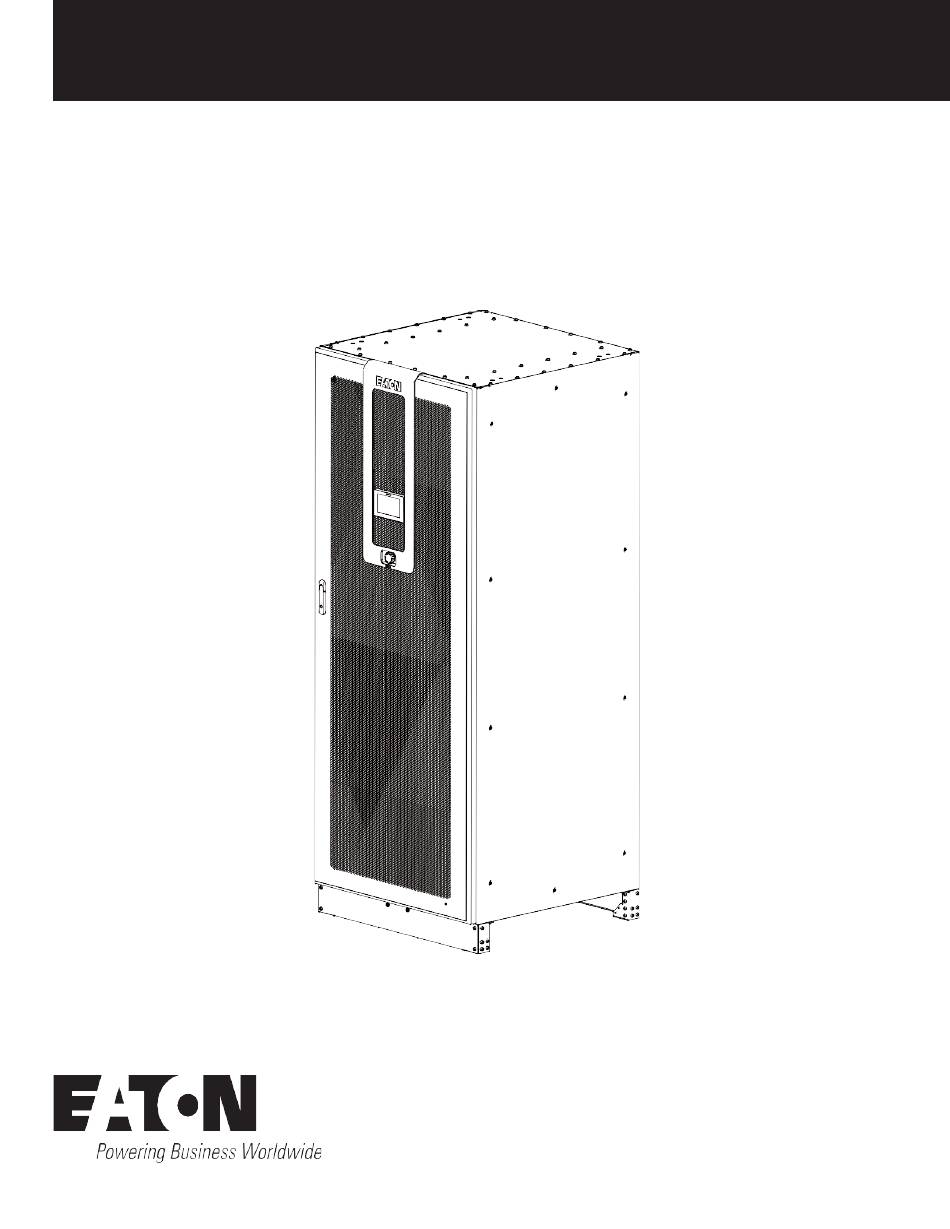

  • Page 1 Eaton 93PCS ® 125-630 kW Installation and Operation Manual...
  • Page 3 Please strictly comply with all warnings and operation instructions specified in this manual or on the equipment, and keep this manual properly for future reference. Do not try to operate the equipment before reading all the safety information and operating instructions. The manual applies to the 93PCS series, including: 93PCS 125 93PCS 250...
  • Page 4 © 2023 Eaton Corporation All Rights Reserved All contents contained in this manual are owned by Eaton Corporation and may not be reproduced (or excerpted) without permission. Eaton is committed to technological innovation as it continues to deliver better products and services to customers.

  • Page 5: Table Of Contents

    Home page (online mode) ..........................28 6.2.3. Menu................................... 29 6.2.4. Meters screen ..............................29 6.2.5. Control ..............................31 6.2.6. History..............................34 6.2.7. Setting..............................36 6.2.8. View PCS firmware version ........................43 Copyright © 2023 Eaton Corporation plc. All rights reserved.
  • Page 6 Appendix B: Energy storage device fault information......................60 Appendix C: Name and Content of Harmful Substances in Products ................61 Appendix D: Name and Content of Harmful Substances in Products ................63 Copyright © 2023 Eaton Corporation plc. All rights reserved.
  • Page 7 Figure 6-28: Setting - Password interface ............................40 Figure 6-29: Change Control Password interface ..........................41 Figure 6-30: Change Control Password interface ..........................42 Figure 6-31: Change Control Password interface ..........................42 Copyright © 2023 Eaton Corporation plc. All rights reserved.
  • Page 8 Figure 6-32: Change Configuration Password interface ........................43 Figure 6-33 - 6-34: View PCS firmware version ..........................43 Figure 6-35 - 6-37: View PCS firmware version ..........................44 Figure 7-1: Air filter screen location ..............................52 Copyright © 2023 Eaton Corporation plc. All rights reserved.
  • Page 9 Table 8-1: Gas concentrations recommended in Table B1 of ANSI/ISA-71.04-2013 for G1 equipment environment ..... 56 Table 8-2: Requirements on the environment for transportation and storage within 1 year ............56 Table 10-1: User configuration ................................59 Table 10-2: Configuration setting ................................59 Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 11: Chapter 1 Safety Warning

    Also, ensure system grounding / PE continuity. • Any operation associated with this equipment must be performed by authorized professionals. • IMPORTANT: Make sure that you disconnect all battery strings before installation. Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 12: User Precautions

    Any violation of the instructions may result in dangers or accidental damage load. Attention Additional measures should be taken to further suppress electromagnetic interference when using this product. This product is intended for commercial and industrial application in a C3 environment. Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 13: Conventions Used In This Manual

    This sign indicates that electrical or electronic equipment shall not be thrown in the trash can. For proper disposal of the waste, please contact your local waste recycling/reuse or hazardous waste recycling center. Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 14: Environment

    Obtain regional service sites and their telephone numbers; • Any questions about the information in the manual; • Issues not covered in the manual Please contact customer service via our 24-hour service hotline at 400-889-3938. Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 15: Chapter 2 Introduction

    Chapter 2 Introduction The Eaton 93PCS is an energy storage power conversion system crafted by Eaton’s global team using today's most advanced power electronics technology and Eaton's nearly 50 years of advanced technology and experience in power system design. This series of energy storage converter is a transformer-free energy storage converter product, which provides an interface between the power grid and the energy storage battery to realize the charging and discharging of the energy storage battery system.

  • Page 16: Figure 2-2: Product Structure Diagram

    Installation and Operation Manual Communication module Power module AC circuit breake AC terminal lug DC circuit breaker DC terminal lug Grounding Protective earthing Front view Side view terminal lug) Figure 2-2: Product Structure Diagram Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 17: Pcs Internal System

    • Output voltage and frequency stabilization energy storage converters can control reactive and active power in grid-connected systems to adjust output voltage and frequency stabilization. Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 18: Working State

    The emergency stop state is an artificial intervention to control the inverter power shutdown, which will disconnect contactors on the AC and DC sides immediately, and is not considered as a system fault. Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 19: Operation Mode

    When the equipment is set to this mode, the battery will be discharged and a constant voltage and frequency AC power supply will be provided to the load. Note: the independent inverter mode is an additional function, Please contact our technical staff if you need it. Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 20: Pcs Installation Plan

    Installation Checklist); 7. Eaton customer service engineers will carry out preliminary operational inspections and boot. Notes Boot commissioning must be carried out by the customer service engineers of Eaton, otherwise, the warranty provisions in Chapter 9 will become invalid. The provision of this service constitutes a part of the PCS sales contract.

  • Page 21: Site Preparation

    • The altitude requirement for normal PCS operation is 2000 meters (6600 feet) or less. If customers will use the equipment above 2000 meters, please call the Eaton hotline for more information. The warranty shall be invalid for failure to follow this guideline.

  • Page 22: Figure 3-1: Pcs Cabinet Reserved Space

    Table 3-2: Minimum reserved space for the PCS cabinet Reserved space 850 mm Front of the cabinet D1 800 mm Rear of the cabinet D2 Figure 3-1: PCS cabinet reserved space Copyright © 2023 Eaton Corporation plc. All rights reserved.
  • Page 23 (BTU/h volume not less x1000) than /M3/h) 125kW 2272 3166 10.81 250kW 5444 6332 21.61 1842 375kW 8166 9498 32.42 2763 500kW 10888 12663 43.22 3680 630kW 13719 15956 54.45 4640 Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 24: Figure 3-2: Pcs Dimensional Figure

    Eaton 93PCS 125-630 kW Installation and Operation Manual Top View Front View Right View Bottom View Figure 3-2: PCS dimensional figure Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 25: Pcs System Power Wiring Preparation

    5*150/5*150 3*240 3*240 *The number of PCS copper wires is determined by the power of the equipment and the number of modules (see for the location of copper wires). Figure 4-6 Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 26: Protective Grounding

    Quantity Quantity cation cation cation 93PCS 125 1pcs 250A/690Vac 93PCS 250 2pcs 500A/690Vac 250A/ 250A/ 250A/ 93PCS 375 3pcs 800A/690Vac 1000Vdc 690Vac 1000Vdc 93PCS 500 4pcs 1000A/690Vac 93PCS 630 5pcs 1250A/690Vac Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 27: Chapter 4 Pcs System Installation

    This section describes the operation of the PCS mechanical installation and cable installation. The cables for connecting the PCS to AC mains and batteries have to be provided by the customer. Installation inspection and initial boot of the PCS must be performed by an Eaton customer service engineer. 4.1. Preliminary Installation Information...
  • Page 28 During the installation waiting period, the unpacked cabinet shall be protected against moisture, dust and other contaminants. Damage to the PCS caused by improper storage or protection is not covered by the warranty. Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 29: Figure 4-1: Prying Open The Metal Connective Component

    Figure 4-1: Prying open the metal connective component Figure 4-2: Remove of Wooden Boxs Figure 4-5: Pallet fork position Figure 4-4: Remove the fixing screws Figure 4-3: Removal of cushioning material Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 30: System Installation

    2. AC side requirements 93PCS series energy storage converters do not contain transformers, adopts three-phase three-wire as the output, and use the external isolation transformer to connect the converter to the AC grid. Please consult our technical service personnel for specific requirements of grid- connected isolation transformer.

  • Page 31: Figure 4-6: Location Of Cover Plate And Connection Terminal

    Power Module 5 DC- Power Module 1 DC+ Power Module 5 DC+ Bottom view Signal Cable Outlet AC connection port Signal connection port Figure 4-6: Location of cover plate and connection terminal Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 32: Pcs Ac Side Transformer Connection Instructions

    Due to the difference in converter output voltage system and the mandatory requirements of some regional standards, the 93PCS series converters require transformers to be connected to the grid in certain scenarios. This transformer is not included in the 93PCS series converters, the converter can be connected to the AC grid in the following ways A single converter is boosted by a two-winding transformer and connected to the grid.

  • Page 33: Chapter 5 Communication Interface

    (Type B) 9. Building alarm signal 11. User CAN remote termi- 10. User CAN 12. RS-232 service port input nal resistor interface 13. Emergency Power Off 14. Dry contact output (EPO) Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 34: Ems Via Rs485 Connection

    DRED provides a normally open dry contact to connect to the DRM (PIN1/PIN2). When the normally open contact is closed, the PCS will shut down within 2 seconds. see Figure 5-2 Figure 5-2: DRED connection to PCS Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 35: Chapter 6 Pcs Operating Instructions

    Before the PCS is turned on, it is necessary to ensure that all installation work has been completed and that the initial boot has been completed by an Eaton customer service engineer. Before the initial boot, check all electrical connections to ensure successful installation and normal operation of the system.

  • Page 36: Figure 6-1: Control Panel And Indicator Lamps

    The PCS is in the shutdown state and the system has alarms. The PCS is in the standby, charging or discharging state and the Yellow light Normally on system has an alarm. Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 37: Use Of Control Panel

    The touch screen of the control panel provides an operation interface for the PCS system. After the machine is powered on, the touch screen displays the Eaton Welcome screen, as shown . If the machine is powered on for the first time, it will enter the Boot Password interface,...

  • Page 38: Home Page (Online Mode)

    Click on the menu bar to access the menu interface for more PCS information. Display the current operating mode of the PCS, total kVA, total kW and its percentage. Click this area to view the detailed three-phase data. 0~70% green, 70~90% orange, >90% red. Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 39: Menu

    (per phase), AC side power (per phase) and frequency as well as total kVA, total kW and power-factor measurements. The "DC Parameters" screen shows the battery voltage, battery cell voltage, DC Parameters battery current, and remaining battery runtime. Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 40: Figure 6-7: Ac Parameters Interface

    Click the "UPM" box to jump to the AC Parameters-UPM page, as shown in Figure 6-8. Figure 6-8: AC Parameters-UPM page Click the "DC Parameters" box to jump to the DC Parameters interface, as shown in Figure 6-9. Figure 6-9: DC Parameters interface Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 41: Control

    The "UPM" screen is to view the UPM status, which is displayed in the upper left of the Modules (UPM) screen; UPM power on and power off operation is available. Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 42: Figure 6-11: Enter Control Password Interface

    The PCS Control interface allows for PCS power on and power off. When the button is gray, it means the function of this button is disabled in the current state. The PCS status is displayed at the top of the interface, as shown in Figure 6-13 Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 43: Figure 6-13: Pcs Control Interface

    Click the "Turn On" button on this interface when the UPM is off to turn on the UPM. Figure 6-14: UPM Control interface Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 44: History

    205 pages (as shown in The "Clear Alarms" interface clears the alarm information from the current Clear Alarms alarm interface (as shown in Figure 6-18 Active Log Figure 6-16: Active Log interface Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 45: Figure 6-17: History Log Interface

    Clear Alarms Click “Clear all active alarms” button on the interface, then all active alarms will be removed. (Alarms that occurred previously but are not present now). Figure 6-18: Clear Alarms interface Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 46: Setting

    The initial password is “01010101”, which can be used to enter the Configure password Setting interface. Setting options Notes Language Date Time Parameters (1 = US: Va, Vb, Vc 2 = Pacific: Vr, Vs, Vt 3= European: V1, V2, V3) Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 47: Figure 6-19: Enter Setting Password Interface

    Figure 6-19: Enter Setting Password interface Figure 6-20: Password Setting Correct interface Figure 6-21: Setting interface Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 48: Figure 6-22: Setting - General Interface

    (3) Click the Save button to save the time setting of this time; (4) Click the Cancel button to return to the "General" interface; The method for setting the brightness parameter is the same; Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 49: Figure 6-24: Setting - General - Time Interface

    Figure 6-24: Setting - General - Time interface General - Brightness setting page Figure 6-25: Setting - General - Brightness interface Parameter Setting interface Figure 6-26: Setting - Parameter interface Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 50: Figure 6-27: Setting - Parameter Interface

    Click on the password keyboard on the right side of the interface to enter the old password and the new password, click the "OK" button on the keyboard, if the old password is entered correctly, Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 51: Figure 6-29: Change Control Password Interface

    Control password non-enabled: Direct access to the control interface without entering a password. Table 6-7: Options EEP Address Control password Set password Control password enabling (1: (Enabled) Figure 6-29: Change Control Password interface Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 52: Figure 6-30: Change Control Password Interface

    “New password has been saved” will be displayed on the interface, if the old password is incorrect, the text “Old password error” will be displayed on the interface, then you need to re-enter the password. Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 53: View Pcs Firmware Version

    Figure 6-33 On the information interface, you can view the PCS name, serial number, UPM version number, HMI version number, Eaton QR code and other information. See Figures 6-34 to 6-37. Figure 6-34 Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 54: Figure 6-35 - 6-37: View Pcs Firmware Version

    Eaton 93PCS 125-630 kW Installation and Operation Manual Figure 6-35 Figure 6-36 Figure 6-37 Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 55: System Operation

    6. Disconnect the DC side and AC side switches, then close the front door 6.4. Use of Tool 6.4.1. Wiring 1. Connect the USB to 232 interface cables between the control host and PCS module respectively. Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 56: Tool Installation And Use

    Next to complete the installation. And record the port number COMx. 6.4.2. Tool installation and use 1. Install putty in the folder and use the default installation. 2. Open putty and configure it according to the steps below： Copyright © 2023 Eaton Corporation plc. All rights reserved.
  • Page 57 4. Australian regulations configuration Function Command Remarks a. Basic configuration / Power quality response modes settings Unload U 90 0 Shut down Instantaneous overvoltage WE 210 470 Unilateral overvoltage protection protection Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 58: Charging Operation

    WE 628 1 power 2. Enable fixed reactive U 14 power 3. Set reactive power WB 287 -600 Indicates that the reactive power is 60k (lead), and the lag is - Copyright © 2023 Eaton Corporation plc. All rights reserved.
  • Page 59 2. Max. frequency and U 11 0 0 The largest voltage and frequency voltage range protection range 4. Function enablement WE 634 4128 (Australia A) 5．Region settings WE 681 (Australia B) (Australia C) Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 60: Chapter 7 Pcs Maintenance

    Warning • The maintenance shall be performed by Eaton customer service engineers. • The voltage is lethal. You cannot continue to use this PCS while the cabinet door is open or the protective panel is removed. Do not make any guesses about the power status of any cabinet in the PCS system.

  • Page 61: Carry Out Preventive Maintenance

    Install the cleaned or new filter screen onto the front door frame; d. Close the front door and lock the door latch. 3. Log the results of check and any corrections. Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 62: Regular Maintenance

    7.3. Maintenance Training Eaton offers basic training courses to equip you with knowledge of PCS operation and how to per- form primary corrective maintenance. Please contact the customer service representative for detailed information of training and other services.

  • Page 63: Chapter 8 Product Indicators

    Chapter 8 Product Indicators 8.1. Technical Indicators 8.1.1. Standard GB/T 34120-2017 GB/T 34133-2017 IEC 62477-1 EMEA IEC 61000 EN 50549-1 VDE-AR-N 4105 G99:TypeB AS 62040.1-2019 AS NZS 4777.2 UL 1741, IEEE 1547 Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 64: Pcs Electrical Characteristics

    Display Communication RS485 Communication protocol MODBUS RTU / MODBUS TCP Manufacturer Eaton Power Quality (Shanghai) Co., Ltd. Section B5, No.76, Ribin Road (SHANGHAI) PILOT FREE TRADE ZONE 200131 Shanghai P.R. China Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 65: Environment

    Before the arrival of the equipment, an ambient temperature/humidity control plan shall be formulated. This product is suitable for installation and use in a G1 environment as defined in ANSI/ISA- 71.04-2013. For gas concentration limits, please refer to Table 8-1 Copyright © 2023 Eaton Corporation plc. All rights reserved.
  • Page 66 Stored with initial packages If the actual storage condition of equipment is inconsistent with the above requirements on storage environment, please decide the storage time based on the actual storage environment Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 67: Chapter 9 Warranty

    Chapter 9 Warranty Commitment of Eaton: 24 months warranty from boot date (boot must be completed by Eaton or Eaton authorized engineer within 3 months from equipment shipment) or as agreed in the contract will be provided. • Warranty shall be subject to the boot report or the valid warranty certificate stipulated in the contract.

  • Page 68: Chapter 10 Installation Checklist

    All doors and door locks are locked.  All terminal cover plates have been installed.  The initial boot and operational check of the PCS is performed by an Eaton customer service engineer.  Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 69: Appendix A: User Setting

    Change the default password for configure password to 1111. Configure control password enabling: a password is required to access Configure control password the control interface. Configure control password non-enabled: direct access to the control interface without entering a password. Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 70: Appendix B: Energy Storage Device Fault Information

    Soft start failure (internal fault message) Emergency stop EPO action, emergency stop The inverter is over-temperature The temperature of the inverter heat sink is too high Fan failure Failure of at least one cooling fan Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 71: Appendix C: Pcs Ac Side Connection Transformer Description

    7) It is recommended that the transformer heat insulation level should not be lower than F class, recommended is H class. 8) The DC bias current that the transformer can withstand should not be less than 1% of the rated current. Copyright © 2023 Eaton Corporation plc. All rights reserved.
  • Page 72 12) When the transformer is placed indoors, the degree of protection should not be less than IP20; When the transformer is placed outdoors, the degree of protection should not be less than IP54. 13) Ensure that the transformer housing is reliably grounded. Copyright © 2023 Eaton Corporation plc. All rights reserved.

  • Page 73: Appendix D: Name And Content Of Harmful Substances In Products

    User Manual. The environmental protection service life of some assemblies equipped in this product (for example, assemblies equipped with batteries) may be lower than that of this product. Copyright © 2023 Eaton Corporation plc. All rights reserved.
  • Page 74 This End User License Agreement (the “Agreement”) is a legal agreement between you and the Contracting Entity (as defined below). For the purposes of this Agreement, any reference to “Eaton” shall include the Contracting Entity, its holding company, its affiliates and subsidiaries.
  • Page 75 “Documentation” the Product Software solely for your own internal business purposes; means the Eaton product provided by Eaton to you, which may include Product Software within “Eaton Hardware” “Eaton Open Source has the meaning as defined in Clause 10.1;...
  • Page 76 GRANT AND SCOPE OF LICENSE In consideration of you agreeing to abide by the terms of this Agreement, Eaton hereby grants to you, a limited, non- exclusive, non-transferable, non-sub-licensable, and revocable license to access and use the Product Software with the Eaton Hardware, which is provided to you for your own internal business purposes, solely for your use as permitted in these terms.
  • Page 77 Agreement and all applicable laws, rules and regulations. Without limiting the generality of the foregoing, you shall notify, and shall promptly notify, Eaton if you become aware of any third party that does or attempts to: (i) de-compile or reverse engineer the Product Software; (ii) sell, re-license, distribute or commercially exploit the Product Software;...
  • Page 78 Full use of the Product Software is dependent upon your use of a device with Internet access and the purchase of Eaton Hardware in which it is installed or to which the Product Software pertains as described in the Documentation.
  • Page 79 Product Software without the prior written consent of Eaton. You may transfer the Product Software directly to a third party only in connection with the sale of the Eaton product in which it is installed or to which the Product Software pertains as described by Eaton in the Documentation. In the event...
  • Page 80 Product Software in any way that is unlawful, fraudulent or deceptive, or has any unlawful, fraudulent or deceptive purpose or effect; not use the Product Software except in conjunction with the operation of Eaton products to which the Product Software pertains or other products described by Eaton in the Documentation;...
  • Page 81 Product Software on multiple devices or in multiple locations without purchasing a separate license from Eaton or a third party authorized by Eaton;...
  • Page 82 Product Software. To the extent there are any conflicts between the terms of this Agreement and any license arrangement between Eaton and any such third party license corresponding to Third Party Licensor components or additional obligations by such Third Party Licensors that are not set forth in this Agreement, the terms of the license arrangement between Eaton and any such Third Party Licensor or the corresponding open source license will prevail.
  • Page 83 11. FEES 11.1 Where applicable, Eaton may charge you fees for access to the Product Software, as provided in Appendix 2. You agree to pay all fees and charges, within the agreed upon billing period, including taxes, incurred through your account at the...
  • Page 84 Trojan horses, or other harmful or disabling components. 13.3 No oral or written information or advice given by Eaton, its affiliates, subsidiaries, or any of their respective authorized representatives shall create a warranty. You assume the entire cost of any and all necessary repairs in the event you experience any loss or damage arising from the use of the product software or any related goods or services.
  • Page 85 Eaton or its employees or agents to you or to any third party for damages, direct or otherwise, arising out of or in connection with this agreement exceed the lower of $100 (one hundred United States dollars) or...
  • Page 86 18. ENFORCEMENT RIGHTS 18.1 Eaton are not obligated to monitor the access or use of the Product Software, but Eaton reserves the right to do so for the purpose of operating the Product Software, to ensure compliance with these terms, and to comply with applicable law or other legal requirements.
  • Page 87 Agreement. You agree not to otherwise disclose such information to any third party without the prior written consent of Eaton. You shall be liable to Eaton for any breach of the confidentiality obligations in this Clause 20 of this Agreement by your employees.
  • Page 88 Agreement is terminated in accordance with its terms. 21.2 Eaton reserves the right, in its sole discretion and without notice to you, to suspend, terminate, modify or delete an...
  • Page 89 Third Party Links and Ads. Your use of Third Party Links and Ads is at your own risk and is subject to the terms and conditions of the applicable third party. Eaton provides Third Party Links and Ads for your convenience and does not review, approve, monitor, endorse, warrant, or make any representations with respect to Third Party Links and Ads.
  • Page 90 You acknowledge and agree that Eaton is not liable for any loss or damage which may be incurred as a result of the availability of those external sites or resources, or as a result of any reliance placed by you on the completeness, accuracy or existence of any advertising, products or other materials on, or available from, such web sites or resources.
  • Page 91 Eaton’s failure to enforce a term of this Agreement is not a waiver of its right to do so later. No failure or delay by Eaton or its affiliates to exercise any right or enforce any obligation shall impair or be construed as a waiver or ongoing waiver of that or any other right or power.
  • Page 92 Export Laws. If Eaton wants to deliver and/or grant access to the Product Software, Documentation, Materials, or parts of any of these directly to you, you will support Eaton in obtaining any required authorization, approval or other consent from the competent authorities, by providing any necessary or useful declarations or other necessary or useful information, e.g.
  • Page 93 28.1 This Agreement (and any associated order form or other agreements referenced herein) constitutes the entire and exclusive agreement between you and Eaton with respect to the subject matter of this Agreement, and supersedes and replaces any other prior or contemporaneous agreements, or terms and conditions applicable to the subject matter of this Agreement.
  • Page 94 1000 Eaton Boulevard Cleveland, OH 44122 Email: dataprotection@eaton.com Customer Service Contact Information: Phone: 400-889-3938 Email: 4008893938@eaton.com APPENDIX 1A Not applicable Third Party Software APPENDIX 1B Not applicable Eaton Open Source Component Copyright © 2023 Eaton Corporation plc. All rights reserved.
  • Page 95 Copyright © 2023 Eaton Corporation plc. All rights reserved.
