Sonoff ZBMINI-L Manual

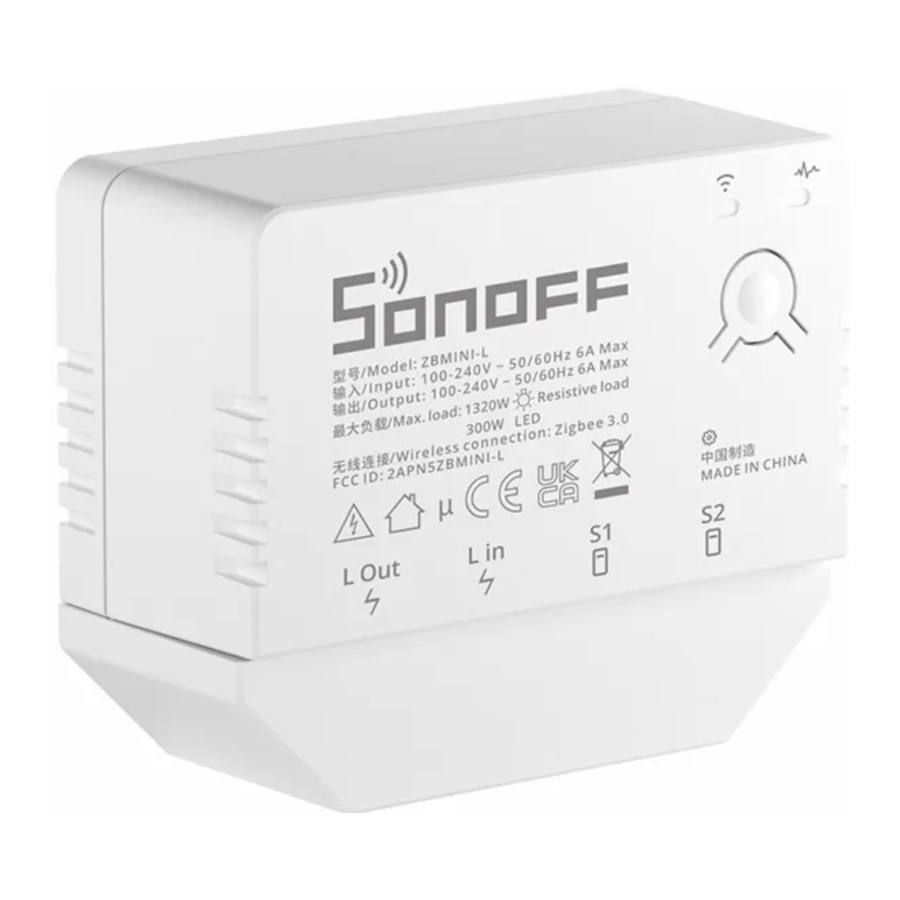

Product introduction

Product introduction
warning The device weight is less than 1 kg. The installation height of less than 2 m is recommended.

LED indicator status instruction

LED indicator status Status instruction
Green LED indicator slow flashes Pairing mode
Green LED indicator keeps on Device is on line
Green LED indicator quick flashes Abnormal network connection
ZBMINI-L and router connect normally, but router and the hub are disconnected
Green LED indicator slow flashes Abnormal network connection
Slow flashing under non-pairing state: ZBMINI-L and the parent device are disconnected
Red LED indicator on/off Device on/off

Features

SONOFF Zigbee 3.0 Smart Switch (No Neutral Required) allows you to remote control, schedule on/off and set smart scenes to trigger other devices, etc. by connecting Zigbee hub.

warning Above functions are determined by the connected ZigBee Hub.

Power off


warning Please install and maintain the device by a professional electrician. To avoid electric shock hazard, do not operate any connection or contact the terminal connector while the device is powered on!

Wiring instruction

Wiring instruction
warning For the above wiring methods, please ensure the proper wiring and powering of the L in terminal, otherwise it will cause the device to work abnormally.
warning Supported switches are rocker switch and push button and factory default by supporting rocker switch.
Method of change the switch type: Short-press the button 3 times, then the red LED indicator will quick flash 3 times to indicate that the switch mode is changed successfully.
warning Make sure all wires are connected correctly.

Operating instruction

Pair with eWeLink App

  1. Download the eWeLink App

    www.apple.com
    play.google.com
    Android™ & iOS
  2. Pair SONOFF ZB Bridge to your eWeLink account
  3. Power on
    After powering on, the device will enter the pairing mode defaulted during the first use and the Zigbee LED signal indicator will "flash slowly".
    warning The device will exit the pairing mode if it doesn't be paired within 3mins. If you want to enter again, long-press the button of the device for 5s until the Zigbee signal indicator "slow flashes" then release.
  4. Add ZBMINI-L to the ZB Bridge
    Open eWeLink App, tap "Add" icon on the ZB Bridge interface, then wait to looking for and add the sub-devices.
    warning If the addition failed, move the sub-device closer to the Bridge and try again.
    Pair with eWeLink App

Pair with Amazon Echo

  1. Download the latest Amazon Alexa App and pair it with Amazon Echo with built-in Zigbee hub.
  2. Power on ZBMINI-L, then it defaulted to enter the pairing mode and the Zigbee LED signal indicator "flashes slowly".
  3. Ask the Alexa Echo to discover the devices automatically by saying "Alexa, discover my devices".

warning The device will exit the pairing mode if it doesn't be paired within 3mins. If you want to enter again, long-press the button of the device for 5s until the Zigbee signal indicator "slow flashes" then release.
warning If the addition failed, move the sub-device closer to the Bridge and try again.


SmartThings
In addition to SONOFF ZB Bridge, this device is also supported: Samsung SmartThings hub.

Gateway adding instruction:

  1. Refer to the gateway user manual to download the matched APP and get it paired.
  2. Set the ZBMINI-L to the pairing mode
  3. Add ZBMINI-L according to the prompt of APP. Please select eWeLink or SONOFF when adding.

warning If the addition failed, move the sub-device closer to the Bridge and try again.

Specifications

Model ZBMINI-L
Input 100-240VAC50/60Hz6AMax
Output 100-240VAC50/60Hz6AMax
Max.load Resistive load:
1380W Max @230V, 720W Max @120V LED:
300W Max @230V, 150W Max @120V
Communication distance Up to 50m (Empty environment)
Wireless connection Zigbee3.0
Working temperature -10~40℃
Casing material PCV0
Product Size 54x45x24mm
Certification TUV/CE/FCC/UKCA/RoHS

warning Unsupported to use with other Inductive loads such as fan.

Factory reset

Return the device to its factory settings in any following ways (Device will enter the pairing mode automatically after resetting)

  1. Press 10 consecutive times the connected external switch, then the device will turn on and off 3 times automatically to indicate that setting successfully.
  2. Long-press the device for 5s.
  3. Delete the sub-device on eWeLink App

Supported voice assistant
