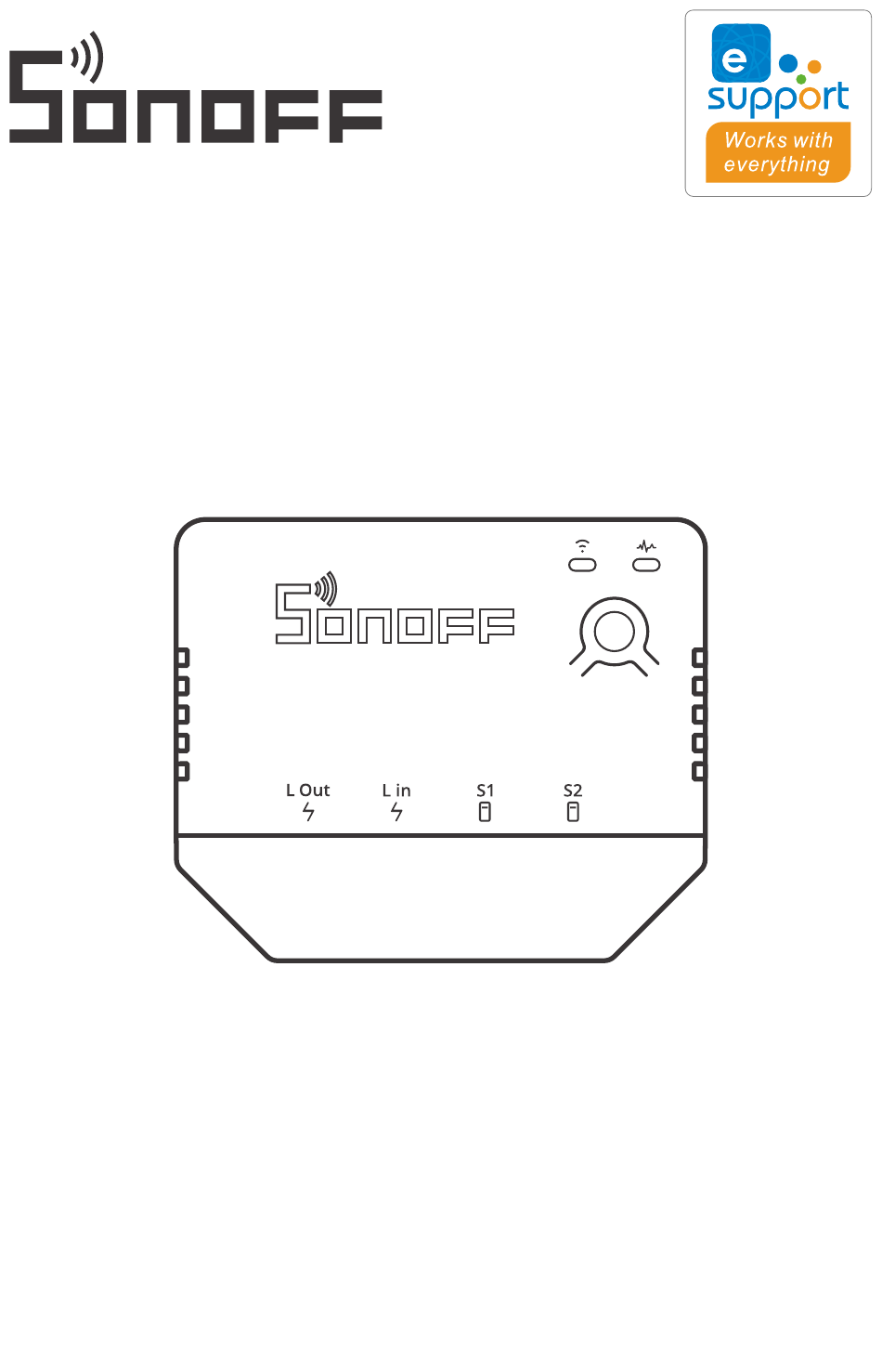

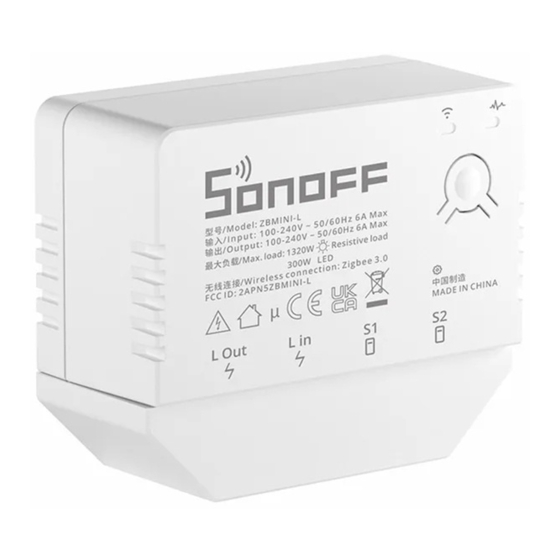

- Page 1 ZBMINI-L User manual V1.0 Smart Switch (No Neutral Required) · 中 文 -----------1-6 · FCC Warning--------13 · English----------7-12...
- Page 2 Shenzhen Sonoff Technologies Co., Ltd. 中⽂ 产品介绍 Zigbee信号指⽰灯 （绿⾊） 开关指⽰灯(红⾊) 按键 设备重量＜1Kg， 建议安装⾼度＜2⽶。 指⽰灯状态说明 指⽰灯状态 状态说明 绿灯慢闪 配对模式 绿灯常亮 ⽹络连接正常 ⽹络连接异常 绿灯快闪 ZBMINI-L和路由设备连接正常， 路由设备和⽹关断连 ⽹络连接异常 绿灯慢闪 ⾮配⽹状态下慢闪： ZBMINI-L 设备断连 红⾊亮/灭 设备开/关 功能特点 SONOFF单⽕智能开关(Zigbee版)基于Zigbee3.0⽆线通讯协议，通过连接Zigbee⽹关 实现远程控制、设置定时开/关、设备智能场景联动等功能。 远程控制 智能定时/延时 语⾳控制 分享功能 智能场景 外接开关...
- Page 3 Shenzhen Sonoff Technologies Co., Ltd. 中⽂ 断电 设备安装、 故障维修请由专业资质电⼯操作。 切勿在设备通电时进⾏接线操作或触碰到接线 端⼦， 以免发⽣触电危险！ 接线 L Out L Out L In L In 100-240V AC 100-240V AC ① ② L Out L Out L In L In 100-240V AC 100-240V AC ③ ④...
- Page 4 Shenzhen Sonoff Technologies Co., Ltd. 中⽂ 外接的开关类型⽀持翘板和⾃回弹开关， 出⼚默认为⽀持翘板开关类型。 开关类型切换⽅法： 短按按键三次， 设备红灯快闪3下提⽰， 此时开关类型切换成功。 确保线路接入无误。 使⽤说明 配对⾄易微联App 1.下载 “易微联” App eWeLink Android™&iOS SONOFFZigbee 关 3.上电 通电后， 设备⾸次使⽤， 默认进⼊配对模式， Zigbee信号指⽰灯呈 “ 慢闪” 状态。 三分钟内没配对成功， 设备将退出配对模式， 如需再次进⼊， ⻓按设备按键5秒直到Zigbee 信号指⽰灯呈 “慢闪” 状态即可。...
- Page 5 中⽂ 4.将ZBMINI-L添加⾄⽹关 ZB Bridge 添加设备 正在连接 已添加设备:0 请让设备尽量靠近网关 暂无子设备，请添加 > 135s 添加 找到设备 1个设备 已找到 打开eWeLinkApp， 选择要连接的⽹关， 点击 添加 ⼦设备， 等待搜索添加设备。 如添加失败， 请将设备移近⽹关后再重新添加。 配对⾄亚⻢逊⾳箱 1.下载最新版AmazonAlexaApp,并配对带Zigbee⽹关的亚⻢逊⾳箱。 2.给ZBMINI-L上电， 设备默认进⼊配对模式， Zigbee信号指⽰灯呈 “慢闪” 状态。 3.对亚⻢逊⾳箱说"Alexa,discovermydevices",即可⾃动发现设备。 三分钟内没配对成功， 设备将退出配对模式， 如需再次进⼊， ⻓按设备按键5秒直到Zigbee 信号指⽰灯呈 “慢闪” 状态即可。 如添加失败， 请将设备移近⽹关后再重新添加。...
- Page 6 中⽂ 其它App应⽤平台及⽹关推荐 SmartThings 本设备除⽀持SONOFFZigbee 关外， 还⽀持⽹关： Samsung SmartThings hub 添加说明： 1.参照⽹关使⽤说明书下载App和连接⽹关。 2.让设备进⼊到配对模式. 3.根据⽹关对应的APP提⽰添加设备，添加过程中选择eWeLink或SONOFF品牌。 如添加失败， 请将设备移近⽹关后再重新添加。 产品参数 产品型号 ZBMINI-L 100-240VAC50/60Hz6AMax 输⼊ 100-240VAC50/60Hz6AMax 输出 阻性负载： 1380W Max @230V, 720W Max @120V 最⼤负载 LED灯： 300W Max @230V, 150W Max @120V 通讯距离 最⼤50⽶ （空旷环境）...
- Page 7 Shenzhen Sonoff Technologies Co., Ltd. 中⽂ 恢复出⼚设置 可通过以下任意⽅法让设备恢复出⼚设置 （恢复出⼚设置后设备⾃动进⼊配对模式） : 1.按外接开关10下， 设备会⾃动开关3次表⽰设置成功。 2.⻓按设备按键5秒。 3.在eWeLinkApp端删除⼦设备。 ⽀持的语⾳平台...
-
Page 8: Product Introduction
Red LED indicator on/off Device on/off Features SONOFF Zigbee 3.0 Smart Switch (No Neutral Required) allows you to remote control, schedule on/off and set smart scenes to trigger other devices, etc. by connecting Zigbee hub. Remote Control... -
Page 9: Power Off
Shenzhen Sonoff Technologies Co., Ltd. English Power off Please install and maintain the device by a professional electrician. To avoid electric shock hazard, do not operate any connection or contact the terminal connector while the device is powered on! Wiring instruction L Out L Out L In... - Page 10 Android™ & iOS 2. Pair SONOFF ZB Bridge to your eWeLink account 3. Power on After powering on, the device will enter the pairing mode defaulted during the first use and the Zigbee LED signal indicator will “flash slowly”.
- Page 11 1. Download the latest Amazon Alexa App and pair it with Amazon Echo with built-in Zigbee hub. 2. Power on ZBMINI-L, then it defaulted to enter the pairing mode and the Zigbee LED signal indicator “flashes slowly”. 3. Ask the Alexa Echo to discover the devices automatically by saying “Alexa, discover my devices”.
-
Page 12: Specifications
1. Refer to the gateway user manual to download the matched APP and get it paired. 2. Set the ZBMINI-L to the pairing mode 3. Add ZBMINI-L according to the prompt of APP. Please select eWeLink or SONOFF when adding. -
Page 13: Factory Reset
Shenzhen Sonoff Technologies Co., Ltd. English Factory reset Return the device to its factory settings in any following ways (Device will enter the pairing mode automatically after resetting) 1. Press 10 consecutive times the connected external switch, then the device will turn on and off... -
Page 14: Fcc Warning
Shenzhen Sonoff Technologies Co., Ltd. FCC Warning FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could avoid the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 15 Hereby, Shenzhen Sonoff Technologies Co., Ltd. declares that the radio equipment type ZBMINI-L is in compliance with Directive 2014/53/EU.The full text of the EU declaration of conformity is available at the following internet address: https://www.sonoff.tech/usermanuals Shenzhen Sonoff Technologies Co., Ltd.
