Sonoff ZBMINIR2 Manual

Introduction

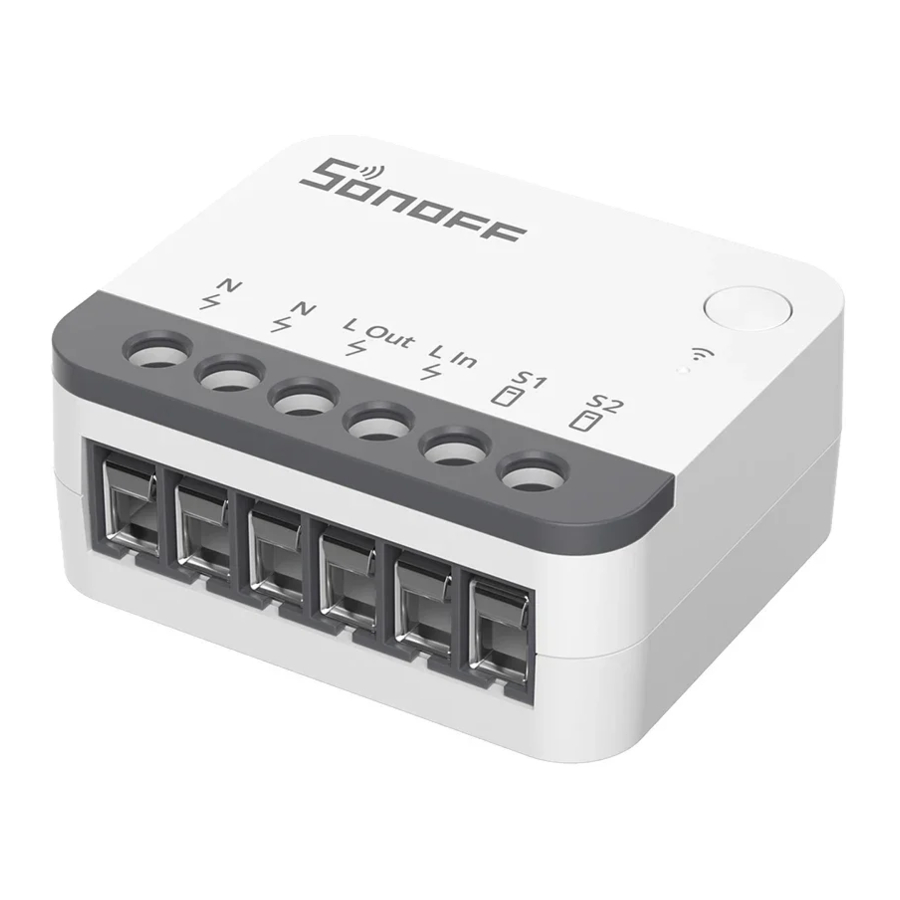

This is an extremely compact Zigbee 3.0 single-channel neutral wire switch, capable of being installed in a mounting box and supporting a maximum load of 10A, thus making ordinary switches smart. It supports a repeater function to easily improve Zigbee communication quality and can also link with other devices in smart scenarios to realize your home automation.

Features

• Remote Control
• Timer Schedule
• Voice Control
• Smart Scene
• Power-on State
• Inching Mode
• Relay function
• Group Control

Parts Description

1. Button
   • Single press: Turn on/off the smart device.
   • Press and hold for 5 seconds: Device enters the pairing mode.(Pairing time 10 minutes)
   • Click three times in succession: Switch the external switch type.
2. LED indicator (Green)
   • Flash slowly for 180 seconds: First-time power on/Device is in pairing mode.
   • Steady on: Normal connection with the gateway.
   • Slow flash: The device is in pairing mode.
   • Fast flash: Abnormal connection with the gateway.
   • Flashes three times quickly: Switch the external switch trigger type.

Compatible Voice Assistants

Specification

*This product is only suitable for safe use at altitudes below 2000m.

Installation

1. Power off


   Please install and maintain the device by a professional electrician. To avoid electric shock hazard, do not operate any connection or contact the terminal connector while the device is powered on!
2. Wiring instruction

   1. It is prohibited to connect S1 and S2 terminals to the neutral or ground wire, in order to avoid damaging the equipment and causing danger.
   2. Make sure all wires are connected correctly.
   3. Supported switches are rocker switch and push button and factory default by supporting rocker switch.

Method of changing the switch type: short press the button 3 times until the green indicator flashes 3 times quickly, now you change the switch type successfully.

Add Device

1. Download the eWeLink App

   & Add SONOFF Zigbee Gateway
   Please download the "eWeLink" App from Google Play Store


   or Apple App Store


2. Scan QR code to add the device.
   1. Enter "Scan"

   2. Scan the QR code on the device

   3. Select "Add Device"

   4. Power on the device

   5. Long press the button for 5 seconds

   6. The LED indicator flashes slowly for 180s

   7. Select Zigbee gateway

   8. Wait until the addition is done


Matched Gateways

Recommended SONOFF gateway models: ZBBridge-P, NSPanel Pro, iHost, ZBBridge-U Other compatible SONOFF gateway models: ZBDongle-P, ZBDongle-E

Third-party compatible gateway models:
Amazon Gateway Model: Echo Plus 2nd, Echo Show 2nd, Echo 4th Gen
Samsung Gateway Model: SmartThings hub V3

*Other gateways supporting ZigBee3.0 wireless protocol. Detailed information is in accordance with the final product.

Install the MINI Extreme in the mounting box

Factory Reset

Trigger conditions (any one condition met)

• Press and hold the device button for 5 seconds.
• Quickly press the external switch 10 times (except for the external switch type, all other settings will be restored to factory defaults).
• Delete the device on eWeLink.

To ensure the safety of your electrical installation, it's essential either a Miniature Circuit Breaker (MCB) or a Residual Current operated Cicuit-breaker with Integral Overcurrentprotection(RCBO) with an electrical rating of 10A has been installed before the ZBMINIR2.
