Sonoff BASICR4 Manual

Introduction

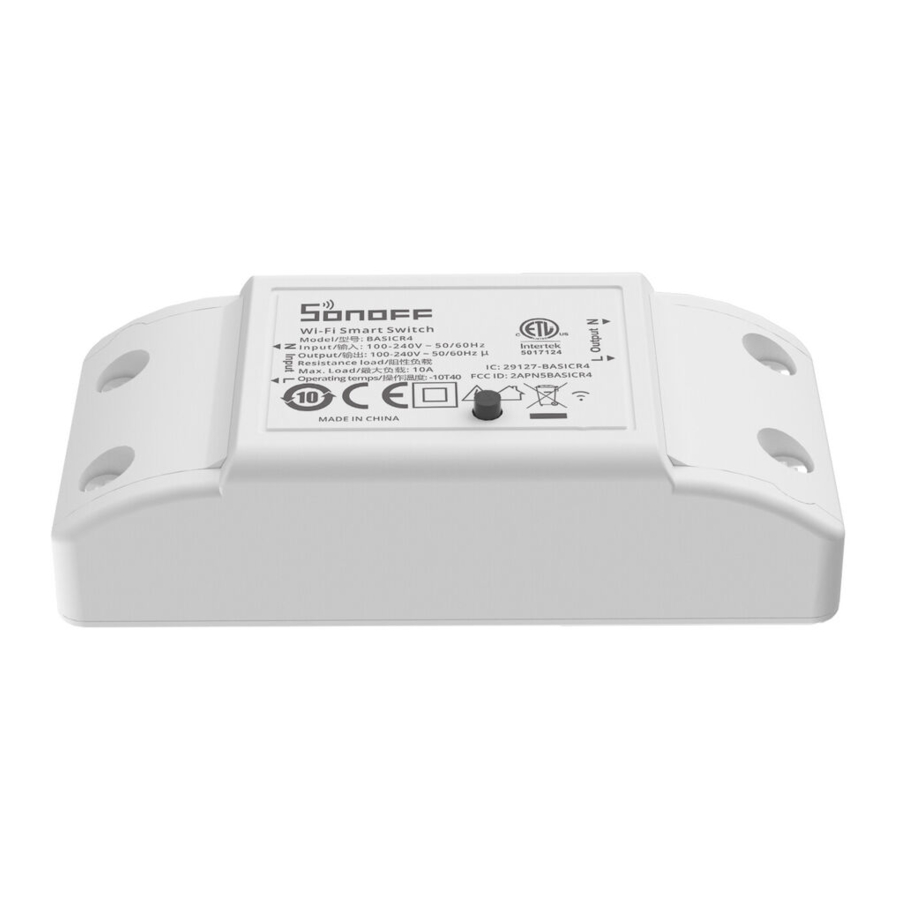

A Wi-Fi smart switch integrating APP remote control, voice control, timer and other functions. You can control your home appliances anytime, anywhere, and also create a variety of smart scenes to facilitate your life.

1. Button
   Single press: Changing the on/off state of relay contacts
   Long press for 5s: Enter pairing mode
2. Wi-Fi LED indicator (Blue)
   • Flashes two short and one long: Device is in pairing mode.
   • Keeps on: Online
   • Flashes once: Offline
   • Flashes twice: LAN
   • Flashes three times: OTA
   • Keep flashing: Overheat protection
3. Wiring ports
4. Protective cover

Compatible Voice Assistants

Specification

Installation

1. Power off

   * Please install and maintain the device by a professional electrician. To avoid electric shock hazard, do not operate any connection or contact the terminal connector while the device is powered on!
2. Wiring instruction
   To ensure the safety of your electrical installation, it's essential either a Miniature Circuit Breaker (MCB) or a Residual Current Operated Circuit Breaker (RCBO) with an electrical rating of 10A has been installed before the BASICR4.
   Wiring: 16-18AWG SOL/STR copper conductor only, Tightening torque: 3.5 lb-in

   • Make sure all wires are connected correctly.
3. Power on
   After powering on, the device will enter the Pairing Mode defaulted during the first use, and the LED indicator flashes in a cycle of two short and one long.

   * The device will exit the Pairing Mode if it is not paired within 10mins. If you want to enter this mode again, please long press the button for 5s until the LED indicator flashes in a cycle of two short and one long and then release.

Add device

1. Download the eWeLink App
   Please download the "eWeLink" App from Google Play Store or Apple App Store.


2. Add device
   Please follow the wiring instructions to connect the wires (ensure power is disconnected in advance and consult an electrician if needed)

   Power on the device

   Enter "Scan"

   Scan the BASICR4 QR code on the device body

   Select "Add Device"

   Long press the button for 5 seconds

   Check Wi-Fi LED indicator flashing status
   (Two short and one long)

   Search for the device and start connecting

   Select the "Wi-Fi" network and enter the password.

   Device "Added completely".


Installation and use

1. Lay flat before use
2. Use of Fixing Screw
   1. Screw the lower cover to the wall

   2. Close the upper cover

   3. Secure the protective cover with screws


Device function

1. Magic Switch Mode
   After short-circuiting the L1 and L2 of the switch terminals through the wires, the device can still be online and can be controlled through the APP after the users flip the wall switch to turn off/on the light.

   • Add a wire to connect L1 to L2 on the wall switch following the manual, and the device will stay online even when you switch it off via the wall switch after "Magic Switch Mode" enabled.
   • The "Power-on State" will automatically be set to OFF, to make the "Magic Switch Mode" functional when enabled.
   • The "Magic Switch Mode" will automatically disable after your adjustment to the "Power-on State".

Note: Only compatible with mainstream brands of double pole Rocker switches. The rear-end light needs to be compatible with mainstream brands of LED, energy-saving lamps, and incandescent lamps ranging from 3W to 100W.
* This function also applies to dual-control lamps

2. Auxiliary overheating protection
   With the product built-in temperature sensor, real-time maximum temperature of the entire product can be detected and speculated, which prevents the product from deformation, melting, fire or live devices exposing in case of over-temperature.
   The device automatically cuts off the load when it gets too hot. To exit the overheating protection mode, simply press the button on the device after confirming that the load is functioning normally without any internal shorts, excessive power, or leaks.
   * Please note that this function only serves as auxiliary protection and cannot be used in place of a circuit breaker.

Device Network Changing

Change the device's network by "Wi-Fi Settings" in the "Device Settings" page on the eWeLink App.

Factory Reset

Reset the device to factory settings by "Delete device" in the eWeLink App.

FAQ

Fail to pair Wi-Fi devices with the eWeLink App

1. Make sure the device is in pairing mode.
   The device will automatically exit the pairing mode if it is not paired within 10 mins.
2. Please enable location service and allow access to location permission.
   Before connecting Wi-Fi network, please enable the location service and allow access to the location permission. Location information permission is used to obtain Wi-Fi list information, if you "disable" the location service, the device cannot be paired.
3. Make sure your Wi-Fi works on 2.4GHz band.
4. Make sure to enter the Wi-Fi SSID and password correctly without special characters. Incorrect password is a common cause of pairing failure.
5. To ensure good signal transmission while pairing, please place the device close to the router.

The LED indicator flashes twice on repeated means the server fails to connect.

1. Make sure the networking is normal. Check the internet works well by connecting your phone or PC. If fail to connect, please check the availability of the Internet connection.
2. Please check the maximum number of devices that can be connected to your router. If your router has a low capacity and the number of devices connected to it exceeds the maximum, remove some devices or use a higher-capacity router.

If the above methods cannot help to solve the problem, please submit your problem to "Help & Feedback" on the eWeLink App

Wi-Fi devices are "offline"

1. Devices fail to connect to the router.
2. Entered the wrong Wi-Fi SSID and password.
3. Wi-Fi SSID and password contain special characters, for example, our system can't recognize Hebrew and Arabic characters, which causes Wi-Fi connections to fail.
4. Low capacity of the router.
5. Wi-Fi signal is weak. The router and the devices are too far apart, or there is an obstacle between the router and the device, which prevents the signal from being transmitted.

Manufacturer: Shenzhen Sonoff Technologies Co., Ltd.
Address: 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China
ZIP code: 518000
Service email: support@itead.cc
Website: sonoff.tech
