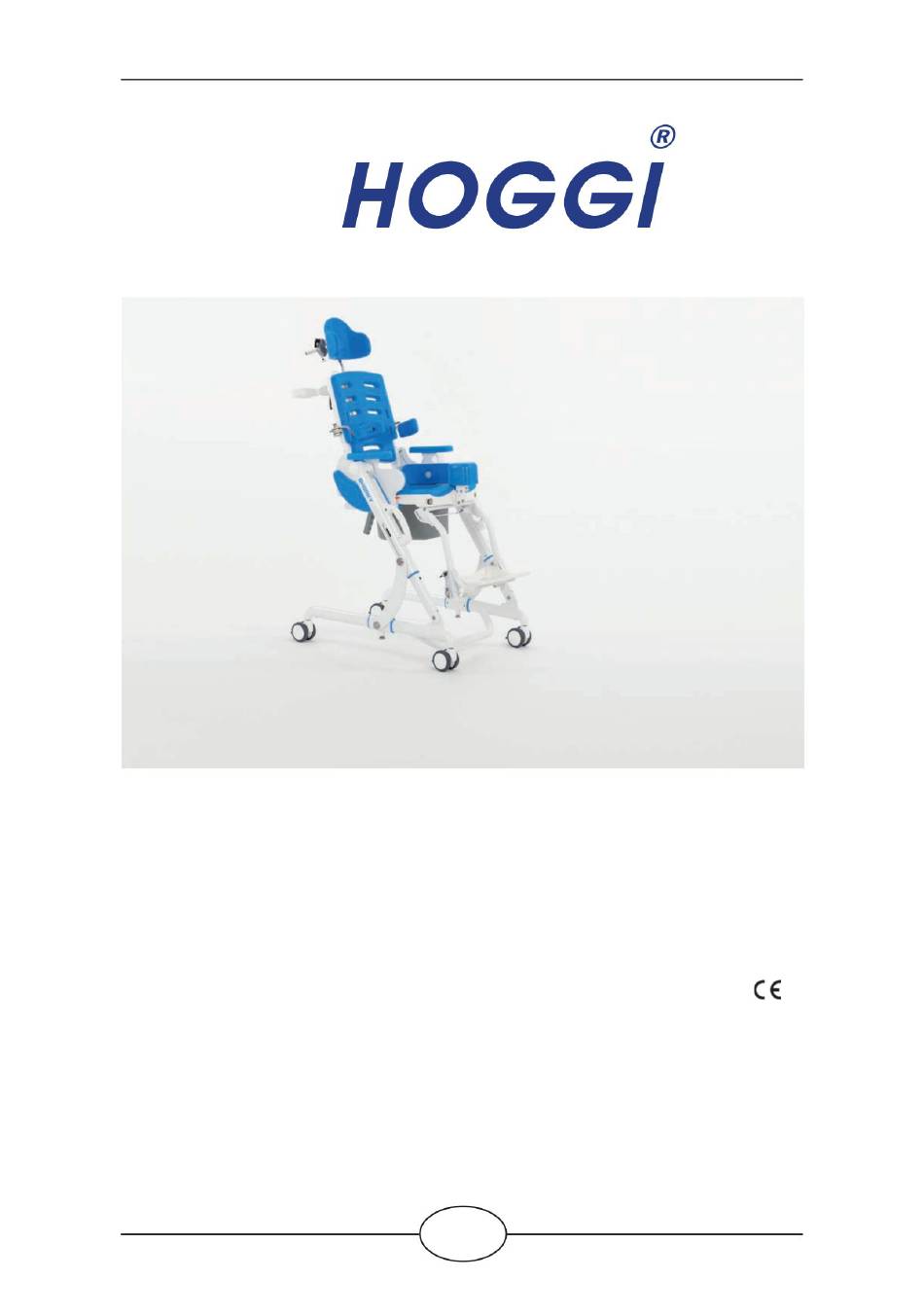

- Page 1 Machine Translated by Google Partnership for mobile children SHARKY User manual...
-
Page 2: Table Of Contents
Machine Translated by Google User manual for SHARKY Model identification and basic configuration 1.1 Model identification ___________________________________________________________________3 1.2 Basic configuration ___________________________________________________________________3 1.3 Environmental conditions ______________________________________________________________3 2 General information 2.1 Preface ____________________________________________________________________________4 2.2 Application________________________________________________________________________________4 2.3 Declaration of conformity ______________________________________________________________4 2.4 Terms of warranty ________________________________________________________________________ 4 2.5 Service and repairs ___________________________________________________________________4... -
Page 3: Model Identification
1.3 Environmental conditions: Environmental factors such as temperature and humidity can damage SHARKY. The manufacturer recommends not condensing the SHARKY at temperatures above +40°C. Caution: Prolonged exposure to the sun may cause parts of the wheelchair to become hot. Please pay attention! -
Page 4: Common Information
2.2 Application The SHARKY toilet wheelchair for children is used for indoor and daily use in wet areas. It is used by children and young people with a deficit in the area of sitting down and standing up for individual use in daily care / hygiene or in toilet training. Various bases guarantee numerous possible uses such as use as a toilet chair, toilet seat, bathtub insert or mobile positioning options for daily personal hygiene. -
Page 5: Accessories List
The person who is using the wheelchair and its accessories should understand all instructions. It must be explained to every other person using the wheelchair and its accessories instructions are not clear and further explanations become necessary, or if you have further questions please contact your HOGGI dealer. - Page 6 Strap your child at all times, when he is in the toilet wheelchair. HOGGI points out that any use besides the typical use can be dangerous. The toilet wheelchair is not suitable for jogging, running, skating or similar activities. In addition, the chair may corrode more quickly when used in swimming pools or pools.
- Page 7 Load the ventral upper body support with a maximum of 5 kg. When stored in the folded state, no load may act on the frame. Maximum load SHARKY: 60 kg. Accessories and add-ons reduce the maximum load proportionately. Protruding strap ends of the accessory parts could jam in the seat angle adjustment mechanism and prevent the locking bolts from engaging.
- Page 8 In these cases it is imperative to wear appropriate clothing to protect the skin. Sharky should always be locked by braking the 4 casters to prevent it from rolling away unintentionally. Only use accessories and spare parts that have been approved by HOGGI, otherwise you will endanger the safety of the child.
-
Page 9: Delivery And Preparation For Use
Machine Translated by Google 4 Delivery and preparation for use SHARKY will be supplied completely assembled. Delivery on board: approx. 880 mm (L) x 700 mm (W) x 400 - 450 (H) Please check the condition of the product if the packaging shows damage. - Page 10 • Make sure that both snappers audibly snap into place. Height adjustment: • Pull both ratchet handles forward at the same time and move the SHARKY to the desired height position. Make absolutely sure that no child is sitting in the SHARKY when the height is adjusted.
-
Page 11: Accessories
Machine Translated by Google To insert the seat unit, please proceed as follows: • Pull the release rope (as shown) and move the backrest upwards. • Engage both bolts audibly in the desired back angle position. • Place the seat in the frame from above as shown. •... -
Page 12: Footrest System
Machine Translated by Google • Position the push handle on the back frame as shown and insert it four M6x16 cylinder head screws provided. • Secure the screw connection with the supplied washers and the self- locking nuts. 5.2 Attaching the footrest system To attach (and also to remove) the footrest the smallest knee angle may not be preset (see marking X). - Page 13 Machine Translated by Google • Make sure that the openings are hooked behind the locking shafts of the seat frame. • Swivel the footrest forwards until the snappers audibly click into place. Adjusting the knee angle ° ° duck 138 The knee angle can be adjusted between 78 bolts using a lock under the front edge of the seat plate.
-
Page 14: Headrest
Machine Translated by Google Removing the footrest system To remove (and also to attach) the footrest the smallest knee angle may not be preset (see marking X). ° In addition, we recommend to position the seat in a tilt of 45 shown.. •... -
Page 15: Lateral Pu Pads
Machine Translated by Google • Open the clamping lever as shown and select the desired angle position of the headrest. • Close the clamping lever. 5.4 Trunk supports The illustration shows the clamp in the back frame for mounting the trunk support. -
Page 16: Chest-Shoulder Harness
Machine Translated by Google Swiveling the trunk support away: • Pull the pull latch up to release the locking. • Move the trunk supports backwards 5.5 Chest-shoulder harness Illustration shows the chest-shoulder harness. • Guide the strap through the eyelet in the back area from the front as shown. -
Page 17: Lap Belt
Machine Translated by Google • Guide the strap behind the cross brace of the back frame as shown. • Guide the strap back through the bar buckle as shown. • Guide the strap back through the bar buckle and back through the eyelet on the back as shown •... - Page 18 Machine Translated by Google • Guide the end of the strap through the eyelet on the base of the back as shown. • Guide the end of the strap back through the bar buckle as shown. • Guide the end of the strap back through the bar buckle as shown. •...
-
Page 19: Pelvic Retraction Belt
Machine Translated by Google 5.7 Pelvic retraction belt Illustration shows the pelvic retraction belt. • To assemble, screw the pelvic retraction belt as shown into the thread of the back base. • Then do the same on the other side. •... -
Page 20: Ventral Upper Body Support
Machine Translated by Google • Press the release button as shown and select the desired armrest height. • Make sure that it is securely locked. The armrest can also be removed. 5.9 Ventral upper body support • Illustration shows the ventral upper body support. •... -
Page 21: Abduction Block
Machine Translated by Google • Make sure that it is securely locked. 5.10 Abduction block Insert: • Position the abduction block as shown. • Swing the abduction wedge upwards and press it into the anchorage. Removal: • Activate the locking hook and pull the abduction block out towards the front. -
Page 22: Ankle Choppers
Machine Translated by Google • Insert the calf strap as shown and position it at the desired height. • Reinstall the footrest at the desired height and close the thumbscrew on both sides of the footboard bearings. 5.12 Ankle grabber Illustration shows an ankle chopper. -
Page 23: Splash Guard
Illustration shows the hygiene opening without the infill pad. 5.16 Bath subframe The SHARKY bath base is suitable for use in all conventional baths and works with the use of the accompanying seat unit. Before each use, it is imperative to check the bathtub underframe for damage! -
Page 24: Toilet Adapter
5.17 Toilet adapter • The SHARKY toilet adapter is suitable for use on all conventional toilets and works with the use of the accompanying seat unit. Before each use, the toilet adapter must be checked for damage. - Page 25 Machine Translated by Google • The adapter plate must first be installed in the appropriate positions on the toilet. • Screw connections must be tightened firmly here, to guarantee a secure hold. • The adapter frame is plugged into the holder via the front. •...
-
Page 26: Pu Hip Support Pads
5.18 PU hip support pads Illustration shows lateral PU pads. 5.19 Castor lock SHARKY is equipped with 4 casters, each of which is equipped with a total stop including directional lock. These prevent unintentional rotation/twisting of the wheels. To lock the brake, press the brake lever down with your toe as shown. - Page 27 Machine Translated by Google The smallest packing size can be achieved with removed seat and footrest hanger.
-
Page 28: Maintenance / Service And Repairs / Operating Life
7.1 Maintenance/Service and Repair Your SHARKY is CE approved. The manufacturer hereby guarantees that this medical product as a whole conforms to the basic safety and performance requirements in accordance with Annex I to Regulation (EU) 2017/745 of the EU Parliament and of the Council. The wheelchair should be checked for correct function before every use. -
Page 29: Specifications
380mm Turning radius min. 926mm 926mm Turning area between two walls Load capacity** 60kg 60 kg Weight (seat) 10 kg ATTENTION! *Accessories and mounting parts reduce the remaining vehicle load capacity. ATTENTION! **Weight refers to a SHARKY in basic configuration. -
Page 30: Storage
Machine Translated by Google 9 Storage SHARKY can be transported and/or stored in the folded state. However, it is possible to dismantle the toilet wheelchair into a few smaller packages in a few easy steps. The smallest pack size can be achieved with the seat and the knee angle system removed. - Page 31 Machine Translated by Google...
- Page 32 Machine Translated by Google HOGGI GmbH Eulerstraße 27 • 56235 Ransbach-Baumbach • Deutschland Telephone: (+49) 2623 / 92 499-0 • Fax: (+49) 2623 / 92 499-99 E-mail: info@hoggi.de • www.hoggi.de...
