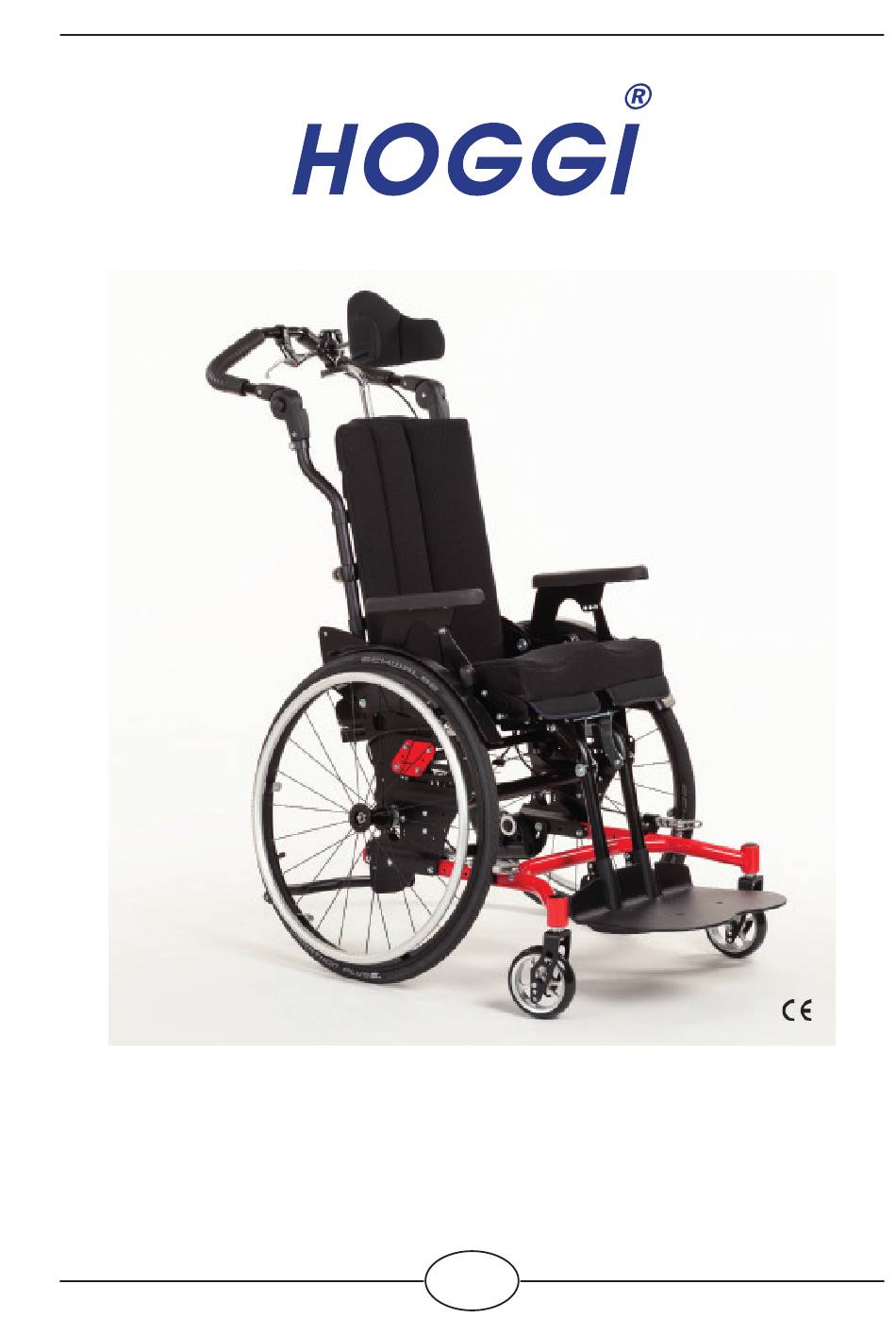

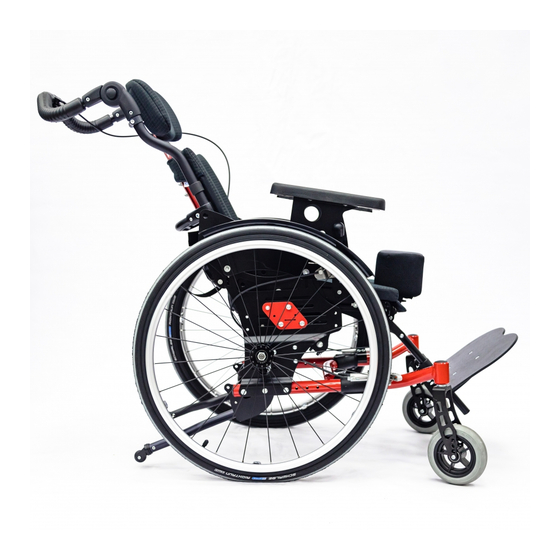

- Page 1 Partnerschaft für mobile Kinder SWINGBO VTi - XL Service instructions...
-
Page 2: Table Of Contents
SWINGBO VTi-XL Service and maintenance instructions Content Page Model identification & basic configuration 1.1 Model identification (label)_____________________________________________________ 4 1.2 Basic configuration __________________________________________________________ 5 Overview SWINGBO VTi-XL _______________________________________________________ 6 Common information ____________________________________________________________ 7 3.1 Preface ___________________________________________________________________ 7 3.2 Application_________________________________________________________________ 8 3.3 Declaration of conformity______________________________________________________ 8 3.4 Terms of warranty ___________________________________________________________ 8... - Page 3 7.11 Fender ___________________________________________________________________ 30 7.12 Anti tip ___________________________________________________________________ 30 7.13 Footrest hange ____________________________________________________________ 31 7.14 Footrest bracket _________________________________________________________31-32 7.15 Footrests _________________________________________________________________ 32 7.16 Seat and back cushion ______________________________________________________ 33 7.17 Tie down kit _______________________________________________________________ 33 7.18 Spoke guards _____________________________________________________________ 33 7.19 Headrest Standard _________________________________________________________ 34 7.20 Headrest with occiput upholstery ______________________________________________ 34 7.21 Thoracic support ___________________________________________________________ 34...
-
Page 4: Model Identification (Label)
1.1 Model identification (label) (The label of SWINGBO VTi XL is attached to the rear axle tube) Colour code 3249-10SB-XXX Article number SWINGBO VTi XL Hoggi GmbH Size / Variante Kantelbarer Rollstuhl Eulerstr. 27 56235 Ransbach-Baumbach MADE IN GERMANY Serial number max. -
Page 5: Basic Configuration
- Wheel base adjustable - Wheel locks integrated in side panels with HOGGI light brakes - HOGGI light rear wheels incl. push rims (removable via quick release axle) - Seat depth adjustable by apx. 12 cm - Choice of seat widths 36 -44 cm... -
Page 6: Overview Swingbo Vti-Xl
2 SWINGBO VTi-XL Overview Pos Article number Article description 3249-11SB-000 Base frame ??? HOGGI Light 3245-22SB-015 Seat frame 3249-15XX-015 Seat adapter 324X-XXSB Push bar and push handles 3246-1900 Tilt adjustment 3248-16XX Fender 3248-16XX Fender with integrated brake 12XX-XXXX Rear wheels and push rims... -
Page 7: Common Information
Please use all documents together. Use the maintenance schedule (Chapter 5.2, Checklist to tick off) as a copy template. Retain completed maintenance schedules and provide a copy to the customer. User manual 1910-0035-EN SWINGBO VTi-XL Spare parts catalog 1910-1012-EN SWINGBO VTi-XL... -
Page 8: Application
- Osteogenesis Imperfecta - Poliomyeliti SWINGBO VTi-XL wheelchair is able to be used for further service. For further service the product has to be cleaned and sanitised efficiently. Afterwards the product has to be checked concerning condition, wearout and damage by an authorised technician. All damaged and inapropptiate parts need to be changed. -
Page 9: Service And Repairs
You can reach us at: info@hoggi.de 3.7 Packing and shipping instructions If SWINGBO VTi-XL has to be sent back to the manufacturer for repair or exchange the product must be thoroughly cleaned/disinfected beforehand and put in a hygienically safe condition. -
Page 10: Safety Instructions
Familiarize yourself with the functions of the product. If you are not familiar with the product, study the user manual before testing. If no user manuals are available, request them from us. You can also download documents from our homepage at: www.hoggi.de Attention! Study the service and maintenance instructions before starting work. -
Page 11: Required Tools And Maintenance Schedule
5 Required tools and maintenance schedule 5.1 Required tools The following list shows the tools and utilities required for service. Reversible ratchet and sockets Torque wrench Wrench Measuring ranges 5-50 Nm size 8-24 Size 6 - 24 Hexagon wrench Screwdriver Phillips screwdriver Gr. -
Page 12: Maintenance Schedule
Customer: Maintenance schedule SWINGBO-VTi-XL for regular inspection System wheelchair .......... Area Check (Checklist to tick off Pos. Serial number: Function / Setting Screw connections none (see instruction manual) damage / defor- ........mation 1. Basic product Frame - Damages Base plates and Cross tube - Active degree - Seat height... - Page 13 Function / Setting Screw connections none damage / defor- mation 2. Accessories Fender - Height adjustment Anti tip and tip assist - Anti tip - Swivel away - Angle adjustment Footrest hanger - Angle adjustment Footrest bracket - Lower leg length - Folding away the footrest - Footrest lock Footrests...
-
Page 14: Seat Settings
Die Basisplatte bietet hier 6 Positionen zu je 7,5 mm. Hierraus ergibt sich ein Verstellbereich von insgesamt 3,75 cm Frame alignment The frame of SWINGBO VTi-XL can be aligned in two ways. This results in different adjustment ranges. Frame alignment high... - Page 15 Frame alignment low Depending on the wheel camber and individual requirements, the following guidelines result:...
-
Page 16: Seat Depth
6.2 Seat depth SWINGBO VTi-XL offers a seat depth adjustment range of 12 cm. Measured from the outer edge of the backrest plate to the front edge of the seat plate. To adjust the seat depth, a total of 4 screws must be loosened. -
Page 17: Active Degree
After the front screw connections have been loosened, the rear screw connections must be found. Due to the design of the SWINGBO VTi XL and the individual seat height settings, the rear screw connections are not always directly visible. In this case, the seat unit may have to be moved to a different seat angle position in order to make the screw connection between the oblong holes visible. -
Page 18: Seat Angle
The trough back offers the following adjustment ranges depending on the seat width: Seat width (SW) Backrest height for 40-50 43-55 45-57 48-60 trough shaped back After loosening the indicated screw connections, the back can be pulled out or pushed in. The angle-adjustable back offers the following ranges: Seat width (SW) Backrest height for... -
Page 19: Back Angle Adjustment
The tilt is triggered by a locking pin pull, which is controlled by a release lever on the push bar or push handle. 6.6 Back angle adjustment The back angle adjustment on the SWINGBO VTi XL depends on the selected push bar/push handle variant and the corresponding back. A distinction must be made here: 1. - Page 20 Push bar/handles foldable with trough-shaped backrest In contrast to the detachable push handles, the back is directly attached to the foldable push handles. In addition, the back is always used in the shape of a trough. The back angle can be set to 5 different angles depending on how it is screwed to the seat mount.
-
Page 21: Lower Leg Length
Bolting point of the latch housing with locking bolt on the back base plate. 6.7 Lower leg length SWINGBO VTi-XL can basically be equipped with 3 different footrest hanger. Shown here is the footrest hanger 90°. The footrest hanger can be swivelled up via the towing latches, but not fixed. -
Page 22: Footrest Angle And Depth
The further the footrest is pulled out to the front, the the greater the angle. If the procedure is reversed the angle decreases accordingly. 6.9 Armrest height and angle SWINGBO VTi-XL offers various adjustable armrest heights. Size 1: 14-21 cm Standard:... - Page 23 The armrest with tilt compensation remains as horizontal as possible during the tilting movement and is therefore more suitable for use with a table. The height can be adjusted in x1.5 cm steps by repositioning the front and rear screw connections. To loosen the screws, first tilt the chair to 45°.
-
Page 24: Maintenance Schedule
7. Maintenance schedule 7.1 Frame Functional test: - Check for general damage or deformation to the frame structure - Cracks in the construction - Cross tube bolting 7.2 Base plates und cross tube Functional test: - Check for general damage - Adjustment of the active degree via pressure plates Check of the screw connections: - Screw connections to the cross tube... -
Page 25: Seat Unit
7.4 Seat unit Functional test: - Check for general damage - Correct seat depth - Tilt via locking bolt tension Check of the screw connections: - Seat frame to the support brackets for the adjustment of the seat depth - Seat plate on the seat frame - Seat mounts to the tilt bearings 7.5 Back system &... - Page 26 - Clamping lever for height adjustment of the push bar or handles - Tripod spring for removal - Screw connection of the crossbar to the seat Backrest panel in trough shape - Screw connection to the backrest height adjustment and to the clamps on the push handles - Connection to the seat adapter - Connection via support strut to seat adapter...
-
Page 27: Braking System
7.6 Braking system Knee lever brakes Functional test: - Brake closure - Faultless operation - Visible damage Brake HOGGI light Brake opened Functional test: - Brake closure - Faultless operation - Visible damage Brake closed Check of the screw connections:... -
Page 28: Wheel Fork Holder
Functional test: - Operability of the brake lever and smooth glide - Good brake closure and contact pressure of the brake bracket - Correct positioning of the brake lever in relation to the wheel. 90° angle and 3-5 mm wheel protrusion - Check for general damage Check of the screw connections: - Fastening the brake lever to the fender... -
Page 29: Steering Wheel
Check of the screw connections: - Screw connection of the wheel axle - Bolting the steering fork axle to the frame 7.8 Steering wheels Functional test: - Check for general damage - Check of the tread or profile (cracks, heavy wear) - Wheel curvature too worn (tread max. -
Page 30: Fender
7.11 Fender Standard fender Functional test: - Check for general damage - Screw connection to the base plate firmly tightened Fender with integrated armrests Functional test: - Height adjustment and latching of the armrest - Damage to the armrest cushion - Damage to the release button - Screw connection to base plate firmly tightened - Armrest holder firmly screwed to wheel cover... -
Page 31: Footrest Hange
7.13 Footrest hanger Footrest hanger Functional test: - Check for general damage - Distance to the seat plate - Screw connection to the seat plate Footrest hanger angle adjustable Functional test: - Check for general damage - Swivel mechanism - Clamping lever for angle adjustment - Screw connection to the seat plate Single foot rest hanger Functional test:... -
Page 32: Footrests
Check of the screw connections: - Wing screws for lower leg length adjustment - Screw connection of the swivel mechanism - Screw connection to the footboard with correct angle adjustment 7.15 Footrests Footrest standard Functional test: - Check for general damage - Screw connection to the footrest holder Foot rest with heel stop Functional test:... -
Page 33: Seat And Back Cushion
7.16 Seat- and back cushion Standard seat cushion - Check for general damage (Velcro fastening, seams, holes or strapped-through areas) - Check for contamination Seat cushion contoured - Check for general damage (Velcro fastening, seams, holes or strapped-through areas) - Check for contamination Back cushion - Check for general damage (Velcro fastening, seams, holes or strapped-through areas) -
Page 34: Headrest Standard
7.19 Headrest standard Functional test: - Check for general damage - Checking the screw connection to the back panel 7.20 Headrest with occiput upholstery Headrest bracket Functional test: - Check for general damage - Checking the clamping ability - Checking the screw connection to the back panel Headrest with upholstery Functional test: - Adjustment possibilities... -
Page 35: Hip Supports
7.23 Hip supports Functional test: - Check for general damage - Width adjustment - Depth adjustment on the seat plate and the pad itself - Screw connection of the pad support under the seat panel - Screw connection of the pad on the support 7.24 Abduction block Functional test: - Check for general damage... -
Page 36: Belt Fixations
7.27 Belt fixations Lap belt Functional test: - Check for general damage - Check of the fastener - Check of the screw connection of the bracket 4-point lap belt Functional test: - Check for general damage - Check of the fastener - Check of the screw connection of the bracket Ankle hugger Functional test:... -
Page 37: Operating Life
8. SWINGBO VTi operating life: The expected operating life of the SWINGBO VTi-XL is 5 years, depending on the intensity of use, care as well as maintenance. We recommend an annual inspection by the authorized specialist dealer. In case of malfunctions or defects of the wheelchair, it must be immediately handed over to the medical supply store or the specialist dealer. - Page 39 HOGGI GmbH Eulerstraße 27 • 56235 Ransbach-Baumbach • Deutschland Telefon: (+49) 2623 / 92 499-0 • Telefax: (+49) 2623 / 92 499-99 E-mail: info@hoggi.de • www.hoggi.de...
