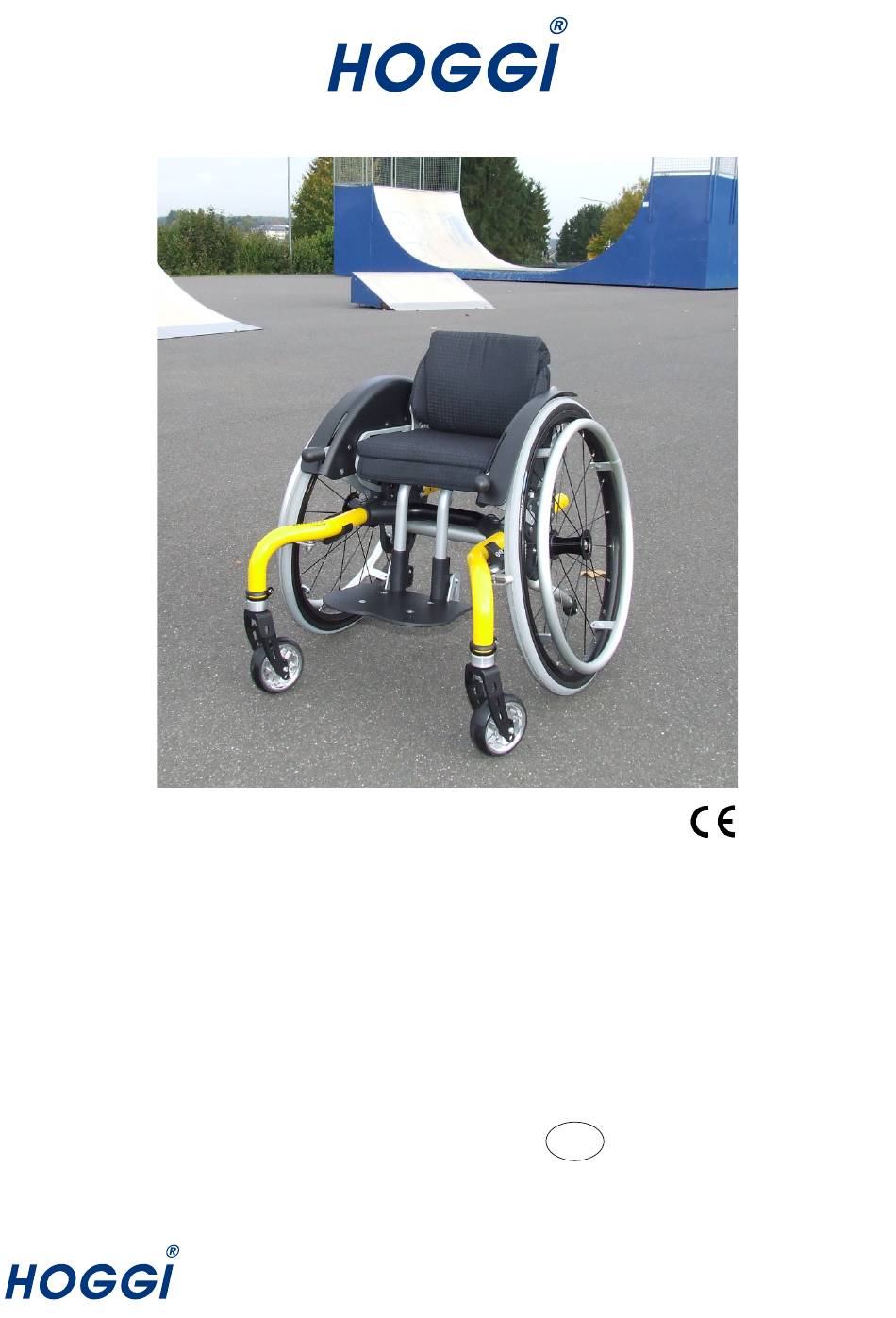

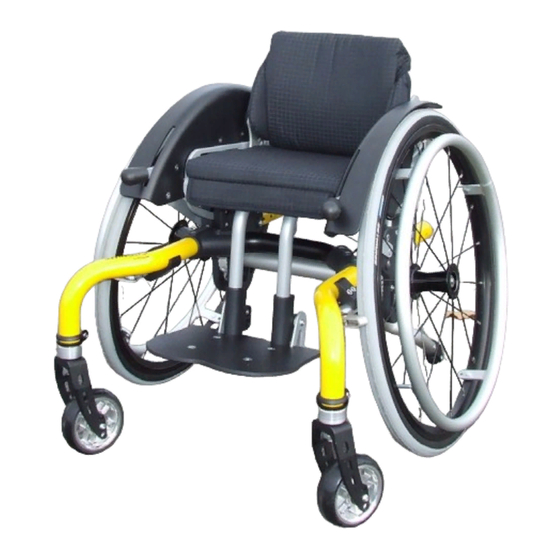

- Page 1 SWINGBO System-Wheelchair for kids user manual GB/US partnering together to mobilise kids...
-
Page 3: Table Of Contents
User Manual for SWINGBO System-Wheelchair for kids, model S, V, STi und VTi Contents Page Common Information Preface ___________________________________________________________________ 2 Application _________________________________________________________________ 2 Declaration of conformity ______________________________________________________ 2 Terms of warranty ___________________________________________________________ 2 Servicing and repairs _________________________________________________________ 2 Safety Instructions ______________________________________________________________ 3... -
Page 4: Common Information Preface
1 Common Information 1.1 Preface Thank you for selecting the SWINGBO wheelchair. We have designed this high-quality product to make your life safer and easier, and we’ve included this manual to help you use and care for it. Please read the following instructions to make sure you use this product as recommended. -
Page 5: Safety Instructions
Strap in your child at all times, when in the wheelchair. HOGGI points out, that any use beside the typical use can be dangerous. The wheelchair is not suitable for jogging, running, skating or similar activities. Swivelling front wheels tend to wobble at higher speed, which can cause a sudden stop and tip over of the wheelchair. - Page 6 To clear obstacles such as steps and curbs, tilt the wheelchair onto the rear wheels (pull it backwards to go up; to descend, slowly lower it forward). If only one attendant is available when ascending or descending stairs, an incorrectly set anti-tipper (if mounted at all) can lead to severe falls.
- Page 7 Your SWINGBO wheelchair is not admitted for use as a seat in a motor vehicle. Be careful in case of extreme temperatures. The wheelchair can heat up significantly when in the sun or in the sauna.
-
Page 8: Delivery And Preparing For Use
3 Delivery and Preparing for Use Your SWINGBO childrens’ wheelchair will normally be supplied with the backrest folded and with front castors and rear wheels removed. For transportation the seat angle has been set. Adjust the seat to the required angle (see section 4.11). - Page 9 The SWINGBO wheelchair can be supplied with one or with two anti-tippers. • With the spring button pressed in, slide the anti-tipper (6) into the locating tube at the rear of the chassis • The anti-tipper should be positioned with the joggle in the tube facing outwards towards the drive wheel.
- Page 10 If your SWINGBO wheelchair is equipped with push handles, push bar or with a single push handle, please proceed as follows: • Open the cam lever (11) on both sides (for a single push handle one side only). • Place the push handle unit or the push bar down into their locating brackets (12).
- Page 11 If your SWINGBO wheelchair is supplied with seat or back upholstery from HOGGI, please proceed as follows: • Slide the upholstered seat cushion (16) under the backrest and lay the seat cushion on the seat surface as illustrated. • Fasten the flap at the front of the seat cushion to the front edge of the seat surface.
-
Page 12: Adjusting And Adaptation Possibilities
The brakes should only be adjusted by a qualified person. 4.2 Seat width/ Seat height/ Wheelbase/ Camber The SWINGBO seat unit is available in nine seat widths from 18 - 34cm. The seat width (25) is measured between the raised metal sides of the seat surface. -
Page 14: Backrest Height
The further the backrest and, therefore, the child’s shoulders are positioned behind the rear axle, the more actively the SWINGBO wheelchair can be driven (e.g. lifting the front castors). Alternatively, mounting the backrest over or in front of the rear axle means a more stable driving position. -
Page 15: Footrest Lock (Optional)
This alters the location of the foot rest and, therefore, also the foot rest angle. The angle of the foot rest can be adjusted from approximately 80° to 100° Afterwards, retighten the screws securely. Whenever you change any settings on the wheelchair, make sure that you firmly tighten any screws that have been loosened. -
Page 16: Height Adjustment Of Push Handle Unit / Push Bar
4.12 Height adjustment of the push handles or push bar The ratchet joint on the push bar and push handle assemblies allows them to be adjusted to a comfortable height for the attendant. By pressing in the knobs on both ratchet joints, the push bar can be turned to the required position. -
Page 17: Pneumatic Tyres/ Pu-Tyres
Hand rims can be supplied with a standard diameter (50, left) or with a larger diameter (50, right). These are called respectively hand rims “standard” or hand rims “high”. The SWINGBO wheelchair will be built in accordance with the customer’s order. It is possible for the retailer to fit alternative push rims. -
Page 18: Drum Brakes
All hand rims can be mounted close to the rear wheel or a little further apart. A future modification is again possible. 4.17 Drum brakes In addition to parking brakes (wheel locks), the SWINGBO wheelchair can be fitted with drum brakes. The drum brakes are activated from the push bar or push handles. -
Page 19: Accessories
To prevent strap ends from fraying the cut ends can be melted together with a flame. (eg. cigarette lighter) 5.1 Seat cushion The HOGGI seat cushion is 3 cm thick and is foam filled. The cushion cover is washable and can be unzipped to remove the foam pad. - Page 20 For transportation the push handle unit can be removed by loosening the cam lever or by pushing it inwards as far as it will go. See also under “Delivery and Preparing for Use” and illustrations 11-15. Whenever you change any settings on the wheelchair, make sure that you firmly tighten any screws that have been loosened.
-
Page 21: Push Bar
The push handle can be supplied short (67, left) or long (67, right). 5.7 Anti-tip The SWINGBO wheelchair can be supplied with one or two anti- tipper units. The anti-tipper increases the stability of the wheelchair. The function and attachment of the anti-tippers is described in the section “Delivery and Preparing for Use“. -
Page 22: Headrest Standard With Cushion
5.8 Headrest standard with cushion This headrest is only lightly contoured and serves as a contact surface for the back of the head. The headrest can only be fitted to the high backrest. The upholstered cushion supplied with the high backrest has a zipped opening for the headrest. -
Page 23: Ankle Hugger
The fastening should always be on the outside. 6 Transportation 6.1 In the Trunk (luggage space) of a Car The SWINGBO wheelchair can, according to model, size and specification, be transported as one unit, with folded down backrest and folded up foot rests. -
Page 24: Using Swingbo System-Wheelchair For Kids For Bus Transport
Your SWINGBO wheelchair is not admitted for use as a seat in a motor vehicle. 6.3 Transfer - getting into or out of the wheelchair In general there are two ways of getting into and out of the wheelchair. -
Page 25: Maintenance
Function test of the tilt mechanism (STi and VTi models only) Should any defects become obvious, please contact your authorized HOGGI dealer to eliminate them. We also recommend that you have your BINGO serviced by your authorized dealer every twelve months. -
Page 26: Technical Data
33,5 cm, 36 cm, 38,5 cm, 41 cm Camber 6° or 9° Weight SWINGBO-S seat width 24, 20“rear wheel, 100 mm Skate wheel = 9,7 kg SWINGBO-VTi seat width 24, 20“rear wheel, 100 mm Skate wheel = 12 kg Load capacity 50 kg Turning radius max. - Page 28 Hersteller/Manufacturer: Hoggi GmbH Taunusstrasse 17 56235 Ransbach-Baumbach GERMANY Fon: (+49) 26 23 / 92 499-0 · Fax: (+49) 26 23 / 92 499-99 e-mail: info@hoggi.de · Internet: http://www.hoggi.de...
