- Page 1 Partnerschaft für mobile Kinder CLEO Service instructions...
-
Page 2: Table Of Contents
Required tools and maintenance schedule 5.1 Required tools _____________________________________________________________ 11 5.2 Maintenance schedule ____________________________________________________12-13 Seat settings 6.1 Seat height and Seat angle CLEO and CLEO Ti_________________________________14-18 6.2 Seat depth ________________________________________________________________ 18 6.3 Back height _______________________________________________________________ 18 6.4 Active degree ___________________________________________________________19-20 6.5 Backrest angle_____________________________________________________________ 20... - Page 3 7.17 Therapy tray_ _____________________________________________________________ 32 7.18 Tie down kit _______________________________________________________________ 32 7.19 Abduction block ____________________________________________________________ 32 7.20 Belt fixations ______________________________________________________________ 33 7.21 Outdoor front end __________________________________________________________ 33 Operating life CLEO Operating life ________________________________________________________ 34 Specifications CLEO Specifications ________________________________________________________ 34...
-
Page 4: Model Identification (Label)
1 Model identification 1.1 Model identification (label) (The label is attached to the axle tube) Colour code 327X-00SB-XXX Article number CLEO Hoggi GmbH Aktivrollstuhl Eulerstr. 27 Size Gr. X 56235 Ransbach-Baumbach MADE IN GERMANY Serial number max. load 60kg CE label... -
Page 5: Basic Configuration
- Footrest hanger 90° inclusive ABS-footrest - Backrest angle: -10° up to +10° - Seat- and back panel - Clothes cover - HOGGI light rear wheels inclusive push rims (removable via quick-release axle) - HOGGI light wheel locks - Camber 6°, 9° or 12°... -
Page 6: Overview

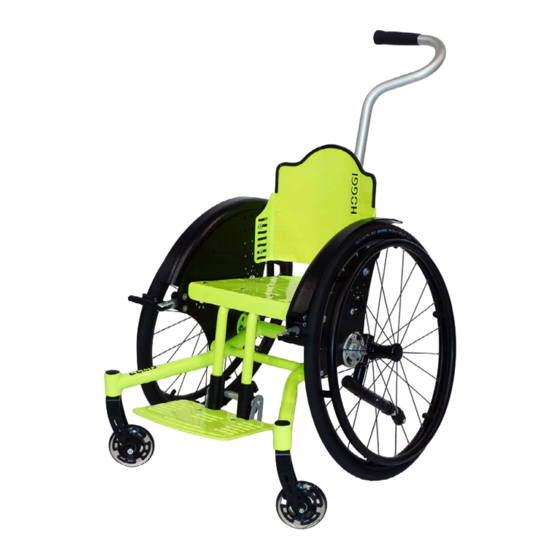

CLEO Overview... -
Page 7: Common Information
3 Common Information 3.1 Preface Thank you for selecting the CLEO wheechair. We have designed this high-quality product to make your life safer and easier, and we’ve included this manual to help you use and care for it. Please read the following instructions to make sure you use this product as recommended. If you have any further questions, or if you have any problems, please contact your health- care provider. We hope that CLEO meets your expectations. We reserve technical modifi cations regarding the specifi ed model in this manual. Before using the wheechair the fi rst time, this manual has to be read and understood by patient and support personnel in oder to ensure a safe handling with the wheelchair. Regular maintenance is important - it increases safety and prolongs the life of the product. Every rehab product should be checked and serviced once a year. However, it is recommended to check, readjust and, if necessary, service products with a high frequency of use, with users in growth or users with a changing clinical picture at 6-month intervals. Only original spare parts should be used for all service and maintenance work. The service and maintenance work described here should only be carried out by trained spe- cialist personnel and not by the user of the aid. These service and maintenance instructions refer to the respective spare parts catalogs and operating instructions of the products described. Please use all documents together. Use the maintenance schedule (Chapter 4.2, Checklist to tick off) as a copy template. Retain completed maintenance schedules and provide a copy to the customer. User manual 1910-0040-EN CLEO Spare parts catalog 1910-1013-EN CLEO... -
Page 8: Application
- Osteogenesis Imperfecta - Poliomyeliti The CLEO wheelchair is able to be used for further service. For further service the product has to be cleaned and sanitised efficiently. Afterwards the product has to be checked concerning condition, wearout and damage by an authorised technician. All damaged and inapropptiate parts need to be changed. -
Page 9: Service And Repairs
You can reach us at: info@hoggi.de 3.7 Packing and shipping instructions If CLEO has to be sent back to the manufacturer for repair or exchange the product must be thoroughly cleaned/disinfected beforehand and put in a hygienically safe condition. Packaging is done by wrapping the product in a clean film, ideally with air cushions and the subsequent use of a sufficiently large cardboard box, so that no transport damage can occur. -
Page 10: Safety Instructions
Familiarize yourself with the functions of the product. If you are not familiar with the product, study the user manual before testing. If no user manuals are available, request them from us. You can also download documents from our homepage at: www.hoggi.de Attention! Study the service and maintenance instructions before starting work. -
Page 11: Required Tools And Maintenance Schedule
5 Required tools and maintenance schedule 5.1 Required tools The following list shows the tools and utilities required for service. Reversible ratchet and sockets Torque wrench Wrench size 8-24 Measuring ranges 5-50 Nm Size 6 - 24 Hexagon wrench Screwdriver Phillips screwdriver Gr. -
Page 12: Maintenance Schedule
5.2 Maintenance schedule Customer: Maintenance schedule CLEO for regular inspection Active wheelchair ..........Pos. Area Check (Checklist to tick off Serial number: Function / Setting Screw connections none (see instruction manual) damage / defor- ........mation 1. Basic product Frame & base plates... - Page 13 Function / Setting Screw connections none (see instruction manual) damage / defor- mation 2. Accessories Fender - Height adjustment Anti tip and tip assist - Anti tip - Swivel away - Angle adjustment Footrest hanger - Lower leg length - Folding away the footrest - Footrest lock - Footrest angle Seat / back cushion...
-
Page 14: Seat Settings
(siehe Tabelle "CLEO Sitzhöhe und Sitzwinkel Rahmengröße ..." 6. Seat settings 6.1 Seat height & seat angle CLEO The seat height and seat angle of CLEO are adjusted via the hole matrix on the base plates. The corresponding holes are shown below. - Page 15 Depending on the holes in which the support brackets are screwed, different seat heights and seat angles can be realised. This results in different seat heights and seat angles for the 3 frame sizes:...
- Page 17 Seite 1 von 1 Seat height CLEO Ti The seat height of the CLEO Ti is realised on the one hand by shifting the seat unit in relation to the slots in the base plate and on the other hand by shifting screws within the edge base itself.
-
Page 18: Seat Depth
The screw connections shown here are in the lower hole position. 6.2 Seat depth The seat depth is set with the installation position of the two support brackets. The seat plate does not have to be removed beforehand in most cases. Loosen the marked screw connection on both sides of the base plate and select the desired seat depth by moving the the angles. -
Page 19: Active Degree
The active degree describes the ratio of the position of the backrest relative to the drive wheel axis. The further the backrest is set behind the the drive wheel axle, the more active CLEO can be driven. Conversely, a setting above, or in front of, the drive axle means a more stable driving position. -
Page 20: Backrest Angle
Active degree adjustment CLEO Ti With CLEO Ti, the active degree is achieved by sliding the seat unit rela- tive to the base plates in the respective slotted holes. By loosening the screw connections to the outer pressure plate, an ad- justment range of 8 cm can then be guaranteed. -
Page 21: Maintenance Schedule
- Connection of lintel adapter and base plate - If applicable, screw connection for anti tipper or tip assist - Front connecting screw frame and base plate Tilt unit CLEO Ti Functional test: - Checking the tilt release and the proper function... -
Page 22: Back Base
- Mounting of the slide rail on the back plate - Mounting of the mechanism on the backrest bracket - Function of the clamping lever Back base CLEO-Ti Additional inspection of the latch unit and the complete latch bolt system. -
Page 23: Seat And Back Unit
- Checking the correct adjustment Check of the screw connections: - Fixing the back plate at the back and front to the back base 7.4 Braking system Brake HOGGI light Functional test: - Brake closure - Faultless operation - Visible damage... - Page 24 Brake opened Brake closed Check of the screw connections: - Fixing the brake to the brake holder - Fastening the brake holder to the base plates Integrated brake system Consisting of: - Fender with integrated brake system - Brake cable - Brake...
- Page 25 Functional test: - Operability of the brake lever and smooth glide - Good brake closure and contact pressure of the brake bracket - Correct positioning of the brake lever in relation to the wheel. 90° angle and 3-5 mm wheel protrusion - Check for general damage in the area of the fender and the rubber grip - Good brake closure and contact pressure of the brake bracket - Correct positioning of the brake lever in relation to the wheel.
-
Page 26: Push Bar And Handles, One Hand Push-Handle
Check of the screw connections: - Connection brake anchor with adapter - Connection of brake anchor adapter with base plate - Bowden cable correctly hooked in - Screw connection of the brake handle to the handle unit 7.5 Push bar and handles, One hand push handle Push bar Functional test: - Attachment and removal... -
Page 27: Wheel Fork Holder
7.6 Wheel fork holder Functional test: - Swivelling of the wheel fork - Smooth running or fluttering -> Checking the alignment - Check for general damage to the forks Check of the screw connections: POS-NR. BENENNUNG BESCHREIBUNG MENGE Wheel fork 126,5x45x10 / 3x holes / 1281-0016 d=12 - Screw connection of the wheel axle... -
Page 28: Push Rims
7.9 Push rim Functional test: - Check for general damage - Severe scratching and sharp edges Checking the screw connections: - Attachment of handrim to rim, also at correct distance 7.10 Fender Standard fender Functional test: - Check for general damage - Screw connection to the base plate firmly tightened Fender with integrated armrests Functional test:... -
Page 29: Anti Tip And Tip Assist
7.11 Anti tip and tip assist Anti tip Functional test: - Check for general damage - Correct positioning (beyond the wheel radius, 2-3 cm above the floor) - Checking the swivel mechanism - Checking the length adjustment Tip assist Functional test: - Check for general damage - Good grip of the rubber cap Check of the screw connections:... - Page 30 POS-NR. BENENNUNG BESCHREIBUNG MENGE 3201-2520 Federscheibe B8 verz DIN/ISO 1052-0008 137 B8 Footrest bracket 3201-2530 Lagerbuchse 3240-2911 Fußbrettträger Standard Scheibe A6,4 verz DIN/ISO 125 1051-0006 A6,4 Functional test: Linsenschraube m ISK verz 1029-0640 DIN/ISO 7380 M6x40 - Check for general damage L-Flanschmutter L-769 verz 1049-0052 22x14xM6x8,5...
-
Page 31: Seat And Back Cushion
7.13 Seat- and back cushion Standard seat cushion - Check for general damage (Velcro fastening, seams, holes or strapped-through areas) - Check for contamination Seat cushion contoured - Check for general damage (Velcro fastening, seams, holes or strapped-through areas) - Check for contamination Back cushion - Check for general damage (Velcro fastening, seams, holes or strapped-through areas) -
Page 32: Backrest Extension
Headrest with upholstery Functional test: - Adjustment possibilities - Check for general damage (wear, cracks, etc.) - Clamping ability Checking the screw connections: - Attachment of pad to support 7.16 Backrest extension Functional test: - Check for general damage - Height adjustment and clamping Checking the screw connections: - Connection of the bracket to the back plate 7.17 Therapy tray... -
Page 33: Belt Fixations
7.20 Belt fixations Lap belt Functional test: - Check for general damage - Check of the fastener - Check of the screw connection of the bracket 4-point lap belt Functional test: - Check for general damage - Check of the fastener - Check of the screw connection of the bracket Ankle hugger Functional test:... -
Page 34: Cleo Operating Life
*The seat height depends on the frame size, the wheel diameter and the wheel camber. CAUTION! **Accessories and add-on parts reduce the remaining load capacity for the occupant. CAUTION! *** The weight specifications refer to a CLEO in basic equipment and maximum seat width . - Page 35 HOGGI GmbH Eulerstraße 27 • 56235 Ransbach-Baumbach • Deutschland Telefon: (+49) 2623 / 92 499-0 • Telefax: (+49) 2623 / 92 499-99 E-mail: info@hoggi.de • www.hoggi.de...
