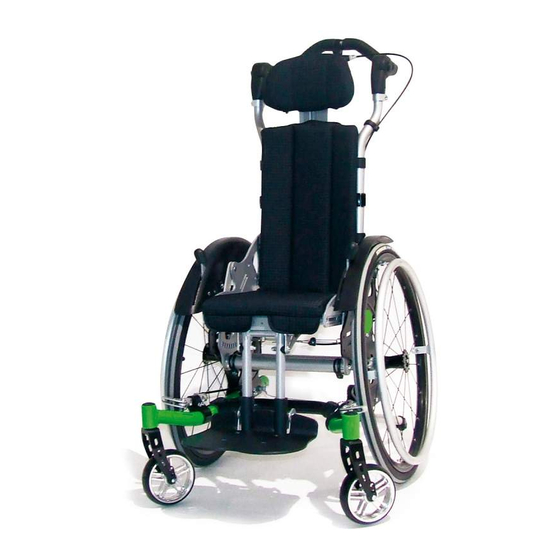

1 Model identification 1.1 Model identification (label) (The label is attached to the rear axle tube)) Colour code 3248-10SB-XXX Article number SWINGBO VTi Hoggi GmbH Kantelbarer Rollstuhl Eulerstr. 27 56235 Ransbach-Baumbach MADE IN GERMANY Serial number max. load 60kg CE label...
Please use all documents together. Use the maintenance schedule (Chapter 5.2, Checklist to tick off) as a copy template. Retain completed maintenance schedules and provide a copy to the customer. User manual 1910-0036-EN SWINGBO VTi Spare parts catalog 1910-0009-EN SWINGBO VTi...
- Osteogenesis Imperfecta - Poliomyeliti SWINGBO VTi wheelchair is able to be used for further service. For further service the product has to be cleaned and sanitised efficiently. Afterwards the product has to be checked concerning condition, wearout and damage by an authorised technician. All damaged and inapropptiate parts need to be changed.
You can reach us at: info@hoggi.de 3.7 Packing and shipping instructions If SWINGBO VTi has to be sent back to the manufacturer for repair or exchange the pro- duct must be thoroughly cleaned/disinfected beforehand and put in a hygienically safe condition.
Familiarize yourself with the functions of the product. If you are not familiar with the product, study the user manual before testing. If no user manuals are available, request them from us. You can also download documents from our homepage at: www.hoggi.de Attention! Study the service and maintenance instructions before starting work.
5 Required tools and maintenance schedule 5.1 Required tools The following list shows the tools and utilities required for service. Reversible ratchet and sockets Torque wrench Wrench size 8-24 Measuring ranges 5-50 Nm Size 6 - 24 Hexagon wrench Screwdriver Phillips screwdriver Gr.
Customer: Maintenance schedule SWINGBO-VTi for regular inspection System wheelchair .......... Area Check (Checklist to tick off Pos. Serial number: Function / Setting Screw connections none (see instruction manual) damage / defor- ........mation 1. Basic product Frame - Damages Base plates and Cross tube - Active degree - Seat height...
Page 13
Function / Setting Screw connections none damage / defor- mation 2. Accessories Fender - Height adjustment Anti tip and tip assist - Anti tip - Swivel away - Angle adjustment Footrest hanger - Angle adjustment Footrest bracket - Lower leg length - Folding away the footrest - Footrest lock Footrests...
6. Seat settings 6.1 Seat height SWINGBO VTi offers seat height adjustment from 37 - 47 cm. The adjustment is influenced by 3 things: the wheel fork and the correspondingly selected hole position, the axle position and the seat position.
Page 15
Depending on the wheel camber and individual requirements, the following guidelines result: Seat heights SWINGBO-VTi (3°) Rear Steering wheels wheels SH BB SH BB SH BB short short short 20" deep deep deep short short short deep deep deep short high short high short high short short...
SH = Seat height; SP = Seat position; AP = Axle positionn; CF = Caster Fork; SWP = Steering wheel position; AF = Amount; U-disc above fork 6.2 Seat depth SWINGBO VTi offers a seat depth adjustment range of 8 cm. Measured from the outer edge of the backrest plate to the front edge of the seat plate. General adjustment range: VTi 24 - 42 cm To adjust the seat depth, a total of 4 screws must be loosened.
After the front screw connections have been loosened, the rear screw connections must be found. Due to the design of the SWINGBO VTi and the individual seat height settings, the rear screw connections are not always directly visible. In this case, the seat unit may have to be moved to a different seat angle position in order to make the screw connection between the oblong holes visible.
After loosening the indicated screw connections, the back can be pulled out or pushed in. 6.5 Seat angle The tilt in space of SWINGBO VTi can be adjusted between -5° and +45°. 13 positions of 4° each can be individually adjusted.
The tilt is triggered by a locking pin pull, which is controlled by a release lever on the push bar or push handle. 6.6 Back angle adjustment The back angle adjustment on the SWINGBO VTi depends on the selected push bar/push handle variant and the corresponding back. A distinction must be made here: 1.
Page 20
Push bar/handles foldable with trough-shaped backrest In contrast to the detachable push handles, the back is directly attached to the foldable push handles. In addition, the back is always used in the shape of a trough. The back angle can be set to 5 different angles depending on how it is screwed to the seat mount.
Bolting point of the latch housing with locking bolt on the back base plate. 6.7 Lower leg length SWINGBO VTi can basically be equipped with 3 different footrest hanger Shown here is the footrest hanger 90°. The footrest hanger can be swivelled up via the towing latches, but not fixed.
The further the footrest is pulled out to the front, the the greater the angle. If the procedure is reversed the angle decreases accordingly. 6.9 Armrest height and angle SWINGBO VTi offers various adjustable armrest heights. Gr. 1: 14-21 cm Standard: Gr.
Page 23
The armrest with tilt compensation remains as horizontal as possible during the tilting movement and is therefore more suitable for use with a table. The height can be adjusted in x1.5 cm steps by repositioning the front and rear screw connections. To loosen the screws, first tilt the chair to 45°.
7. Maintenance schedule 7.1 Frame Functional test: - Check for general damage or deformation to the frame structure - Cracks in the construction - Cross tube bolting 7.2 Base plates und cross tube Functional test: - Check for general damage - Adjustment of the active degree via pressure plates Check of the screw connections: - Screw connections to the cross tube...
7.4 Seat unit Functional test: - Check for general damage - Correct seat depth - Tilt via locking bolt tension Check of the screw connections: - Seat frame to the support brackets for the adjustment of the seat depth - Seat plate on the seat frame - Seat mounts to the tilt bearings 7.5 Back system &...
Page 26
- Clamping lever for height adjustment of the push bar or handles - Tripod spring for removal - Screw connection of the crossbar to the seat Backrest panel in trough shape - Screw connection to the backrest height adjustment and to the clamps on the push handles - Connection to the seat adapter - Connection via support strut to seat adapter...
Functional test: - Operability of the brake lever and smooth glide - Good brake closure and contact pressure of the brake bracket - Correct positioning of the brake lever in relation to the wheel. 90° angle and 3-5 mm wheel protrusion - Check for general damage Check of the screw connections: - Fastening the brake lever to the fender...
Check of the screw connections: - Screw connection of the wheel axle - Bolting the steering fork axle to the frame 7.8 Steering wheels Functional test: - Check for general damage - Check of the tread or profile (cracks, heavy wear) - Wheel curvature too worn (tread max.
7.11 Fender Standard fender Functional test: - Check for general damage - Screw connection to the base plate firmly tightened Fender with integrated armrests Functional test: - Height adjustment and latching of the armrest - Damage to the armrest cushion - Damage to the release button - Screw connection to base plate firmly tightened - Armrest holder firmly screwed to wheel cover...
7.13 Footrest hanger Footrest hanger Functional test: - Check for general damage - Distance to the seat plate - Screw connection to the seat plate Footrest hanger angle adjustable Functional test: - Check for general damage - Swivel mechanism - Clamping lever for angle adjustment - Screw connection to the seat plate Single foot rest hanger Functional test:...
Check of the screw connections: - Wing screws for lower leg length adjustment - Screw connection of the swivel mechanism - Screw connection to the footboard with correct angle adjustment 7.15 Footrests Footrest standard Functional test: - Check for general damage - Screw connection to the footrest holder Foot rest with heel stop Functional test:...
7.16 Seat- and back cushion Standard seat cushion - Check for general damage (Velcro fastening, seams, holes or strapped-through areas) - Check for contamination Seat cushion contoured - Check for general damage (Velcro fastening, seams, holes or strapped-through areas) - Check for contamination Back cushion - Check for general damage (Velcro fastening, seams, holes or strapped-through areas)
7.19 Headrest standard Functional test: - Check for general damage - Checking the screw connection to the back plate 7.20 Headrest with occiput upholstery Headrest bracket Functional test: - Check for general damage - Checking the clamping ability - Checking the screw connection to the back panel Headrest with upholstery Functional test: - Adjustment possibilities...
7.23 Hip supports Functional test: - Check for general damage - Width adjustment - Depth adjustment on the seat plate and the pad itself - Screw connection of the pad support under the seat plate - Screw connection of the pad on the support 7.24 Abduction block Functional test: - Check for general damage...
7.27 Belt fixations Lap belt Functional test: - Check for general damage - Check of the fastener - Check of the screw connection of the bracket 4-point lap belt Functional test: - Check for general damage - Check of the fastener - Check of the screw connection of the bracket Ankle hugger Functional test:...
8. SWINGBO VTi operating life:: The expected operating life of the SWINGBO VTi is 6 years, depending on the intensity of use, care as well as maintenance. We recommend an annual inspection by the authorized specialist dealer. In case of malfunctions or defects of the wheelchair, it must be immediately handed over to the medical supply store or the specialist dealer.
