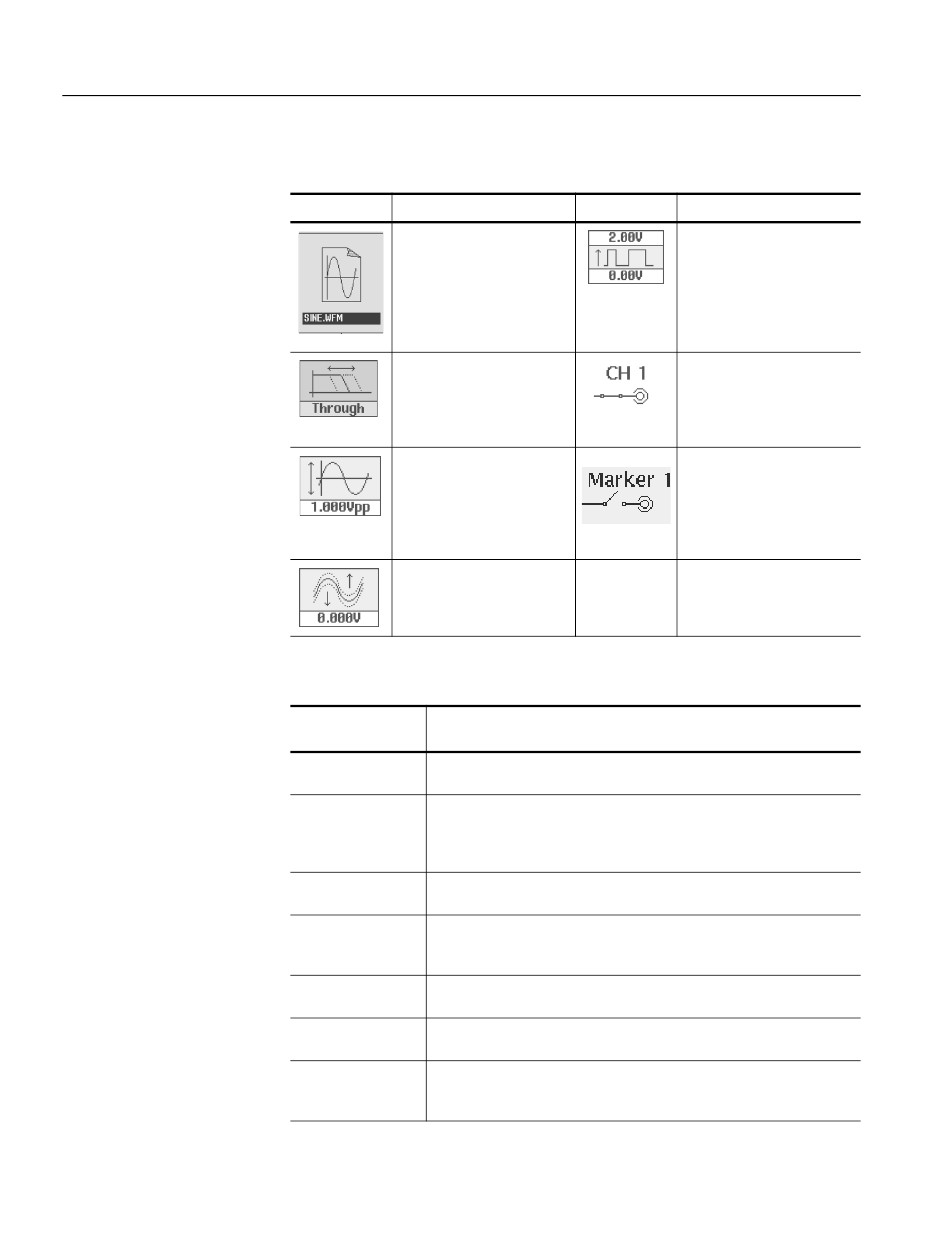

Table 2-9: Setup screen parameter icons

Icon Description
Displays the file name of the
waveform, pattern, or
sequence file loaded for
output.
Note: use the View button to
display the loaded waveform.
Displays the lowpass filter
setting through which the
waveform is passed.
(except option 02)
Displays the peak–to–peak
signal amplitude setting.
Displays the signal offset
setting.
(except option 02)

Table 2-10: Setup bottom menu buttons

Bottom menu
Description
button
Waveform/Sequence Displays the side menu for loading, viewing, editing waveform files, and for
entering the FG mode main screen.
Vertical Displays the Vertical side menu for setting waveform peak–to–peak
amplitude, offset, lowpass filter, marker, and other output parameters.
The product which has option 02 doesn't have offset and lowpass filter
function.
Horizontal Displays the Horizontal side menu for setting the clock source, clock
frequency, and marker signal delay parameters.
Run Mode Displays the Run Mode side menu for setting the instrument run mode.
Refer to Run Modes in the Reference section for an explanation of the
different run modes.
Trigger Displays the Trigger side menu for setting trigger source, slope, level,
external trigger impedance, and interval parameters.
Save/Restore Displays the Save/Restore side menu to save and restore setup output
parameters.
Extended Operation Displays the Extended Operation side menu to change the operation mode
such as FG mode, Waveform Mixing mode and Synchronous Operation
mode.
Icon Description
Displays the digital output and
marker signal minimum and
maximum voltage settings.
Indicates that the channel
output is enabled or disabled.
If the switch is shown open,
that channel output is
disabled.
Indicates that the marker
output is enabled or disabled.
All Marker outputs are
controlled by the ALL
MARKER OUT ON/OFF
button.
