Tektronix AWG615 Service Manual page 218

Removal and Installation Procedures
6-40
www.valuetronics.com

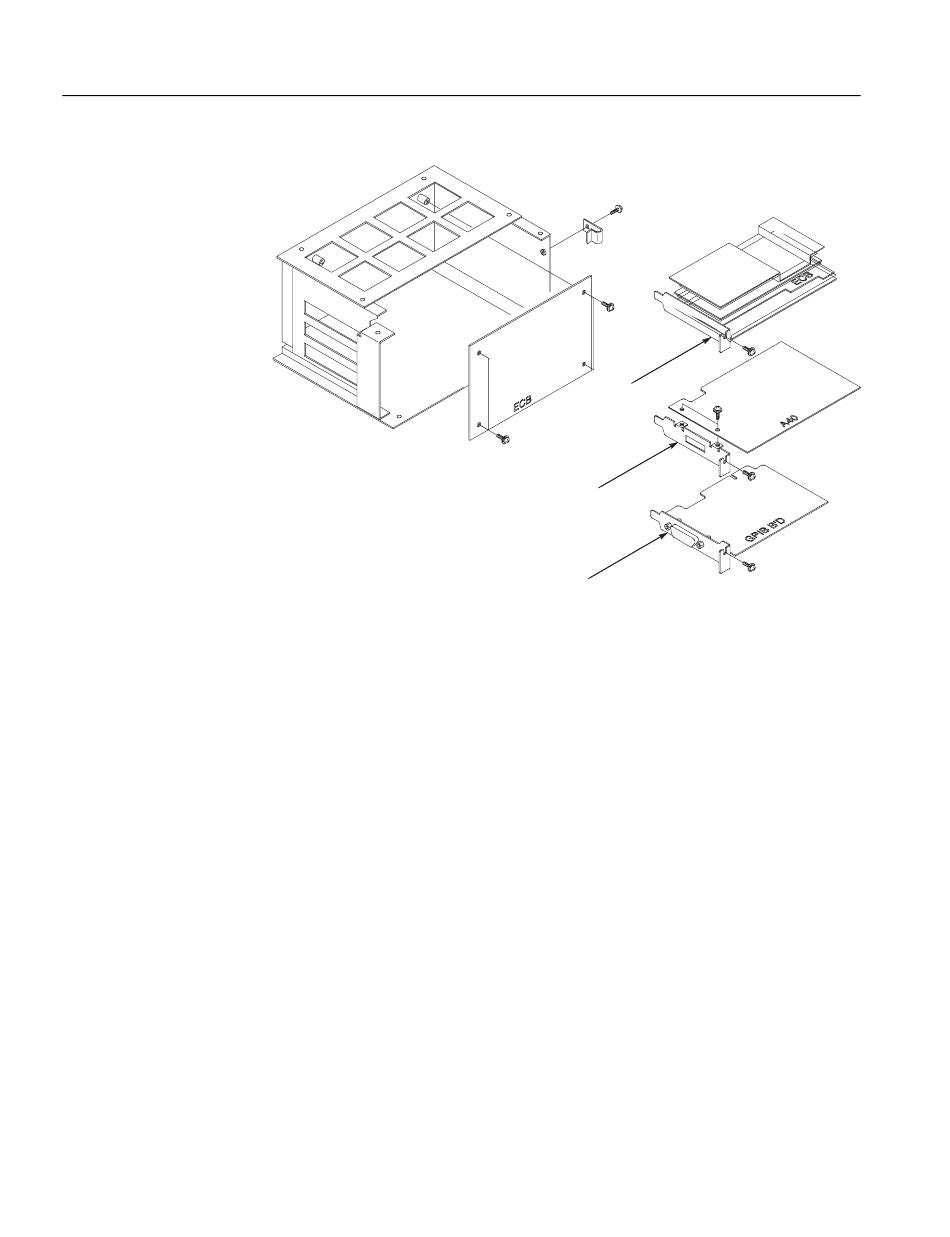

Figure 6-20: CPU, A40 PCI Interface, and GPIB boards removal
5. Remove the A40 PCI Interface board (using a screwdriver with a size #2
Phillips tip) by removing the screw on the left side of the board. See Figure
6-20.
6. Grasp the board and slide it out.
7. Remove the GPIB board (using a screwdriver with a size #2 Phillips tip) by
removing the screw on the left side of the GPIB board. See Figure 6-20.
8. Grasp the board and slide it out.
9. Remove the Back Plane (using a screwdriver with a size #2 Phillips tip) by
removing the four screws securing the board to the frame. See Figure 6-20.
10. Grasp the board and slide it out.
11. To install, do this procedure in reverse order.
12. Refer to the Cabinet procedure on page 6-20 to complete the assembly of the
waveform generator.
CPU board
A40 PCI Interface board
GPIB board
AWG615 Service Manual
