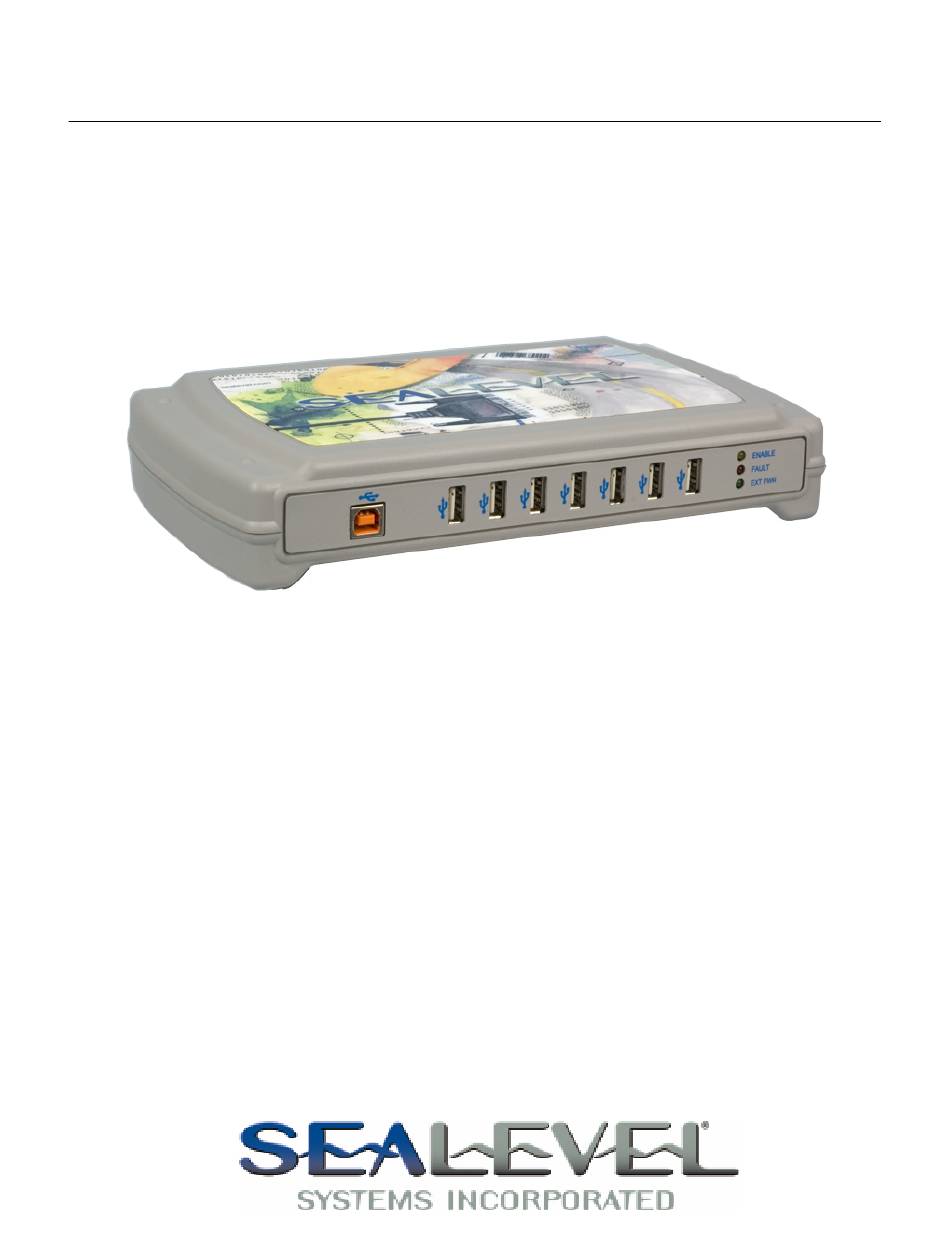

- Page 1 HUB7i User Manual Isolated 7-Port USB Hub www.sealevel.com PO Box 830 – Liberty, SC 29657 864.843.4343...
-
Page 2: Table Of Contents
HARDWARE DESCRIPTION....................4 TECHNICAL SPECIFICATIONS ..................... 5 APPENDIX A – TROUBLESHOOTING................... 6 APPENDIX B – HOW TO GET ASSISTANCE................ 7 APPENDIX C – SILK SCREEN – HUB7I PCB ................ 8 APPENDIX D – COMPLIANCE NOTICES ................9 ............. 9 EDERAL... -
Page 3: Introduction
OEM applications. The voltage spikes, power surges, and ground loops that affect traditional serial interfaces also affect USB devices. Sealevel’s HUB7i is an optically isolated USB hub that connects up to seven USB peripherals and protects the host computer from voltages up to 5500 VAC. -
Page 4: Before You Get Started
Before You Get Started What’s Included The HUB7i is shipped with the following items. If any of these items is missing or damaged please contact Sealevel for replacement. HUB7i – Sealevel 7-Port Isolated USB Hub CA179 – 72” USB ‘A’ to ‘B’ Device Cable TR124 –... -
Page 5: Installation
Installation Windows 98/ME/2000/XP/Vista™ Operating Systems 1. The HUB7i is fully supported as a generic USB hub device in Windows 98/ME/2000/XP/Vista™ operating systems and requires no separate driver. The Sealevel Software CD is included only for distribution of the user manual and other literature. -
Page 6: Hardware Description
Optical Isolation To protect the host computer from voltage spikes, power surges, and ground loops, the HUB7i and the included wall-mount power supply provides 4000 VAC isolation on the upstream USB port. With the optional medical grade power supply (Item# TR122), the isolation is increased to 5500 VAC. -
Page 7: Technical Specifications
Non-Condensing Non-Condensing Manufacturing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. © Sealevel Systems, Inc. -
Page 8: Appendix A - Troubleshooting
Appendix A – Troubleshooting The HUB7i is a generic USB hub and should provide years of trouble-free service. Should the device appear to not be functioning correctly, the following tips can eliminate most common problems without the need to call Technical Support. -
Page 9: Appendix B - How To Get Assistance
FTP site that can be accessed from our home page. Manuals and software can also be downloaded from the product page for your device. Sealevel Systems provides an FAQ section on our website. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.asp... -
Page 10: Appendix C - Silk Screen - Hub7I Pcb
Appendix C – Silk Screen – HUB7i PCB © Sealevel Systems, Inc. - 8 - HUB7i User Manual... -
Page 11: Appendix D - Compliance Notices
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. © Sealevel Systems, Inc. - 9 - HUB7i User Manual... -
Page 12: Warranty
(RMA) number. The Customer agrees to insure the Product or assume the risk of loss or damage in transit, to prepay shipping charges to Sealevel, and to use the original shipping container or equivalent. Warranty is valid only for original purchaser and is not transferable.
