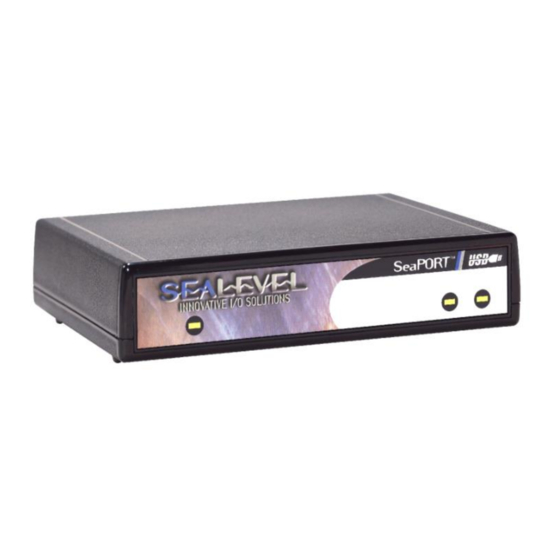

SeaPORT+2/232
User Manual | 2201
1
© Sealevel Systems, Inc.
2201 Manual | SL9096 6/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SeaPORT+2/232 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SeaLevel SeaPORT+2/232

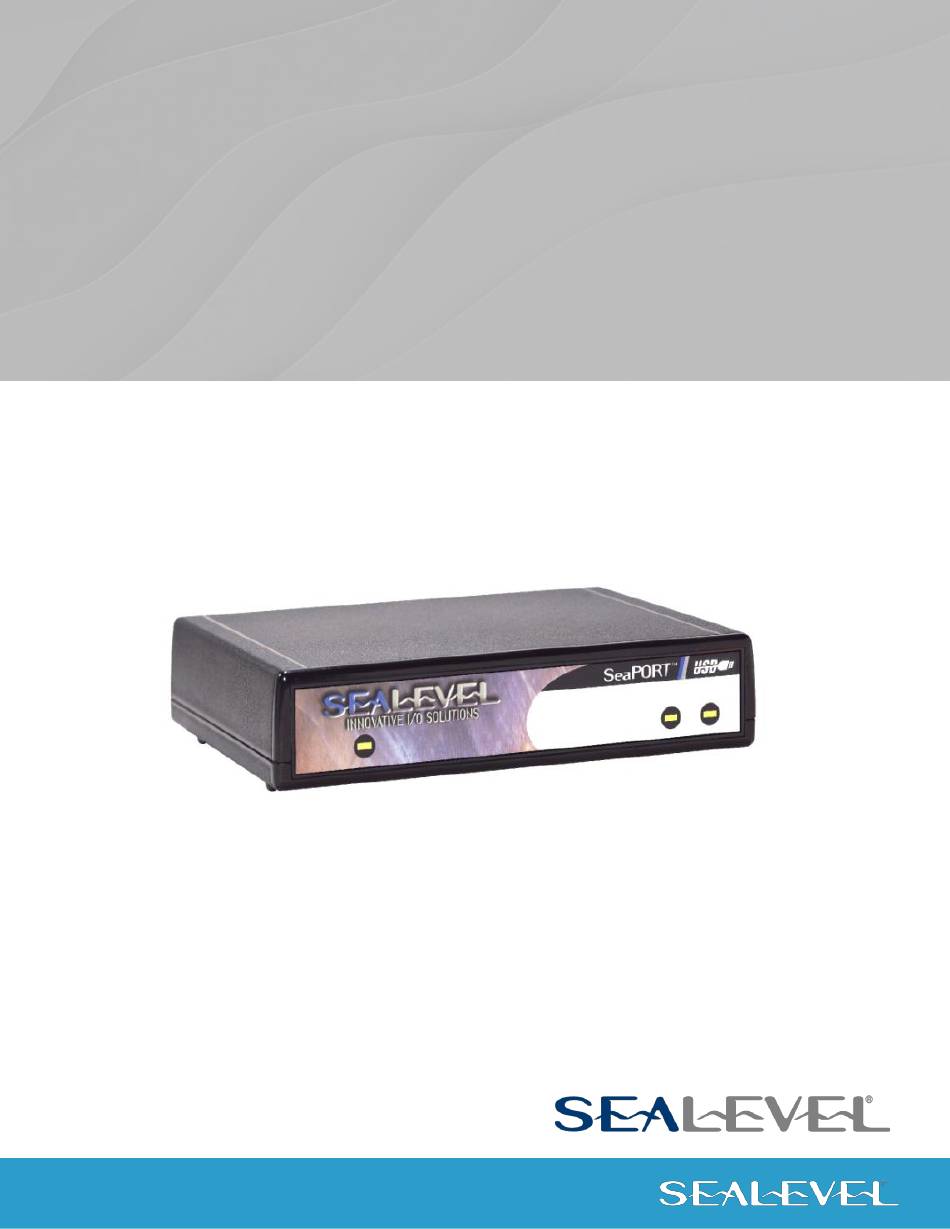

  • Page 1 SeaPORT+2/232 User Manual | 2201 © Sealevel Systems, Inc. 2201 Manual | SL9096 6/2021...
  • Page 2: Table Of Contents

    APPENDIX B – HOW TO GET ASSISTANCE ..................... 11 APPENDIX C – ELECTRICAL INTERFACE ......................12 APPENDIX D – ASYNCHRONOUS COMMUNICATIONS .................. 13 APPENDIX E – COMPLIANCE NOTICES ......................14 WARRANTY ................................ 16 © Sealevel Systems, Inc. 2201 Manual | SL9096 6/2021...
  • Page 3: Introduction

    Introduction Overview The Sealevel Systems SeaPORT+2/232 equips the PC with 2 USB to RS-232 Asynchronous serial ports providing a versatile interface for common serial needs. The advantage of this product over more traditional approaches is that it does not require opening the computer case, nor does it require resources such as I/O ports or IRQ’s.
  • Page 4: Before You Get Started

    Before You Get Started What’s Included The SeaPORT+2/232 is shipped with the following items. If any of these items is missing or damaged, contact the supplier. • SeaPORT+2/232 USB to RS-232 Serial I/O Adapter • USB Cable Part Number CA179 for Connecting to Upstream Host/Hub...
  • Page 5: Installation Instructions

    An uninstall option is included to remove the driver and all registry/INI file entries from your system. 6. Proceed with the physical installation of your SeaLINK USB serial adapter. Windows NT is not USB aware and thus cannot support this device. © Sealevel Systems, Inc. 2201 Manual | SL9096 6/2021...
  • Page 6 Windows. The SeaPORT+2/232 can be connected to any upstream type “A” port either at the PC host or an upstream hub. The SeaPORT+2/232 is hot pluggable, meaning there is no need to power down your computer prior to installation.
  • Page 7: Configuration

    Configuration Electrical Interface Selection Each of the two ports on the SeaPORT+2/232 is pre-configured as an RS-232 interface. Simply install the included software and connect the SeaPORT adapter to your USB port. The device is immediately recognized by the system. At that point, connect the adapter to your target device (i.e., modem, serial printer, scale, bar code, etc.).
  • Page 8: Technical Description

    Technical Description The SeaPORT+2/232 utilizes two USB UARTs. These chips feature programmable baud rate, data format, 128 byte Dual Port TX Buffer, and 384 byte Dual Port RX Buffer. The RS-232 transceiver supports data rates up to 460.8K baud. Features •...
  • Page 9: Specifications

    Greater than 150,000 hours. (Calculated) Manufacturing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. Power Consumption This device is a high-power USB device.
  • Page 10: Appendix A - Troubleshooting

    4. When testing the SeaPORT+2/232 in loopback mode, you should see the port LED’s flashing as well as seeing echoed data on the screen. The loopback test first transmits a HEX pattern, 55AA, and then a ASCII string of data. If this test passes, then the SeaPORT+2/232 is ready for use in your application.
  • Page 11: Appendix B - How To Get Assistance

    If possible, please have the adapter connected in a computer ready to run diagnostics. 3. Sealevel Systems maintains a home page on the Internet. Our home page address is www.sealevel.com. The latest software updates, and newest manuals are available via our FTP site that can be accessed from our home page.
  • Page 12: Appendix C - Electrical Interface

    The RS-232 and the EIA/TIA-574 specification define two types of interface circuits, Data Terminal Equipment (DTE) and Data Circuit-Terminating Equipment (DCE). The SeaPORT+2/232 is a DTE device. © Sealevel Systems, Inc. 2201 Manual | SL9096 6/2021...
  • Page 13: Appendix D - Asynchronous Communications

    The communication parameters are baud rate, parity, number of data bits per character, and stop bits (i.e., 9600,N,8,1). © Sealevel Systems, Inc. 2201 Manual | SL9096 6/2021...
  • Page 14: Appendix E - Compliance Notices

    Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. © Sealevel Systems, Inc. 2201 Manual | SL9096 6/2021...
  • Page 15 Caution Sealevel Systems, Inc. is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution of attachment of connecting cables and equipment other than those specified by Sealevel Systems. Such unauthorized modifications, substitutions, or attachments may void the user’s authority to operate the equipment.
  • Page 16: Warranty

    Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
