Summary of Contents for SeaLevel HUB7P

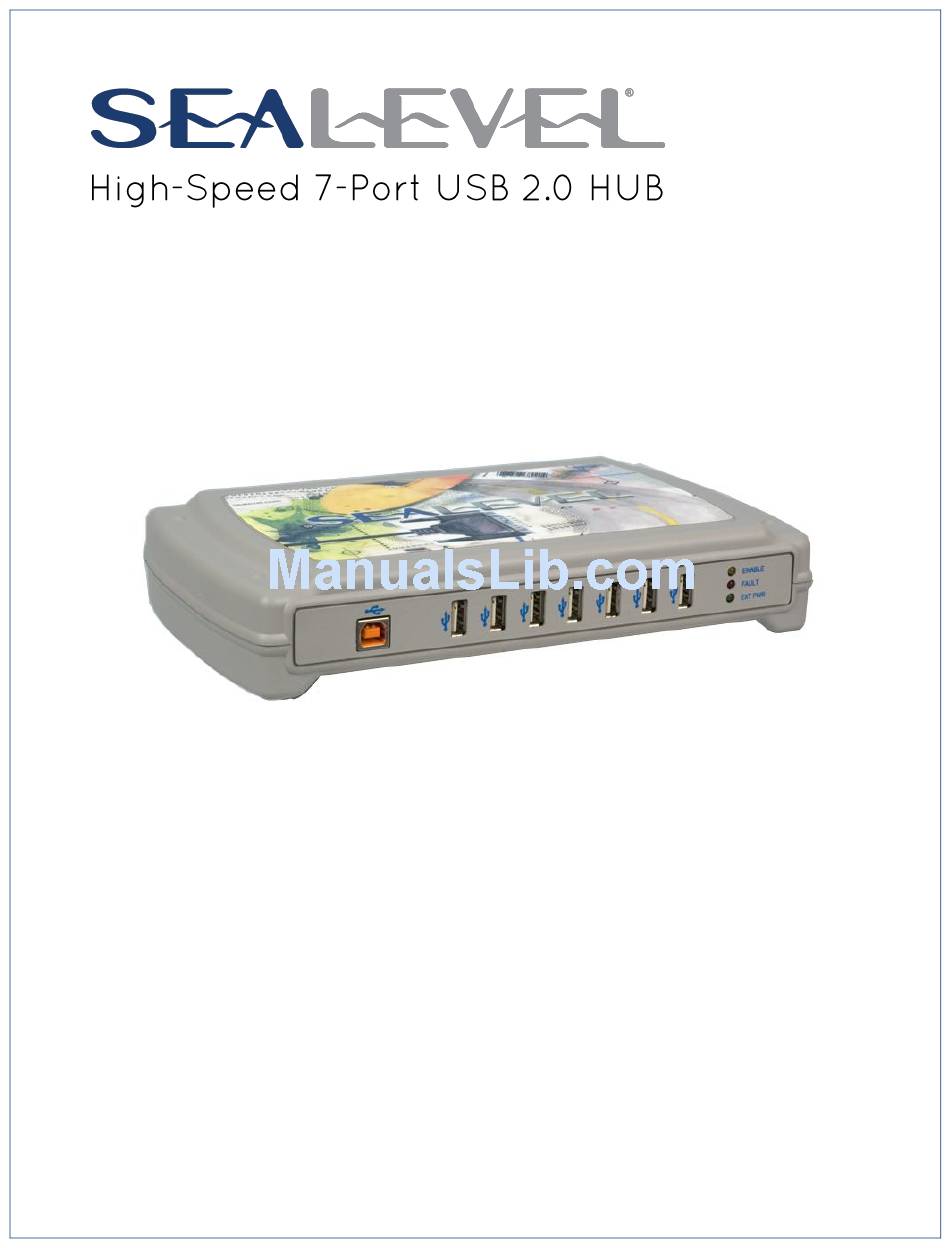

- Page 1 User Manual Item# HUB7P Sealevel Systems, Inc. Sealevel.com Phone 864.843.4343...
-
Page 2: Table Of Contents
....................10 Appendix B - How To Get Assistance ................... 11 Technical Support ........................11 Appendix C – Silk Screen – HUB7P PCB ................12 Appendix D – HUB7P Board Mounting Outline ..............13 Appendix E - Compliance Notices ..................14 Warranty ............................ -
Page 3: Safety Instructions
Keep work area free of non-conductive materials such as ordinary plastic assembly aids and Styrofoam. Use field service tools such as cutters, screwdrivers, and vacuum cleaners which are conductive. Always place drives and boards PCB-assembly-side down on the foam. ©Sealevel Systems, Inc. HUB7P Manual SL9183 05/2012... -
Page 4: Introduction
USB ports to industrial computing platforms. The HUB7P is USB 2.0 compliant, providing a full 480M bps data rate to the host, and is backwards compatible with USB 1.1 and 1.0 devices. The powered hub includes a wall-mount AC adapter that supplies a full 500mA to each attached USB peripheral. -
Page 5: Before You Get Started
What’s Included The HUB7P is shipped with the following items. If any of these items is missing or damaged please contact Sealevel for replacement. ... -
Page 6: Optional Items
Optional Items Depending upon your application, you are likely to find one or more of the following items useful with the HUB7P. All items can be purchased from our website or by calling +1 864-843- 4343. USB Type A to USB Type A, 3 Meter Extension Cable (Item# CA214) The CA214 is a fully rated USB extension cable that adds three meters to any existing USB cable (maximum 5 meters). -
Page 7: Installation
2. Simply connect the included wall-mount power supply to the HUB7P and then connect to an AC outlet. When the unit is successfully powered, the green LED will light. 3. Using the included USB device cable, plug the HUB7P into an available USB port on your host system. -
Page 8: Hardware Description
FAULT (Red) – Lights when there is a problem with a downstream USB port. Disconnect the USB peripherals from the hub one at a time until the issue is isolated. EXT PWR (Green) – Indicates that the hub is properly connected to an external power source. ©Sealevel Systems, Inc. HUB7P Manual SL9183 05/2012... -
Page 9: Technical Specifications
Non-Condensing Non-Condensing Manufacturing All Sealevel Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. ©Sealevel Systems, Inc. HUB7P Manual... -
Page 10: Appendix A - Troubleshooting
If these steps do not solve your problem, please call Sealevel’s Technical Support at +1 864- 843-4343. Our technical support is free and available from 8:00 AM to 5:00 PM Eastern Time Monday through Friday. -
Page 11: Appendix B - How To Get Assistance
When calling for technical assistance, please have the device installed and ready to run diagnostics. If possible, have your user manual and current settings ready. The Sealevel website is an excellent resource. The most current software updates and user manuals are available via our homepage by clicking on the 'Drivers' or 'Manuals' links located under ‘Technical Support.’... -
Page 12: Appendix C - Silk Screen - Hub7P Pcb
©Sealevel Systems, Inc. HUB7P Manual SL9183 05/2012... -
Page 13: Appendix D - Hub7P Board Mounting Outline
©Sealevel Systems, Inc. HUB7P Manual SL9183 05/2012... -
Page 14: Appendix E - Compliance Notices
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. ©Sealevel Systems, Inc. HUB7P Manual SL9183 05/2012... -
Page 15: Warranty
We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
