Summary of Contents for SeaLevel HUB7i

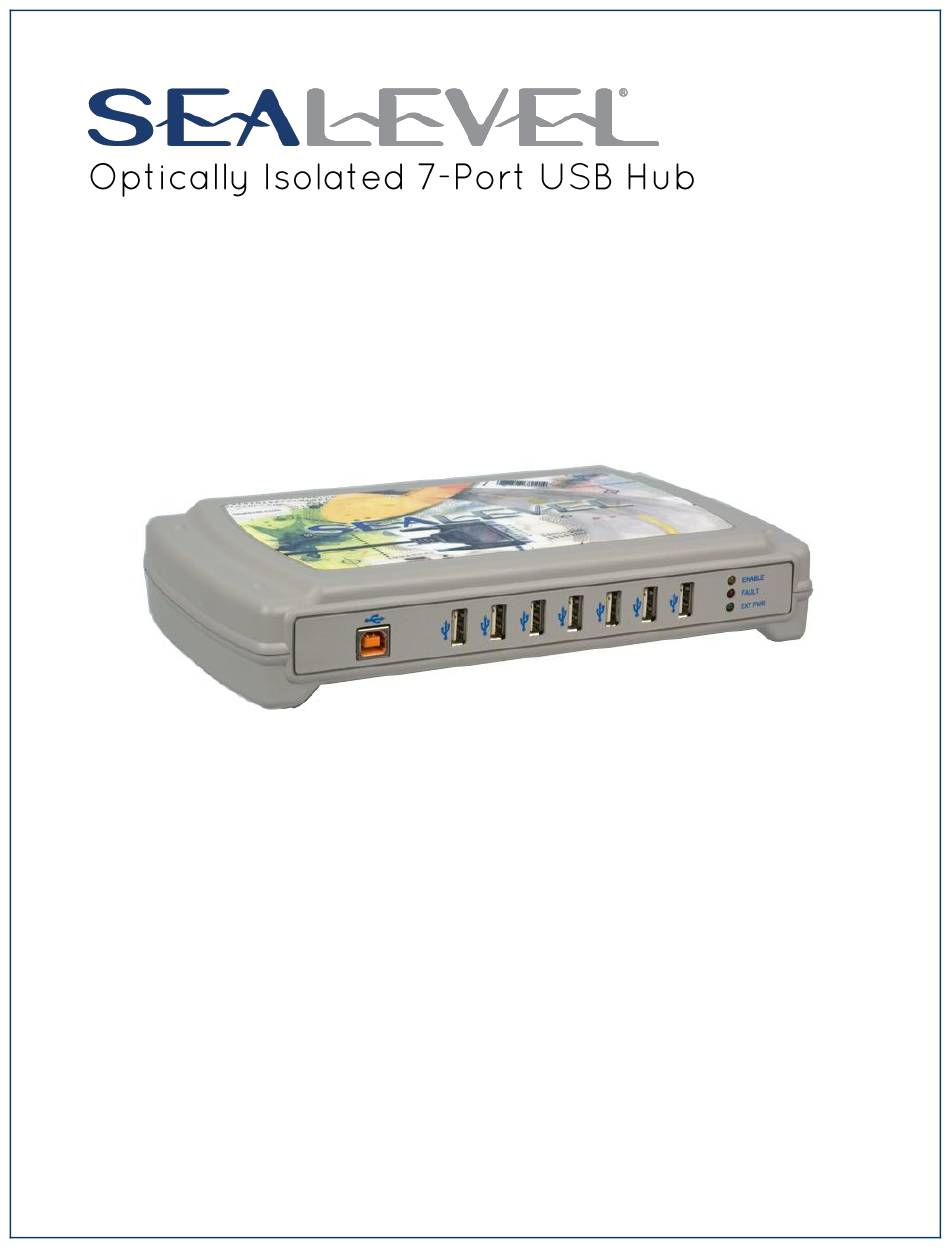

- Page 1 User Manual Item# HUB7i Sealevel Systems, Inc. Sealevel.com Phone 864.843.4343...
-
Page 2: Table Of Contents
Appendix A – Troubleshooting ......................... 10 Appendix B – How to Get Assistance ......................11 Technical Support ..........................11 Appendix C – Silk Screen – HUB7i PCB ...................... 12 Appendix D – HUB7i Board Mounting Outline ..................13 Appendix E – Compliance Notices ......................14 Federal Communications Commission Statement ................ -
Page 3: Safety Instructions
Keep work area free of non-conductive materials such as ordinary plastic assembly aids and Styrofoam. Use field service tools such as cutters, screwdrivers, and vacuum cleaners which are conductive. Always place drives and boards PCB-assembly-side down on the foam. ©Sealevel Systems, Inc. HUB7i Manual SL9178 05/2012... -
Page 4: Introduction
USB peripherals and protects the host computer from voltages up to 4000 VAC. The HUB7i is powered by an industrial grade wall-mount power supply that provides up to 3000 VAC isolation. For medical and other specialized applications, an optional medical grade power supply is available that increases the isolation to 4000 VAC, which offers the highest level of protection available from any USB hub manufacturer. -
Page 5: Before You Get Started
What’s Included The HUB7i is shipped with the following items. If any of these items is missing or damaged, please contact Sealevel for replacement. ... -
Page 6: Optional Items
Optional Items Depending upon your application, you are likely to find one or more of the following items useful with the HUB4PH. All items can be purchased from our website (www.sealevel.com) or by calling +1 864-843-4343. 5VDC @ 4A Desktop Power Supply (Item# TR129) -
Page 7: Installation
2. Simply connect the included wall-mount power supply to the HUB7i and then connect to an AC outlet. 3. Using the included USB device cable, plug the HUB7i into an available USB port on your host system. 4. The ‘Found New Hardware’ screen will appear and the hub will be automatically recognized as a generic USB hub device. -
Page 8: Hardware Description
Optical Isolation To protect the host computer from voltage spikes, power surges, and ground loops, the HUB7i and the included wall-mount power supply provides 3000 VAC isolation on the upstream USB port. With the optional medical grade power supply (Item# TR129), the isolation is increased to 4000 VAC. -
Page 9: Technical Specifications
Non-Condensing Non-Condensing Manufacturing All Sealevel Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. ©Sealevel Systems, Inc. HUB7i Manual... -
Page 10: Appendix A - Troubleshooting
The HUB7i is a generic USB hub and should provide years of trouble-free service. Should the device appear to not be functioning correctly, the following tips can eliminate most common problems without the need to call Technical Support. 1. Make sure the power supply is connected to the hub and to a live AC power outlet. The green LED on the front of the unit will light, indicating the hub is properly powered. -
Page 11: Appendix B - How To Get Assistance
When calling for technical assistance, please have the device installed and ready to run diagnostics. If possible, have your user manual and current settings ready. The Sealevel website is an excellent resource. The most current software updates and user manuals are available via our homepage by clicking on the 'Drivers' or 'Manuals' links located under ‘Technical Support.’... -
Page 12: Appendix C - Silk Screen - Hub7I Pcb
©Sealevel Systems, Inc. HUB7i Manual SL9178 05/2012... -
Page 13: Appendix D - Hub7I Board Mounting Outline
©Sealevel Systems, Inc. HUB7i Manual SL9178 05/2012... -
Page 14: Appendix E - Compliance Notices
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. ©Sealevel Systems, Inc. HUB7i Manual SL9178 05/2012... -
Page 15: Warranty
We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
