SuperSpeed 7-Port USB 3.1 Gen 1 Hub with
SeaLATCH USB Parts
User Manual | HUB7SSBA
1
© Sealevel Systems, Inc.
HUB7SSBA Manual | SL9184 11/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HUB7SSBA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SeaLevel HUB7SSBA

  • Page 1 SuperSpeed 7-Port USB 3.1 Gen 1 Hub with SeaLATCH USB Parts User Manual | HUB7SSBA © Sealevel Systems, Inc. HUB7SSBA Manual | SL9184 11/2022...
  • Page 2: Table Of Contents

    APPENDIX A - TROUBLESHOOTING ....................................14 APPENDIX B - HOW TO GET ASSISTANCE .................................. 16 APPENDIX C – SILK SCREEN – HUB7SSBA PCB ................................ 17 APPENDIX D – HUB7SSBA BOARD MOUNTING OUTLINE............................18 APPENDIX E - COMPLIANCE NOTICES ..................................19 FCC S ...............................
  • Page 3: Safety Instructions

    10. Keep work area free of non-conductive materials such as ordinary plastic assembly aids and Styrofoam. 11. Use field service tools such as cutters, screwdrivers, and vacuum cleaners which are conductive. 12. Always place drives and boards PCB-assembly-side down on the foam. © Sealevel Systems, Inc. HUB7SSBA Manual | SL9184 11/2022...
  • Page 4: Introduction

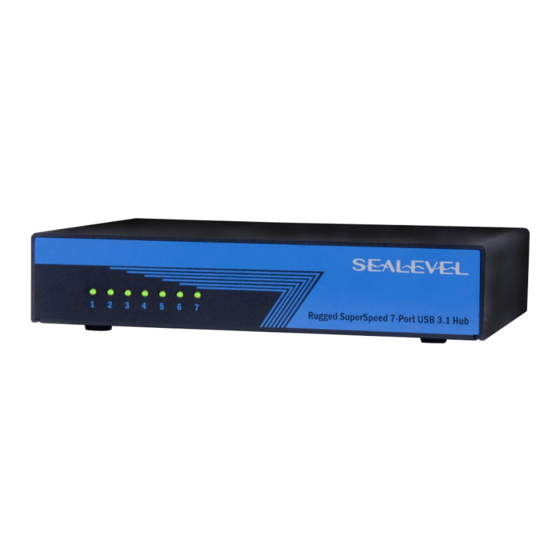

    Introduction Overview The HUB7SSBA is a SuperSpeed 7-port USB 3.1 hub. Supported in all USB aware operating systems, the HUB7SSBA requires no separate software drivers and is easy to install. The HUB7SSBA integrates SeaLATCH™ USB 3.1 ports, which are fully compatible with standard USB cables.
  • Page 5: Before You Get Started

    Before You Get Started What’s Included The HUB7SSBA is shipped with the following items. If any of these items is missing or damaged, please contact Sealevel for replacement. HUB7SSBA – SuperSpeed 7-Port USB 3.1 Hub with SeaLATCH USB Ports •...
  • Page 6: Optional Items

    Depending upon your application, you are likely to find one or more of the following cable items useful with the HUB7SSBA. Additional items can be found in the Mounting Options section of this manual. All items can be purchased from our website or by calling +1 864-843-4343.
  • Page 7 USB Type A to SeaLATCH Type B Device Cable, 72” (Item# CA356) The CA356 is a USB device cable with a SeaLATCH USB type B connector and standard type A connector. This cable is included with all Sealevel USB products with an integrated SeaLATCH type B USB port.
  • Page 8: Installation

    Installation Windows XP/7/8/10™ Operating Systems 1. The HUB7SSBA is fully supported as a generic USB 3.1 hub device in Windows 8/10™ operating systems and requires no separate drivers. 2. The HUB7SSBA is supported as a generic USB hub device in Windows XP/7™ and other USB- aware operating systems and requires no separate drivers.
  • Page 9: Hardware Description

    USB device is connected it. 1500mA Ports : Each HUB7SSBA has six CDP ports that can supply up to 1500mA. When there is no upstream host connection, these ports are dedicated charging ports, supporting vendor specific charging (RapidCharge;...
  • Page 10: Status Leds

    Status LEDs Each downstream port has a status LED that is visible from the front of the HUB7SSBA module to indicate the following information: USB 2.0/1.1/1.0 Connection with Host (Yellow) – Lights when a USB 2.0, 1.1, or 1.0 connection •...
  • Page 11: Sealatch® Usb 3.1

    SeaLATCH® USB 3.1 The HUB7SSBA integrates SeaLATCH USB 3.1 ports, which are fully compatible with standard USB cables. When used with the optional USB cable (Item# CA748) with a SeaLATCH USB type B connector, the metal thumbscrew provides a secure metal-to-metal connection to the hub and prevents accidental cable disconnection.
  • Page 12 SeaLATCH locking USB 3.1 cables integrate a small thumbscrew into each USB connector. SeaLATCH USB 3.1 cables are fully interchangeable with standard USB cables. The thumbscrew provides a secure metal- to-metal connection preventing accidental disconnection. SeaLATCH USB 3.1 cables are available in three configurations. © Sealevel Systems, Inc. HUB7SSBA Manual | SL9184 11/2022...
  • Page 13: Mounting Options

    Non-Condensing Non-Condensing Manufacturing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. © Sealevel Systems, Inc.
  • Page 14: Appendix A - Troubleshooting

    8. On Windows 10, If the problem device is not removed from the HUB7SSBA within 3 seconds, the overcurrent event will be reported to the host as shown below: ©...
  • Page 15 If the port remains unpowered after following the steps above, contact technical support for further assistance. If these steps do not solve your problem, please call Sealevel’s Technical Support at +1 864-843-4343. Our technical support is free and available from 8:00 AM to 5:00 PM Eastern Time Monday through Friday. For email support, contact support@sealevel.com.
  • Page 16: Appendix B - How To Get Assistance

    If possible, please have the adapter installed in a computer ready to run diagnostics. Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.asp.
  • Page 17: Appendix C - Silk Screen - Hub7Ssba Pcb

    Appendix C – Silk Screen – HUB7SSBA PCB © Sealevel Systems, Inc. HUB7SSBA Manual | SL9184 11/2022...
  • Page 18: Appendix D - Hub7Ssba Board Mounting Outline

    Appendix D – HUB7SSBA Board Mounting Outline © Sealevel Systems, Inc. HUB7SSBA Manual | SL9184 11/2022...
  • Page 19: Appendix E - Compliance Notices

    This equipment has been evaluated or tested and found in compliance with the requirements of the following directives issued by the European Commission: EMC Directive 2014/30/EU • RoHS Directive 2011/65/EU + (EU) 2015/863 • © Sealevel Systems, Inc. HUB7SSBA Manual | SL9184 11/2022...
  • Page 20: Warranty

    Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
