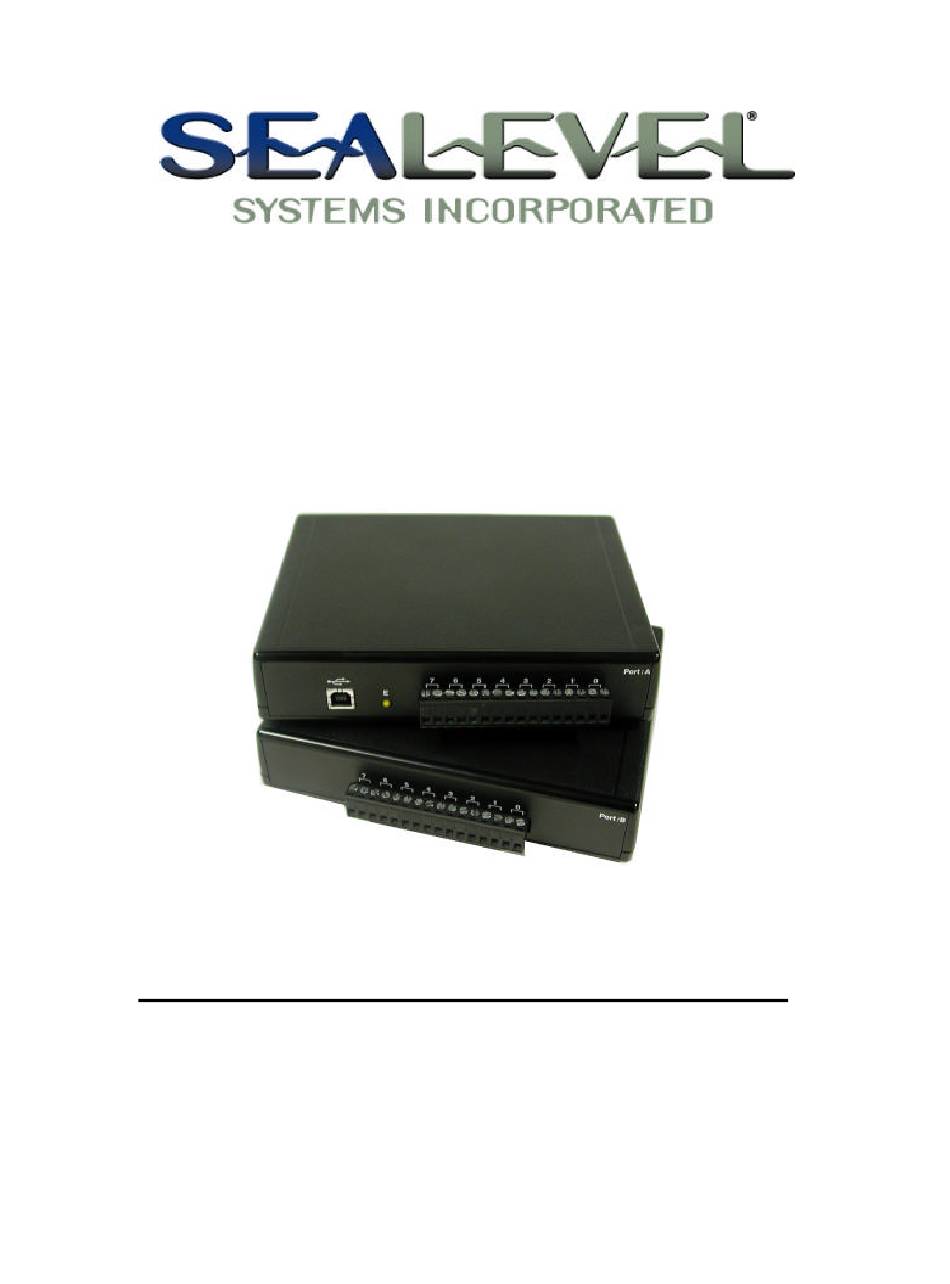

- Page 1 SeaPORT REL-16 USER MANUAL Part # 8208 Sealevel Systems, Inc Phone: (864) 843-4343 155 Technology Place FAX: (864) 843-3067 P.O. Box 830 www.sealevel.com Liberty, SC 29657 USA...
-
Page 2: Table Of Contents
APPENDIX D - COMPLIANCE NOTICES..........11 ........11 EDERAL OMMUNICATIONS OMMISSION TATEMENT EMC D ................. 11 IRECTIVE TATEMENT WARRANTY ....................... 12 © 2002c Sealevel Systems, Incorporated. All rights reserved. Figure 1:Addressing Tables................4 Figure 2:Pin Assignments................5 Figure 3:Box Layout View ................5... -
Page 3: Introduction
Introduction and Installation Introduction Overview The SeaPORT REL-16 provides 16 reed relays that can latch power, data or other electronic signals for control applications. The SEAPORT REL-16 is USB 1.1 compliant. What’s Included The SeaPORT REL-16 is shipped with the following items. If any of these items is missing or damaged, contact the supplier. -
Page 4: Technical Description
Specifications Technical Description The SeaPORT REL-16 provides two parallel reed relay output ports. The ports are organized as ports A, and B. The SeaPORT REL-16 is a line-powered device requiring a USB port capable of sourcing 500 mA. Features • 16 SPST relays •... -
Page 5: Application Programmers Interface (Api)
(0th) input port of the device will be utilized. In all addressing modes, port numbers are zero-indexed; that is, the first port is port #0, the second port is #1, the third #2, and so on. Sealevel Systems SeaPORT REL-16 Page 3... - Page 6 12 ( R/W ) 4 (W) B4 – Output 13 ( R/W ) 5 ( W) B5 – Output 14 ( R/W ) 6 (W) B6 – Output 15 ( R/W ) 7 (W) B7 – Output Sealevel Systems SeaPORT REL-16 Page 4...
-
Page 7: Side Panel View Port A
12,13 14,15 Port B Bit Port B Terminals 10,11 12,13 14,15 Figure 2:Pin Assignments Side Panel View Port A Port : A Side Panel View Port B Port : B Figure 3:Enclosure Layout View Sealevel Systems SeaPORT REL-16 Page 5... -
Page 8: Party Software Support
Party Software Support Third party software support for many HMI/MMI and other process control software is included on the product installation CD. For the most up to date information third party software support, please visit http://www.sealevel.com/3rdpartysw.htm. Sealevel Systems SeaPORT REL-16 Page 6... -
Page 9: Specifications
(-4º to 158º F) Humidity Range 10 to 90% R.H. 10 to 90% R.H. Non-Condensing Non-Condensing Power Consumption Supply line +5 VDC Rating 500 mA Mean Time Between Failures (MTBF) Greater than 150,000 hours. (Calculated) Sealevel Systems SeaPORT REL-16 Page 7... -
Page 10: Appendix A - Troubleshooting
3. Use the SeaIO control panel applet for card identification and configuration. If these steps do not solve your problem, please call Sealevel Systems’ Technical Support, (864) 843-4343. Our technical support is free and available from 8:00AM-5PM Eastern Time Monday through Friday. -
Page 11: Appendix B - How To Get Assistance
If possible, please have the adapter installed in a computer ready to run diagnostics. 3. Sealevel Systems provides an FAQ section on its web site. Please refer to this for many commonly asked questions. This section can be found at http://www.sealevel.com/faq.htm... -
Page 12: Appendix C - Silk-Screen
Appendix C - Silk-Screen Appendix C - Silk-Screen Sealevel Systems SeaPORT REL-16 Page 10... -
Page 13: Appendix D - Compliance Notices
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. Sealevel Systems SeaPORT REL-16 Page 11... -
Page 14: Warranty
Sealevel Systems assumes no liability for any damages, lost profits, lost savings or any other incidental or consequential damage resulting from the use, misuse of, or inability to use this product. Sealevel Systems will not be liable for any claim made by any other related party.
