Summary of Contents for SeaLevel HUB4P

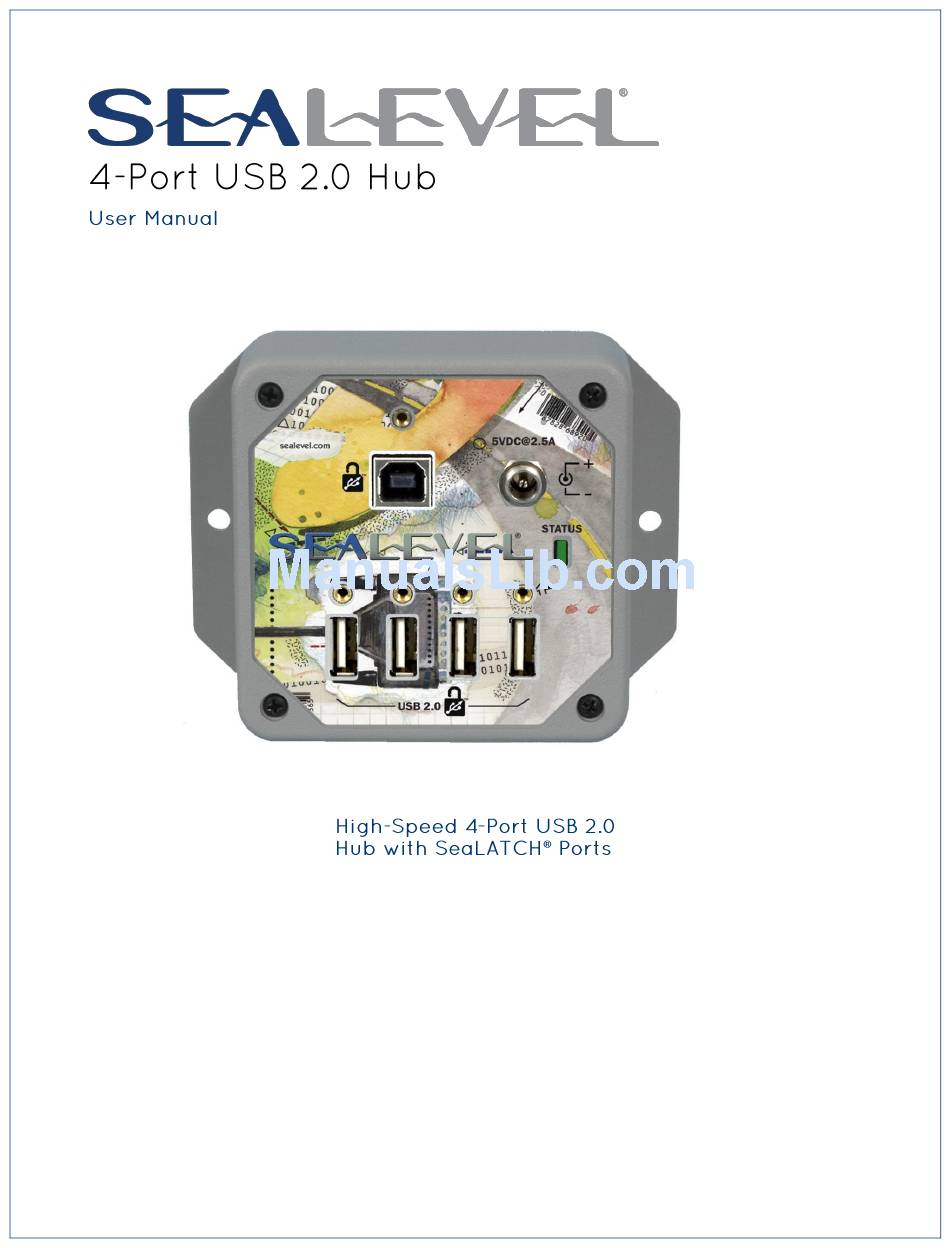

- Page 1 Sealevel Systems, Inc. Sealevel.com Phone 864.843.4343...
-
Page 2: Table Of Contents
Manufacturing ..........................18 Appendix A – Troubleshooting ......................19 Appendix B – How to Get Assistance ....................20 Appendix C – Silk Screen – HUB4P PCB .................... 21 Appendix D – Compliance Notices ....................22 Warranty .............................. 23 ©Sealevel Systems, Inc. -
Page 3: Introduction
USB ports to industrial computing platforms. The HUB4P is USB 2.0 compliant, providing a full 480M bps data rate to the host, and is backwards compatible with USB 1.1 and 1.0 devices. The powered hub includes a wall-mount AC adapter that supplies a full 500mA to each attached USB peripheral. -
Page 4: Before You Get Started
Note – The lowest level of importance used to provide background information, additional tips, or other non-critical facts that will not affect the use of the product. The HUB4P is shipped with the following items. If any of these items is missing or damaged, please contact Sealevel for replacement. - Page 5 The CA356 is a USB device cable with a SeaLATCH USB type B connector and standard USB Type A connector. This 72" cable is included with all Sealevel USB products with an integrated SeaLATCH USB Type B port. USB Type A to USB Type B, 72” Device Cable (Item# CA179) The CA179 is a 72"...
-
Page 6: What's Included - Hub4P-Kt
The HUB4P-KT is shipped with the following items. If any of these items is missing or damaged please contact Sealevel for replacement. HUB4P-KT – Sealevel iPortholes™ High Speed 4-Port USB 2.0 Hub CA393 – +5V Internal Power Cable ... -
Page 7: What's Included - Hub4P-Oem
Sealevel Software CD – Manual Only OEM models of the HUB4P do not ship with a USB cable. See the available selection of USB cable options below. Depending upon your application, you are likely to find one or more of the following items useful with the HUB4P-OEM. - Page 8 Internal USB Cable for 1x4 2mm Box Headers, 14” (Item# CA383) This cable is perfect for adding Sealevel I/O modules to small embedded systems. One end of the cable has a 1x4 2mm Molex connector for internal connections to Sealevel embedded USB products.
- Page 9 Panel Mounted Adapter with Locking USB Port (Item# SL-PM) The SL-PM easily adds a SeaLATCH locking USB port to your enclosure, faceplate or bulkhead. This gives you the freedom to add a locking USB port wherever it is needed. ©Sealevel Systems, Inc. HUB4P Manual SL9185 02/2012...
-
Page 10: Installation
2. Connect the hub to power via the included wall-mount power supply (HUB4P) or through the internal power header (HUB4P-KT and HUB4P-OEM) 3. Using the included USB device cable, plug the HUB4P into an available USB port on your host system. -
Page 11: Hardware Description
Hardware Description The HUB4P is a powered USB 2.0 4-port hub that is perfect for adding high-speed USB ports to industrial computing platforms. It is USB 2.0 compliant, providing a full 480M bps data rate to the host, and is backwards compatible with USB 1.1 and 1.0 devices. The hub supplies a full 500mA to each attached USB peripheral. - Page 12 HUB4P-KT iPorthole™ HUB4P-OEM Number of Ports Communications Chip USB Hub USB Specification 2.0 Compliant; 1.0 and 1.1 Compatible Maximum Data Rate 480M bps Maximum Data Distance 5 meters Storage Temperature -50° - +105°C Operating Temperature 0 - +70°C Humidity Range 10 - 90% R.H.
-
Page 13: Hardware Description
Hardware Description HUB4P-KT ©Sealevel Systems, Inc. HUB4P Manual SL9185 02/2012... -
Page 14: Hub4P-Oem
©Sealevel Systems, Inc. HUB4P Manual SL9185 02/2012... -
Page 15: Sealatch® Usb
SeaLATCH® USB The HUB4P and HUB4P-KT integrate Sealevel’s SeaLATCH locking USB ports, which are fully compatible with standard USB cables. When used with SeaLATCH locking USB cables, the metal thumbscrew provides a secure metal-to-metal connection to the hub and prevents accidental cable disconnection. -
Page 16: Sealatch Locking Usb Cables
Sealevel products with a SeaLATCH type B port and legacy USB type A ports. The CA356 is included with Sealevel devices with a SeaLATCH type B port. Item# CA332 The CA332 is a 72” cable with both SeaLATCH type A and B connectors. -
Page 17: Technical Specifications
The status LED lights to indicate that the hub is successfully communicating with the host computer. HUB4P 4.3” 3.4” 1.3” 10.92cm 8.63cm 3.30cm HUB4P-KT 3.2” 3.1” 0.6” 8.13cm 7.87cm 1.52cm HUB4P-OEM 2.9” 2.5” 0.8” 7.37cm 6.35cm 2.03cm ©Sealevel Systems, Inc. HUB4P Manual SL9185 02/2012... -
Page 18: Environmental Specifications
Humidity Range Non-Condensing Non-Condensing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. ©Sealevel Systems, Inc. -
Page 19: Appendix A - Troubleshooting
Appendix A – Troubleshooting The HUB4P is a generic USB hub and should provide years of trouble-free service. Should the device appear to not be functioning correctly, the following tips can eliminate most common problems without the need to call Technical Support. -
Page 20: Appendix B - How To Get Assistance
When calling for technical assistance, please have the device installed and ready to run diagnostics. If possible, have your user manual and current settings ready. The Sealevel website is an excellent resource. The most current software updates and user manuals are available via our homepage by clicking on the 'Drivers' or 'Manuals' links located under ‘Technical Support.’... -
Page 21: Appendix C - Silk Screen - Hub4P Pcb
Appendix C – Silk Screen – HUB4P PCB ©Sealevel Systems, Inc. HUB4P Manual SL9185 02/2012... -
Page 22: Appendix D - Compliance Notices
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. ©Sealevel Systems, Inc. HUB4P Manual SL9185 02/2012... -
Page 23: Warranty
We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
