ENDA EUP1222 Manual

Rail mounted nfc universal pid controller
Hide thumbs

Advertisement

Table of Contents

ENDA EUP1222
Read this document carefully before using this device! The guarantee will be expired by damaging of the device if you
don't attend to the directions in the user manual. Also we don't accept any compensations for personal injury, material
damage or capital disadvantages.

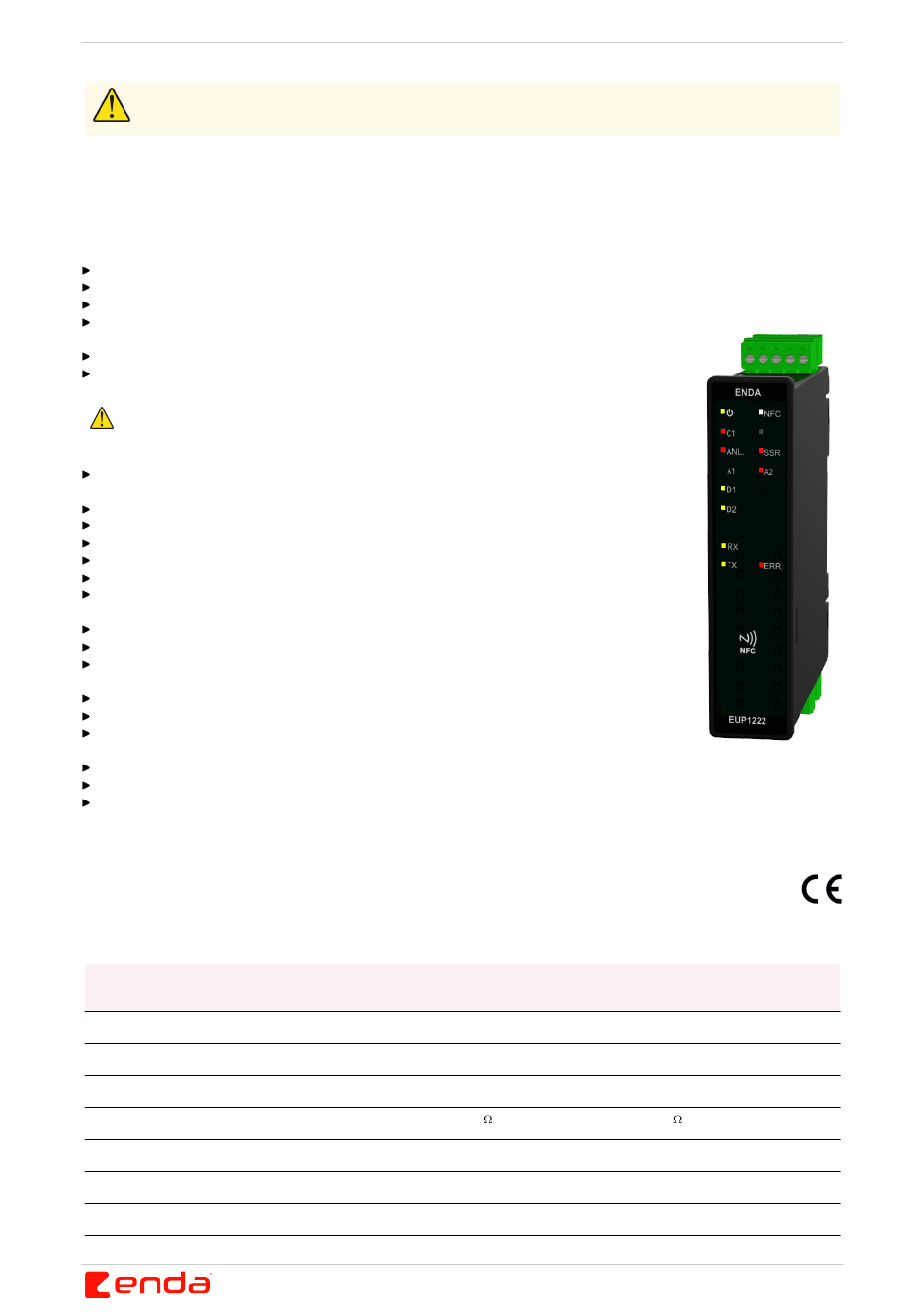

ENDA EUP1222
RAIL MOUNTED NFC UNIVERSAL PID CONTROLLER
DIN Rail Mounting,
Selectable dual-set value,
Selectable PT100, J, K, L, T, S, R sensor types,
Selectable 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV and
0-50mV input types,
Programmable D1 and D2 digital contact input,
Auto calculation for PID parameters (SELF TUNE),
Before starting the system for the first time, if the
PID parameters of the system are known, they must
be entered, otherwise the Self-Tune feature must be
activated.
Control outputs can be disabled (Applied for measurement
use),
Manual control for C/A2 or ANL/SSR outputs,
Soft-Start feature,
Communication via RS485 Modbus protocol,
Selectable analogue, SSR or relay output control,
Selectable 0-20mA, 4-20mA analogue output,
C/A2 relay output can be set as secondary alarm or tem-
perature control output,
Heating/Cooling control type selection,
Offset feature for input,
In case of sensor failure, relay positions can be selected or
periodic operation can be performed,
Up to 16 steps profile controlling feature,
Optional contact output triggering feature at profile steps,
Timer or thermostat feature can be used during profile con-
trolling,
Heating error monitoring feature,
Possibility to access all parameters via NFC,
CE Marked according to European Norms.
ORDER CODE : EUP1222
Technical Specifications
ELECTRICAL CHARACTERISTICS
Supply
Power Consumption
Wiring
Line Resistance
Data Retention
EMC
Safety Requirements
Max. 100 Ohm for thermocouple, max. 20 ohm for three-wire PT100.
EN 61010-1: 2010 ( Pollution degree 2, overvoltage category II )
1
24 VDC ±20%.
Max. 5VA.
1.5mm2' screw-terminal connections.
FLASH Memory (minimum 20 years).
EN 61326-1: 2021
17.05.2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EUP1222 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ENDA EUP1222

Summary of Contents for ENDA EUP1222

  • Page 1 Timer or thermostat feature can be used during profile con- trolling, Heating error monitoring feature, Possibility to access all parameters via NFC, CE Marked according to European Norms. ORDER CODE : EUP1222 Technical Specifications ELECTRICAL CHARACTERISTICS 24 VDC ±20%. Supply Max.
  • Page 2 User Manual ENVIRONMENTAL CONDITIONS 0 . . . +50°C/-25 . . . +70°C (with no icing). Ambient/storage temperature %80, Relative humidity for temperatures up to 31°C, decreasing linearly to %50 at 40°C. Max. Relative humidity According to EN 60529 IP20. Protection rating Max.
  • Page 3 ENDA EUP1222 HOUSING Rail - mounted box according to DIN 43 700. Housing Type W22.5xH96xD86mm Dimensions Approx. 158g (after packing) Weight Self extinguishing plastics used. Enclosure Material DO NOT clean the device with solvent (thinner, gasoline, acid etc.) and / or abrasive cleaning agents.

  • Page 4: Connection Diagram

    User Manual Connection Diagram ENDA EUP1222 devices are intended for rail mounted installations. Make sure that the device is used only for intended purpose. The shielding must be grounded on the instrument side. During an installation, all of the cables that are connected to the device must be free of electrical power. The device must be protected against inadmissible humidity, vibrations, severe soiling.
  • Page 5 ENDA EUP1222 Error Indicator Led Note: The Err LED flashes periodically when an error condition occurs. For example, in the case of an upper-scale error, the Err LED on the third graph will flash three times every 180 ms for a duration of 60 ms, and this cycle repeats after 1380 ms. When the error is resolved, the LED turns off.
  • Page 6 User Manual Alarm1 And Alarm2 Output Types Diagrams are based on Alarm1 graphics. Timer / Thermostat Output Examples Profile Control Output Examples 17.05.2024...

  • Page 7: Holding Registers

    ENDA EUP1222 Multi-Step Profile Control Output Example ENDA EUP1222 Universal PID Controller Modbus Map Holding Registers Register Addresses Param Data Type Description Permission Default Decimal Control output, temperature set- Readable 0x0000 word point value Writable Control output, 2nd temperature Readable...
  • Page 8 User Manual Register Addresses Param Data Type Description Permission Default Decimal Control output, set value power ratio Readable 0x0009 word (Adjustable between %0 and Writable %100) Control output, set value power ratio in case of sensor failure Readable 0x000A word (Adjustable between %0 and Writable %100)
  • Page 9 ENDA EUP1222 Register Addresses Param Data Type Description Permission Default Decimal Alarm2 output, temperature set- Readable 0x0017 word point value Writable Alarm2 output minimum setpoint Readable 0x0018 word value limit Writable Alarm2 output maximum setpoint Readable 0x0019 word value limit...
  • Page 10 User Manual Register Addresses Param Data Type Description Permission Default Decimal Minimum percentage of analog Readable 0x0021 word output value Writable Maximum percentage of analog Readable 0x0022 word output value Writable Offset value (Adjustable between Readable 0x0023 word -100 and 100) Writable Function control parameter.
  • Page 11 ENDA EUP1222 Register Addresses Param Data Type Description Permission Default Decimal Retransmission output control pa- rameter. 0 = Retransmission out is off, 1 = Analog output is 0-20mA Re- Readable 0x002A word transmission out, Writable 2 = Analog output is 4-20mA Re-...
  • Page 12 User Manual Register Addresses Param Data Type Description Permission Default Decimal 1st. Step, time value (Can be set between 0 and 9999s or 9999m Readable H104 0x0068 word (varies according to H100 Writable parameter)) 2nd. Step, set value of target temperature Readable H105...
  • Page 13 ENDA EUP1222 Register Addresses Param Data Type Description Permission Default Decimal 7th. Step, time value (Can be set between 0 and 9999s or Readable H116 0x0074 word 9999m (varies according to H100 Writable parameter)) 8th. Step, set value of target tem-...

  • Page 14: Coil Registers

    User Manual Register Addresses Param Data Type Description Permission Default Decimal 13th. Step, time value (Can be set between 0 and 9999s or Readable H128 0x0080 word 9999m (varies according to H100 Writable parameter)) 14th. Step, set value of target temperature Readable H129...
  • Page 15 ENDA EUP1222 Register Addresses Param Data Type Description Permission Default Decimal Control output configuration. Readable 0x0004 0 = Heating control, Writable 1 = Cooling control Temperature unit. Readable 0x0005 0 = °C, 1 = °F Writable Control outputs active. Readable...
  • Page 16 User Manual Register Addresses Param Data Type Description Permission Default Decimal Step 4 in profile steps: A1 alarm output coil. Readable C103 0x0067 0 = A1 output is OFF at 4. step. Writable 1 = A1 output is ON at 4. step. Step 5 in profile steps: A1 alarm output coil.
  • Page 17 ENDA EUP1222 Register Addresses Param Data Type Description Permission Default Decimal Step 15 in profile steps: A1 alarm output coil. Readable C114 0x0072 0 = A1 output is OFF at 15. Writable step. 1 = A1 output is ON at 15. step.
  • Page 18 User Manual Register Addresses Param Data Type Description Permission Default Decimal Step 9 in profile steps: C/A2 alarm output coil. Readable C124 0x007C 0 = C/A2 output is OFF at 9. Writable step. 1 = C/A2 output is ON at 9. step. Step 10 in profile steps: C/A2 alarm output coil.
  • Page 19 ENDA EUP1222 Register Addresses Param Data Type Description Permission Default Decimal If C133 = 0, Profile mode is stopped and returned to first step. Readable C133 0x0085 If C133 = 1, Profile mode is Writable started. If C134 = 0 and if Profile mode is started, process runs.

  • Page 20: Input Registers

    User Manual Register Addresses Param Data Type Description Permission Default Decimal D2 digital input status 0x0004 Read Only (0 = OFF, 1 = ON) Control output heating fault status 0x0005 (0 = No error, 1 = Heating not Read Only possible ) If D100 = 1, Profile is in constant D100...
  • Page 21 EUP1222 realizes error and sends error message. Most significant bit of function is changed ’1’ to indicate error in error message by EUP1222. Error code is sent in data section. EUP1222 realizes error type via this message.
  • Page 22 User Manual ENDALink, is a mobile application that provides fast and secure data sharing between NFC supported ENDA devices and mobile devices. To communicate with an NFC supported ENDA device, your mobile device must have NFC support. You can scan the QR codes below to access our EndaLink application on Google Play and the App Store.
