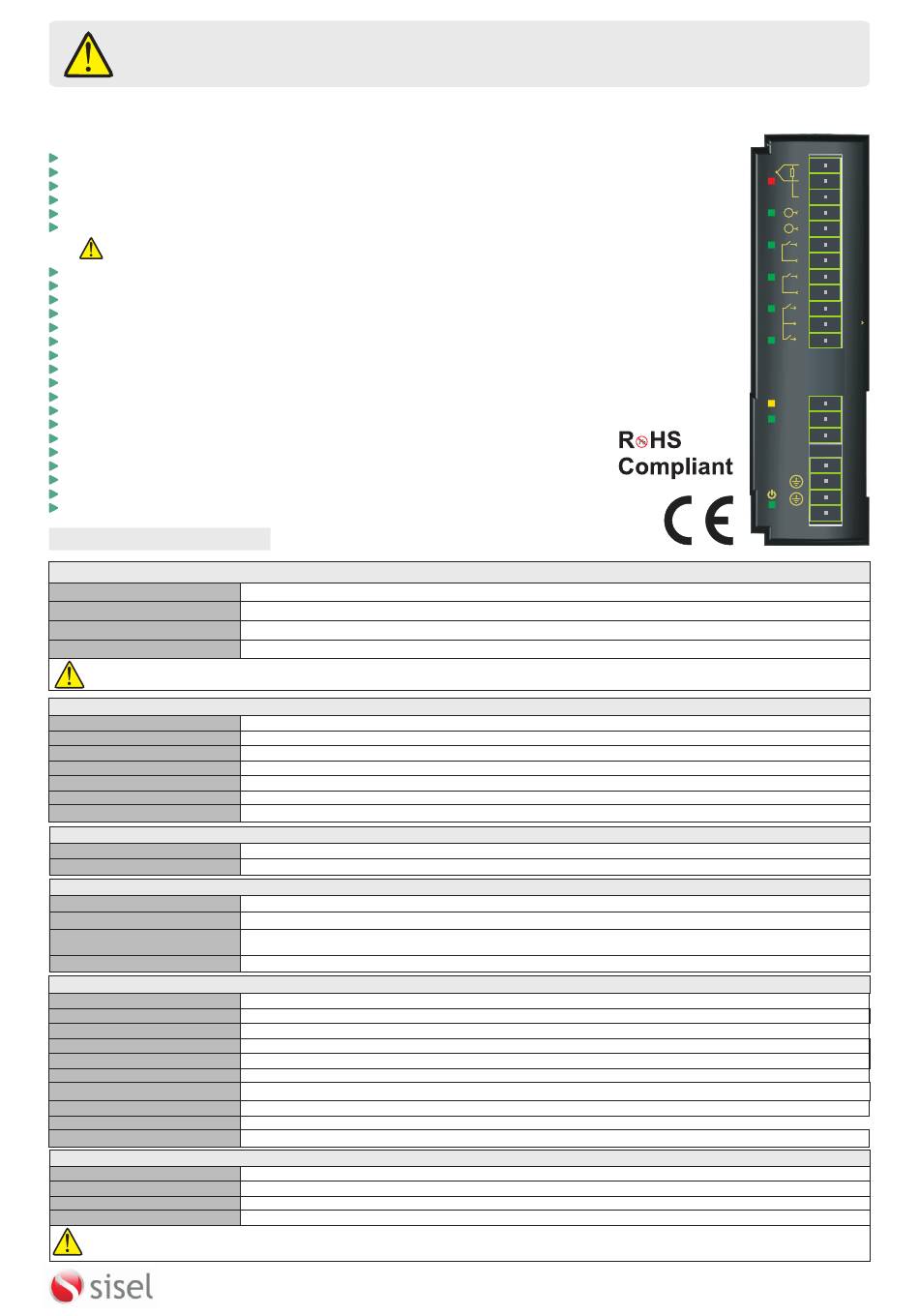

ENDA EUP1122 Quick Start Manual

Read this document carefully before using this device. The guarantee will be expired by damaging of the device if you don't
attend to the directions in the user manual. Also we don't accept any compensations for personal injury, material damage or
capital disadvantages.
ENDA EUP1122 RAIL MOUNTED UNIVERSAL PID CONTROLLER
Thank you for choosing ENDA EUP1122 Rail mounted PID universal controller.
DIN Rail Mounting.
Selectable Dual-set value.
PT100, J, K, L, T, S, R sensor types can be used.
0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV and 0-50mV input selections.
Programmable D1 and D2 digital contact input.
Auto calculation for PID parameters (SELF TUNE).
Selftune for automatic PID calculation or
manually enter PID parameters if known.
Control outputs can be disabled (Applied for measurement use).
Manual control for C/A2 or ALN/SSR outputs.
Soft-Start feature.
Communication via RS485 Modbus protocol.
Analogue, SSR or Relay output control selection.
0-20mA, 4-20mA, 0-10V and 2-10V Analogue Output Control selection.
C/A2 Relay output can be set as secondary Alarm or Temperature Control output.
Heating/Cooling control selection.
Zero point input shift (Offset feature for input).
In case of sensor failure, relay positions can be selected or periodic operation can be performed.
Can be programmed via Modbus.
Up to 16 steps profile controlling feature.
Contact output triggering feature at profile steps.
Timer or Thermostat feature can be used during profile controlling.
Modbus addressing, baud rate settings or default settings can be applied via DIP Switch.
Heating error monitoring feature.
Update featutre via RS485.
CE Marked according to European Norms.
ORDER CODE : EUP1122
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
Max. Relative humidity
Protection rating
Height
KEEP AWAY device from exposed to corrosive, volatile and flammable gases or
liquids and DO NOT USE the device in similar hazardous locations.
ELECTRICAL CHARACTERISTICS
Supply
Power Consumption
Wiring
Line Resistance
Data Retention
EMC
Safety Requirements
INPUTS
D1 Dry Contact Input
D2 Dry Contact Input
OUTPUTS
C/A2 Output
A1 Output
ANL/SSR Control Outputs
Life Expectancy for Relay
CONTROL
Control Type
Control Algorithm
A/D Converter
Sampling Time
Proportional Band
Integral Time
Derivative Time
Control Period
Hysteresis
Output Power
HOUSING
Housing Type
Dimensions
Weight
Enclosure Material
Avoid any liquid contact when the device is switched on.
DO NOT clean the device with solvent (thinner, gasoline, acid etc.) and / or abrasive cleaning agents.
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah. Barbaros Cad. No:18
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx.
url : www.enda.com.tr
0 ... +50 °C/-25 ... +70°C (with no icing).
80% Relative humidity for temperatures up to 31°C, decreasing linearly to 50% at 40°C.
According to EN 60529 IP20.
Max. 2000m.
24 VDC 20%.
Max. 5VA.
1.5mm²' screw-terminal connections.
Max. 100Ω Ohm. for thermocouple. Max. 20Ω ohm. For three-wire Pt100.
FLASH Memory (minimum 20 years).
EN 61326-1: 2013
EN 61010-1: 2010 ( Pollution degree 2, overvoltage category II )
Programmable 1st. control key input.
Programmable 2nd. control key input.
Relay : 250V AC, 5A (for resistive load), NO (Control or Alarm2 Output selection).
Relay : 250V AC, 5A (for resistive load), NO+NC (Alarm1 Output selection).
Used for 0-20mA, 4-20mA, 0-10V, 2-10V Analog output and SSR.
Maximum load resistance is 600Ω Ohm. on mA output and SSR mode. Source resistance is 500Ω Ohm. for V output.
Without load 30.000.000 switching; 250V AC, 5A (resistive load) 300.000 switching.
Single set-point and alarm control.
On-Off / P, PI, PD, PID (selectable).
14 bits.
100ms (Minimum).
Adjustable between 0% and 100%. If Pb=0%, On-Off control is selected.
Adjustable between 0.0 and 100.0 minutes.
Adjustable between 0.00 and 25.00 minutes.
Adjustable between 1 and 125 seconds.
Adjustable between 1 and 50°C/F.
The ratio of power at the setpoint value can be set between 0% and 100%.
Rail - mounted box according to DIN 43 700.
W29xH90xD64mm
Approx. 200g (after packing)
Self extinguishing plastics used.
Y.Dudullu 34775
Fax : +90 216 365 74 01
1/8

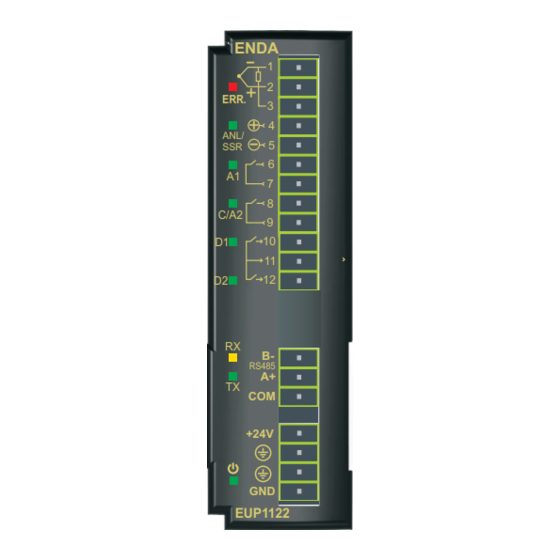

ENDA
-
1
2
+
ERR.
3
+
4
ANL/
-
5
SSR
6
A1
7
8
C/A2
9
10
D1
11
12
D2
RX
B-
RS485
A+
TX
COM
+24V
GND
EUP1122
ENDA TM
EUP1122-EN-01-220120
