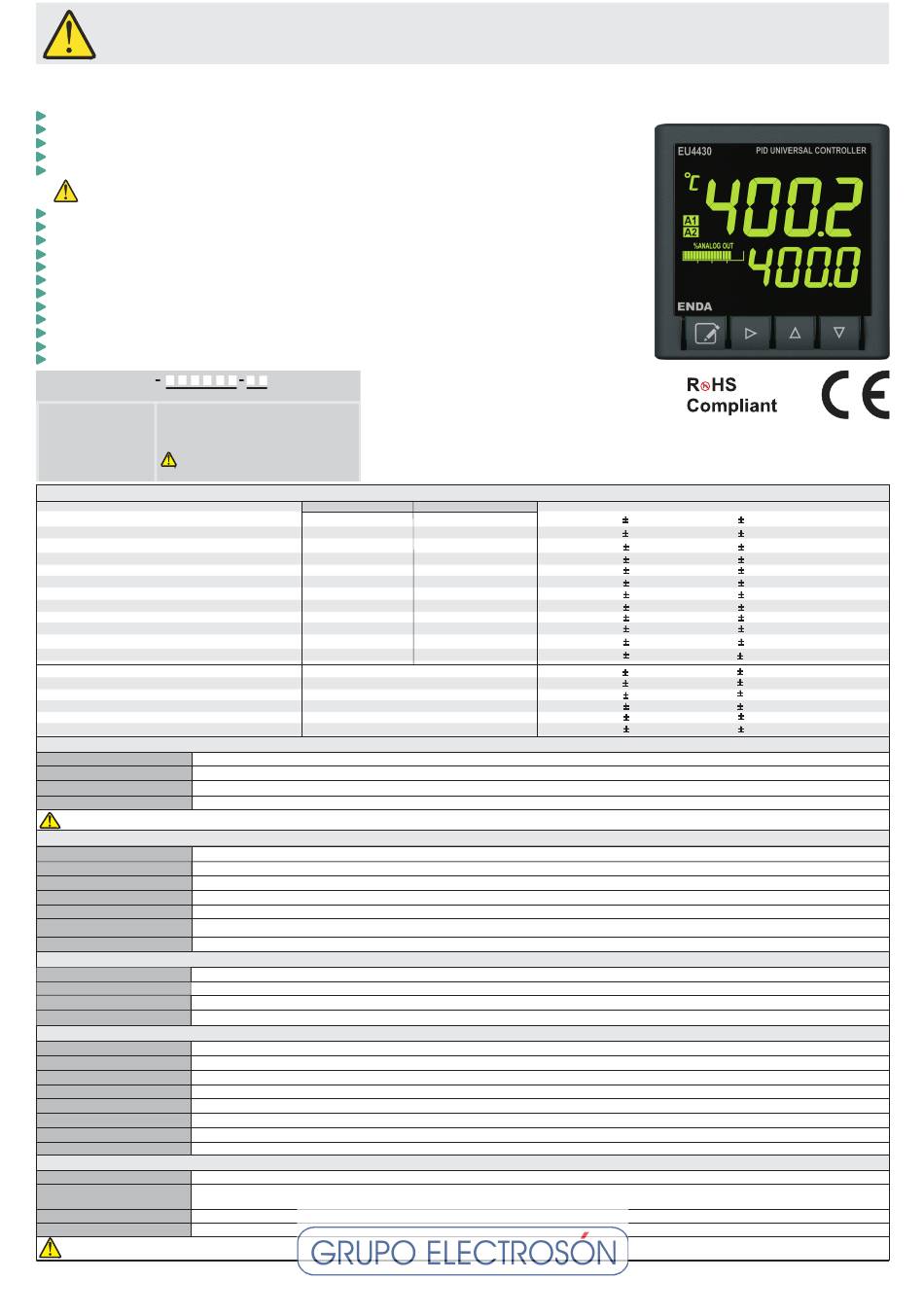

ENDA EU4430 Quick Start Manual

Please read this document carefully before using this product. The guarantee will be invalidated if the device is damaged by not following instructions
detailed in the manual. The company shall not be responsible for any damage or losses however caused, which may be experienced as a result of the
installation or use of this product.
Thank you for choosing ENDA EU4430 Universal Controller Devices.
48x48mm sized.
Dual setpoint value can be selected.
PT100 ,J, K, L, T, S, R sensor (thermocouple) types can be selected.
0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV and 0-50mV input selections.
Auto calculation for PID parameters (SELF TUNE).
Self tune for automatic PID calculation or
manually enter PID parameters if known.
Three different feature can be assigned to digital input.
Three different feature can be assigned to F function key.
Soft-Start feature.
Analogue, SSR or Relay Output Control selection.
0-20mA and 4-20mA Analogue Output Control selection.
A1 Relay output programmable as primary Alarm or PID Cooling Control output.
C/A2 Relay output can be used as secondary Alarm or Temperature Control output.
Heating/Cooling control selection.
Zero point input shift.
In case of sensor failure, periodically, auto-periodically running or relay state can be selected.
RS485 Modbus RTU communication protocol feature (Specify at order).
CE marked according to European Norms.
Order Code : EU4430
1
2 - Modbus (Optional)
1 - Supply Voltage
RS........ RS-485
230VAC...90 - 250V AC
(Optional / Specify at order).
24VAC.....24V AC
Blank.... N/A
SM...........9-30V DC /
7-24V AC Please see EU4430 Modbus Address
Map and Connection Diagram Guide for
Modbus feature.
Input Type
PT100 Resistance Thermometer
PT100 Resistance Thermometer
J (Fe-CuNi) Thermocouple
J (Fe-CuNi) Thermocouple
K (NiCr-Ni) Thermocouple
K (NiCr-Ni) Thermocouple
L (Fe-CuNi) Thermocouple
L (Fe-CuNi) Thermocouple
T (Cu-CuNi) Thermocouple
T (Cu-CuNi) Thermocouple
S (Pt10Rh-Pt) Thermocouple
R (Pt13Rh-Pt) Thermocouple
0-20mA input
4-20mA input
0-10V input
2-10V input
0-25mV input
0-50mV input
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature 0 ... +50°C/-25 ... +70°C
Max. Relative humidity
Relative humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C.
Rated pollution degree According to EN 60529;
Height
Max. 2000m
KEEP AWAY device from exposed to corrosive, volatile and flammable gases or liquids and DO NOT USE the device in similar hazardous locations.
ELECTRICAL CHARACTERISTICS
Supply
90-250V AC 50/60Hz,
Power consumption
Max. 5VA
Wiring
Power screw-terminal connections: 2.5mm²', Signal screw-terminal connections: 1,5mm².
Line resistance
Max. 100 Ohm
Data retention
EEPROM (minimum 10 years)
EMC EN 61326-1: 2013 (Performance criterion B satisfied for EN 61000-4-3 standard).
Safety requirements
EN 61010-1: 2010 (Pollution degree 2, overvoltage category II)
OUTPUTS
C/A2 Output Relay : 250V AC, 8A (for resistive load), NO+NC (Control or Alarm2 Output selection).
Relay : 250V AC, 8A (for resistive load), NO (Alarm1 and Cooling Control Output selection).
A1 Output
ANL/SSR Output Max. SSR Output ; 0-20mA, 4-20mA, 24V 20mA. Max. load resistance ; 600 Ohm (12 bit 0.2% accuracy).
Life expectancy for relay Without load 30.000.000 switching; 250V AC, 8A (resistive load) 300.000 switching.
CONTROL
Single Setpoint and Alarm Control.
Control type
Control algorithm On-Off / P, PI, PD, PID (selection).
14 bit.
A/D converter
Min. 100ms.
Sampling time
Can be adjusted between %0.0 and %100.0 . If Pb=%0.0 , ON-OFF control is selected.
Proportional band
Can be adjusted between 1 and 125secs.
Control period
Can be adjusted between 1 and 50°C/F.
Hysteresis
Setpoint value ratio can be adjusted between %0 and %100 .
Output power
HOUSING
Housing type Suitable for flush-panel mounting according to DIN 43 700.
Dimensions
W48xH48xD87mm
Weight Approx. 250g
Self extinguishing plastics
Enclosure material
Avoid any liquid contact when the device is switched on.
DO NOT clean the device with solvent (thinner, gasoline, acid etc.) and / or abrasive cleaning agents.

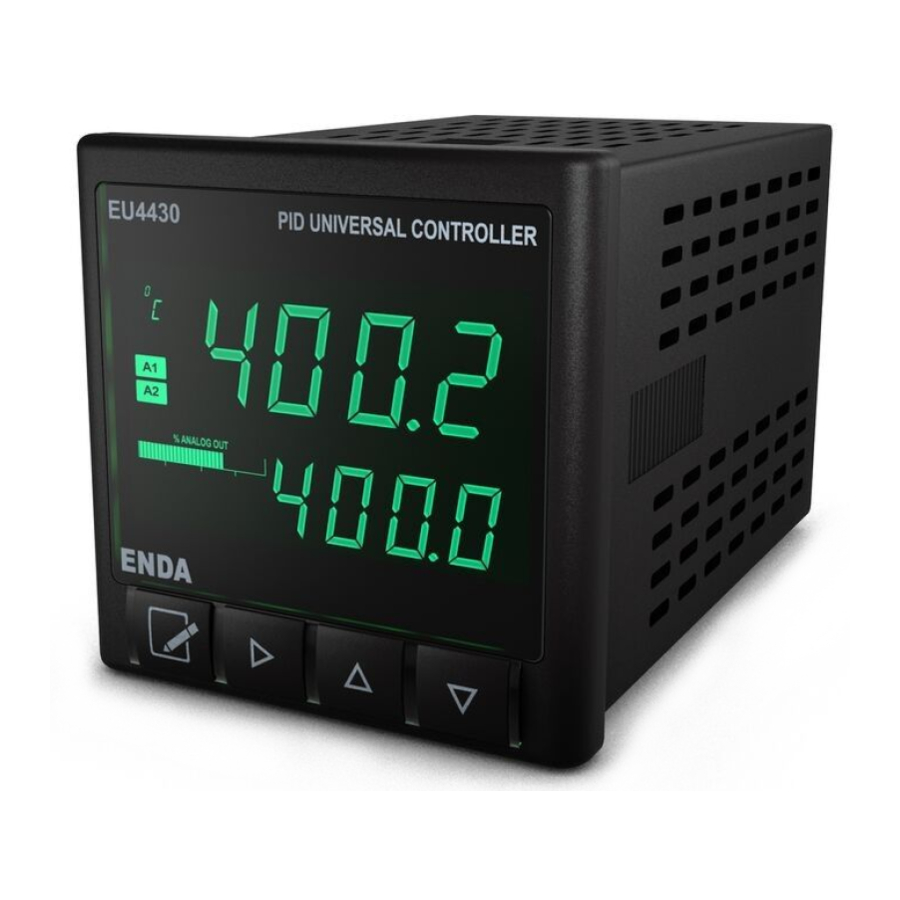

ENDA EU4430 PID UNIVERSAL CONTROLLER
2
Modbus Available
Scale Range
°C
-199.9...600.0
EN 60751 °C
-200...600 °C
EN 60751
-30.0....600.0°C
EN 60584
-30....600°C
EN 60584
EN 60584 -30.0...999.9°C
EN 60584 -30...1300°C
-30.0....600.0°C
DIN 43710
DIN 43710 -30....600°C
EN 60584
-30.0...400.0°C
EN 60584 -30....400°C
EN 60584
-40...1700°C
-40...1700°C
EN 60584
-1999...+9999 (max. scale range 10000)
-1999...+9999 (max. scale range 10000)
-1999...+9999 (max. scale range 10000)
-1999...+9999 (max. scale range 10000)
-1999...+9999 (max. scale range 10000)
-1999...+9999 (max. scale range 10000)
Front panel
24V AC ±%10 50/60Hz
°F
-199.9...999.9 °F
-328....1112
°F
-22.0....999.9 °F
-22....1112 °F
-22.0....999.9 °F
-22....2372 °F
-22.0....999.9 °F
-22....1112 °F
-22.0....752.0 °F
-22......752 °F
-40....3092 °F
-40....3092 °F
: IP65, Rear panel : IP20
or 9-30VDC / 7-24VAC ±%10 SMPS
1/4
Accuracy
0,2% ( for full scale ) 1 digit
0,2% ( for full scale ) 1 digit
0,5% (for full scale) 1 digit
0,5% (for full scale) 1 digit
0,5% (for full scale) 1 digit
0,5% (for full scale) 1 digit
0,5% (for full scale) 1 digit
0,5% (for full scale) 1 digit
0,5% (for full scale) 1 digit
0,5% (for full scale) 1 digit
0,5% (for full scale) 1 digit
0,5% (for full scale) 1 digit
0,2% ( for full scale ) 1 digit
0,2% ( for full scale ) 1 digit
0,2% ( for full scale ) 1 digit
0,2% ( for full scale ) 1 digit
0,2% ( for full scale ) 1 digit
0,2% ( for full scale ) 1 digit
ENDA
EU4430-EN-01-181119
TM
