ENDA EDT3011 Series Manual

Read this document carefully before using this device. The guarantee will be expired by device
damages if you don't attend to the directions in the user manual. Also we don't accept any
compensations for personal injury, material damage or capital disadvantages.

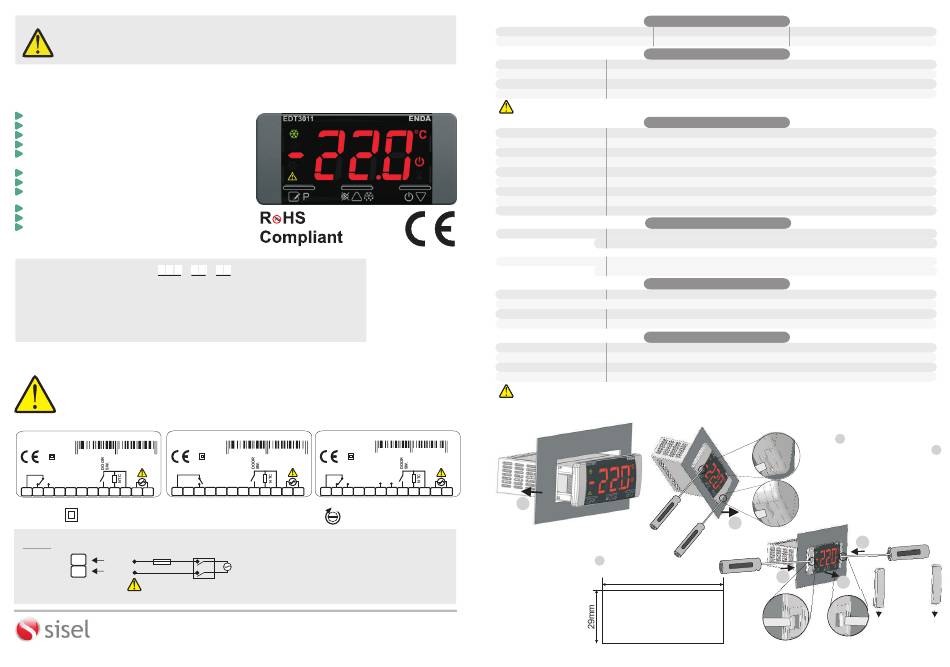

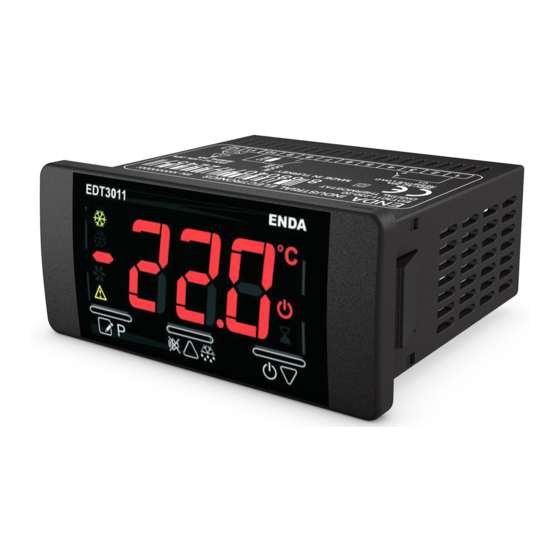

ENDA EDT3011 COOLING / DEFROST CONTROLLER
Thank you for choosing ENDA EDT3011 series cooling / defrost controller devices.
77 x 35mm sized
Single NTC prob input
Additional offset feature for input
Defrosting duration and interval time settings
Delay time and minimum operating time settings for
compressor protection
Compressor or door alarm control via digital input
Upper, lower and delay time settings for alarm
In case of probe failure, output status can be set to ON,
OFF or periodic
Upper and Lower setpoint value limits can be adjusted
Temperature unit can be selected as °C or °F
CE marked according to European Norms
Order Code : EDT3011 - -
1
1- Supply Voltage 2- Output Selection
230......230V AC 08.....8A Relay output
024........24V AC/DC 20.....20A Relay output
012........12V AC/DC
SM........9-30VDC/7-24VAC
CONNECTION DIAGRAM
ENDA EDT3011 is intended for installation in control panels. Make sure that the device is used
only for intended purpose. The electrical connections must be carried out by a qualified staff
and must be according to the relevant locally applicable regulations. During an installation, all of the cables
that are connected to the device must be free of electrical power. The device must be protected against
inadmissible humidity, vibrations, severe soiling and make sure that the operation temperature is not
exceeded. The cables should not be close to the power cables or components.
ENDA
ENDA
INDUSTRIAL ELECTRONICS SN: XXXXXXXXX
EDT3011-230-08 EDT3011-230-20
DIGITAL THERMOSTAT DIGITAL THERMOSTAT
8 680407 722440
MADE IN TURKEY
230V AC +10% -20%
250V AC 20A
250V AC 8A 50/60Hz 5VA
RESISTIVE LOAD RESISTIVE LOAD
C1 C1
1 2 3 4 5 6 7 8 9 10 11 12 1 2
Equipment is protected throughout
by DOUBLE INSULATION.
NOTE:
Fuse
SUPPLY:
F 100 mA
Switch
250V AC
11 Line
184-253V AC
50/60Hz 4VA
12
Neutral
Fuse should
Cable size: 1,5mm²
be connected
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah. Barbaros Cad. No:18 Y.Dudullu 34775
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx. Fax : +90 216 365 74 01
url : www.enda.com.tr
-
2 3
3- ModBus
Blank.....N/A
RS.........ModBus
(Specify at Order)
ENDA
INDUSTRIAL ELECTRONICS SN: XXXXXXXXX INDUSTRIAL ELECTRONICS
EDT3011-230-08-RS
DIGITAL THERMOSTAT
8 680407 722464
8 680407 722457
MADE IN TURKEY MADE IN TURKEY
230V AC +10% -20%
250V AC 8A
50/60Hz 5VA
RESISTIVE LOAD
C1
3 4 5 6 7 8 9 10 11 12 1 2 3 4 5
Holding screw
0.4-0.5Nm
Note:
1) Mains supply cords shall meet the requirements of
IEC 60227 or IEC 60245.
230V AC
2) In accordance with the safety regulations, the power
Supply
supply switch shall bring the identification of the
relevant instrument and it should be easily
accessible by the operator.
EDT3011-EN-02-191202
Input Type
NTC Resistive Sensor
Ambient / Storage Temperature
Relative Humidity
Protection Class
Height
KEEP AWAY device from exposed to corrosive, volatile and flammable gases or
liquids and DO NOT USE the device in similar hazardous locations.
Supply
Power Consumption
Wiring
Line Resistance
Data Protection
Time Accuracy
EMC
Safety Requirements
Scale
C1 Output
Life expectancy for relay
Control type
Kontrol yöntemi
A/D converter
Hysteresis
Housing Type
Dimensions
Weight
Enclosure Material
Avoid any liquid contact when the device is switched on.
DO NOT clean the device with solvent (thinner, gasoline, acid etc.) and / or abrasive cleaning agents.
DIMENSIONS
SN: XXXXXXXXX
230V AC +10% -20%
50/60Hz 5VA
RS485
B
A
-
+
6 7 8 9 10 11 12
1
1
For mounting device ;
Push the device in direction 1
Note :
1) Panel thickness should
be maximum 7mm.
2) If there is no 60mm free
space at the back side of
the device,it would be
difficult to remove it from
ENDA TM
the panel.
1 / 2
INPUT
Scale Range
EN 60751 -60.0...150.0 °C -76.0...302.0°F
ENVIRONMENTAL CONDITIONS
0 ... +50°C/-25 ... +70°C (with no icing)
80% Relative humidity for temperatures up to 31°C, decreasing linearly to 50% at 40°C.
According to EN 60529 ; Front Panel : IP65, Rear Panel : IP20
Max.2000m
ELECTRICAL CHARACTERISTICS
230V AC +10% -20%, 50/60Hz or 12/24V AC/DC ±10% or 9-30V DC / 7-24V AC SMPS
Max. 3VA
Power connection : 2.5mm² screw-terminal, Signal connection : 1,5mm² screw-terminal connections
Max. 100ohm
EEPROM (Min. 10 years)
±1% - 1sec.
EN 61326-1: 2013 (Performance criteria B has been satisfied for EN 61000-4-3 standard)
EN 61010-1: 2010 (Pollution degree 2, overvoltage category II ).
3.5 digit, 7-segment 19mm red LED
OUTPUT
For 8A : NO and NC 250V AC, 8A (resistive load), Control output.
For 20A : NO 250V AC, 20A (resistive load), Control output.
For 8A : Mechanical 30.000.000; Electrical 300.000 operation. 250V AC, 8A (resistive load).
For 20A : Mechanical 30.000.000; Electrical 100.000 operation. 250V AC, 20A (resistive load).
CONTROL
Single set-point and alarm control
12-bit accuracy, 100ms sampling time
Adjustable between 0.1 and 15.0 °C/F
HOUSING
Suitable for flush-panel mounting according to DIN 43 700.
W77xH35xD61mm
Approx. 215g (after packing)
Self extinguishing plastics
2
1
Panel Cut-out
71,5mm
Accuracy
± 1% (Full scale) ± 1 digit
For removing device from panel :
- Push the flush-mounting clamps in
direction 2 as shown in the figure.
Then, pull out the clamp in direction 3
2
3
2 3
4 3
Covers
EDT3011-EN-02-191202
