ENDA EHTC7425A HUMIDITY AND TEMPERATURE CONTROLLER
Thank you for choosing
7 x
2
72
mm sized.
Dual
4 digits display.
0/4-20mA, 0-10V, 1- 5V analog or digital input (Specify at Order).
Heating or cooling control selection.
PID, On-Off Temperature control selection.
PID Auto-calculation (SELF TUNE).
Humidification or drying control selection.
Internal supply output for sensor.
Time and temperature-dependent fan relay output selection.
2 Relay outputs with time setting for incubation operations.
Adjustable buzzer alarm feature for measurement values.
CE marked according to European Norms.
Order Code : EHTC7425A -
1 - Input
2 - Supply Voltage
AS.......Analog Input
230..........230V AC
DS......Digital Input
110..........110V AC
SM........10...30V DC
Sensor must be
ordered separately.
TECHNICAL SPECIFICATIONS
ENVIRONMENTAL CONDITIONS
Ambient/stroge temperature
Max. Relative humidity
Rated pollution degree
Height
KEEP AWAY device from exposed to corrosive, volatile and flammable gases or liquids and DO NOT USE the device in similar hazardous
locations.
ELECTRICAL CHARACTERISTICS
Supply
Power consumption
Wiring
Temperature input range
Humidity input range
EMC
Safety requirements
INPUTS
Input Type
Measurement Range
0-20mA
4-20mA
AS
1-5V
-40.0....125.0 C
0-10V
0....100 %RH
DS
EHTD-CB-100
When the device is in current measurement mode, the input impedance is 10 . Therefore voltage input should not be connected to the device while
in current mode. Otherwise the device will deteriorate. If it is necessary to switch from the voltage measurement mode to the current measurement
mode while the device is running, It must be removed and then changed to one of the input type current measurement modes.
OUTPUT
Sensor Supply
15VDC , Max. 50mA
Life expectancy for relay
30.000.000 Switching for no-load operation; 300.000 switching for 10A resistive load at 250VAC.
SSR Output
Max. 12VDC 30mA.
HOUSING
Housing type
Suitable for flush-panel mounting according to DIN 43 700.
Dimensions
W72xH72xD97mm
Weight
Approx. 350g (after packing)
Enclosure Material
Self extinguishing plastics
Avoid any liquid contact when the device is switched on.
DO NOT clean the device with solvent (thinner, gasoline, acid etc.) and / or abrasive cleaning agents.
SURAN
Industrieelektronik
Dettinger Str. 9
/ D-72160 Horb a.N
ENDA EHTC7425A
-
-
1
2
3 ModBus
-
Blank......N/A
RS ...... ModBus
I
...
(
Specify at Order .
)
8...24V AC
Please see page 6 for
Modbus
Connection
Diagram.
0 ... +50°C/-25 ... 70°C (Without icing)
80
%
Relative humidity for temperatures
According to EN 60529
Front panel : IP6
Max. 2000m
230V AC 110V AC ±10%, 50/60Hz or 10...30V DC / 8...24V AC
Max. 7VA
2.5mm² screw-terminal connections
0~20mA / 0~10V can be selected for analog output sensors. Temperature range for digital output Enda Sensor is -40~125°C
0~20mA / 0~10V can be selected for analog output sensors. Humidity range for digital output Enda Sensor is 0~100 RH
EN 61326-1: 2013
EN 61010-1: 2010 (pollution degree 2, overvoltage category II)
Measurement Accuracy
±%0,5 (Full scale)
º
Tel.: +49 (0)7451 / 625 617
Fax: +49 (0)7451 / 625 0650
Humidity and Temperature Controller
-
3
4
4 SSR
-
Blank......N/A
SSR
...... ModBus
...
(
Applies to the heat output .
)
up to 31
°C decreasing linearly
,
5
,
Rear
panel : IP20
Input Resistance
Approx. 10Ω
Approx. 100kΩ
---------------
Ω
E-mail : info@suran-elektronik.de
Internet : www.suran-elektronik.de
EHTC7425A
HEAT
%RH
Fan
L
Rotate
R
SET
TSET
HSET
C(on/off)

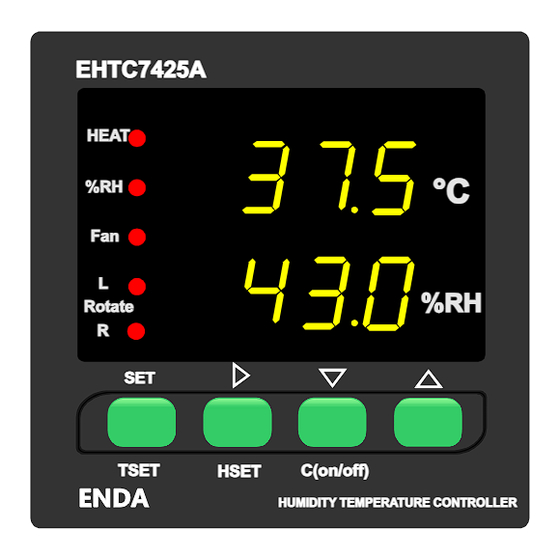

HUMIDITY TEMPERATURE CONTROLLER
to
50% at 40°C.
EHTC7425A-E-12102021
english
°C
%RH
1 / 7
.
