ENDA ELC-286RT User Manual

ENDA
ELC-286RT
ENDA PLC PROGRAMMABLE LOGIC CONTROLOR
USER'S MANUAL
Please read this document carefully before using this product. The guarantee will be
invalidated if the device is damaged by not following instructions detailed in the
manual. The company shall not be responsible for any damage or losses however
caused, which may be experienced as a result of the installation or use of this product.
1) To avoid damaging the system, do not connect/disconnect the device when power
is on.
2) Make wiring according to user manual to avoid damaging the system.
3) Do not touch live wires.
4) Make sure the ground connection is wired.
5) CE Market according to European Norms.

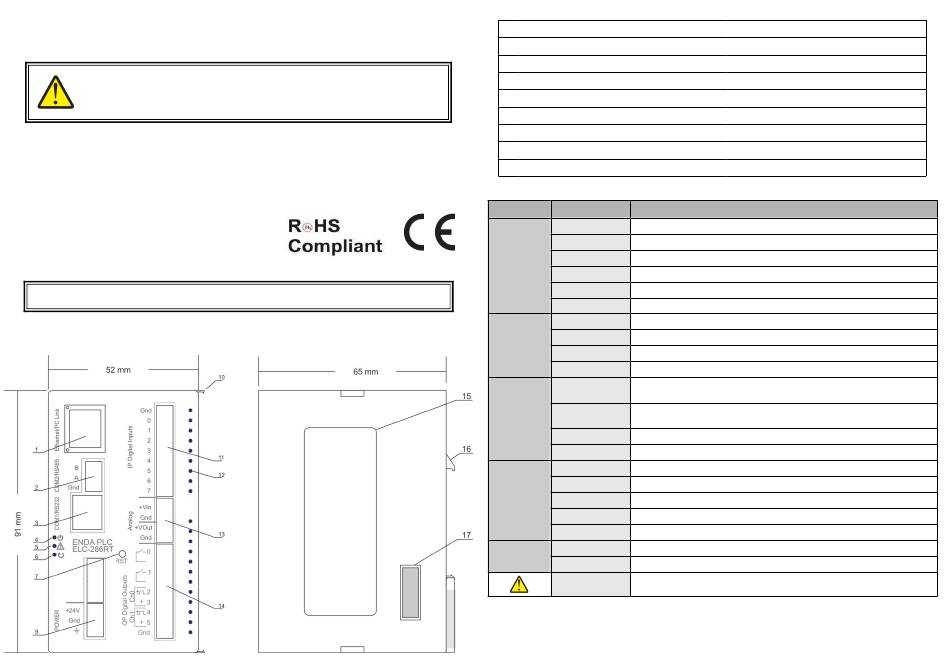

TECHNICAL SPECIFICATIONS
ELC-286RT PLC unit has got 8 digital inputs, 2 relay outputs, 4 transistor output, 1 analog
input 1 analog output. I/O capacity can extend to 256 point with expansion modules.
PLC parts and mechanical measurement
1 100Mb Ethernet port
2 RS485 port
3 RS232 port
4 PLC power status LED
5 PLC error status LED
6 Program RUN status LED
7 Reset button
8
9 Power supply terminal
Techical Specifications
Name Part Description
Power supply 24VDC, ±15% tolerans
Power consumption 3WMax.
CPU process speed 80ns/command
General
Program language Graphical Ladder diagram with EndaSoft software.
Program capacity 48kB (Complied code)
Commands Logic, mathematical, communication, fast counter and timers, function blocks processes.
Ethernet port 100MB ethernet port for PC programming and network connections.
RS232 Serial port, MODBUS RTU protocol support.
Communication
ports
RS485 Serial port, MODBUS RTU protocol support.
Digital outputs 2 channels 220V 3A relay output, 4 channels pnp 24VDC transistor output, (QP2 and QP4
are high speed output max 100kHz)
Digital inputs 8 channels 24VDC pnp, 5mA connection, Logic 1 for >14VDC, Logic 0 for < 13VDC, IP0
Input/Output
and IP1 are high speed counters.
Analog input 1 channel 0-10VDC, 10bit res.
Analog output 1 channel 0-10VDC 12 bit res.
Integer registers 1024 signed, registers
Float registers 1024 signed float 32 bit registers
Memory Counters 256 counters 32 bit up/down counter
Timers 128 1ms res., 3 type timers
System registers 128 signed 32 bit
Temperature -10..+60C (without icing)
Environmental
conditions
Humidity 5..95rH humidity
Do not use the device in locations subject to corrosive or flammable gasses.
10 DIN Ray installation flange
11 Digital input terminals
12 IO status LEDs
13 Analog input/output port
14 Digital output terminal block
15 Label area
16 DIN Ray installation flange
17 Expansion modul connector.
