ENDA ELC-186RT User Manual

ENDA
ELC-186RT
ENDA PLC PROGRAMMABLE LOGIC CONTROLOR
USER'S MANUAL
Please read this document carefully before using this products! The guarantee will be
invalidated if the device is damaged by not following instructions detailed in the manual.
The company shall not be responsible for any damage or losses however caused, which
may be experienced as a result of the installation or use of this product.
1) To avoid damaging the system, do not connect/disconnect the device when power
is on.
2) Make wiring according to user manual to avoid damaging the system.
3) Do not touch live wires.
4) Make sure the ground connection is wired.
5) CE Market according to European Norms.
TECHNICAL SPECIFICATIONS
ELC-186RT PLC unit has got support 8 digital input, 2 relay output, 4 Transistor output.
I/O capacity can extend to 256 point with expansion modules.

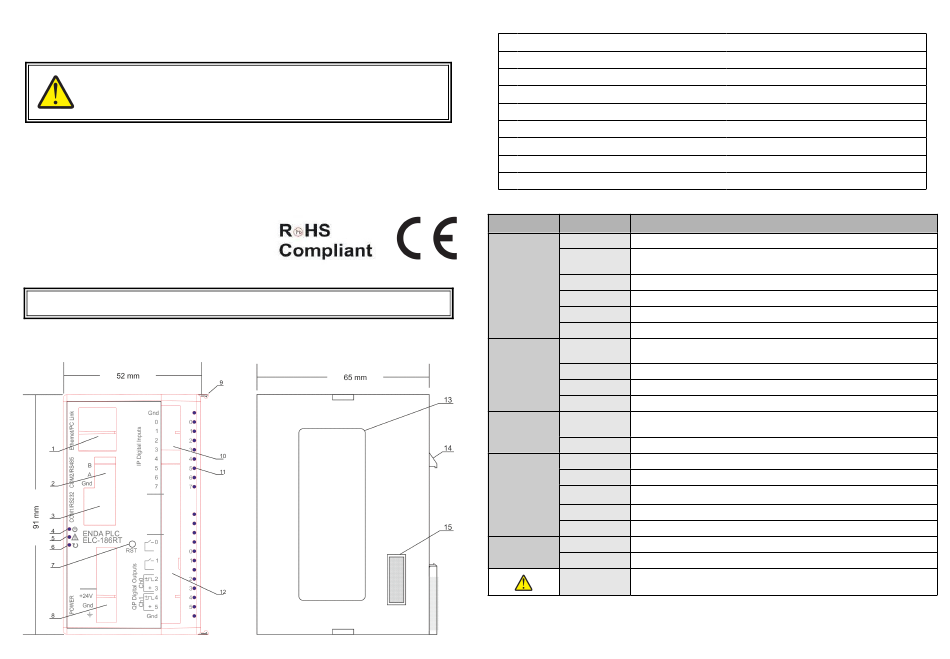

PLC parts and description

1 100Mb Ethernet port
2 RS485 serial port
3 RS232 serial port
4 PLC power status LED
5 PLC error status LED
6 Program RUN status LED
7 Reset button
8 Power supply terminal
9 DIN Ray installation flange

Technical Specification

Name Part Description
Power supply 24VDC, ±15% tolerans
Power 3WMax.
consumption
CPU process speed 80ns/command
General
Program language Graphical Ladder diagram with EndaSoft software.
Program capasity 48kB (Complied code)
Commands Logic, mathematical, communication, fast counter and timers, function blocks processed.
Ethernet port 100MB ethernet port for PC programming and network connections. Connection through
the and programmable feature.
Communication
RS232 Serial port, MODBUS RTU protocol support
ports
RS485 Serial port, MODBUS RTU protocol support
Input/Output Digital Outputs 2 channels 220V 3A relay output, 4 channels pnp 24VDC transistor output, (QP2 and QP4
are high speed output max 100kHz)
Digital Inputs 8 channels 24VDC pnp, 5mA connection, Logic 1 for >14VDC, Logic 0 for < 13VDC
Integer registers 1024 signed registers
Float registers 1024 signed float 32 registers
Counters 256 counters 32 bit up/down cunter
Memory
Timers 128 timer with 1ms resolution, 4 type timers
System registers 128 signed registers for accessing system properties
Temperature -10..+60C (without icing)
Environmental
conditions
Humidity 5..95rH nem
Do not use the device in locations subject to corrosive or flammable gasses.
10 Digital input terminal
11 IO status LEDs
12 Digital output terminals
13 Label area
14 DIN Ray installation flange
15 Expansion modul BUS connector.
16
17
