AURATON Fornax
User manual ver. 202000822
The document presents collected information on safety, assembly and use of AURATON Fornax.
Heating or air-conditioning device controller
(wireless receiver)
AURATON Fornax is a wireless controller of a heating or air-conditioning device, designed to work with
a gas or electric heating device.
Description of AURATON Fornax

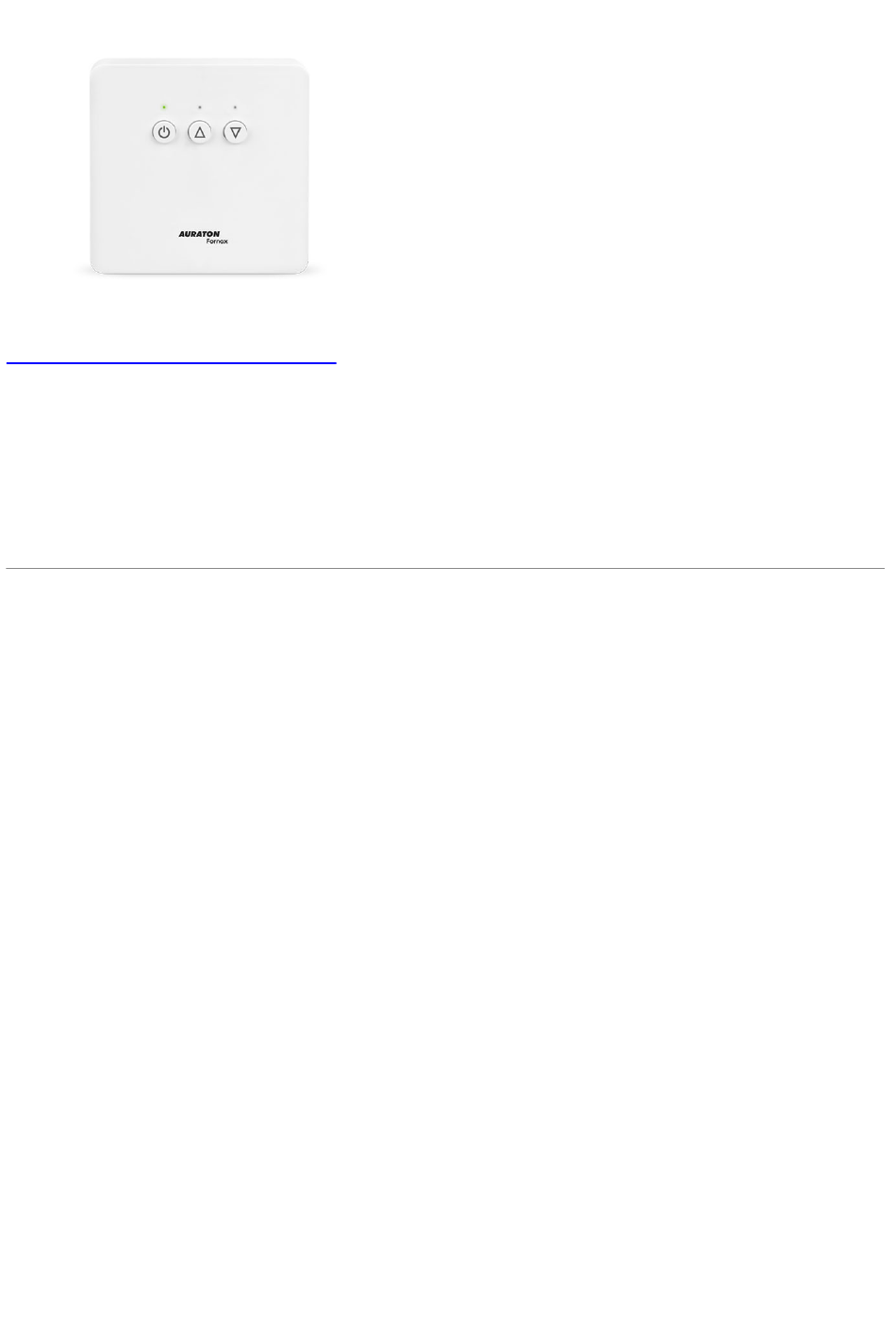

wireless controller of a heating or air-conditioning device
The AURATON Fornax (receiver) works with the wireless AURATON controllers. The received is installed
near the heating or air conditioning device and may work with the load of 16 A/10 A.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fornax and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AURATON Fornax

Summary of Contents for AURATON Fornax

  • Page 1 The document presents collected information on safety, assembly and use of AURATON Fornax. Heating or air-conditioning device controller (wireless receiver) AURATON Fornax is a wireless controller of a heating or air-conditioning device, designed to work with a gas or electric heating device. Description of AURATON Fornax wireless controller of a heating or air-conditioning device The AURATON Fornax (receiver) works with the wireless AURATON controllers.
  • Page 2 Detachable power connector terminals 230 V AC Mounting hole Power button Power supply diode Button to unpair devices Diode indicating that the actuator device is switched on Diode indicating that the actuator device has been switched off Button to pair devices with the receiver Control connectors Legend –...
  • Page 3 NOTE: while installing the AURATON Fornax receiver, the power supply should be turned off. It is recommended to entrust the installation of the receiver to a specialist.
  • Page 4 AURATON Fornax. Wires can be routed from the bottom of AURATON Fornax after holes are punched in the mounting plug or from the back of AURATON Fornax if the wires are pulled out of the wall. To connect from the back, break the plug. mounting plug...
  • Page 5 Connect the heating or air-conditioning device to the clips of the AURATON Fornax control connector. Follow the service manual of the heating or air-conditioning device. COM (common) and NO (normally open circuit) clips are most commonly used. Connect the power supply wires to the clips of the power supply connector of the AURATON Fornax...
  • Page 6 Wire mounting bracket. Once the wires are connected, secure them with the “wire mounting bracket” and screw the cover back onto the AURATON Fornax receiver. Mounting AURATON Fornax – heating or air-conditioning device controller (receiver) onto a wall...
  • Page 7 Mark the location of the holes for the mounting screws on the wall. Drill holes with diameters of the attached plugs (5 mm) where marked. Insert wall plugs into the drilled holes. Screw the AURATON Fornax receiver to the wall with the screws, so that the device is fixed securely. NOTE: If the wall is wooden, there is no need to use wall plugs.
  • Page 8 3 seconds, until the LED diode starts blinking green (double sound signal), then release the button. The AURATON Fornax receiver will wait 120 seconds for pairing. After this time elapses, it will automatically return to normal operation.
  • Page 9 3 seconds a double short sound signal is heard. The AURATON Fornax receiver will wait 120 seconds for pairing. After this time elapses, it will automatically return to normal operation.

  • Page 10: Special Cases

    The AURATON Fornax receiver is equipped with a unique algorithm for analysing the on/off cycles. The entire heating cycle from the last 24 hours is stored in AURATON Fornax memory. In the event of loss of communication with the AURATON wireless thermostat (transmitter), AURATON Fornax will automatically execute the stored on/off...

  • Page 11: Additional Information

    LED diodes). In the event of a power failure, AURATON Fornax will switch off. After power is restored, the heating device will automatically switch on, and AURATON Fornax will wait for a signal from the paired AURATON thermostat (transmitter) no longer than 5 minutes after power is restored.
  • Page 12 Control Heating device e.g. a gas furnace Electric heating device...

  • Page 13: Cleaning And Maintenance

    Cleaning and maintenance The outside part the device should be cleaned with a dry cloth. Do not use solvents (such as benzene, thinner or alcohol). Do not touch the device when your hands are wet. It may cause electric shock or serious damage to the device.
  • Page 14 The user is responsible for delivering the devices to a reception point for used-up electric and electronic equipment. Hereby, LARS Andrzej Szymanski declares that the radio equipment type AURATON Fornax is in compliance with Directive 2014/53/EU and 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: https://manuals.auraton.pl...
