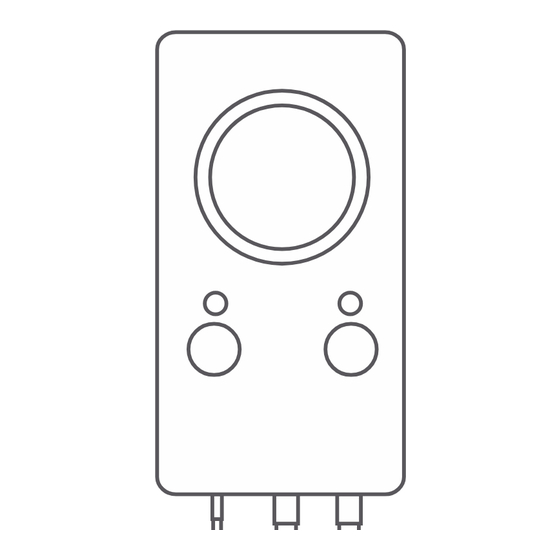

- Page 2 (DHW) pump controller Can be used as a CH pump controller. AURATON S08 can be used for automatically switching on and off circulation pumps depending on the temperature. The controller-pump assembly forces the water to circulate in the central heating system with a coal-fired boiler or a gas boiler.
-
Page 3: Installation
Installation Mounting the sensor: Operation in the CH mode. ź Then install the sensor on an uncovered outlet pipe connected to the CH boiler (as close to the boiler as possible). ź Press the sensor against the tube using a clamp. ź... -
Page 4: Description Of The Controller
Description of the controller Temperature, settings display, etc.; Operation indicator lights; Function button Function button /network switch; /operation modes; Temperature sensor; Power supply Pump control wire output;... -
Page 5: First Start
First start On the left side under the display there is the network switch button ( Hold the button for 2 seconds to switch the controller on or off. When the controller is on, the LED is illuminated red and when it is off, the LED is illuminated green. - Page 6 Setting of the hysteresis The hysteresis can be changed by simultaneously pressing and holding both the (–) and the (+) button for 4 seconds. The display will show for five seconds the blinking symbols indicating the controller’s operation mode ( [CO] [CU] ) and then, for another...
- Page 7 Manual switching on and off of the CH or DHW pump The controller makes it possible to manually switch on and off the CH or DHW pump. To do so, press and hold the right button (+) for 2 seconds. Use of this functionality is indicated by illumination of the right red indicator light and the ON ( [ON]...
- Page 8 Error information codes The pump is disconnected or The output power supply is disconnected, defective. waiting for the defect to be repaired; once the defect is repaired, press any button. No network synchronization The pump has been switched off; waiting for signal that protects the relay the power supply to be temporarily disconnected.
- Page 9 GUARD function The controller also has the GUARD functions which prevents the stalling process in the rotor of the pump when it is not in use. If the pump is not used for a long time, the built-in processor starts the pump automatically for 30 seconds every 14 days.
-
Page 10: Gas Boiler
Wiring diagram of the controller in the [CU] mode (work with a DHW pump) temperature sensor Wiring diagram (fix it with a band) of a DHW circuit (cold water) (hot water) Pump 230V DHW tank Wiring diagram with a DHW tank sensor 230V Gas boiler... -
Page 11: Technical Data
Technical data Operating temperature range: 0 – 40°C Temperature adjustment range: 20 – 90°C Temperature measurement range: 2 – 99°C Hysteresis: 2 – 8°C Power supply voltage: 230 V AC Maximum output load: Cleaning and maintenance ź The outside of the controller must be cleaned with a clean cloth. Do not use solvents (such as benzene, thinners, or alcohol). - Page 12 20181130...
