AURATON 1111 Multi User Manual

Modern, processorbased controller designed for c.h. and d.h.w. circulation pumps
Hide thumbs
Table of Contents

Advertisement

Quick Links

1 1 1 1 Multi

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1111 Multi and is the answer not in the manual?

Questions and answers

Related Manuals for AURATON 1111 Multi

Summary of Contents for AURATON 1111 Multi

  • Page 1 1 1 1 1 Multi...

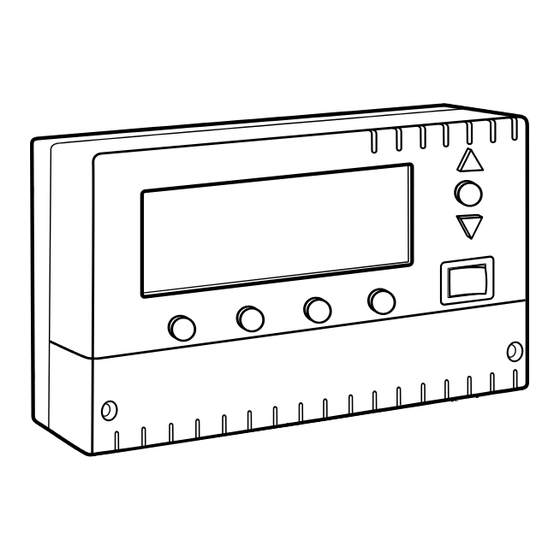

  • Page 2 AURATON 1111 Multi AURATON 1111 Multi is a modern, processor- AURATON 1111 Multi based controller designed for C.H. and D.H.W. circulation pumps. It can also be used for a hydronic fireplace heating system in the C.H. In addition, the can be used...
  • Page 3 AURATON 1111 Multi 1. Display The display of the AURATON 1111 MULTI controller divided into four part, each controlling a separate device. Part A: controls the central heating pump "C.H." SMIN Part B: SMIN controls the central heating pump "C.H." and the three- way valve "Z"...

  • Page 4: Controls And Terminals

    AURATON 1111 Multi 4. Power supply terminals 2. Controls and terminals 5. “+” (plus) button - increase the temperature settings Warning: unscrew plastic cover for terminals. 6. “OK” button - activate the manual mode and accept 7. “-” (minus) button - decrease the temperature settings 8.
  • Page 5 AURATON 1111 Multi The pump-controller unit forces the water flow in the C.H. 3. Controller in the C.H. mode system with a coal- or gas-fired boiler without the punt (part A of the display) controlling circuit. The controller’s sensor measures the water temperature o the supply line to the C.H.

  • Page 6: Installation

    AURATON 1111 Multi 3.1.4) Checking the wiring correctness 3.1 Installation Check if the wiring is correct and fasten the terminal box 3.1.1) Mounting the controller cover with screws. Mount the controller on the wall or a bracket with two 3.1.5) Connecting the power supply to the controller screws (expansion plugs with screws are included in the controller kit).

  • Page 7: Operation Of The Controller

    AURATON 1111 Multi 3.2.4) Automatic operation 3.2 Operation of the controller When the settings are made, the controller switches the 3.2.1) Starting the controller pump on and off depending on the set temperature. In the Put the switch in position “I”. The display will show C.H.
  • Page 8 AURATON 1111 Multi 3.3 Wiring diagram 4. Controller operating with C.H. pump and three-way valve “Z” (or the other C.H. pump (- fireplace heating system) (part B of the display) SR1 SR2 SR3 OUT1 OUT2 OUT3 OUT4 OUT5 L 230VAC...
  • Page 9 AURATON 1111 Multi temperature setting of three-way valve or the other features also the AURATON 1111 Multi GUARD C.H. pump function to prevent seizure of the pump impeller when the C.H. pump operation indicator pump is not used. After the heating season, an additional operation indicator - three-way valve or the other C.H.
  • Page 10 AURATON 1111 Multi 4.1.3) Connecting the C.H. pump 4.2 Operation of the controller Connect the pump to the OUT2 terminals on the controller 4.2.1) Starting the controlle , N). Connect the green or yellow-green conductor to Put the switch in position “I”. All display segments will the terminal “...
  • Page 11 AURATON 1111 Multi Confirm by pressing “OK” within 10 seconds. Otherwise, Step 2: the new set value will not be stored in the memory and the If within 2 seconds the “B” button is pressed again (with the controller will return to the previous setting.

  • Page 12: Wiring Diagram

    AURATON 1111 Multi 1. Hydronic fireplace 4.5 Wiring diagram 2. Cut-off valve Typical wiring diagram. The diagram below is simplified ad does not include all components necessary for the correct 3. pump operation of the system. 4. exchanger 5. three-way valve with actuator 6.
  • Page 13 AURATON 1111 Multi The electronic pump controller AURATON 1111 MULTI can 5. Controller in the D.H.W. mode also be used for automatic control of the circulation pump (part C of the display) in the domestic hot water system (D.H.W.). In the D.H.W. system the user maintains the constant temperature of the water in the storage vessel or in the D.H.W.
  • Page 14 AURATON 1111 Multi confirm by pressing “OK” within 10 seconds. Otherwise, 5.1 Operation with deactivated priority of D.H.W. the new set value will not be stored in the memory and the over C.H. controller will return to the previous setting. When new Operation with deactivated priority of D.H.W.
  • Page 15 AURATON 1111 Multi 5.2.1) Manual operation - continuous 5.2 Operation with activated priority of D.H.W. over C.H. To activate the circulation pump manually (irrespective of the temperature on the SR3 D.H.W. sensor), first If the priority of D.H.W. over C.H. is activated, the start of...
  • Page 16 AURATON 1111 Multi 5.3.3) Connecting the D.H.W. pump 5.4 Operation of the controller Connect the pump to the OUT4 terminals on the controller 5.4.1) Starting the controller (L, , N). Connect the green or yellow-green conductor to Put the switch in position “I”.
  • Page 17 AURATON 1111 Multi 5.5.2) with the D.H.W. storage tank 5.5 Wiring diagram 5.5.1) In the D.H.W. circuit SR1 SR2 SR3 OUT1 OUT2 OUT3 OUT4 OUT5 SR1 SR2 SR3 L 230VAC OUT1 OUT2 OUT3 OUT4 OUT5 L 230VAC Pump Temperature sensor...

  • Page 18: Fan Control

    AURATON 1111 Multi 5. Fan operation (ON) and intervals between blow-downs 6. Fan control (OFF). (part D of the display) 6. Temperature setting below which the fan operation is triggered 7. Time units , is a modern, processor-based AUARTON 1111 MULTI...
  • Page 19 AURATON 1111 Multi 6.1.5) Connecting the power supply to the blower 6.1 Instalacja Connect the blower to the OUT5 (L, , N) terminals on the 6.1.1) Mounting the controller controller. Mount the controller on the wall or a bracket with two...
  • Page 20 AURATON 1111 Multi Confirm by pressing “OK” within 10 seconds. Otherwise, 6.2 Operation of the controller the new set value will not be stored in the memory and the 6.2.1) Załączanie sterownika controller will return to the previous setting. Starting the controller Put the switch in position “I”.
  • Page 21 AURATON 1111 Multi se the “+” (increase) or “-“ (decrease) buttons to set the On the other hand, if the temperature on the SR1 (C.H.) required value (when you exceed 59 seconds, the time will sensor exceeds the temperature set for the fan, then fan automatically be displayed in minutes).
  • Page 22 AURATON 1111 Multi - EE -if the temperature measured by the SR1 sensor exceeds 90oC, the cyclical operation mode of the fan will be inactive (no control and the OUT5 output), and the display will show the “EE” message., protecting against excessive burning in the boiler furnace.

  • Page 23: Display Backlighting

    AURATON 1111 Multi 7. Display backlighting 9. RESET The display backlighting is activated for 10 seconds every In extreme case (controller hangs) you can use the time any key is pressed. “RESET” function. If you need to backlight the display permanently, press and The button is located under the flap covering the terminals.

  • Page 24: Technical Specification

    AURATON 1111 Multi C) Technical specification for the controller operating 10.Technical specification with the domestic hot water D.H.W. pump A) Technical specification for the controller in C.H. Temperature setting range: 10oC ÷ 90oC mode Measurement range: 0oC ÷ 99oC Temperature setting range: 10oC ÷ 90oC Hysteresis (activation/deactivation difference): 3oC Measurement range: 0oC ÷...
