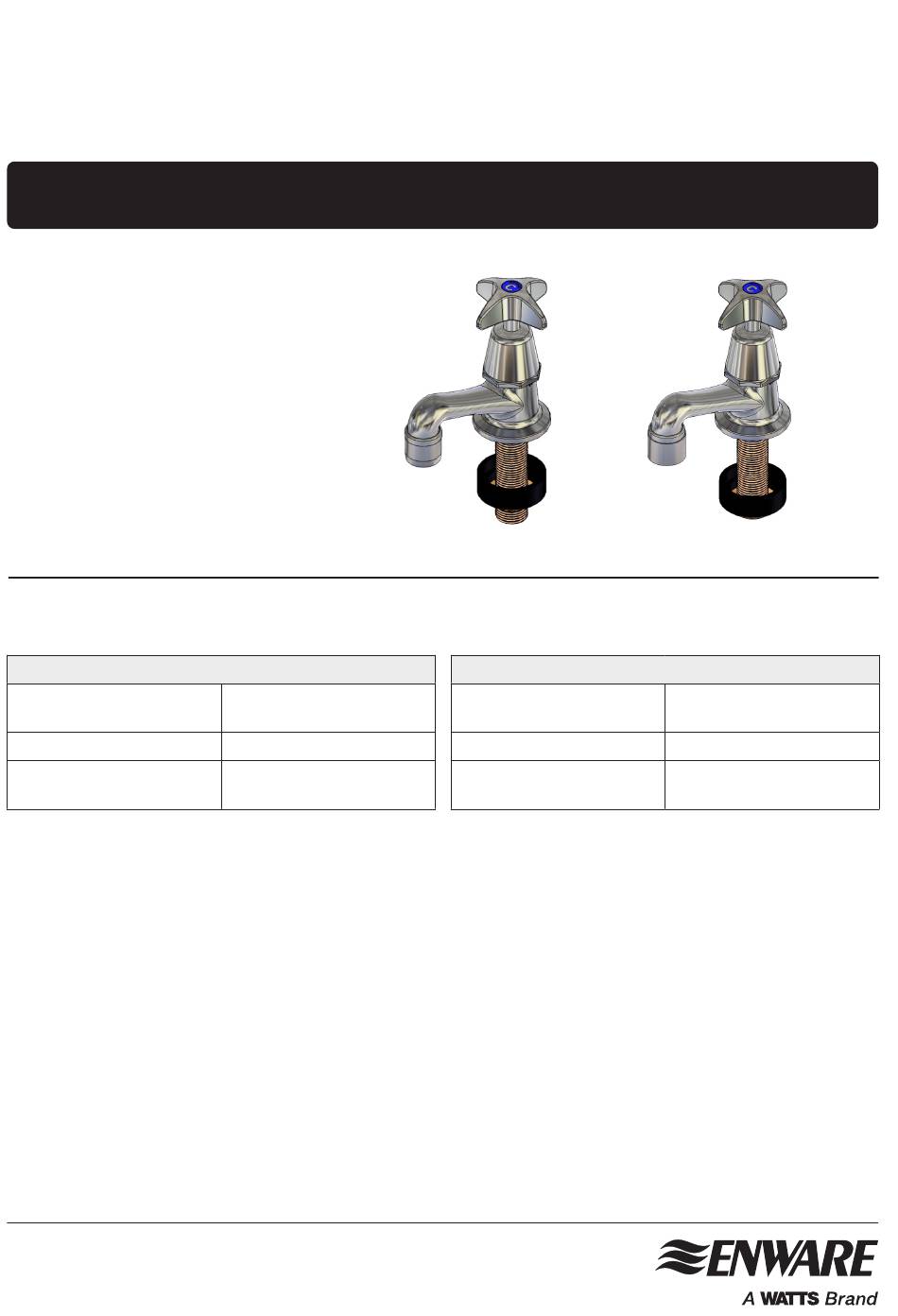

School Pattern Pillar Tap
Installation and Maintenance Instructions
VP327
VP327S
VPQ327
technical data
Jumper Valve
Working Pressure Range
Maximum Static Pressure 1200 kPa
Maximum Working
Temperature
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
I00531_20 Dec 2023
1300 369 273 | info@enware.com.au | enware.com.au
Min 50 kPa
Max 500 kPa
95°C
Ceramic Disc
Working Pressure Range
Maximum Static Pressure 800 kPa
Maximum Working
Temperature
Min 50 kPa
Max 500 kPa
85°C
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Watts ENWARE VP327
Summary of Contents for Watts ENWARE VP327
- Page 1 School Pattern Pillar Tap Installation and Maintenance Instructions VP327 VP327S VPQ327 technical data Jumper Valve Ceramic Disc Working Pressure Range Min 50 kPa Working Pressure Range Min 50 kPa Max 500 kPa Max 500 kPa Maximum Static Pressure 1200 kPa Maximum Static Pressure 800 kPa 95°C 85°C...
-
Page 2: Installation Procedure
installation Ensure all supply lines are flushed thoroughly to remove debris prior to the installation of this product. Strainers (40 mesh) are recommended if debris is an ongoing problem. A pressure reduction valve may be required to comply with the recommended maximum supply pressure requirements. - Page 3 5. Fit indicator button onto handle. To do this, ensure the surface of handle is clean and dry, free of dust, moisture and grease. Peel off the indicator button from its backing paper, taking care not to touch the adhesive side.
-
Page 4: Maintenance
maintenance ACCESS TO SBA SPINDLE Turn off the water supply and turn on the tap handle to drain water from the tap bodies. Remove the insert from the handle by using the spanner key, then remove the handle. SEE IMAGE 04 & 05 Use the semi-circle cutout on the spanner key to push &... - Page 5 AERATOR Spout aerator should be checked and cleaned periodically for debris. For Anti-Vandal Aerator, use aerator key to unscrew spout aerator. Inspect and reverse rinse aerator under running water to clear any debris. Replace aerator if necessary. IMAGE 08 CLEANING Enware products should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water.
-
Page 6: Spare Parts
spare parts PART ENWARE SALES CODE SBA - VP Bib / Pillar Jumper Valve VP380 SBA - VPQ Bib / Pillar Ceramic Disc 1/2 Turn VPQ380 Top Assembly - Bib / Pillar Jumper Valve (handle, SBA & dome) VP390 Top Assembly - Bib / Pillar Ceramic Disc (handle, SBA & dome) VPQ390 School Pattern (VP) handle (incl. -
Page 7: Troubleshooting
troubleshooting PROBLEM CAUSE RECTIFICATION Water leaking from outlet Jumper valve / SBA spindle Remove SBA and inspect. has debris caught in the Remove debris and clean. Water dripping and does mechanism. Install an inline strainer. not shut off Tap seat is damaged Refurbish tap seat using a reseating tool. -
Page 8: Product Warranty Statement
- WATTS AUSTRALIA Effective 27 October 2023 3. Our responsibilities This Warranty Statement applies to products supplied by Australian Valve (a) In the event that the Supplier is reasonably satisfied that there is a Group Pty Ltd (ACN 068 227 270) (AVG) or Enware Pty Ltd (ACN 662...
